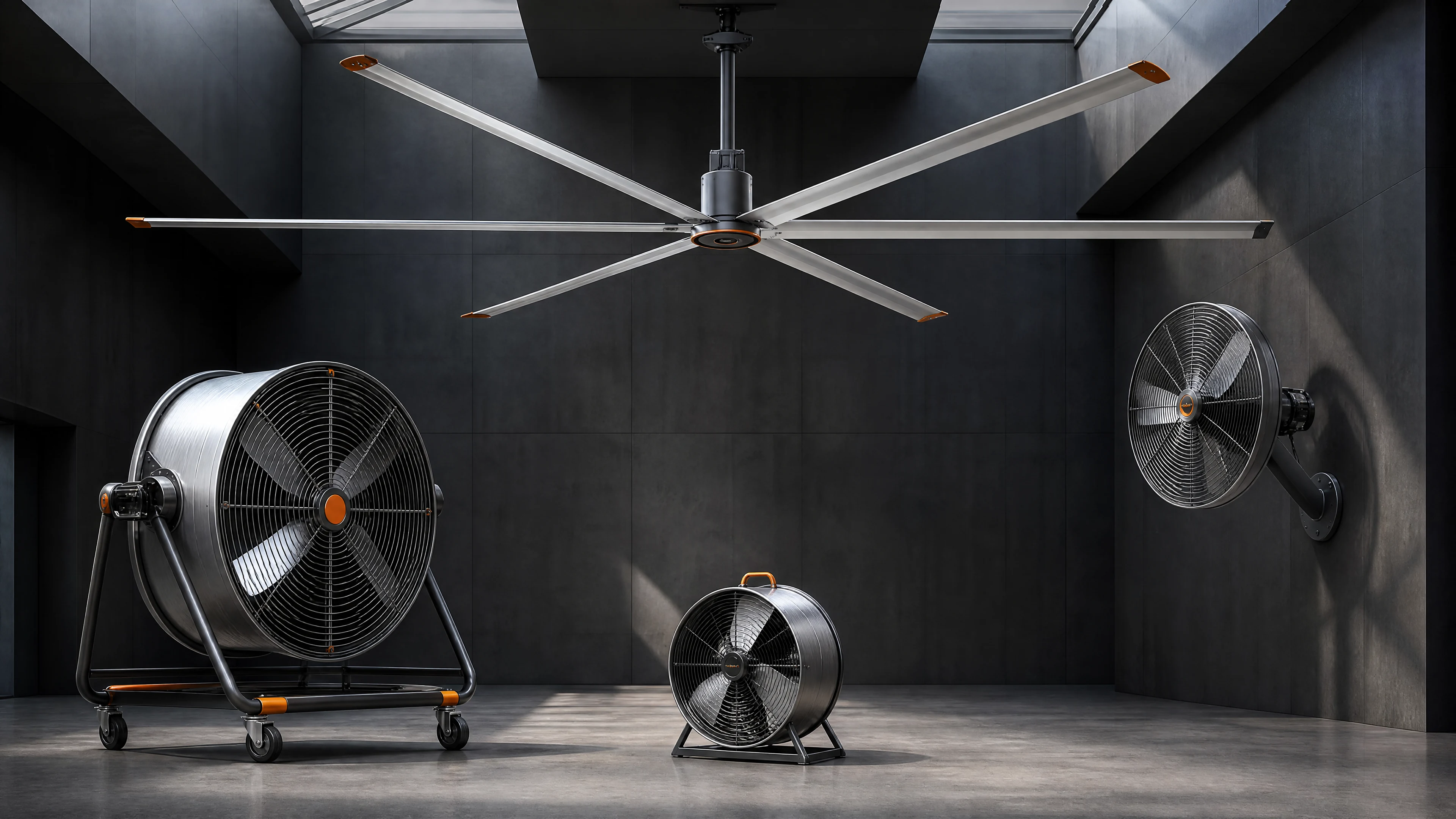

AirMoveX industrial fan product family in an architectural studio

AirMoveX Product Library

Every Model Has A Job To Do

Compare the AirMoveX ceiling, mobile and specialty platforms before we configure the final product for your building and destination.

Model Names That Make The Range Clear

AirMoveX model codes identify the platform, fan type, size and blade configuration without carrying supplier branding into the buyer experience.

All figures are preliminary catalog references. Final configuration, electrical input, certification scope and performance data must be confirmed in the quotation and order documents.

Ceiling Air Movement

PMSM Ceiling Fan Systems

Large-diameter and compact ceiling platforms for broad, low-speed circulation across industrial and commercial spaces.

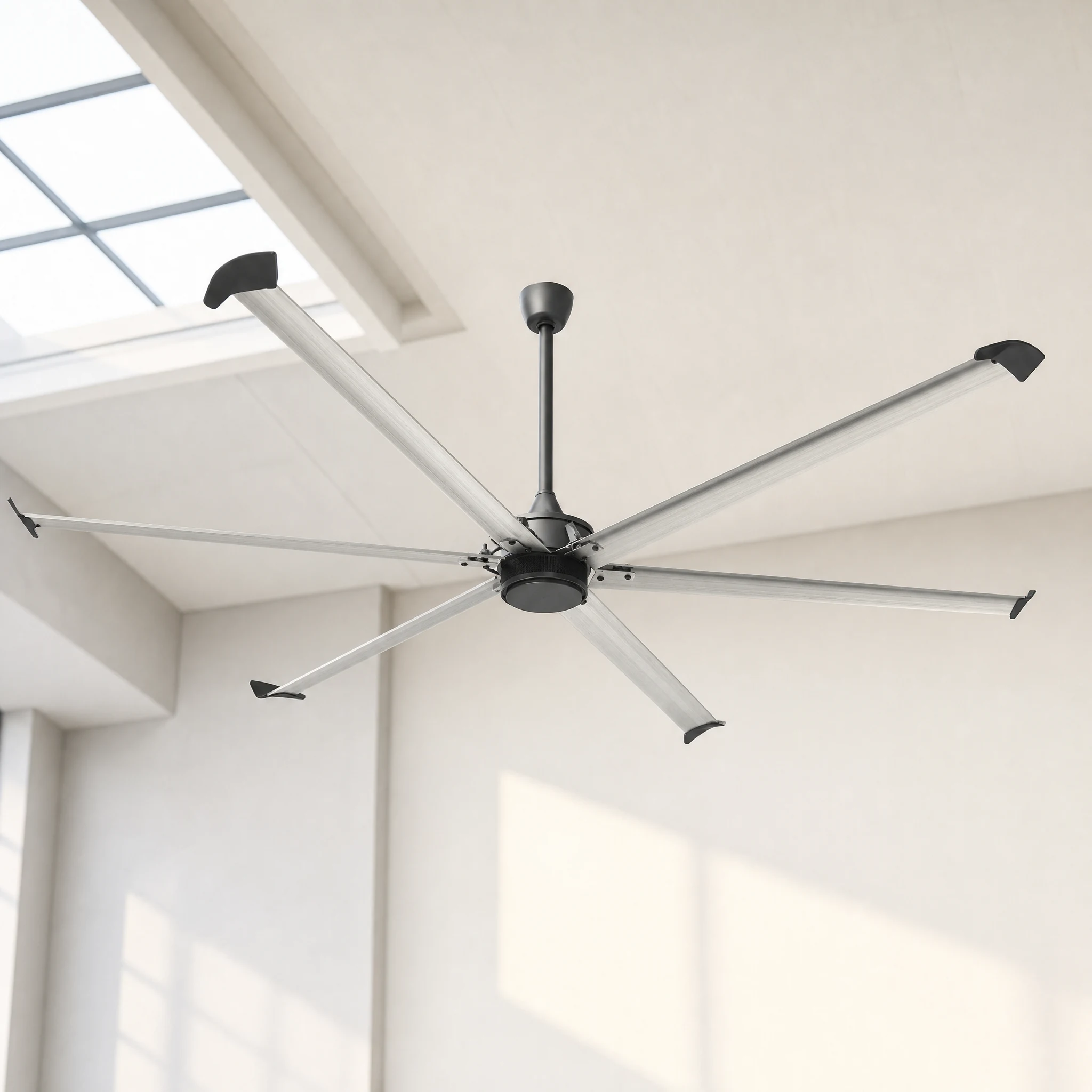

AirMoveX AXV-H six-blade HVLS industrial ceiling fan — AXV-H Series18–24 ft

AXV-H Series

Six-Blade HVLS Fan

18–24 ft

The flagship platform for high-bay warehouses, factories and logistics buildings where one fan must move a broad column of air.

Six aluminum airfoil blades
PMSM direct-drive platform
220/380 V configurations
Indicative sound level ≤ 40 dB(A)

Typical ApplicationsLarge warehouses, logistics centers, factories and agricultural buildings

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXV-H24-6	7.32 m / 24 ft	1,500 W	50 rpm	14,950 m³/min	1,200 m²	114 kg
AXV-H22-6	6.72 m / 22 ft	1,500 W	55 rpm	13,500 m³/min	1,100 m²	111 kg
AXV-H20-6	6.12 m / 20 ft	1,200 W	60 rpm	12,700 m³/min	1,000 m²	108 kg
AXV-H18-6	5.52 m / 18 ft	1,200 W	65 rpm	11,400 m³/min	900 m²	105 kg

Ask About AXV-H Series

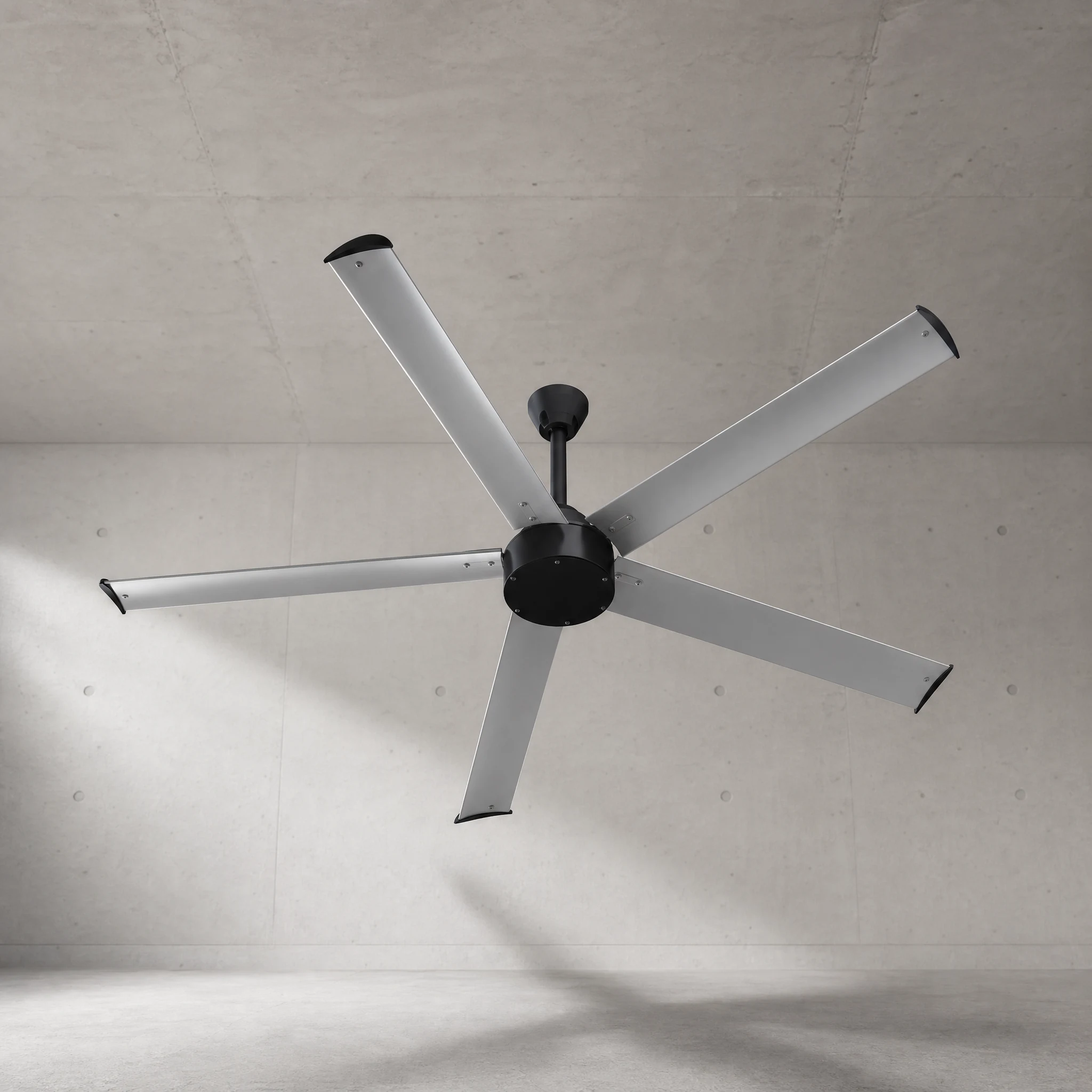

AirMoveX AXV-L five-blade PMSM ceiling fan — AXV-L Series8–16 ft

AXV-L Series

Five-Blade HVLS Fan

8–16 ft

A lighter five-blade platform for medium industrial spaces, workshops, gyms and commercial interiors.

Five tapered airfoil blades
220 V / 50–60 Hz
Compact PMSM motor
Indicative sound level ≤ 40 dB(A)

Typical ApplicationsWorkshops, medium warehouses, gyms, showrooms and retail spaces

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXV-L16-5	4.88 m / 16 ft	800 W	70 rpm	8,850 m³/min	770 m²	55 kg
AXV-L14-5	4.28 m / 14 ft	800 W	90 rpm	7,100 m³/min	640 m²	51 kg
AXV-L12-5	3.68 m / 12 ft	700 W	100 rpm	5,700 m³/min	470 m²	40 kg
AXV-L10-5	3.08 m / 10 ft	650 W	125 rpm	5,000 m³/min	400 m²	38 kg
AXV-L08-5	2.48 m / 8 ft	550 W	155 rpm	4,100 m³/min	300 m²	31 kg

Ask About AXV-L Series

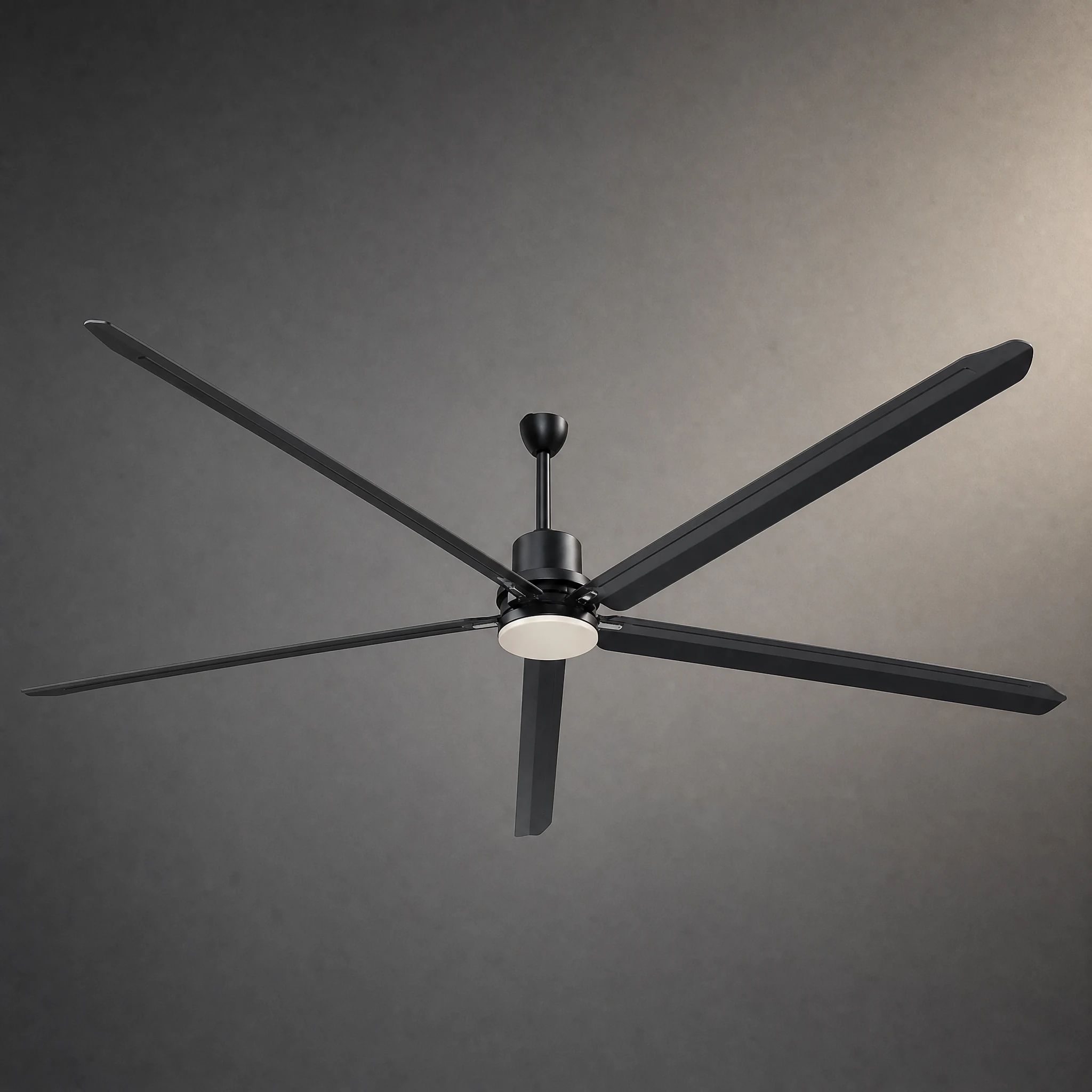

AirMoveX AXV-C compact black architectural ceiling fan — AXV-C Series7.8–11.8 ft

AXV-C Series

Compact Architectural Fan

7.8–11.8 ft

A slim matte-black five-blade platform for lower ceiling heights and interiors where appearance matters as much as circulation.

Slim five-blade construction
10-speed remote control option
Integrated-light configuration available
220 V / 50–60 Hz

Typical ApplicationsCommercial interiors, dining halls, showrooms, schools and light industrial spaces

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXV-C12-5	3.60 m / 11.8 ft	400 W	95 rpm	5,700 m³/min	460 m²	23 kg
AXV-C11-5	3.30 m / 10.8 ft	400 W	105 rpm	5,350 m³/min	350 m²	22 kg
AXV-C10-5	3.00 m / 9.8 ft	350 W	115 rpm	5,200 m³/min	290 m²	21 kg
AXV-C09-5	2.70 m / 8.8 ft	350 W	125 rpm	4,600 m³/min	240 m²	20 kg
AXV-C08-5	2.40 m / 7.8 ft	350 W	135 rpm	4,100 m³/min	190 m²	19 kg

Ask About AXV-C Series

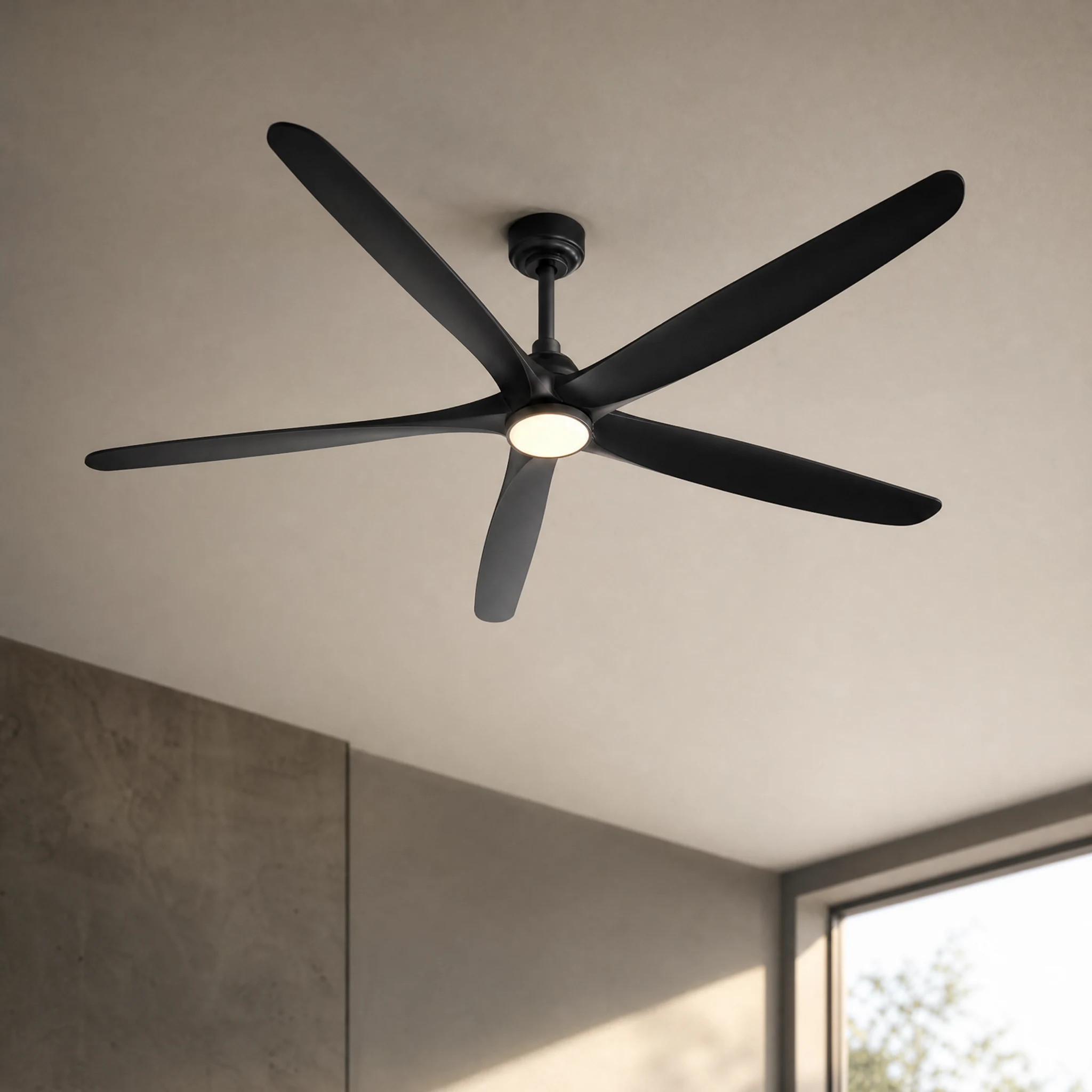

AXV-R Series

Commercial Ceiling Fan With Light

79–98 in

A five-blade ceiling fan with integrated lighting for occupied commercial and education spaces.

Five ABS blades
Integrated LED light option
10-speed remote control
Indicative sound level ≤ 40 dB(A)

Typical ApplicationsRetail, classrooms, dining areas, lobbies and activity rooms

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXV-R98-5	2.50 m / 98 in	400 W	150 rpm	2,650 m³/min	310 m²	18 kg
AXV-R79-5	2.00 m / 79 in	360 W	200 rpm	2,100 m³/min	210 m²	17 kg

Ask About AXV-R Series

Point-Of-Use Airflow

Mobile And Drum Fans

Plug-in platforms that bring high-volume airflow directly to production cells, loading zones and changing work areas.

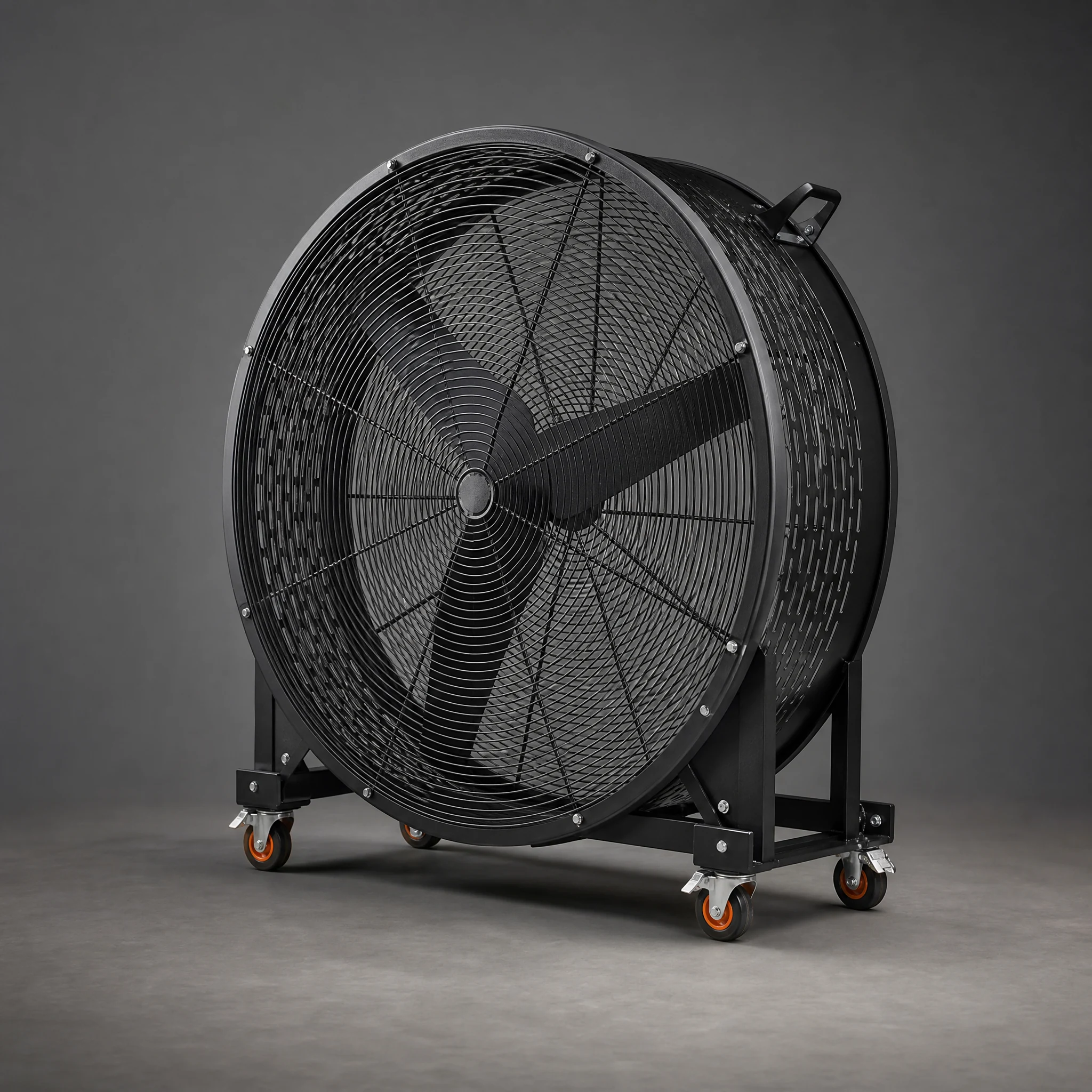

AirMoveX AXM-D industrial drum fan on locking casters — AXM-D Series37–53 in

AXM-D Series

PMSM Drum Fan

37–53 in

A compact three-blade drum platform with a deep shroud and locking casters for focused industrial airflow.

Three GFRP blades
PMSM drive platform
Locking casters
220 V / 50–60 Hz

Typical ApplicationsProduction lines, workshops, events, livestock and food-processing areas

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXM-D53	1.35 m / 53 in	600 W	500 rpm	660 m³/min	—	48 kg
AXM-D43	1.10 m / 43 in	560 W	600 rpm	410 m³/min	—	46 kg
AXM-D37	0.95 m / 37 in	530 W	680 rpm	300 m³/min	—	44 kg

Ask About AXM-D Series

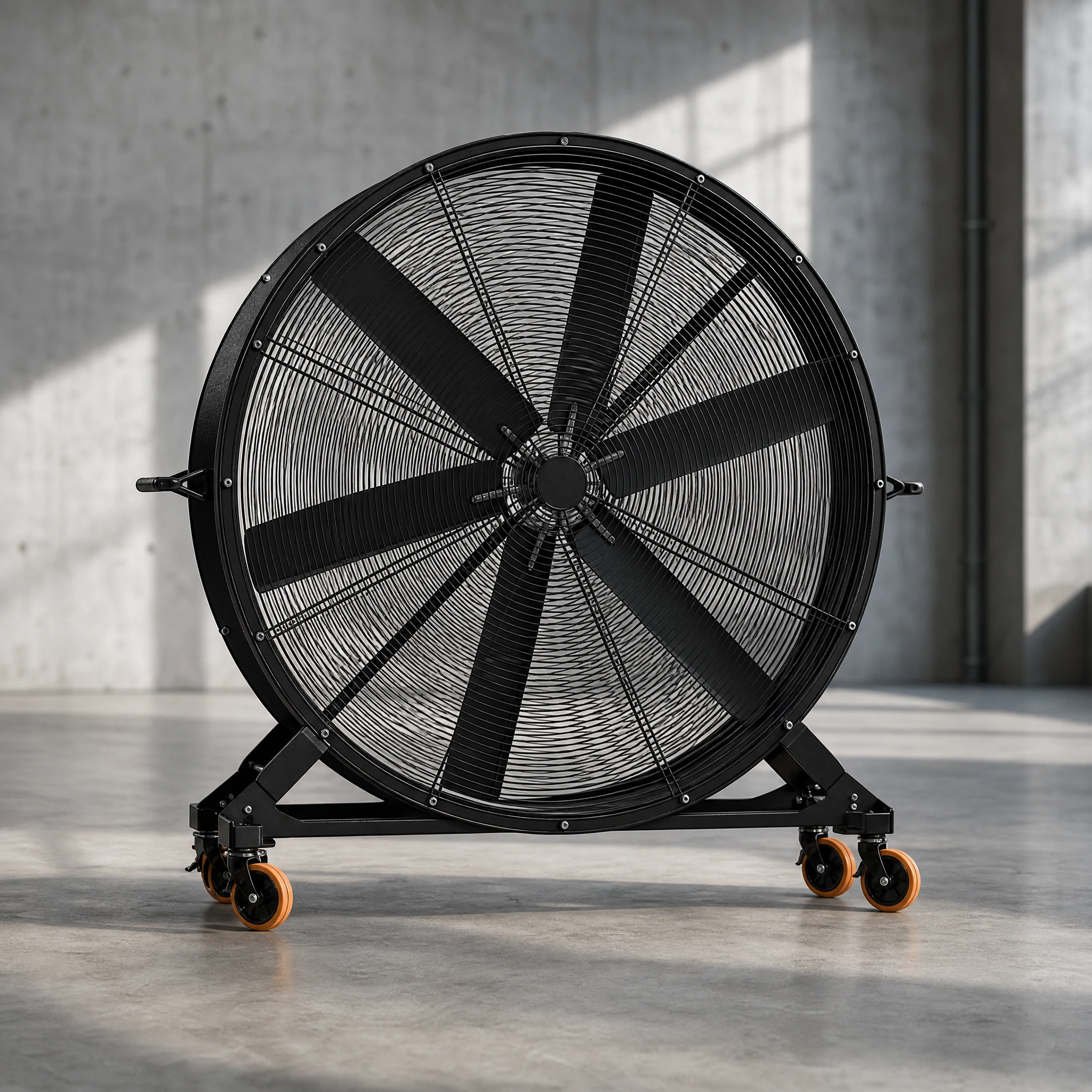

AirMoveX AXM-M large mobile industrial axial fan — AXM-M Series37–78 in

AXM-M Series

Large Mobile Axial Fan

37–78 in

A high-output six- or five-blade mobile platform for large temporary zones and demanding factory applications.

Aluminum blade platform
Tubular wheeled frame
Factory-assembled
220 V plug-in configuration

Typical ApplicationsFactories, aircraft hangars, warehouses, loading areas and temporary work zones

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXM-M78	2.00 m / 78 in	960 W	260 rpm	1,700 m³/min	—	175 kg
AXM-M74	1.90 m / 74 in	950 W	260 rpm	1,200 m³/min	—	137 kg
AXM-M57	1.50 m / 57 in	950 W	400 rpm	720 m³/min	—	103 kg
AXM-M47	1.20 m / 47 in	500 W	450 rpm	420 m³/min	—	70 kg
AXM-M37	0.90 m / 37 in	500 W	700 rpm	280 m³/min	—	57 kg

Ask About AXM-M Series

Targeted Ventilation

Specialty And Exhaust Fans

Misting, wall, pedestal, moveable and exhaust configurations for localized circulation and air exchange.

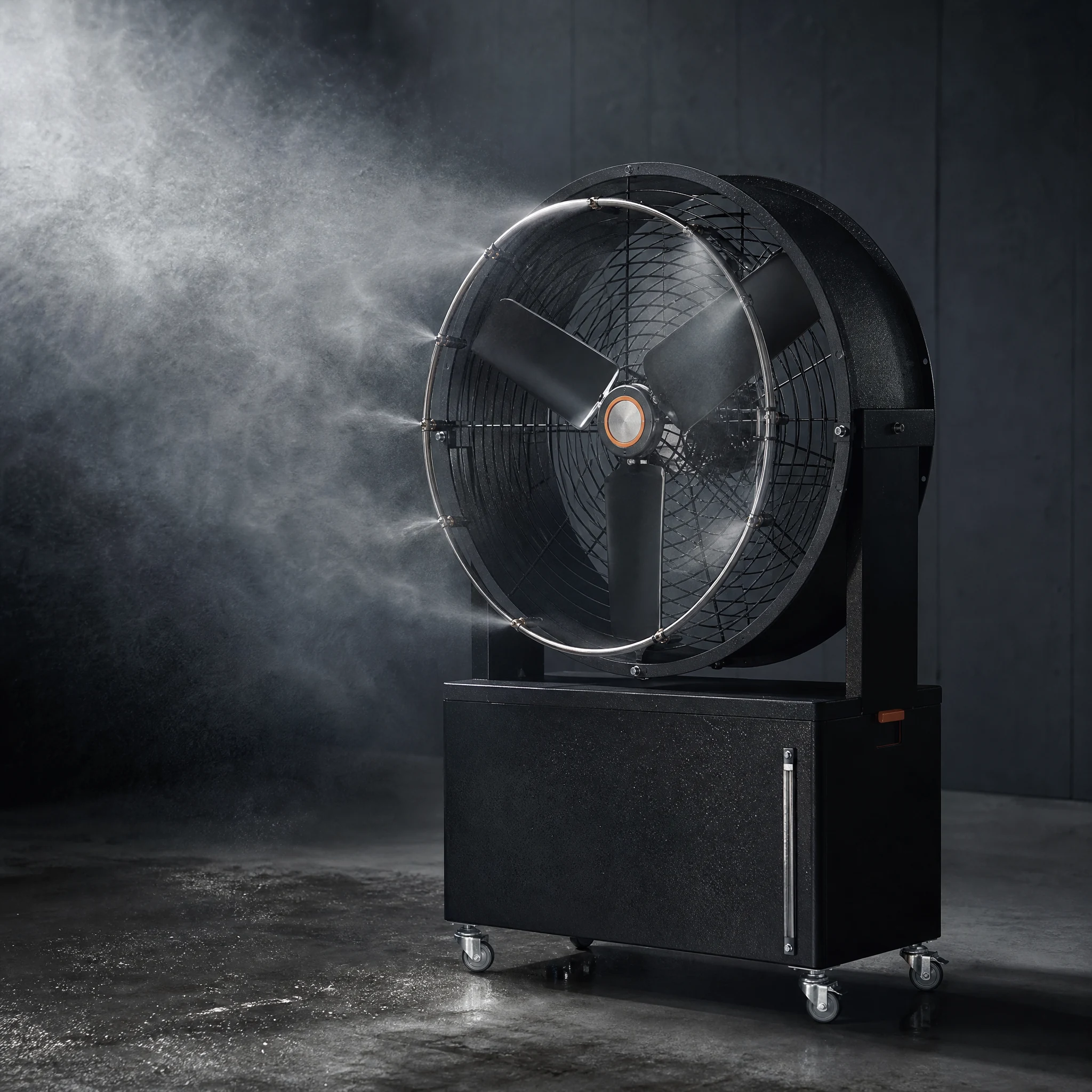

AirMoveX industrial misting fan with water tank and casters — AXS-MS Series37 in

AXS-MS Series

Industrial Mist Fan

37 in

A mobile tank-and-fan system for dry, high-heat areas that need localized evaporative support.

Three GFRP blades
Integrated tank cabinet
0–15 L/h adjustable flow
Locking casters

Typical ApplicationsOutdoor work zones, event spaces, workshops and agricultural facilities

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXS-MS37	0.95 m / 37 in	530 W	680 rpm	300 m³/min	50 L tank	92 kg

Ask About AXS-MS Series

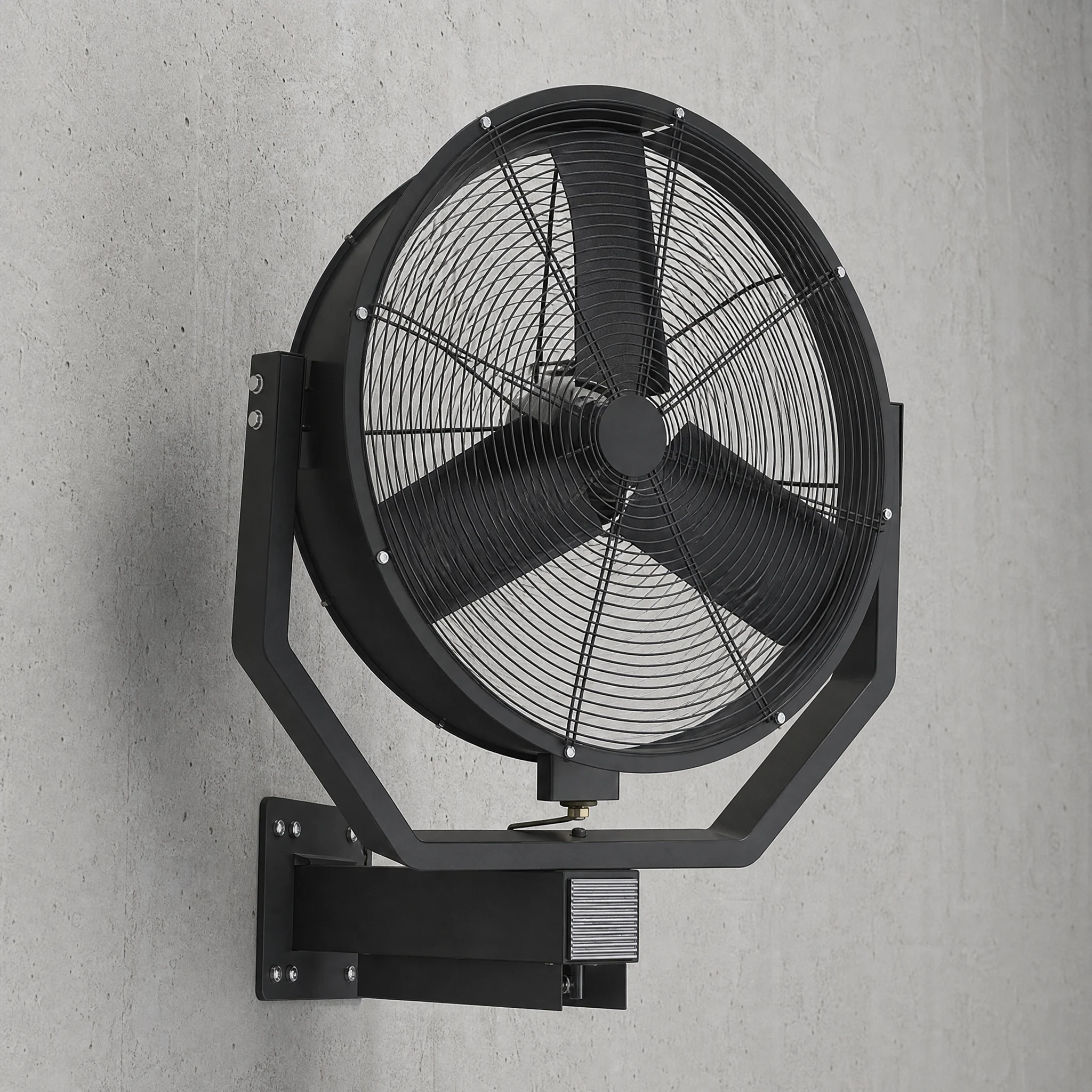

AXS-W Series

Wall-Mounted Oscillation Fan

37–43 in

A heavy-duty three-blade wall platform that keeps floor space clear while aiming airflow into occupied zones.

Three GFRP blades
Reinforced wall bracket
Adjustable tilt and oscillation
220 V / 50–60 Hz

Typical ApplicationsWorkshops, packing areas, barns and production cells

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXS-W43	1.10 m / 43 in	560 W	600 rpm	410 m³/min	—	75 kg
AXS-W37	0.95 m / 37 in	530 W	680 rpm	300 m³/min	—	70 kg

Ask About AXS-W Series

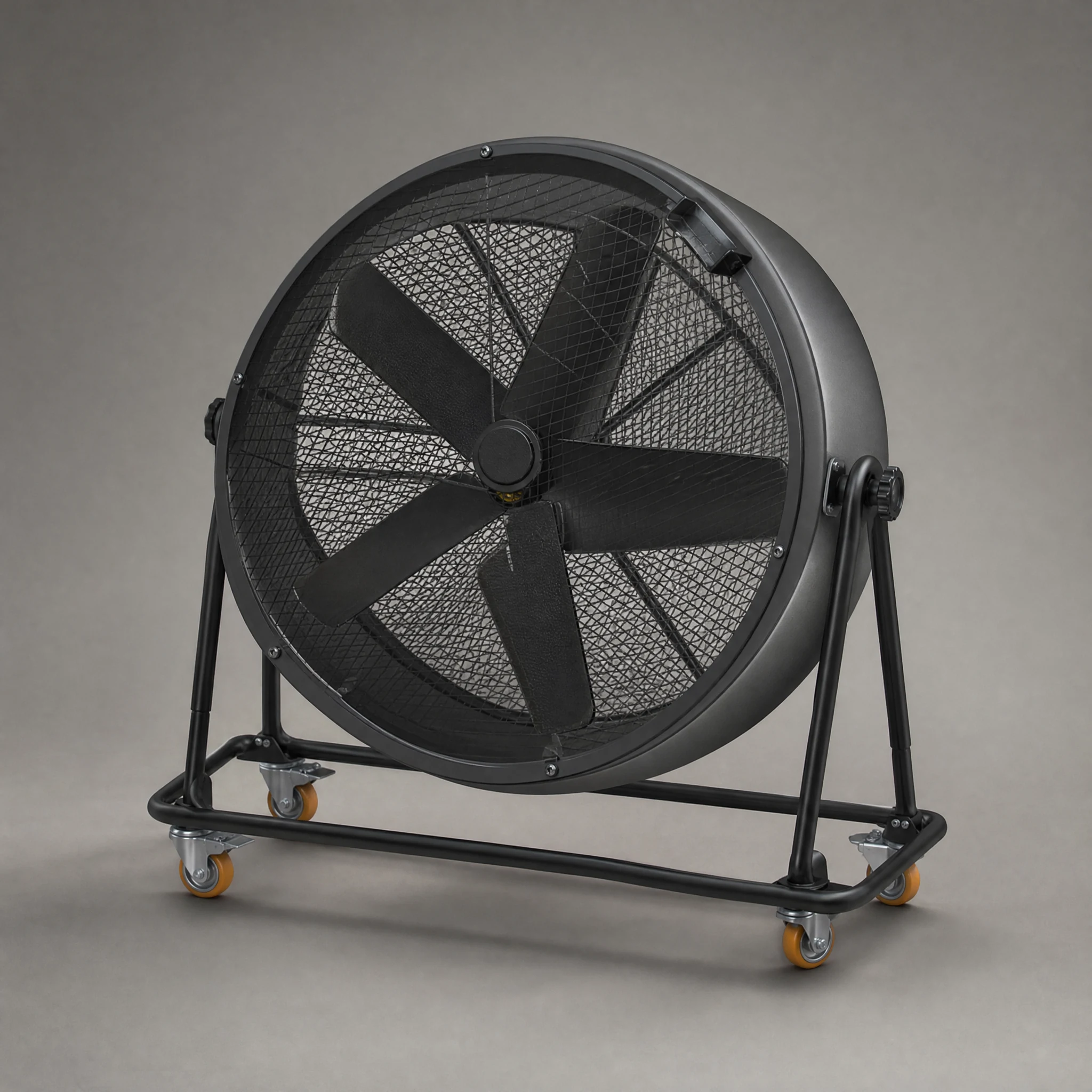

AirMoveX tilting moveable industrial fan on locking casters — AXS-M Series24–32 in

AXS-M Series

Tilting Moveable Fan

24–32 in

A compact five-blade fan with manual 130-degree pitch adjustment and a rolling low-frame base.

Five powder-coated blades
Manual 130° pitch range
Three-meter power lead
Locking casters

Typical ApplicationsLogistics, farms, event halls, gyms, food production and workshops

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXS-M32	0.82 m / 32 in	500 W	600 rpm	285 m³/min	—	36 kg
AXS-M27	0.70 m / 27 in	400 W	700 rpm	200 m³/min	—	32 kg
AXS-M24	0.60 m / 24 in	400 W	800 rpm	150 m³/min	—	28 kg

Ask About AXS-M Series

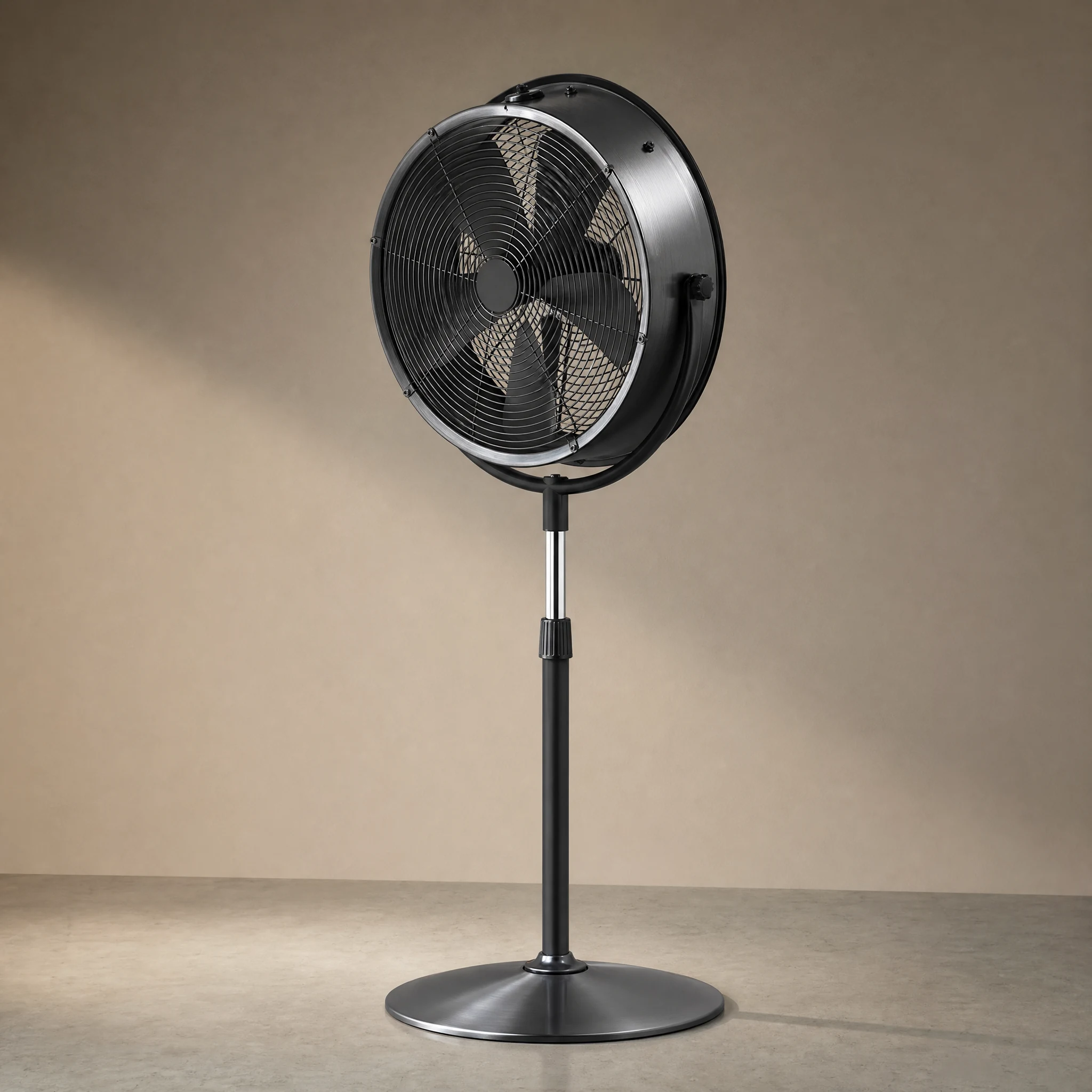

AXS-P Series

Pedestal Industrial Fan

13–20 in

A height-adjustable pedestal platform for smaller occupied zones, counters and light commercial spaces.

Three aluminum blades
Four-speed switch
Manual tilt adjustment
Height-adjustable column

Typical ApplicationsShops, offices, compact work areas and service counters

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXS-P20	0.52 m / 20 in	160 W	1,400 rpm	96 m³/min	—	12 kg
AXS-P17	0.43 m / 17 in	120 W	1,400 rpm	72 m³/min	—	10 kg
AXS-P13	0.33 m / 13 in	45 W	1,400 rpm	41 m³/min	—	8 kg

Ask About AXS-P Series

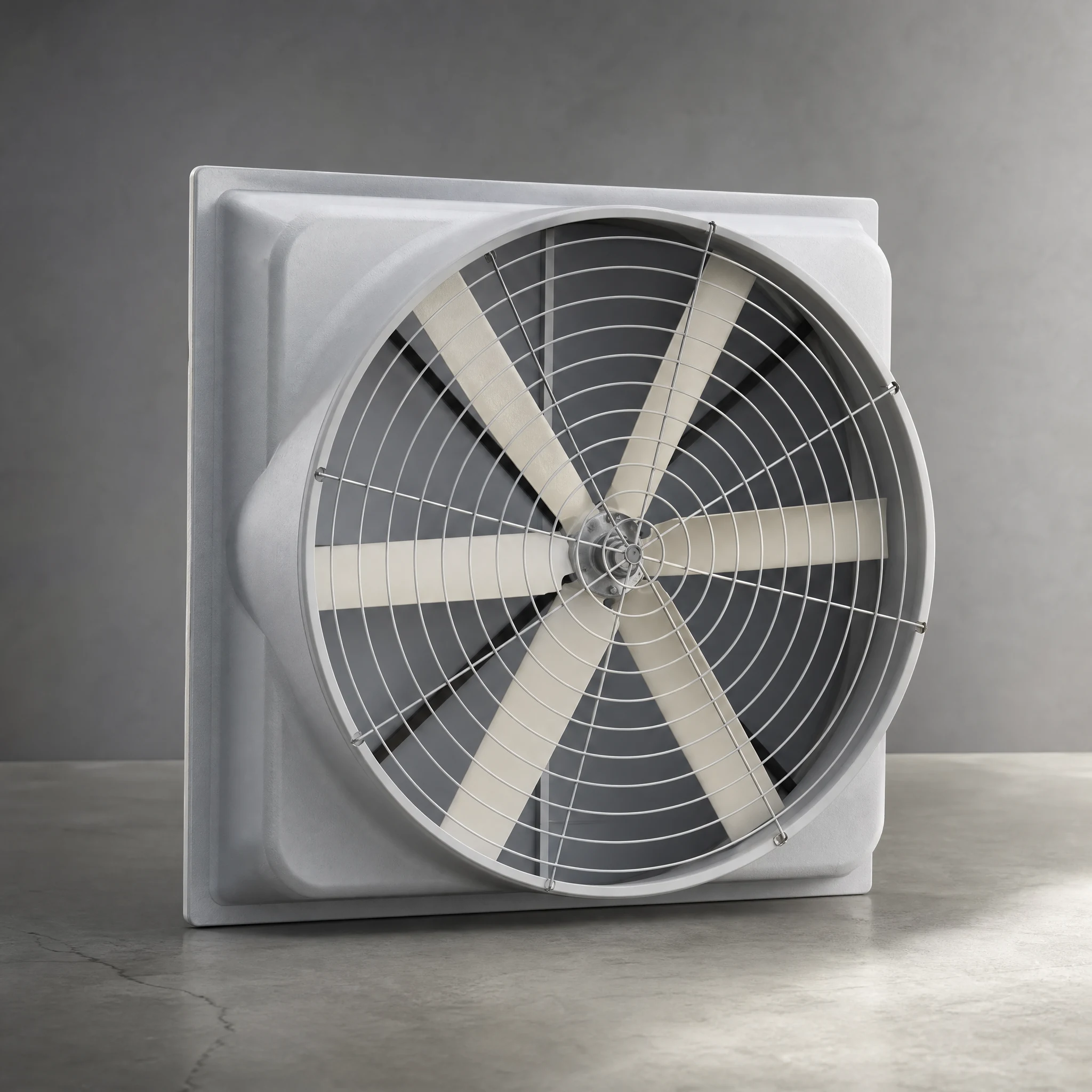

AirMoveX square FRP industrial exhaust fan — AXE-E Series26–50 in

AXE-E Series

FRP Exhaust Fan

26–50 in

A beltless six-blade exhaust platform for air exchange in hot, humid or process-heavy buildings.

Six FRP blades
PMSM beltless drive
Square corrosion-resistant housing
220 V / 50–60 Hz

Typical ApplicationsHeat-treatment plants, casting, chemical processing, workshops and livestock buildings

Model	Diameter	Power	Max Speed	Max Air Volume	Coverage / Capacity	Net Weight
AXE-E50	1.25 m / 50 in	500 W	450 rpm	763 m³/min	—	48 kg
AXE-E42	1.06 m / 42 in	400 W	550 rpm	546 m³/min	—	28 kg
AXE-E36	0.90 m / 36 in	400 W	720 rpm	471 m³/min	—	26 kg
AXE-E26	0.65 m / 26 in	350 W	750 rpm	389 m³/min	—	23 kg

Ask About AXE-E Series

Model Code Guide

Read An AirMoveX Model At A Glance

AXAirMoveX

Brand platform prefix

V · M · S · EFan Family

Ceiling, mobile, specialty or exhaust

H · D · WSeries Type

HVLS, drum, wall and other formats

24 · 53Nominal Size

Feet or inches by product family

5 · 6Blade Count

Shown where it defines the platform
