Factory-direct · Zhejiang, China · since 2006
HVLS fans that move more air for less power.
Ceiling, drum and exhaust fans shipped straight from the factory floor — sized to your building by a project contact who answers in English.

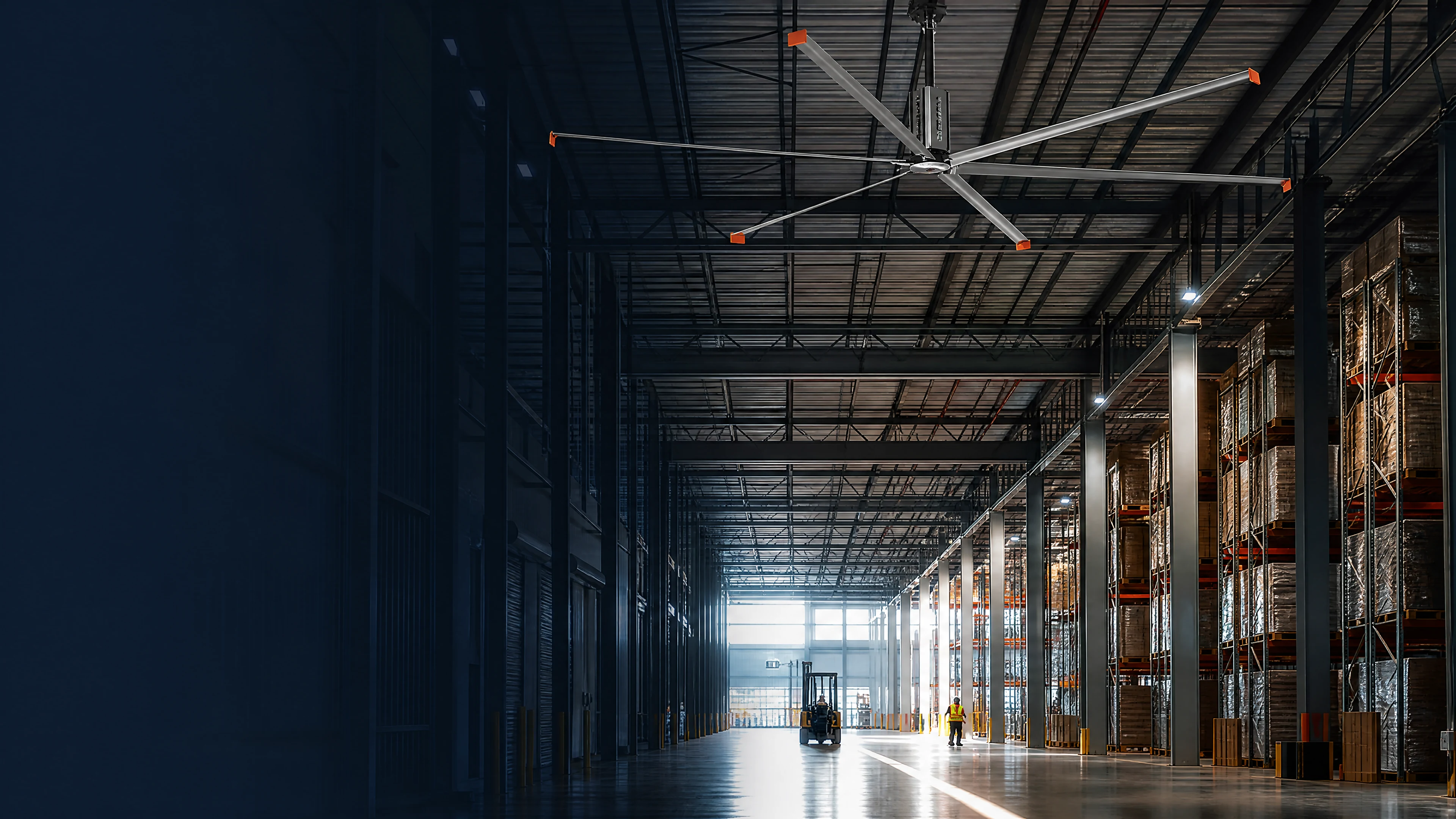

Fan in this photo Running
24 ft · 6 blades
Airflow 14,900 m³/min
Input 1,500 W
Speed 50 rpm
Noise ≤ 40 dB(A)
View AXV-H24-6 →
2006 Factory founded
92 Models · 28 series
8–24 ft HVLS diameters
220/380 V 50/60 Hz options
Warehouses Factories Logistics hubs Gyms Event halls Farms Workshops Hangars Warehouses Factories Logistics hubs Gyms Event halls Farms Workshops Hangars
Fan sizer · free
How many HVLS fans does your building need?
Drag the sliders for a first layout in seconds. Our engineer then checks obstacles, cranes, lights and power before quoting.
01
PMSM external-rotor motor Gearless · IP55 · H-class
→
02
VFD controller Stepless speed · built-in protection
→
03
Aviation-alloy blades 6063-T5 · internal ribs
→
04
Mount & fasteners 40Cr steel · grade 12.9 bolts
→
05
Safety system Safety cable · retention ring
→
01 / 05
PMSM external-rotor motor
Permanent-magnet synchronous motor, direct drive — no gearbox and no oil changes Brushless: lower power draw, lower noise and longer life than brushed motors (factory data) IP55, H-class insulation, 100% copper winding, IE3 Every motor runs on the full test line before shipping
02 / 05
VFD controller
Stepless speed control from the front panel Over-voltage, under-voltage, phase-loss and overload protection RS485 / RTU central control; 4G, WLAN or Bluetooth on request
03 / 05
Aviation-alloy blades
High-strength aluminium-magnesium alloy 6063-T5 Aerodynamic airfoil profile with internal reinforcing ribs Rotor dynamically balanced before shipping
04 / 05
Mount & fasteners
Load-bearing parts in 40Cr steel, bent then welded Grade 12.9 fasteners with thread-locking compound Mount drawings for I-beam and steel-structure ceilings
05 / 05
Safety system
Secondary steel safety cable and retention ring Blade connection fuse guards against falling parts Guy wires stabilise the fan against sway
Spec sheet
Compare models before you ask for a price.
Every series lists diameter, power, airflow and weight per model. Pick a row and it carries into your quote request.
AirMoveX AXV-H Series
Premium Six-Blade HVLS Fan The flagship direct-drive platform for broad, low-speed air movement across high-bay industrial buildings.
Open the series page
Model Diameter Power Airflow Coverage Quote
AXV-H24-6 7.32 m / 24 ft 1,500 W 14,900 m³/min 1,200 m² Quote →
AXV-H22-6 6.72 m / 22 ft 1,400 W 13,500 m³/min 1,100 m² Quote →
AXV-H20-6 6.12 m / 20 ft 1,200 W 12,200 m³/min 1,000 m² Quote →
AXV-H18-6 5.52 m / 18 ft 900 W 10,800 m³/min 900 m² Quote →
Metal fabrication workshop 6-blade HVLS fan
Steel-truss production hall 6-blade HVLS fan
Live concert hall HVLS fan above the crowd
Strength gym Mobile drum fan
1 Built PMSM motors wound, assembled and tested on the factory line.
2 Packed Hub, mount, hardware and manual packed fan by fan.
3 Shipped Container loading, export documents and Incoterm agreed before production.
4 Installed Mount drawings for your local installer; the hub is levelled on site.
