Targeted Ventilation
AirMoveX AXP-L Series

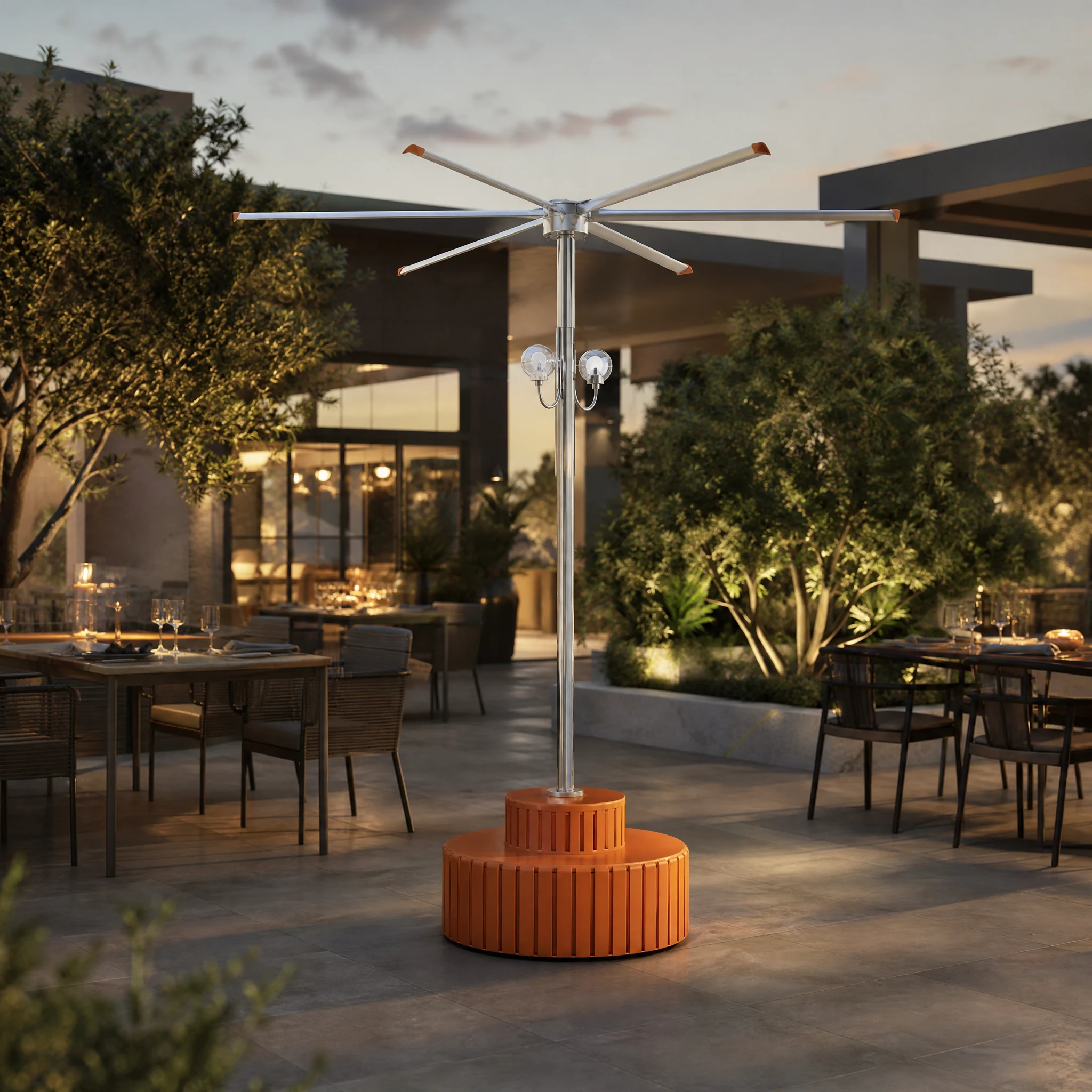

Freestanding Pole Fan
An umbrella-style freestanding fan that brings wide overhead circulation to outdoor and semi-outdoor spaces.
- Six-blade rotor
- Weighted circular base
- Spiral air-duct concept
- Freestanding installation
- Size Range
- 12-14 ft
- Drive
- PMSM direct drive
- Max Air Volume
- 3,800 m³/min
- Installation
- Freestanding weighted chassis
Product Overview
Configured Around The Building, Not Just The Diameter
An umbrella-style freestanding fan that brings wide overhead circulation to outdoor and semi-outdoor spaces.
- Drive
- PMSM direct drive
- Blade
- AL6063 / 6 pcs
- Control
- VFD with protection module
- Install
- Freestanding weighted chassis
Typical Applications
Outdoor dining, amusement parks, landscape projects, gardens, shopping malls and hotel reception areas
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Available Configurations
AirMoveX AXP-L Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXP-L14 | 4.28 m / 14 ft | 220 V / 50-60 Hz | 1,000 W | 5 A | 90 rpm | 3,800 m³/min | 770 m² | ≤ 40 dB(A) | 6 | 245 kg | Quote This Model ↗ |
| AXP-L12 | 3.68 m / 12 ft | 220 V / 50-60 Hz | 750 W | 3.8 A | 95 rpm | 3,400 m³/min | 640 m² | ≤ 40 dB(A) | 6 | 242 kg | Quote This Model ↗ |
Project Documents
Request The Documents That Match The Final Configuration
Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.
Installation And Dimension Drawing
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Certificate And Packing Scope
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Project Inquiry
Confirm AirMoveX AXP-L Series For Your Site
Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.
