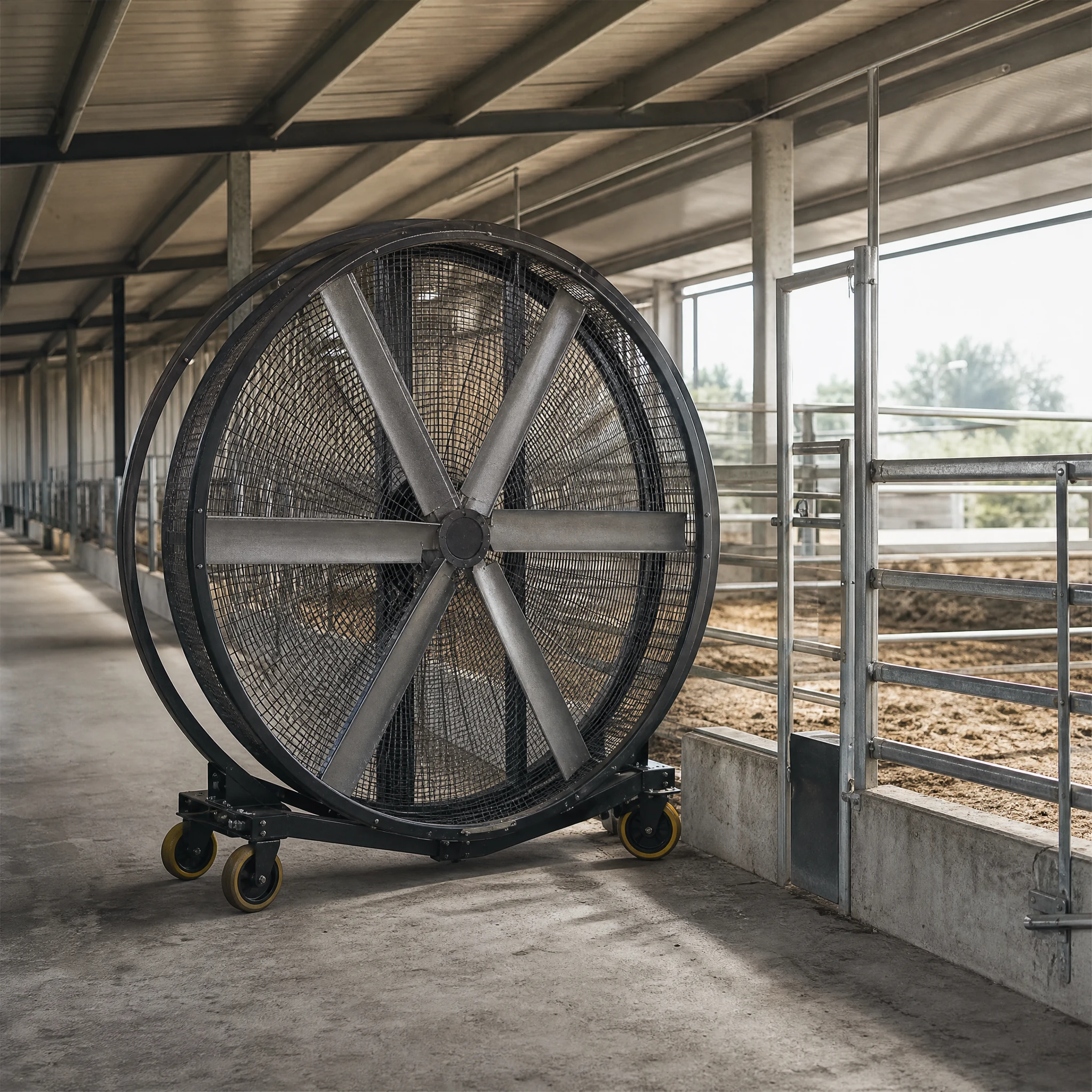

AirMoveX oscillating mobile axial fan shown in a purpose-matched installation scene
Mobile And Drum Fans37-74 in

Point-Of-Use Airflow

AirMoveX AXM-Y Series

Oscillating Mobile Axial Fan

A large mobile fan with oscillation to sweep high-volume airflow across a broader occupied zone.

  • Oscillating head
  • Six- or five-blade sizes
  • Wheeled steel base
  • Broad sweep coverage
Size Range
37-74 in
Drive
PMSM brushless motor
Max Air Volume
1,200 m³/min
Installation
Mobile / plug-in

Product Overview

Configured Around The Building, Not Just The Diameter

A large mobile fan with oscillation to sweep high-volume airflow across a broader occupied zone.

Drive
PMSM brushless motor
Blade
AL6063 / 5-6 pcs
Control
VFD plus oscillation
Install
Mobile / plug-in
Typical Applications

Livestock facilities, exhibition halls, sports venues, factories and large food-production areas

Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.

Why This Model May Fit

AirMoveX AXM-Y Series In The AirMoveX System

Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.

Product familyMobile And Drum Fans

A large mobile fan with oscillation to sweep high-volume airflow across a broader occupied zone.

Compare This Family ↗
Installation roleMobile / plug-in

Typical applications: Livestock facilities, exhibition halls, sports venues, factories and large food-production areas.

Drive and controlPMSM brushless motor

VFD plus oscillation. Available variants begin at 1.90 m / 74 in; review the table below for the series range.

Confirm before orderingProject-specific quotation

Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.

Carry This Model Into A Quote ↗

Available Configurations

AirMoveX AXM-Y Series Model Specifications

Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.

AirMoveX ModelDiameterVoltagePowerCurrentMax SpeedMax Air VolumeCoverage / CapacitySoundBladesNet WeightInquiry
AXM-Y741.90 m / 74 in220 V / 50-60 Hz950 W4.8 A260 rpm1,200 m³/min—≤ 65 dB(A)6162 kg Quote This Model ↗
AXM-Y571.50 m / 57 in220 V / 50-60 Hz950 W4.8 A400 rpm720 m³/min—≤ 65 dB(A)6137 kg Quote This Model ↗
AXM-Y471.20 m / 47 in220 V / 50-60 Hz500 W2.5 A450 rpm420 m³/min—≤ 65 dB(A)598 kg Quote This Model ↗
AXM-Y370.90 m / 37 in220 V / 50-60 Hz500 W2.5 A700 rpm280 m³/min—≤ 65 dB(A)578 kg Quote This Model ↗

Configuration 01

AXM-Y74

1.90 m / 74 in
Max Air Volume1,200 m³/min
Power950 W
Coverage—
Diameter
1.90 m / 74 in
Voltage
220 V / 50-60 Hz
Current
4.8 A
Max Speed
260 rpm
Sound
≤ 65 dB(A)
Blades
6
Net Weight
162 kg
Request This Configuration

Configuration 02

AXM-Y57

1.50 m / 57 in
Max Air Volume720 m³/min
Power950 W
Coverage—
Diameter
1.50 m / 57 in
Voltage
220 V / 50-60 Hz
Current
4.8 A
Max Speed
400 rpm
Sound
≤ 65 dB(A)
Blades
6
Net Weight
137 kg
Request This Configuration

Configuration 03

AXM-Y47

1.20 m / 47 in
Max Air Volume420 m³/min
Power500 W
Coverage—
Diameter
1.20 m / 47 in
Voltage
220 V / 50-60 Hz
Current
2.5 A
Max Speed
450 rpm
Sound
≤ 65 dB(A)
Blades
5
Net Weight
98 kg
Request This Configuration

Configuration 04

AXM-Y37

0.90 m / 37 in
Max Air Volume280 m³/min
Power500 W
Coverage—
Diameter
0.90 m / 37 in
Voltage
220 V / 50-60 Hz
Current
2.5 A
Max Speed
700 rpm
Sound
≤ 65 dB(A)
Blades
5
Net Weight
78 kg
Request This Configuration

Real installations · same factory

Mobile And Drum Fans running on site

See all project photos
Strength gym — Mobile drum fan
Strength gymMobile drum fan
Gym training floor — Mobile drum fan
Gym training floorMobile drum fan

Project Documents

Request The Documents That Match The Final Configuration

Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.

01

Technical Datasheet

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
02

Installation And Dimension Drawing

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
03

Certificate And Packing Scope

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
Portable Fan Buying Guide

First decide whether the task is circulation, spot air movement, clean-air supply or contaminant exhaust. A portable fan cannot perform every role safely.

Open The Field Guide
Industrial Drum Fan Sizes

Do not choose from a search phrase such as 24, 36, 42 or 48 inch. Start with the real catalog sizes, then check airflow task, access, power, noise and mobility.

Open The Field Guide

Project Inquiry

Confirm AirMoveX AXM-Y Series For Your Site

Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.
