Overall Envelope
The guard, frame, wheels, handles and controls can make the unit wider or taller than the nominal fan diameter.
Catalog-True Size Guide
Industrial Drum Fan Sizes: Compare What Actually Exists
Do not choose from a search phrase such as 24, 36, 42 or 48 inch. Start with the real catalog sizes, then check airflow task, access, power, noise and mobility.
AXM-SD30 / 44 / 56 in
AXM-D37 / 43 / 53 in
AXM-M37–78 in
AXM-Y37–74 in
Direct Answer
What Industrial Drum Fan Sizes Does AirMoveX List?
The supplied catalog currently lists AXM-SD at 30, 44 and 56 inches; AXM-D at 37, 43 and 53 inches; AXM-M at 37, 47, 57, 74 and 78 inches; and AXM-Y at 37, 47, 57 and 74 inches.
Those numbers are family references, not a promise that every nominal search size has a direct equivalent. AirMoveX does not currently list dedicated 24, 36, 42 or 48-inch models in these four families. A buyer using one of those search terms should compare the nearest available candidate only after the task and physical envelope are checked.
Diameter alone does not establish airflow, throw, sound, input power or portability. Compare the exact model at its stated test condition, and include guard/frame dimensions—not only the impeller diameter—when checking door and aisle access.
Engineering scope and sources reviewed 4 October 2026 · Project conditions still govern final selection
Decision Framework
Four Reasons The Nominal Diameter Is Not The Decision
The size printed in a search result omits the geometry and operating condition that decide whether the fan works at the site.
Useful Reach
Airflow at the fan face and air movement at a distant workstation are different measurements. Ask for the test distance and speed.
Electrical Input
Larger candidates may need a different voltage, phase, current or starting method. Confirm the exact site supply before selecting.
Real Mobility
Mass, wheel type, brake, floor joints, ramp grade, doorway and turning radius decide whether staff can safely reposition the fan.
Field Inputs
AirMoveX Drum And Mobile Axial Size Families
Use these supplied ranges for shortlisting; the quotation and latest factory sheet confirm the exact variant.
| Family | Supplied Nominal Sizes | Selection Character |
|---|---|---|
| AXM-SD | 30 / 44 / 56 in | Steel-blade drum platform; compare guard/frame envelope and duty for the exact variant. |
| AXM-D | 37 / 43 / 53 in | GFRP drum platform; confirm construction, speed, power and operating environment. |
| AXM-M | 37 / 47 / 57 / 74 / 78 in | Large mobile axial platform; access and safe repositioning become central at the larger sizes. |
| AXM-Y | 37 / 47 / 57 / 74 in | Oscillating mobile platform; define sweep zone and keep people/material clear. |
| Not currently listed | 24 / 36 / 42 / 48 in | Treat these as search intents, not catalog claims; compare a supported size or request separate sourcing. |
| Any candidate | Exact model only | Confirm overall dimensions, mass, airflow basis, noise, power, controls, guards, wheels and brake. |
Boundary: Catalog ranges may change. The quotation must identify the exact model, overall dimensions, electrical build and performance/test basis; this page is not a stock or availability promise.
Practical Sequence
Choose The Smallest Candidate That Completes The Job
- Define the task.State circulation, spot air movement, clean-air supply or exhaust and the required result.
- Measure the route.Record doors, aisles, turns, ramps, floor joints, storage footprint and turning clearance.
- Mark the target zone.Give distance, width, people/equipment and acceptable local air speed or process limit.
- Confirm site power.Record voltage, phase, frequency, outlet, current limit and cable route.
- Compare exact data.Use the same speed and test basis for airflow, reach, noise and input.
- Verify on site.Check stability, brakes, inlet/outlet clearance, noise and actual air movement before standardizing the model.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Use The Portable Fan Buying Guide
Define the air task before deciding which size family deserves a quote.
Browse Portable Fans
Compare the broader current mobile and specialty fan directory.
Review AXM-M
Inspect the largest current mobile-axial range without assuming the biggest variant is required.
Request A Comparable Quote
Send access, power and target-zone inputs so alternatives are quoted on one basis.
Questions Buyers Actually Ask
Industrial Drum Fan Size Questions
Does AirMoveX have a 24-inch drum fan?
A dedicated 24-inch model is not listed in the supplied AXM-SD, AXM-D, AXM-M or AXM-Y ranges. The smallest listed AXM-SD size is 30 inches; confirm the exact project and current quotation.
What is the closest option to a 36-inch search?
Several current families list 37-inch variants, but one inch of nominal diameter does not make them equivalent. Compare construction, overall dimensions, airflow basis, power, controls and mobility.
Is a 48-inch drum fan available?
The supplied ranges list 47-inch variants in AXM-M and AXM-Y, not a dedicated 48-inch model. Treat 48 inch as buyer intent and verify the 47-inch candidate against the real task.
Does a 78-inch fan always move the most useful air?
Not necessarily at the required zone or condition. Fan geometry, speed, obstruction, distance, test method and site power all matter, while the larger envelope may reduce mobility.

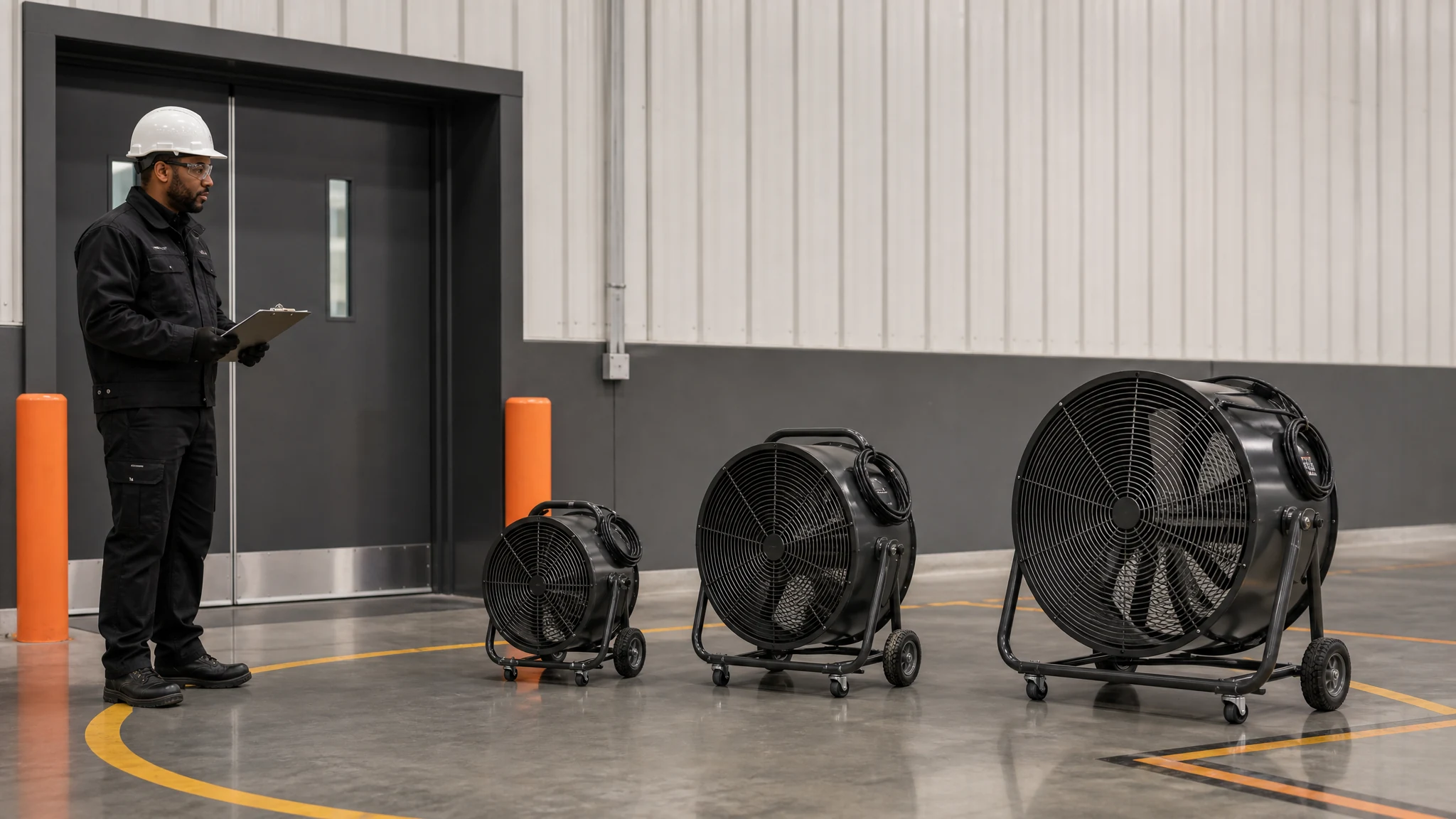

Which dimension should be checked for a doorway?
Use the complete transport envelope, including guard, frame, wheels, handles and any removable parts—not the nominal impeller diameter alone.
Can different families be compared by diameter alone?
No. Compare exact airflow and pressure condition, reach, noise, input, voltage, control, overall size, mass, guard, wheels and environmental suitability.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AirMoveX
Supplied Product Dataset
The listed sizes come from the current AirMoveX product data used to build the live model pages; quotation confirms the final variant.
Open sourceAMCA International
ANSI/AMCA Standard 230 - Air Circulating Fans
Supports comparing air-circulating performance on a disclosed test basis rather than diameter alone.
Open sourceOSHA
Machine Guarding, 29 CFR 1910.212
Supports checking guarding and exposure to moving parts for portable industrial fans.
Open sourceProject Review
Send The Doorway And The Target Zone
Share the task, distance, doorway, turning space, floor, voltage/phase, cable limit, noise sensitivity and preferred control. AirMoveX can compare supported sizes without inventing a 24, 36, 42 or 48-inch listing.
