A durable six-blade steel drum fan for flexible point-of-use air movement in demanding indoor areas.
Compare This Family ↗
Point-Of-Use Airflow
AirMoveX AXM-SD Series

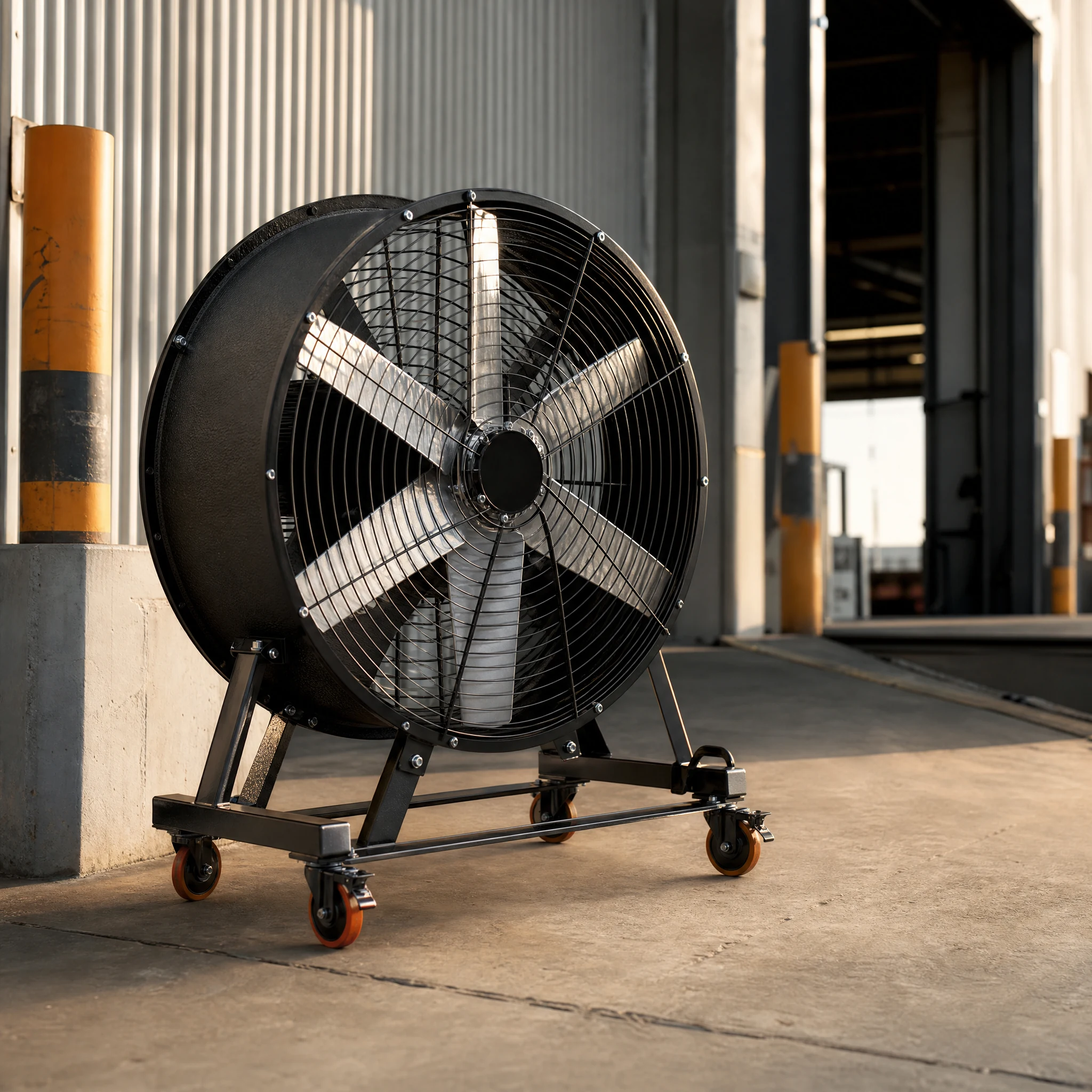

Steel-Blade Drum Fan
A durable six-blade steel drum fan for flexible point-of-use air movement in demanding indoor areas.
- Six stainless-steel blades
- Deep formed cylinder
- Wheeled base
- Plug-in mobility
- Size Range
- 30-56 in
- Drive
- Industrial motor
- Max Air Volume
- 770 m³/min
- Installation
- Factory assembled / wheeled
Product Overview
Configured Around The Building, Not Just The Diameter
A durable six-blade steel drum fan for flexible point-of-use air movement in demanding indoor areas.
- Drive
- Industrial motor
- Blade
- Stainless steel / 6 pcs
- Control
- VFD by configuration
- Install
- Factory assembled / wheeled
Factories, warehouses, farms, exhibition halls, food-production areas and large worship spaces
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Why This Model May Fit
AirMoveX AXM-SD Series In The AirMoveX System
Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.
Typical applications: Factories, warehouses, farms, exhibition halls, food-production areas and large worship spaces.
VFD by configuration. Available variants begin at 1.43 m / 56 in; review the table below for the series range.
Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.
Carry This Model Into A Quote ↗Available Configurations
AirMoveX AXM-SD Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXM-SD56 | 1.43 m / 56 in | 220 V / 50-60 Hz | 1,200 W | 6 A | 370 rpm | 770 m³/min | — | ≤ 70 dB(A) | 6 | 110 kg | Quote This Model ↗ |
| AXM-SD44 | 1.13 m / 44 in | 220 V / 50-60 Hz | 900 W | 4.5 A | 450 rpm | 500 m³/min | — | ≤ 65 dB(A) | 6 | 90 kg | Quote This Model ↗ |
| AXM-SD30 | 0.82 m / 30 in | 220 V / 50-60 Hz | 550 W | 2.8 A | 600 rpm | 250 m³/min | — | ≤ 65 dB(A) | 6 | 55 kg | Quote This Model ↗ |
Configuration 01
AXM-SD56
1.43 m / 56 in- Diameter
- 1.43 m / 56 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 6 A
- Max Speed
- 370 rpm
- Sound
- ≤ 70 dB(A)
- Blades
- 6
- Net Weight
- 110 kg
Configuration 02
AXM-SD44
1.13 m / 44 in- Diameter
- 1.13 m / 44 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 4.5 A
- Max Speed
- 450 rpm
- Sound
- ≤ 65 dB(A)
- Blades
- 6
- Net Weight
- 90 kg
Configuration 03
AXM-SD30
0.82 m / 30 in- Diameter
- 0.82 m / 30 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 2.8 A
- Max Speed
- 600 rpm
- Sound
- ≤ 65 dB(A)
- Blades
- 6
- Net Weight
- 55 kg
Selection Guides
Resolve These Questions Before Choosing AirMoveX AXM-SD Series
Use the guides for the selection method, then confirm the exact configuration against the project documents.
Fan Motor Insulation Class and Temperature Rise Are Not the Same
Insulation class describes a motor insulation system; temperature rise describes heating under stated conditions. Ask for both on the same operating basis.
Real installations · same factory
Mobile And Drum Fans running on site
Project Documents
Request The Documents That Match The Final Configuration
Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.
Technical Datasheet
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Installation And Dimension Drawing
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Certificate And Packing Scope
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗First decide whether the task is circulation, spot air movement, clean-air supply or contaminant exhaust. A portable fan cannot perform every role safely.
Open The Field GuideDo not choose from a search phrase such as 24, 36, 42 or 48 inch. Start with the real catalog sizes, then check airflow task, access, power, noise and mobility.
Open The Field GuideProject Inquiry
Confirm AirMoveX AXM-SD Series For Your Site
Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.
