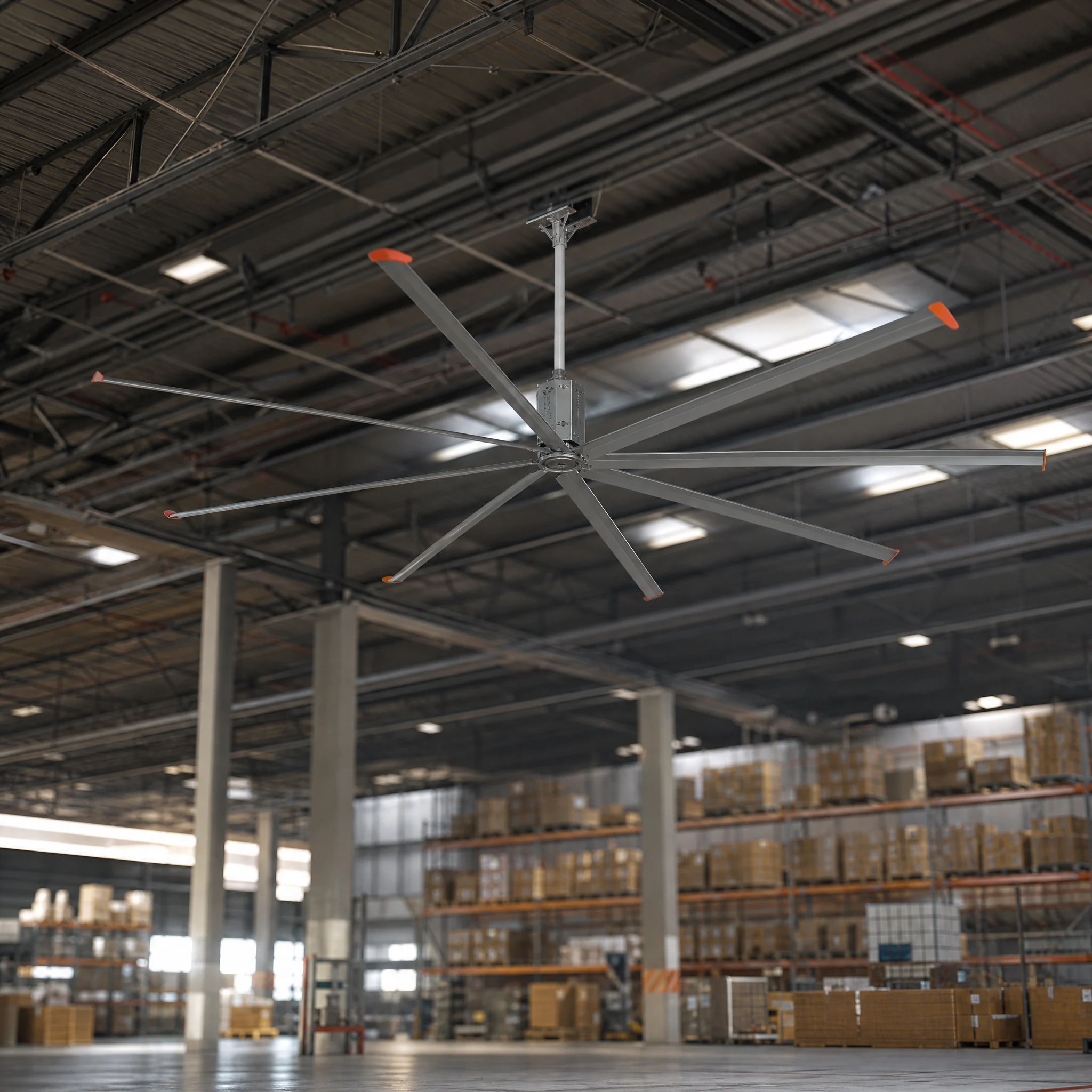

AirMoveX eight-blade ac hvls fan shown in a purpose-matched installation scene
Ceiling Fan Systems18-24 ft

Ceiling Air Movement

AirMoveX AXV-CA Series

Eight-Blade AC HVLS Fan

An eight-blade AC geared platform tuned for high air-volume requirements in very large high-bay buildings.

  • Eight AL6063 blades
  • AC geared drive
  • High-volume platform
  • Industrial VFD control
Size Range
18-24 ft
Drive
AC geared motor
Max Air Volume
23,000 m³/min
Installation
Recommended clear height ≥ 7 m

Product Overview

Configured Around The Building, Not Just The Diameter

An eight-blade AC geared platform tuned for high air-volume requirements in very large high-bay buildings.

Drive
AC geared motor
Blade
AL6063 / 8 pcs
Control
Industrial VFD
Install
Recommended clear height ≥ 7 m
Typical Applications

Large warehouses, factories, stadiums, stations, barns and high-bay workshops

Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.

Why This Model May Fit

AirMoveX AXV-CA Series In The AirMoveX System

Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.

Product familyCeiling Fan Systems

An eight-blade AC geared platform tuned for high air-volume requirements in very large high-bay buildings.

Compare This Family ↗
Installation roleRecommended clear height ≥ 7 m

Typical applications: Large warehouses, factories, stadiums, stations, barns and high-bay workshops.

Drive and controlAC geared motor

Industrial VFD. Available variants begin at 7.32 m / 24 ft; review the table below for the series range.

Confirm before orderingProject-specific quotation

Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.

Carry This Model Into A Quote ↗

Available Configurations

AirMoveX AXV-CA Series Model Specifications

Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.

AirMoveX ModelDiameterVoltagePowerCurrentMax SpeedMax Air VolumeCoverage / CapacitySoundBladesNet WeightInquiry
AXV-CA247.32 m / 24 ft220/380 V / 50-60 Hz2,200 W5 A50 rpm23,000 m³/min1,200 m²≤ 45 dB(A)8192 kg Quote This Model ↗
AXV-CA226.72 m / 22 ft220/380 V / 50-60 Hz2,200 W5 A55 rpm22,000 m³/min1,100 m²≤ 45 dB(A)8— Quote This Model ↗
AXV-CA206.12 m / 20 ft220/380 V / 50-60 Hz2,200 W5 A60 rpm21,000 m³/min1,000 m²≤ 45 dB(A)8182 kg Quote This Model ↗
AXV-CA185.52 m / 18 ft220/380 V / 50-60 Hz2,200 W5 A65 rpm20,000 m³/min900 m²≤ 45 dB(A)8177 kg Quote This Model ↗

Configuration 01

AXV-CA24

7.32 m / 24 ft
Max Air Volume23,000 m³/min
Power2,200 W
Coverage1,200 m²
Diameter
7.32 m / 24 ft
Voltage
220/380 V / 50-60 Hz
Current
5 A
Max Speed
50 rpm
Sound
≤ 45 dB(A)
Blades
8
Net Weight
192 kg
Request This Configuration

Configuration 02

AXV-CA22

6.72 m / 22 ft
Max Air Volume22,000 m³/min
Power2,200 W
Coverage1,100 m²
Diameter
6.72 m / 22 ft
Voltage
220/380 V / 50-60 Hz
Current
5 A
Max Speed
55 rpm
Sound
≤ 45 dB(A)
Blades
8
Net Weight
—
Request This Configuration

Configuration 03

AXV-CA20

6.12 m / 20 ft
Max Air Volume21,000 m³/min
Power2,200 W
Coverage1,000 m²
Diameter
6.12 m / 20 ft
Voltage
220/380 V / 50-60 Hz
Current
5 A
Max Speed
60 rpm
Sound
≤ 45 dB(A)
Blades
8
Net Weight
182 kg
Request This Configuration

Configuration 04

AXV-CA18

5.52 m / 18 ft
Max Air Volume20,000 m³/min
Power2,200 W
Coverage900 m²
Diameter
5.52 m / 18 ft
Voltage
220/380 V / 50-60 Hz
Current
5 A
Max Speed
65 rpm
Sound
≤ 45 dB(A)
Blades
8
Net Weight
177 kg
Request This Configuration
Power Is Not Annual Energy

The values above are supplied catalog references. Use exact-model input at the intended speed and the site's real operating hours to estimate kWh and cost.
