W Or kW: Instantaneous Input
Electrical input is the rate at which the fan system is using energy at that moment. Record whether the number covers only the motor or also the controller and supplied accessories.
Energy Calculation Guide
HVLS Fan Power Consumption: Calculate Real kWh
Annual energy is measured input kW multiplied by real operating hours. Rated wattage alone cannot prove annual consumption, efficiency or savings.
PowerW or kW Now
TimeActual Run Hours
EnergykW × h = kWh
CostkWh × Tariff
Direct Answer
How Much Electricity Does An HVLS Fan Use?
At one stable operating point, energy use is the fan system's measured electrical input in kilowatts multiplied by the hours spent at that point.
If a meter shows 0.75 kW and the fan stays at that condition for five hours, that block uses 3.75 kWh. A variable-speed fan rarely spends every hour at one condition, so a useful annual estimate separates the low-, medium- and high-speed blocks instead of multiplying maximum catalog power by every scheduled hour.
The hard part is not the arithmetic. It is keeping the comparison honest. Two fans can draw different power because they are different diameters, operate at different speeds or deliver different air movement. Decide what useful occupied-zone result is required first, then compare power for candidates that can actually produce it.
Search intent, official source pages and supplied catalog ranges reviewed 4 October 2026 · No universal saving percentage is claimed
Do Not Mix The Units
Power, Energy And Cost Answer Different Questions
A surprising number of quote comparisons fail before the first calculation because kW and kWh are treated as the same thing.
kWh: Energy Over Time
One kilowatt used for one hour equals one kilowatt-hour. For a changing speed schedule, calculate each stable block and add the results.
Tariff: The Buyer's Cost
Multiply total kWh by the applicable energy charge. Demand charges, time-of-use rates, taxes and other local billing terms may need a separate calculation.
Useful Air: The Comparison Gate
A smaller power number has little value if it comes from a lower speed or a fan that misses the required occupied zone. Verify the result before comparing the input.
Transparent Worked Example
Calculate Each Speed-Time Block, Then Add Them
This is a hypothetical arithmetic example, not an AirMoveX product result or an energy-saving promise.
| Operating Block | Measured Input | Hours Per Day | Daily Energy |
|---|---|---|---|
| Low-speed occupied period | 0.35 kW | 3 h | 0.35 × 3 = 1.05 kWh |
| Medium-speed occupied period | 0.75 kW | 5 h | 0.75 × 5 = 3.75 kWh |
| High-load period | 1.10 kW | 2 h | 1.10 × 2 = 2.20 kWh |
| Daily total | Three measured points | 10 h | 7.00 kWh/day |
Example annual energy7.00 kWh/day × 300 days = 2,100 kWh/year
Example energy charge2,100 kWh × $0.14/kWh = $294/year
What must be replaced: all four example inputs—the three measured kW values, the hours at each point, annual operating days and tariff—must come from the real project. If the controller or BMS cannot export a speed history, use a defensible shift schedule and state that it is an estimate.
Change One Input At A Time
Why Runtime And Control Matter
The table keeps the same hypothetical fan and 0.75 kW measured operating point, then changes only daily hours.
| Schedule Case | Input Used | Annual Hours | Annual Energy | What The Case Means |
|---|---|---|---|---|
| Single daytime shift | 0.75 kW | 6 h/day × 250 days = 1,500 h | 1,125 kWh | A limited production calendar. |
| Long daytime operation | 0.75 kW | 10 h/day × 300 days = 3,000 h | 2,250 kWh | Same measured point, twice the hours. |
| Extended operation | 0.75 kW | 16 h/day × 330 days = 5,280 h | 3,960 kWh | Runtime, not a different fan, drives the increase. |
Do not estimate input power from the controller's percentage or VFD frequency alone. Those signals help split the schedule, but the electrical input at each useful point should come from measurement or verified exact-model data.
Same Outcome, Same Boundary
What A Fair Fan Comparison Must Hold Constant
Ask the supplier to complete this evidence set. If one row changes, the power numbers may no longer answer the same question.
| Comparison Item | Record For Each Candidate | Why It Changes The Result |
|---|---|---|
| Exact fan | Model, diameter, drive, blade configuration and controller | Family-level figures can hide model and control differences. |
| Electrical boundary | Motor only, fan-plus-drive, or complete supplied system | Inputs are not comparable when accessories are included on only one side. |
| Operating point | Speed/rpm, direction, voltage, phase, frequency and stable measured input | Maximum power is not the input at every useful speed. |
| Installation | Blade height, clearances, obstructions and candidate centers | The same fan can produce a different occupied-zone result in a different room. |
| Useful-air objective | Measurement grid, height, target air speed or mixing criterion and building state | Energy should be compared for an equal job, not merely an equal running time. |
| Test basis | Method, laboratory or field procedure, rating/certification scope and date | A standard name is useful only when it applies to the exact disclosed result. |
| Schedule and tariff | Hours by speed, occupied/unoccupied logic, season, annual days and local billing terms | These inputs turn power into annual kWh and cost. |
AirMoveX Catalog Reference
Supplied Power Ranges Are A Shortlist, Not An Energy Ranking
These are current supplied catalog inputs. Confirm the exact model, latest factory document, operating point and test basis before using a figure in an energy calculation.
| AirMoveX Family | Catalog Size Range | Supplied Catalog Input | Use In This Guide |
|---|---|---|---|
| AXV-H | 18–24 ft | 900–1,500 W | High-bay six-blade candidate range |
| AXV-S6 | 8–16 ft | 800–950 W | Compact six-blade candidate range |
| AXV-L | 8–16 ft | 550–800 W | Five-blade candidate range |
| AXV-C6 | 8–16 ft | 800–1,000 W | Commercial six-blade candidate range |
| AXV-BQ | 8–16 ft | 500–650 W | Boutique five-blade candidate range |
| AXV-P5 | 6–16 ft | 400–750 W | Straight-airfoil five-blade candidate range |
| AXV-C | 7.8–11.8 ft | 350–400 W | Compact architectural candidate range |
| AXV-T | 60–84 in | 110–280 W | Small ceiling-fan candidate range |
| AXV-R | 79–98 in | 360–400 W | Commercial fan-with-light candidate range |
| AXV-ACB | 18–22 ft | 1,500 W | Geared six-blade catalog reference |
| AXV-CA | 18–24 ft | 2,200 W | Eight-blade AC catalog reference |
The 110–2,200 W span crosses very different diameters and duties. It does not mean the lowest-watt family is the best choice for a high-bay warehouse, or that the highest-watt family uses that input at every speed. Start with diameter selection, then compare exact candidates.
Six-Step Field Method
From Useful-Air Target To Defensible Annual kWh
- Define the job.Name the occupied zone, season, blade height, building state and required air-speed or mixing result.
- Fix the boundary.Record the exact fan, controller and accessories included in the electrical input.

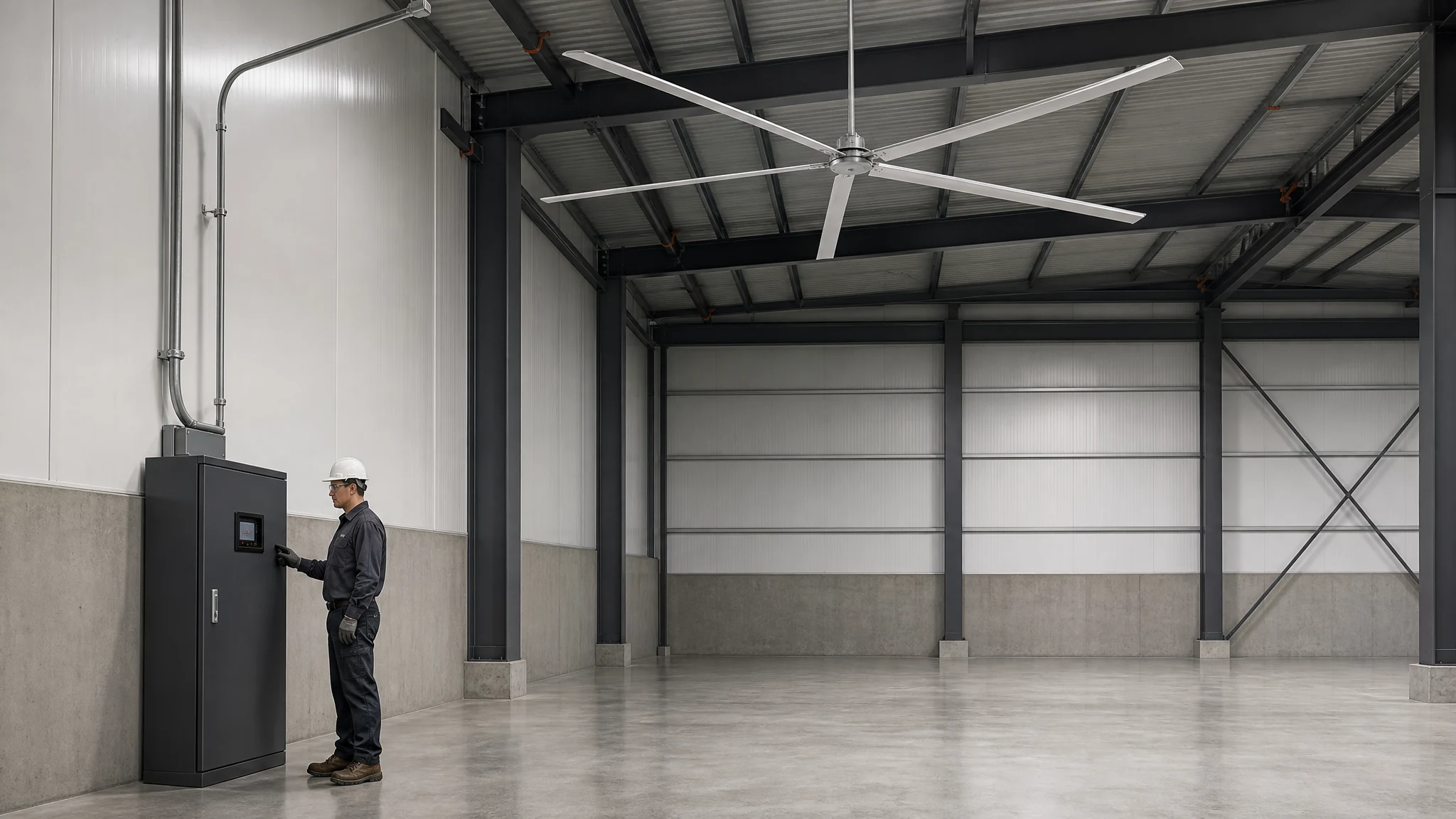

- Measure stable points.Use a qualified person and an approved meter or permanent metering point; keep panels closed unless the work procedure requires otherwise.

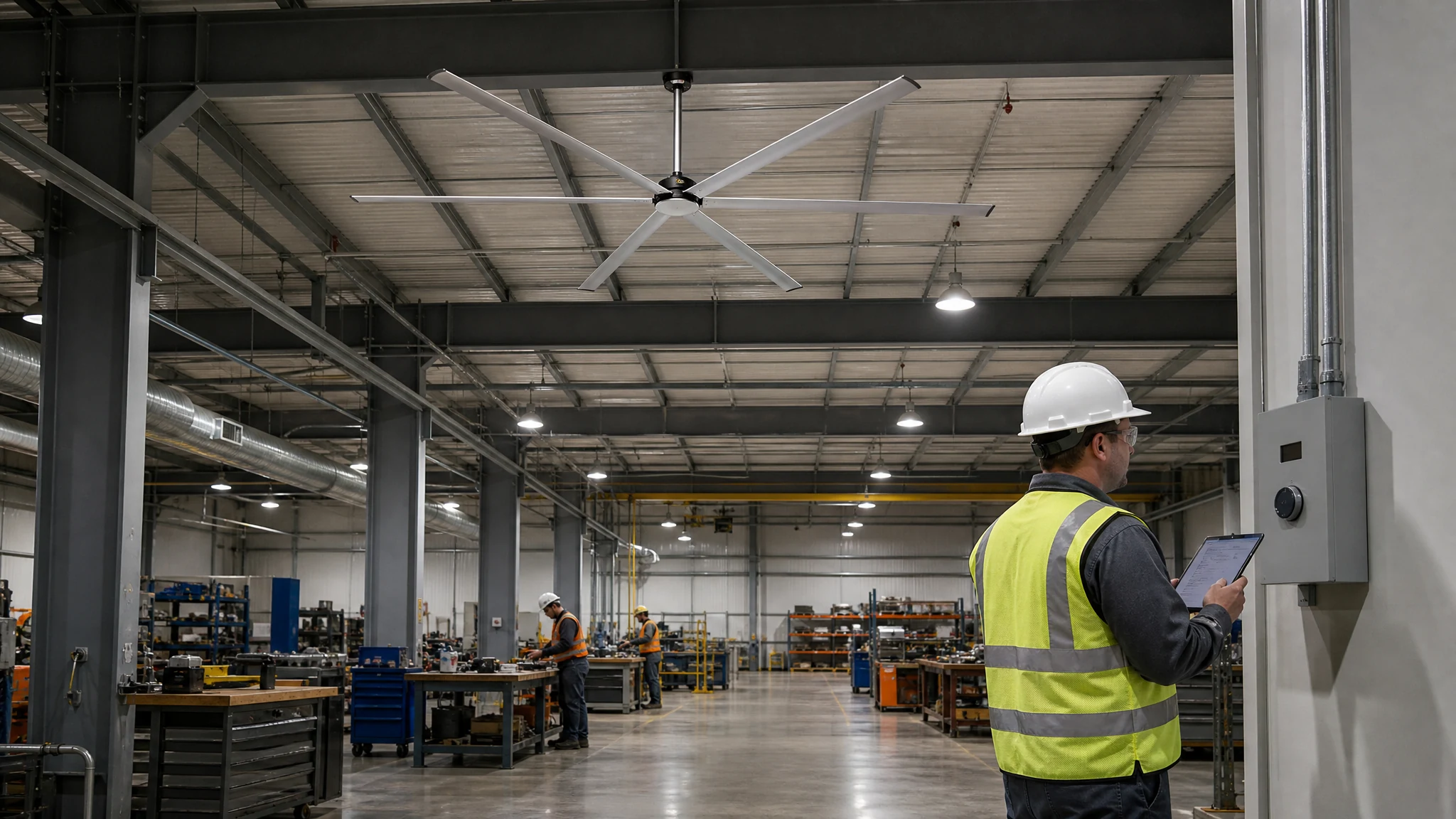

- Log the hours.Separate speed-time blocks using controller, BMS, submeter or shift evidence rather than memory.
- Do the arithmetic.Calculate kWh for every block, add them and apply the real tariff with any extra billing terms stated separately.
- Verify the result.Confirm the installed useful-air objective on a documented grid before presenting the comparison as an energy result.
Claims Wattage Alone Cannot Support
Where A Serious Comparison Says “Not Yet”
These are common shortcuts. None becomes reliable just because it appears in a polished quotation.
“Lowest Energy Fan”
Not established without a defined useful-air job, exact candidate set, comparable test basis, measured inputs and operating schedule.
“Saves 40%”
Not established without the baseline equipment, quantities, controls, hours, tariff, installation conditions and calculation period.
“1.5 kW Covers 1,200 m²”
Not a project result unless coverage means a stated air-speed threshold at a stated height, speed, building condition and verification method.
“Payback In One Year”
Not established until installed cost, maintenance, baseline energy, operating schedule, tariff and any HVAC interaction are documented.
Sources And Limits
What The References Establish—And What They Do Not
Official methods improve comparability. They do not supply a site's annual hours or turn an unrelated model into a certified one.
AMCA Large-Diameter Ceiling Fans
AMCA identifies ANSI/AMCA 230-23 with errata as the laboratory method for rating and certification of air-circulating fans and explains the role of its Certified Ratings Program.
Read AMCA's Live OverviewU.S. DOE Ceiling-Fan Rules
DOE's current page links the test-procedure rulemaking docket, 10 CFR 430.23(w) test methods and Part 429 certification/compliance requirements for covered U.S. products.
Review The DOE PageAirMoveX Supplied Catalog
The visible family ranges above come from supplied catalog data. They remain reference inputs pending current exact-model documents, operating-point evidence and confirmed certification scope.
Open The Model DirectoryBuyer FAQ
HVLS Fan Power And Energy Questions
Short answers for the figures that appear most often in supplier comparisons.
How much power does an HVLS fan use?
It depends on the exact fan, diameter, drive, speed and controller. AirMoveX supplied catalog inputs currently span 110 W to 2,200 W across very different ceiling platforms. Use the exact-model figure only as a planning reference until the operating point and test basis are confirmed.
How do I calculate HVLS fan electricity consumption?
For one stable point, multiply measured input kW by operating hours. For variable-speed use, calculate each speed-time block separately, add the kWh values and then multiply by the applicable tariff.
Is rated wattage the same as actual power consumption?
No. Rated or catalog wattage describes a stated condition or limit. Actual input can change with speed, control behavior, supply conditions and accessories.
Does lower wattage mean a more efficient fan?
Not by itself. First prove that both fans perform the same useful occupied-zone job under comparable installation and test conditions. Then compare their complete-system input.
Can maximum power be used for an annual budget?
It can form a conservative screening case if you clearly assume that input for every scheduled hour. A better forecast uses real speed blocks and measured or verified input at each block.
Can a supplier guarantee savings from wattage alone?
No. The saving also depends on the baseline system, quantities, achieved air movement, controls, hours, tariff, installation and calculation period.
What should I request before accepting an energy comparison?
Request the exact model and diameter, electrical boundary, input at stated operating points, test method, controller, blade height, useful-air evidence, schedule, tariff assumptions and full baseline calculation.
Make The Quote Comparable
Send The Operating Schedule, Not Just The Floor Area
Share the building layout, blade-height limits, occupied zones, target air movement, voltage, annual hours, speed schedule and tariff. AirMoveX can return a model-specific power-data request instead of a generic saving percentage.
