Fit The Rotating Envelope
Draw the complete blade-tip circle, hub, downrod, support and service area against roof structure, walls, objects, lights, sprinklers, ducts, cranes and adjacent equipment.
Review Height And ClearancesDiameter Selection Guide
HVLS Fan Sizes: How To Choose The Right Diameter
Choose an HVLS fan diameter from the intersection of blade clearance, mounting height, occupied-zone air speed, bay geometry, control range and exact-model evidence—not from floor area alone.
FitBlade + Clearance Envelope
ReachOccupied-Zone Objective
ControlUseful Speed Range
EvidenceExact Model + Test Basis
Direct Answer
What Size HVLS Fan Do You Need?
Shortlist the diameters that fit the complete rotating envelope and can meet the same stated occupied-zone objective at the proposed blade height using comparable exact-model performance data.
Floor area alone cannot answer the question. A larger diameter may reduce the number of fan centers in a broad, open high bay, but it is not automatically better: it needs more clear space, appropriate structure and a control range that does not create excessive draft directly below. A smaller diameter can be the stronger choice for narrow bays, segmented work zones, lower structures or irregular obstacles.
After a diameter class passes the fit, reach, control and evidence gates, use the HVLS spacing and quantity guide to compare centers and count. Diameter selection and layout are linked, but they are not the same decision.
Search intent, source links and product ranges reviewed 4 October 2026 · No universal size-to-area chart is claimed
Four Selection Gates
A Diameter Is Credible Only When It Passes All Four
One favorable number cannot compensate for a failed clearance, performance or documentation check.
Reach The Target Zone
Check whether the candidate can deliver the required occupied-zone air speed or mixing outcome at the proposed blade height, not merely whether air movement is detectable somewhere below.
See A Warehouse WorkflowControl The Result
Confirm that the usable speed range can serve edges and changing loads without creating an unacceptable draft below the hub. Record direction, zoning and lowest stable operating point.
Review Occupied-Space InputsVerify Exact-Model Evidence
Compare blade span, airflow, power and efficiency on a disclosed test basis. A standard name or certification logo is not evidence for a different model or an undisclosed operating point.
Compare Product Platforms8 ft vs 12 ft vs 20 ft
Compare Candidate Classes, Not Universal Coverage Promises
These are planning profiles. The exact model, blade height, speed and test data decide the real result.
| Nominal Diameter Class | Where It Can Enter The Shortlist | What Can Eliminate It | Evidence Needed Next |
|---|---|---|---|
| 8 ft / about 2.4 m | Narrower structural bays, segmented work zones, medium-height commercial or light-industrial interiors and layouts where a large blade circle cannot fit. | Insufficient reach at the proposed height, too many required mounting points or a speed range that does not serve the target zone evenly. | Exact-model air-speed or airflow evidence, blade-height range, speed range, mount and a zone-specific layout. |
| 12 ft / about 3.7 m | Medium-span workshops, gyms, halls and warehouse zones that need a broader footprint while retaining more placement flexibility than a high-bay fan. | Roof services crossing the blade circle, narrow bays, low obstructions or failure to meet the edge objective at an acceptable speed. | Same-basis performance at the proposed height, full blade envelope, control point and occupied-zone contour. |

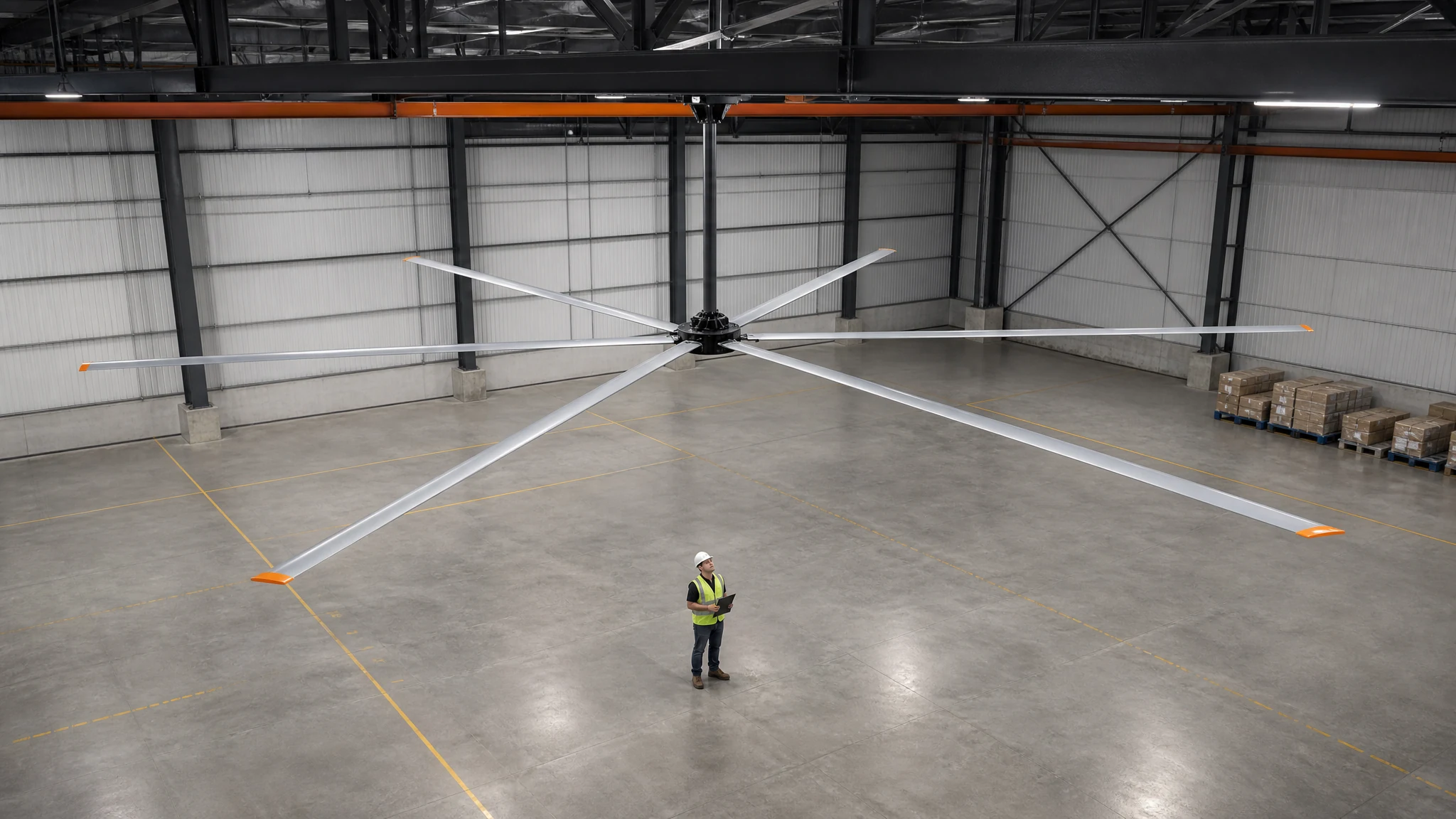

| 20 ft / about 6.1 m | Broad open warehouse, logistics, factory or agricultural bays where structure and clear height allow a large rotating envelope. | Columns, racks, cranes, sprinklers, ducts or walls that fragment the footprint; excessive local draft; unavailable structural support. | Exact mounting/load data, tested performance, project clearances, controller scope and multi-fan layout evidence. |
| 24 ft / about 7.3 m | The largest open high-bay zones where a full 24 ft envelope and the applicable installation conditions can be coordinated. | Any clearance, fire-protection, structural, serviceability or control limitation; a large floor area by itself is not sufficient. | Model-specific instructions and documents, authority/engineer review, comparable performance and commissioned measurement plan. |
Do Not Treat Nominal Diameter As Performance
Two fans with the same blade span can have different airfoils, speed ranges, power input, control behavior and tested performance. Compare the exact quoted model at the same objective and operating basis.
AirMoveX Catalog Map
Current Platforms Span Compact Rooms To 24 ft High Bays
Ranges below are catalog references for shortlisting. Confirm the current exact-model datasheet, test basis, installation instructions and quotation before procurement.
| Platform | Catalog Diameter Range | Candidate Role | Next Check |
|---|---|---|---|
| AXV-T compact ceiling platform | 60–84 in | Compact commercial and light-industrial rooms below the large-diameter class. | Interior mounting, controller, electrical input and required occupied-zone result. |
| AXV-C architectural platform | 7.8–11.8 ft | Lower visual weight and medium interior spans. | Exact blade envelope, finish, controller and performance basis. |
| AXV-P5 straight-airfoil platform | 6–16 ft | Broad compact-to-medium span selection for tighter layouts. | Choose the exact variant only after height, zone and model evidence are matched. |
| AXV-S6, AXV-L, AXV-C6 and AXV-BQ | 8–16 ft | Medium-span industrial, sports, public and commercial candidate families. | Compare blade form/count, drive, speed, power and application constraints by exact model. |
| AXV-H high-bay direct-drive platform | 18–24 ft | Large open high-bay warehouse, factory, logistics and public zones. | Structure, full clearance envelope, tested airflow/power, controls and final fan centers. |
| AXV-ACB geared platform | 18–22 ft | Projects that specify a conventional geared high-bay arrangement. | Drive/mount scope, weight/load information, service access and exact-model documents. |
| AXV-CA eight-blade geared platform | 18–24 ft | Large high-bay candidate where the project accepts this drive and blade architecture. | Do not infer performance from blade count; verify the exact tested model and full installation scope. |
Catalog-data boundary: the current website values were normalized from the supplied catalog. Final blade span, power, airflow, speed, weight, installation condition and document scope must be reconfirmed in the current factory datasheet and transaction documents.
Open The HVLS Platform DirectoryMedium-Bay Reality Check

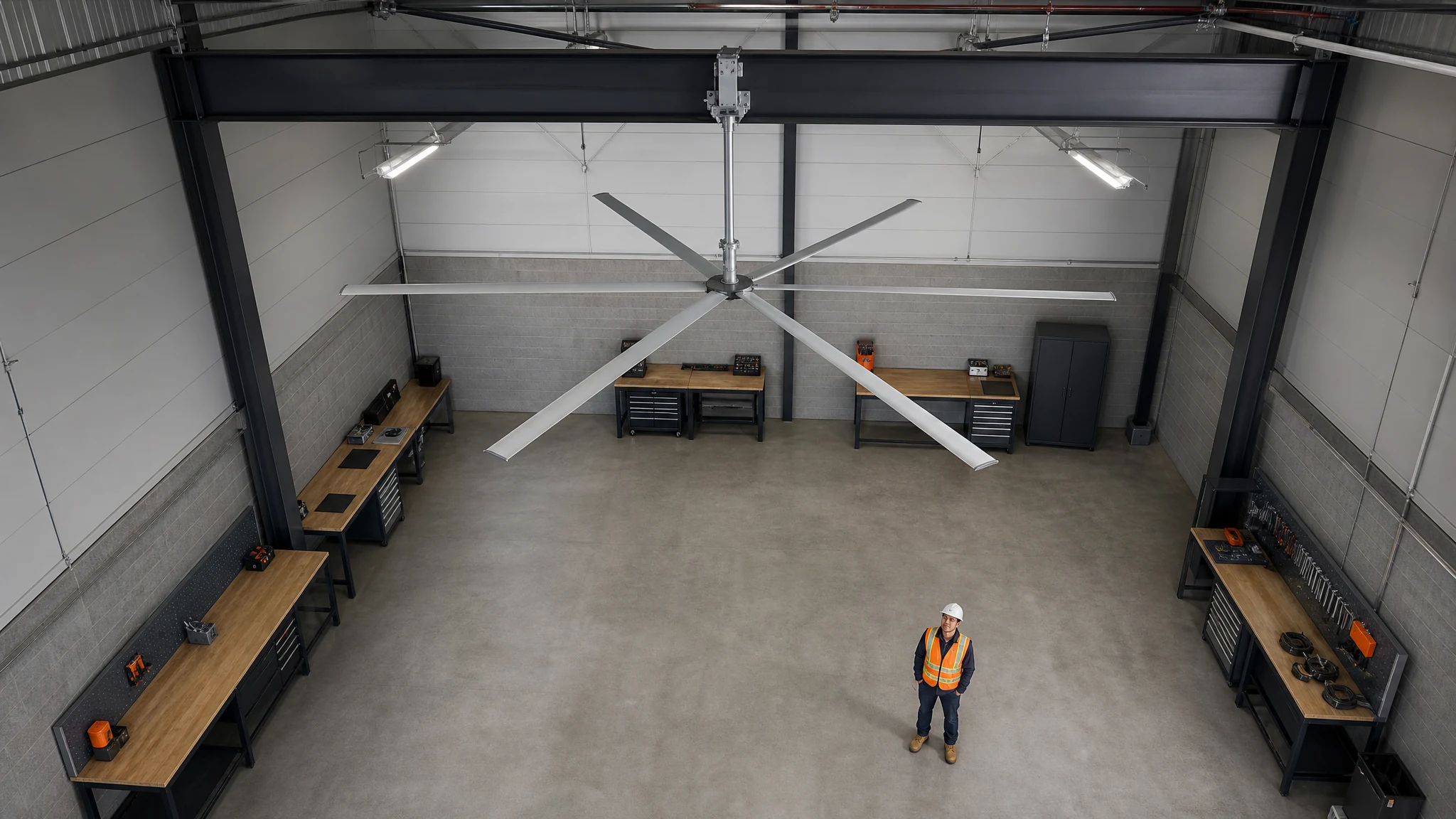

Smaller Diameter Can Be The More Feasible Choice
A credible selection protects the full blade envelope and the occupied zone at the same time.
Bay Width
Measure between the real limiting objects, not just column centerlines. Include blade-tip clearance, roof-service changes and maintenance access.
Blade Height
Record blade elevation above the finished floor and below roof structure. “Ceiling height” can hide downrods, slopes, trusses and suspended services.
Occupied Pattern
A smaller target zone may be served more controllably by a smaller fan or several zoned centers than by forcing one large diameter across barriers.
Operating Range
Review both the high-demand point and the lowest useful speed. A diameter that only works acceptably at one extreme is a weak shortlist candidate.
Six-Step Workflow
From Building Section To Diameter Shortlist
Keep diameter selection reproducible, then hand the shortlist to the layout stage.
Draw The Usable Rotating Envelope
Overlay the blade circle and vertical assembly on the roof/truss plan and section. Mark walls, objects, lights, sprinklers, ducts, cranes, cable trays, openings and adjacent equipment.
Define The Occupied-Zone Objective
State the target air-speed range or mixing outcome, measurement height, season, occupancy, door state, HVAC operation and process condition.
Compare Exact-Model Evidence
Request blade span, airflow, power, speed and efficiency at a disclosed test basis. Compare like with like; do not merge a coverage claim from one model with the electrical data from another.
Check Reach And Turndown
Confirm that the fan can serve the edges at the proposed height and that the low-speed range can avoid excessive draft beneath the hub or during part-load operation.
Keep Every Diameter That Passes
Build a shortlist rather than declaring a winner too early. Compare mounting points, unit count, control zones, electrical/load scope, documents and service access together.
Lay Out, Commission And Record
Use the spacing guide to place candidate centers, then measure the installed occupied zone. Retain the final fan IDs, speeds, operating state and baseline readings.
Comparable Evidence
What To Request Before Accepting A Size
A complete diameter decision links the drawing, exact fan model and verified duty—not just a nominal span.
| Item | Minimum Useful Detail | Why It Matters |
|---|---|---|
| Exact model and blade span | Model code, nominal and actual tip diameter, blade count and airfoil construction. | Prevents one family’s size or performance from being applied to another. |
| Airflow and power evidence | Rated operating point, test standard or method, laboratory/certification status and exact model scope. | Supports a like-for-like comparison and exposes untested brochure claims. |
| Air-speed contour or validated model | Fan speed, blade height, room geometry, target height, obstacles and reported threshold. | Connects diameter to the occupied-zone objective instead of a vague coverage circle. |
| Speed and control range | Minimum/maximum usable speed, direction, controller, zoning, sensors and fire-system interface where required. | Shows whether one diameter can be tuned across operating modes. |
| Mounting and load information | Fan weight, downrod, mount type, retention/safety components, reaction/load information and structural responsibility. | Allows a qualified structural review of the real support point. |
| Installation instructions | Current model-specific height, clearance, electrical, commissioning and service requirements. | These instructions govern details that a generic size chart cannot supply. |
| Commercial and document scope | Voltage/frequency, finish, accessories, packing, warranty, spare parts, lead time and certificate/report scope. | Keeps two quotations comparable after diameter is shortlisted. |
Sources And Limits
Use Definitions And Test Standards In Their Proper Role
Standards help define comparable evidence; they do not choose the final diameter for an unknown building.
AMCA large-diameter overview: AMCA states that the U.S. DOE definition starts above 7 ft (2.1 m) and that not every large-diameter ceiling fan is an HVLS fan. The page also links AMCA 230 testing and certified-product resources.
Open The AMCA OverviewAMCA educational presentation: the deck lists typical spans of 7–24 ft, identifies AMCA 230 for airflow and power testing, and describes performance-based sizing with actual space dimensions, obstructions and occupied-zone metrics.
Open The AMCA PresentationAirMoveX catalog reference: the family ranges on this page come from the supplied catalog and support preliminary shortlisting only. Current exact-model factory documents and transaction terms control the final selection.
Request Exact-Model DocumentsDefinition Is Not Selection
“Large diameter,” “HVLS,” nominal blade span and product-family name describe the equipment category. The building section, target occupied zone, comparable performance and installation requirements decide whether a specific diameter is feasible.
HVLS Size Questions
HVLS Fan Diameter FAQ
Short answers for early shortlisting; the full workflow above shows how to verify them.
What size HVLS fan do I need?
Choose a candidate diameter that fits the rotating and safety envelope, can meet the occupied-zone objective at the proposed blade height, has a usable control range and is supported by exact-model evidence. Floor area alone is not enough.
Is a larger HVLS fan always better?
No. A large fan can serve a broad open high bay with fewer centers, but it needs more clear space, suitable structure and appropriate control. A smaller diameter can fit narrow bays or segmented zones more safely and controllably.
How do 8 ft, 12 ft and 20 ft fans differ?
They are different candidate classes rather than guaranteed coverage tiers. An 8 ft fan can fit tighter geometry, 12 ft offers medium-span reach and 20 ft can suit broad open high bays. Exact-model performance, height, obstacles and target air speed decide the outcome.
Can I choose fan diameter from a coverage chart?
Only as a preliminary screen unless the chart defines the exact model, mounting height, speed, air-speed threshold, method and obstruction assumptions. Request the evidence behind the number before using it in a layout.
Does ceiling height determine fan size?
It is one important gate, not the answer. Bay width, blade clearances, target zone, structure, obstacles, speed range and tested performance must be checked together.
Is every fan over 7 ft an HVLS fan?
No. AMCA notes that the U.S. DOE large-diameter definition starts above 7 ft, while also stating that not every large-diameter ceiling fan is an HVLS fan.
What documents should I request before accepting a size?
Request the exact model/span, tested airflow and power with test basis, speed range, controller, fan weight, mount, load information, model-specific installation instructions, electrical input and certificate/report scope.
Send The Building Section, Not Just The Floor Area
Share length, width, clear height, roof/truss drawing, blade-height options, obstructions and services, occupied zones, airflow objective, power, control needs, destination and required documents.
