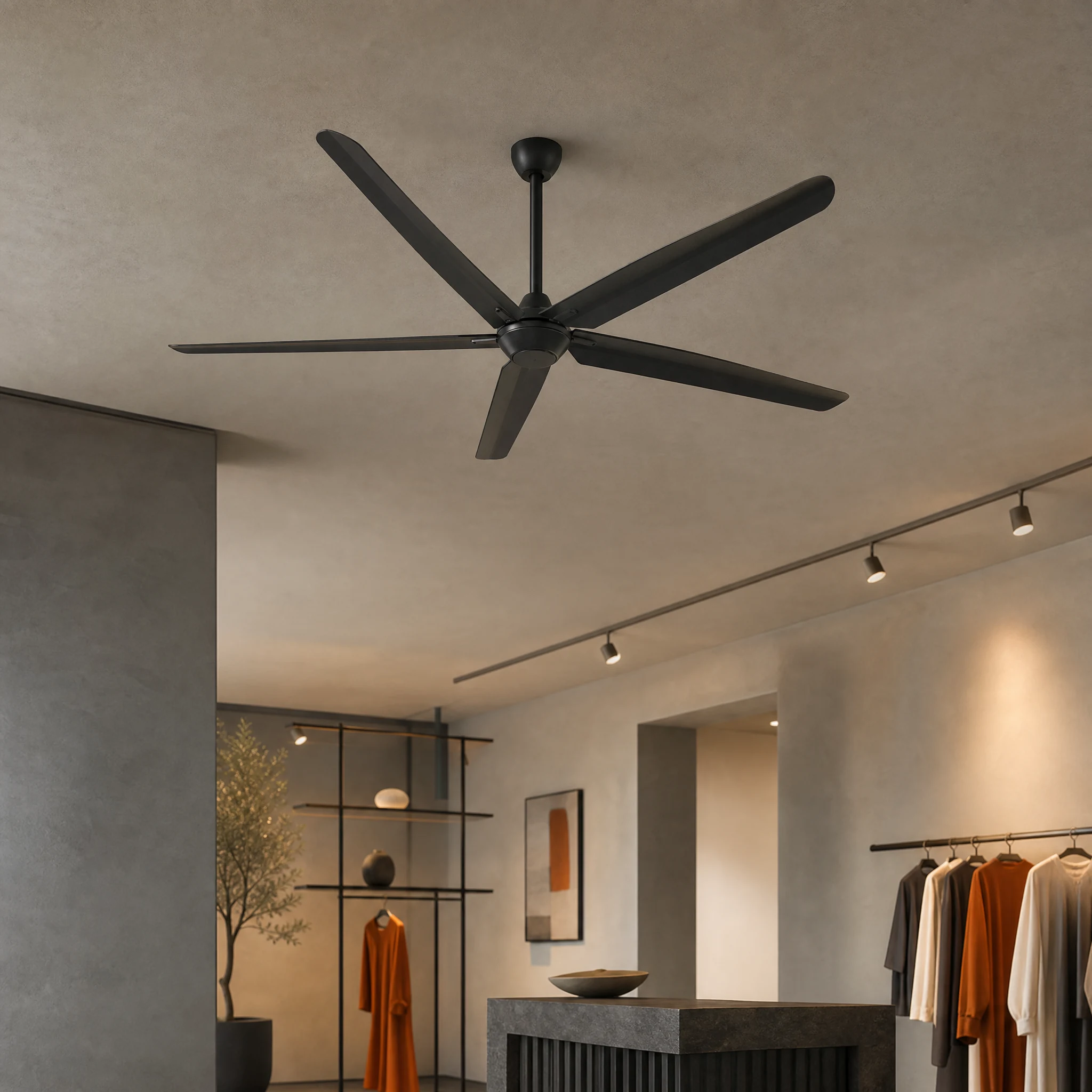

AirMoveX touch-control compact ceiling fan shown in a purpose-matched installation scene
Ceiling Fan Systems60-84 in

Ceiling Air Movement

AirMoveX AXV-T Series

Touch-Control Compact Ceiling Fan

A low-profile five-blade platform with touch-screen speed selection for commercial, industrial and household spaces.

  • Touch-screen operation
  • Ten speed settings
  • Five steel blades
  • Low-noise PMSM drive
Size Range
60-84 in
Drive
PMSM direct drive
Max Air Volume
2,500 m³/min
Installation
Recommended clear height < 6 m

Product Overview

Configured Around The Building, Not Just The Diameter

A low-profile five-blade platform with touch-screen speed selection for commercial, industrial and household spaces.

Drive
PMSM direct drive
Blade
Powder-coated steel / 5 pcs
Control
Touch screen / 10 speed
Install
Recommended clear height < 6 m
Typical Applications

Shops, cafés, household interiors, compact commercial spaces and light industrial rooms

Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.

Why This Model May Fit

AirMoveX AXV-T Series In The AirMoveX System

Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.

Product familyCeiling Fan Systems

A low-profile five-blade platform with touch-screen speed selection for commercial, industrial and household spaces.

Compare This Family ↗
Installation roleRecommended clear height < 6 m

Typical applications: Shops, cafés, household interiors, compact commercial spaces and light industrial rooms.

Drive and controlPMSM direct drive

Touch screen / 10 speed. Available variants begin at 2.10 m / 84 in; review the table below for the series range.

Confirm before orderingProject-specific quotation

Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.

Carry This Model Into A Quote ↗

Available Configurations

AirMoveX AXV-T Series Model Specifications

Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.

AirMoveX ModelDiameterVoltagePowerCurrentMax SpeedMax Air VolumeCoverage / CapacitySoundBladesNet WeightInquiry
AXV-T842.10 m / 84 in220 V / 50-60 Hz280 W1.4 A200 rpm2,500 m³/min250 m²≤ 40 dB(A)518 kg Quote This Model ↗
AXV-T721.80 m / 72 in220 V / 50-60 Hz150 W0.8 A250 rpm1,800 m³/min200 m²≤ 40 dB(A)517.4 kg Quote This Model ↗
AXV-T601.50 m / 60 in220 V / 50-60 Hz110 W0.6 A300 rpm1,100 m³/min150 m²≤ 40 dB(A)515 kg Quote This Model ↗

Configuration 01

AXV-T84

2.10 m / 84 in
Max Air Volume2,500 m³/min
Power280 W
Coverage250 m²
Diameter
2.10 m / 84 in
Voltage
220 V / 50-60 Hz
Current
1.4 A
Max Speed
200 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
18 kg
Request This Configuration

Configuration 02

AXV-T72

1.80 m / 72 in
Max Air Volume1,800 m³/min
Power150 W
Coverage200 m²
Diameter
1.80 m / 72 in
Voltage
220 V / 50-60 Hz
Current
0.8 A
Max Speed
250 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
17.4 kg
Request This Configuration

Configuration 03

AXV-T60

1.50 m / 60 in
Max Air Volume1,100 m³/min
Power110 W
Coverage150 m²
Diameter
1.50 m / 60 in
Voltage
220 V / 50-60 Hz
Current
0.6 A
Max Speed
300 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
15 kg
Request This Configuration
Power Is Not Annual Energy

The values above are supplied catalog references. Use exact-model input at the intended speed and the site's real operating hours to estimate kWh and cost.

Open The Power-Consumption Method

Selection Guides

Resolve These Questions Before Choosing AirMoveX AXV-T Series

Use the guides for the selection method, then confirm the exact configuration against the project documents.

Real installations · same factory

Ceiling Fan Systems running on site

See all project photos
Metal fabrication workshop — 6-blade HVLS fan
Metal fabrication workshop6-blade HVLS fan
Steel-truss production hall — 6-blade HVLS fan
Steel-truss production hall6-blade HVLS fan
Live concert hall — HVLS fan above the crowd
Live concert hallHVLS fan above the crowd

Project Documents

Request The Documents That Match The Final Configuration

Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.

01

Technical Datasheet

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
02

Installation And Dimension Drawing

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
03

Certificate And Packing Scope

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
Planning The Service Record?

Use the HVLS preventive maintenance checklist to organize isolation, mounting and retention, drive, hub, airfoils, controls and return-to-service evidence. Exact intervals and limits still come from the current AirMoveX AXV-T Series documentation.

Open The Maintenance Checklist
HVLS Destratification

Winter destratification is a controlled mixing job: move warmer ceiling air back into the occupied zone slowly enough that people do not feel an unwanted draft.

Open The Field Guide
HVLS Specification Checklist

A good specification defines the building, useful-air result, evidence, installation and commissioning. It does not simply ask suppliers for their biggest airflow number.

Open The Field Guide
HVLS Installation Cost

Equipment price is only one line. Structure, mounting, lift access, electrical work, controls, fire coordination, shutdown, commissioning, freight and site constraints shape installed cost.

Open The Field Guide

Project Inquiry

Confirm AirMoveX AXV-T Series For Your Site

Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.

Start This Product Inquiry
