HVLS Fan Preventive Maintenance Checklist

Use this model-neutral workflow to plan isolation, inspect six linked system zones, identify stop-work conditions and create a traceable return-to-service record.

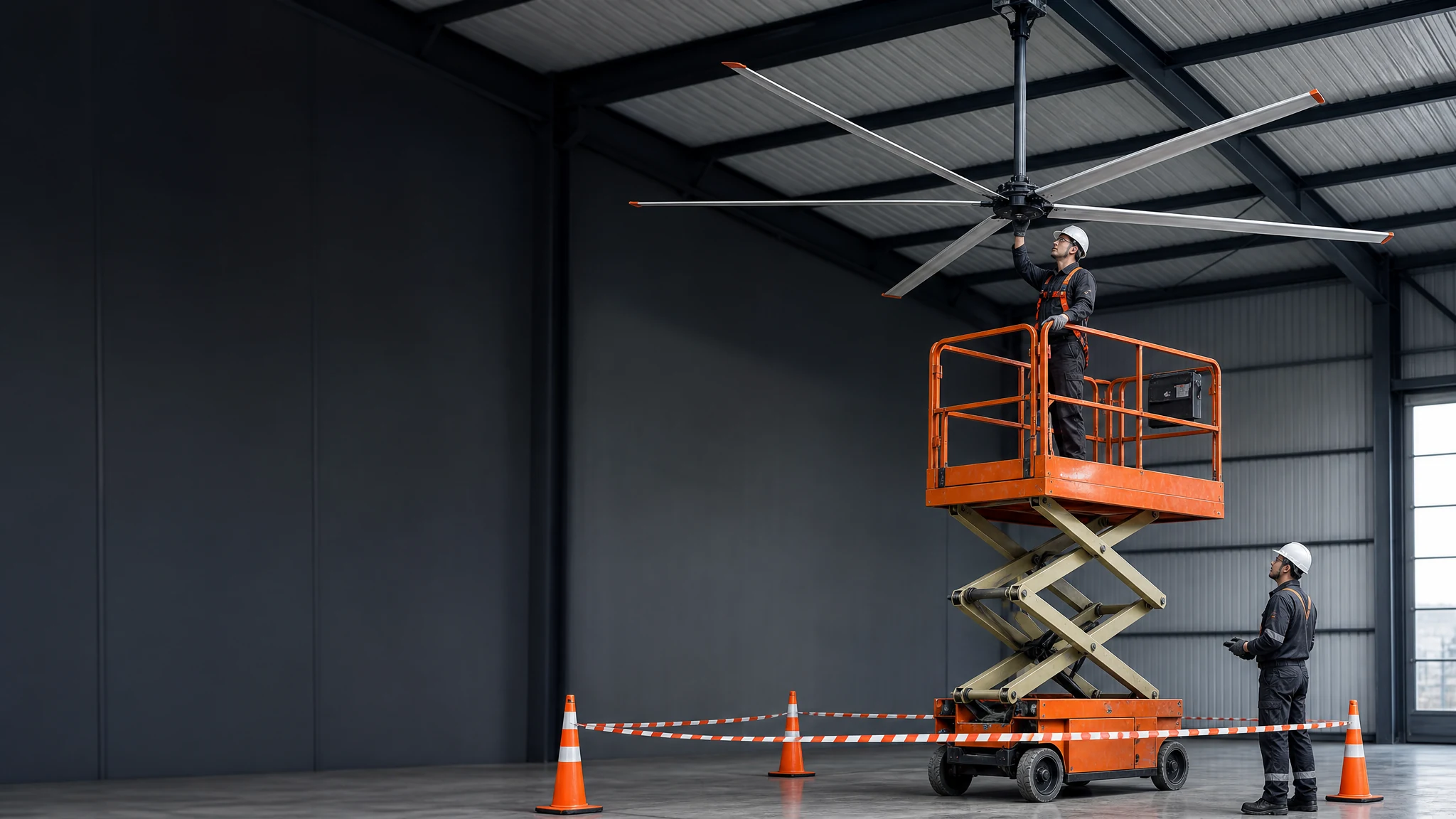

Planned maintenance shutdown with a stationary six-blade HVLS fan, technician in a scissor lift, floor spotter and exclusion zone
Plan The Shutdown Before The InspectionExact-model instructions, energy control, safe access and an exclusion zone belong in the same job plan.
Maintenance BasisExact Model + Manual
Before AccessEnergy Control + Exclusion
Inspection ScopeSix Linked Zones
Return To ServiceTest + Signed Record

Direct Answer

What Should HVLS Preventive Maintenance Include?

An HVLS preventive maintenance visit should connect the exact fan manual to a controlled shutdown, safe access, inspection of mounting and retention, drive and frame, hub and airfoils, controller status, and a documented operational test.

Do not use a generic checklist as permission to work or as a substitute for the current manual. Fan construction differs by manufacturer, model, revision, drive system and mounting arrangement. The same is true for torque, lubrication, replacement limits and approved parts.

The checklist below is deliberately model-neutral: it identifies the evidence to collect and the points that should trigger a hold. Exact procedures and acceptance limits must come from the supplied product documents and the facility's maintenance and energy-control programs.

Reviewed 2 October 2026 · English-language industrial maintenance scope

Visual Inspection Detail

Keep The Exact Mount, Retention And Hub In View

The article uses a second independent generated image so the work-at-height scene and the close inspection view are not represented by one repeated visual.

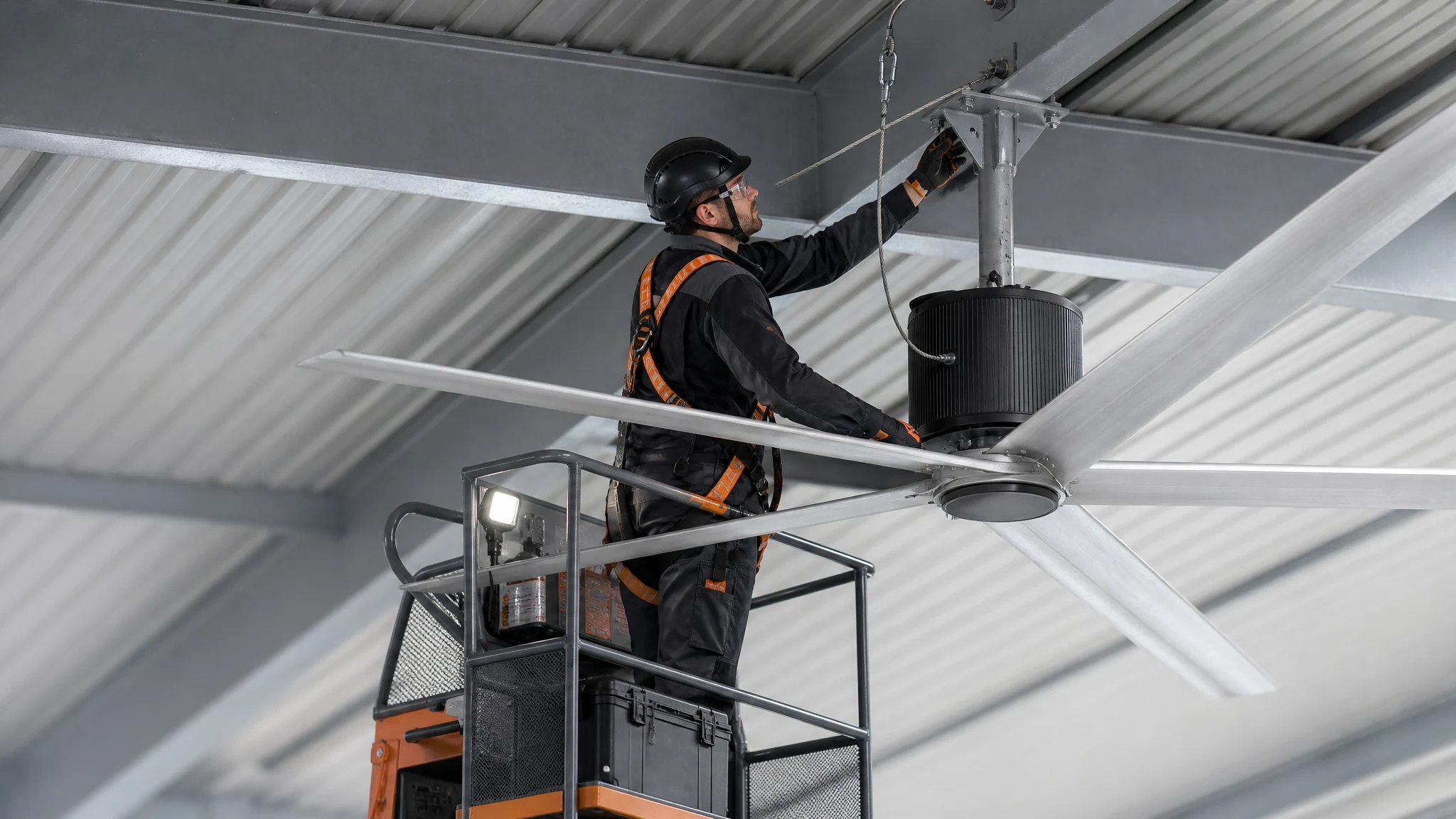

Technician inspecting an HVLS fan mounting bracket, safety retention cable, motor housing, hub and six airfoil roots from a secured lift platform
Close inspection view: verify the exact mounting and retention assembly, frame and drive, hub and blade-root condition before a controlled return to service.

Maintenance Frequency

Use The Exact Manual—Not A Universal Web Interval

Schedule is a product-and-site decision. Keep the reason for the interval in the asset record.

Build The Interval From Evidence

Four Inputs Set The Review Frequency

Product
Current manual, service bulletins, drive type and model revision
Duty
Operating hours, starts, seasonal schedule and criticality
Environment
Dust, moisture, corrosive exposure, heat and contamination
History
Faults, vibration, repairs, findings and previous corrective actions
01

Start With The Supplied Schedule

Use the current operation and maintenance documentation for the exact asset. Record the document number or revision used.

02

Add Site-Specific Triggers

Increase observation or inspection frequency when operating conditions, contamination, prior findings or critical service justify it.

03

Separate Fan Maintenance From LOTO Audits

OSHA 1910.147 requires periodic inspection of the energy-control procedure at least annually. That requirement does not set a universal annual service interval for every fan.

04

Revise From Findings

Use repeat defects, fault history and corrective work to update the interval instead of copying the same calendar date indefinitely.

Model-Specific Example, Not A Universal Rule

An official Powerfoil X maintenance document includes an annual checklist and exact torque values for that product. It is useful evidence for the categories an OEM may require, but those intervals and values must not be transferred to another fan.

Six-Stage Review

From Asset Identification To Controlled Restart

Each stage produces a record. A missing input is a hold point, not something to guess at height.

01

Identify The Asset

Record manufacturer, model, serial number, drive, controller and installed configuration. Retrieve the current manual and service notices.

Keep
Asset photo and manual revision
Hold If
Identity or instructions are uncertain
02

Control Energy & Access

Follow the facility procedure for shutdown, isolation and verification. Plan the lift, fall protection, floor exclusion and spotter.

Keep
Isolation and access record
Hold If
Any energy source or access risk is unresolved
03

Mounting & Retention

Inspect support, attachment, extension or downrod, hardware, safety cable and any guy wires or restraint components.

Keep
Marked photos and exact-model criteria
Hold If
Parts are missing, damaged or displaced
04

Frame & Drive

Look for cracks, deformation, corrosion, wear, contamination and leakage relevant to the installed drive architecture.

Keep
Condition notes and measurements
Hold If
Damage or unexplained leakage is present
05

Hub, Airfoils & Controls

Inspect hub, blade roots, retainers, airfoils and winglets; review the controller, wiring condition and stored or active faults.

Keep
Fastener record and fault log
Hold If
Damage, missing hardware or faults remain
06

Test & Close

Clear the area, restore energy under the site procedure, observe startup and speed changes, verify required shutdown interfaces and sign the record.

Keep
Test result, technician and approver
Hold If
Noise, wobble, fault or interface failure appears

Field Checklist

What To Inspect, Record And Escalate

Print the page or transfer these fields into the facility CMMS. Replace generic acceptance language with exact-model criteria before work starts.

CheckInspection And EvidenceRecordHold / Escalate When
□ Asset & ManualConfirm nameplate, model, serial, drive, controller and installed options against the current manual.Identity photo; document number and revisionThe asset or applicable instructions cannot be confirmed.
□ Energy ControlIdentify every hazardous energy source; apply and verify the facility's isolation procedure.Procedure ID; isolation points; verificationAn energy source, stored energy or verification step is unresolved.
□ Access & ExclusionInspect access equipment; define fall protection, spotter and floor exclusion requirements.Lift inspection; work-zone photo; assigned rolesSafe access or control of the area below is not established.
□ Structure & MountInspect the support member, mounting assembly, extension or downrod, brackets and visible hardware.Photos; movement or condition notes; exact criteria usedCracks, deformation, movement, corrosion or missing hardware is found.
□ Safety RetentionInspect the safety cable, shackle and any guy wires or restraint parts for correct routing and condition.Close-up photos; component statusA retention part is absent, damaged, frayed, loose or incorrectly routed.
□ Frame & DriveInspect the frame, motor and drive for damage, wear, contamination, heat evidence and model-relevant leakage.Condition notes; leak location; temperature or other approved measurementCracking, significant corrosion, burnt odor, overheating evidence or unexplained leakage appears.
□ Hub & AirfoilsInspect the hub, retainers, blade roots, complete airfoils, winglets and exact-model fasteners.Blade-by-blade result; approved torque/sequence record when requiredDamage, cracking, abnormal wear, missing hardware or an unachievable model-specific torque is found.
□ CleaningRemove accumulated material using only methods and products permitted by the current instructions.Contamination level; method; cleaner usedThe deposit is hazardous, the method is not approved or cleaning exposes damage.
□ Controller & WiringRecord faults and inspect accessible controller, isolator, cable and connection condition within the authorized scope.Fault codes; photographs; corrective actionA fault, damaged enclosure, overheated connection or unauthorized modification is present.
□ Clearance & InterfacesRecheck nearby structure and services and test any project-required alarm or waterflow shutdown interface.Clearance change note; interface test resultAn obstruction has entered the envelope or a required shutdown interface fails.
□ Controlled TestAfter tools and people are clear, observe direction, startup, speed changes, vibration, wobble and unusual sound.Speeds tested; observations; final dispositionGrinding, impact, abnormal vibration, wobble, fault or unexpected motion occurs.
Do Not Copy Torque Values

Use the fastener type, torque, sequence, marking method, lubrication condition and re-use limits from the current manual for the exact fan. A value from another model can create a false pass or damage the joint.

Stop-Run Conditions

Keep The Fan Out Of Service Until The Finding Is Resolved

These are escalation categories, not repair instructions. The exact manufacturer criteria determine the disposition.

01

Structure Or Frame Damage

Cracks, deformation, movement at the support, severe corrosion or an altered mounting assembly.

02

Retention Defect

Missing, frayed, damaged, loose or incorrectly routed safety cable, shackle, guy wire or restraint part.

03

Hub Or Blade Damage

Cracked blade root, damaged retainer, bent or damaged airfoil, missing hardware or contact evidence.

04

Drive Or Electrical Finding

Unexplained leakage, overheating evidence, burnt odor, damaged enclosure, wiring concern or unresolved fault.

05

Abnormal Operation

Grinding, impact, new loud mechanical noise, persistent wobble, abnormal vibration or unexpected direction.

06

Interface Failure

Required emergency, alarm or waterflow shutdown does not stop the fan as defined by the approved sequence.

Maintenance Record

Fields That Make The Inspection Reproducible

A signed “checked” box is weak evidence without the asset, method, findings and final disposition.

01

Asset Identity

Site, area, asset ID, manufacturer, model, serial, drive type, controller, diameter and installed configuration.

02

Work Basis

Manual number and revision, work order, interval basis, energy-control procedure, permits and access equipment.

03

Evidence

Date, operating hours when available, checklist result, measurements, torque record when required, fault codes and photographs.

04

Disposition

Defects, parts used, corrective action, items left open, test result, technician, reviewer and return-to-service approval.

Connect Maintenance To Installation Records

Keep the approved mounting detail, clearance drawing and shutdown-interface sequence with the asset. Use the HVLS installation height and clearance guide when the building, racking or roof services have changed.

Request Exact-Model Documents

Sources & Method

Evidence Used For This Model-Neutral Checklist

Sources show the control and inspection categories. They do not convert another manufacturer's values into AirMoveX specifications.

Hazardous-energy control: OSHA 29 CFR 1910.147 covers practices and procedures for controlling hazardous energy during servicing and maintenance. Its annual periodic-inspection provision applies to the energy-control procedure.

Read OSHA 1910.147

OEM checklist example: Big Ass Fans publishes an official Powerfoil X maintenance checklist covering isolation, retention, mounting hardware, frame and drive, hub, airfoils, corrosion and operational observation. Its intervals and torque values are model-specific.

Read the official maintenance PDF

Waterflow shutdown context: NFSA's summary of NFPA 13 conditions includes immediate HVLS fan shutdown upon waterflow alarm in the described arrangement. The actual project follows its adopted code, approved sprinkler design and controls sequence.

Read the NFSA article
Scope Limit

AirMoveX does not present this article as a service manual for every product. The exact manufacturer's current instructions, approved site procedures and responsible technical review control the work, replacement limits, torque, lubrication and return-to-service decision.

Maintenance FAQ

HVLS Preventive Maintenance Questions

Short answers for planning. Asset-specific values come from the exact manual and site program.

How often should an HVLS fan be serviced?

There is no universal interval. Start with the exact model's current manual, then consider duty, operating hours, environment, contamination, criticality and previous findings. An annual schedule in one product manual is not a universal rule for other fans.

Should the fan be locked out before maintenance?

Identify and control every hazardous energy source under the facility's energy-control procedure before inspection or work begins. The responsible employer defines the applicable procedure, authorized employees and verification steps.

Can torque values from another HVLS manual be reused?

No. Joints, fastener grades, coatings and assemblies differ. Use only the values, sequence and conditions issued for the exact manufacturer, model and revision.

What findings should keep the fan out of service?

Hold for structural cracks or deformation, missing or damaged retention parts, hub or blade-root damage, unexplained model-relevant leakage, unresolved electrical faults, abnormal vibration or noise, or a required shutdown interface that fails.

What belongs in the maintenance record?

Record the asset identity, manual revision, work order, isolation record, inspection findings, measurements, parts, photographs, corrective actions, controlled test results, technician and approver.

Does OSHA require annual HVLS fan maintenance?

OSHA 29 CFR 1910.147 requires periodic inspection of the energy-control procedure at least annually. That is separate from the fan's preventive maintenance interval, which comes from the exact product instructions and the facility plan.
