HVLS Installation Planning Guide

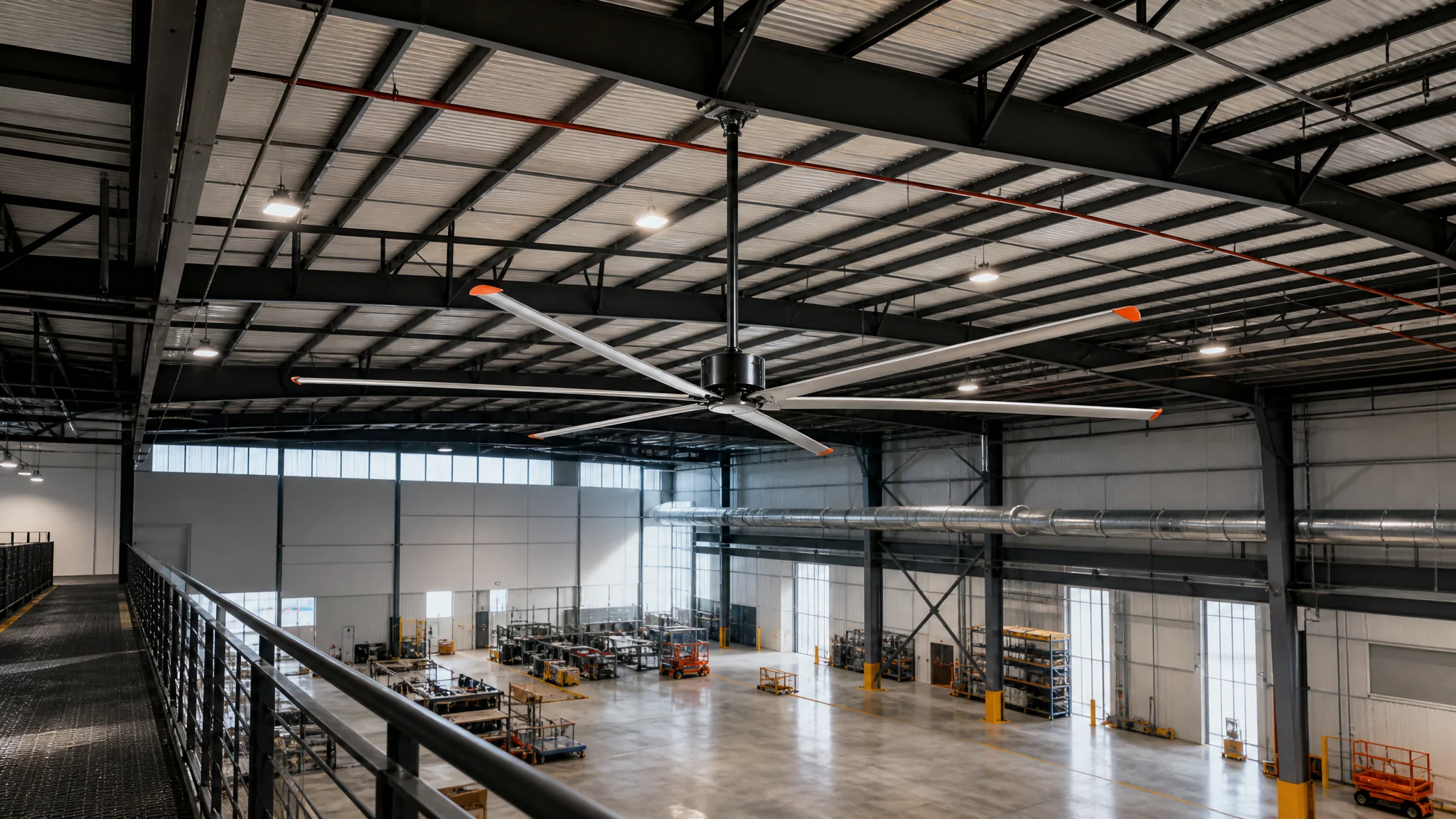

There is no single mounting height that fits every HVLS fan. Start with the exact model, then coordinate the full blade envelope with the building section, roof services, sprinklers and operating hazards.
Direct Answer
The right installation height is the elevation at which the selected fan stays inside its published mounting envelope while maintaining the required separation from people, stored goods, vehicles, structure, roof services and fire-protection equipment.
Clear height by itself is not enough. Fan diameter, downrod length, roof slope, mounting member, rack height, cranes, doors, process equipment and the sprinkler layout can each change whether a candidate location is usable.
Use generic dimensions only to start a review. Freeze the position only after the exact fan instructions, coordinated ceiling drawing, structural attachment and locally applicable fire-protection requirements agree.
See The Warehouse Layout SequenceClearance Evidence Table
Record a dimension and its evidence for every zone. “Looks clear in the photograph” is not a coordinated installation check.
| Review Zone | What Must Be Coordinated | Evidence To Keep |
|---|---|---|
| Floor And Occupied Zone | Finished-floor-to-blade elevation, people, work platforms and any accessible elevated area. | Dimensioned building section and finished floor reference |
| Storage And Vehicles | Top of storage, lift-truck operating height, tall loads, raised equipment and temporary staging. | Maximum operating heights and marked floor plan |
| Blade Swept Envelope | Full diameter, vertical blade movement and every manufacturer-required safety or service clearance. | Exact model drawing overlaid on the ceiling plan |
| Roof Structure | Beam, truss or approved support; roof slope; downrod; attachment; restraint and design loads. | Structural detail and responsible approval |
| Lights, Ducts And Moving Systems | Luminaires, pipes, ducts, cable trays, cranes, doors, curtains and suspended equipment in every operating position. | Coordinated reflected-ceiling plan and site verification |
| Sprinkler And Alarm System | Sprinkler type and spacing, deflector elevation, adopted code, waterflow shutdown and alarm-interface scope. | Fire-protection drawing, controls sequence and AHJ record |
A clearance found in a search result may apply only to a particular code edition, fan size, sprinkler arrangement, occupancy or storage condition. Use the locally adopted requirements and the current instructions for the exact fan being supplied.
Fire-Protection Coordination
The number is part of a group of conditions—not a stand-alone worldwide installation rule.
Record the jurisdiction, adopted edition, local amendments and the project’s sprinkler design basis.
Occupancy, storage height and arrangement, sprinkler type and special hazards can affect the applicable design.
If shutdown on waterflow is required, define the alarm interface, responsible trade, test method and acceptance record.
Have the fire-protection designer and authority having jurisdiction confirm the actual fan and sprinkler arrangement.
NFSA describes provisions added to the 2013 edition of NFPA 13. A project may use another edition, local amendment or design basis. This page helps organize the review; it does not replace the adopted code, sprinkler design or approval process.
Seven-Step Review
Change one input at a time and revise the drawing before the mounting position is released.
Use the exact series, diameter, blade count, mounting assembly and current installation instructions.
Reference finished floor, storage and operating heights, bottom chord, roof profile and mounting elevation.
Show the complete swept diameter plus the vertical and service zones required by the manufacturer.
Add structure, sprinklers, lights, pipes, ducts, cable trays, cranes, doors and temporary equipment.
Confirm the adopted rules, sprinkler layout and any waterflow shutdown requirement for this project.
Coordinate attachment, loads, restraints, voltage, phase, frequency, isolation and controls.
Issue the final elevation, clearances, model, mounting and controls responsibilities before work starts.
Project Input Checklist
These inputs let a supplier review the right platform and expose unresolved coordination items early.
Plan dimensions, clear height, roof slope, sections, mezzanines, racks, doors and maximum storage height.
Roof or truss plan, candidate support member, lights, sprinklers, ducts, pipes, cranes and marked photographs.
People and vehicle zones, available power, control location, alarm interface, operating objective and destination.
Review the AirMoveX HVLS platform overview, the warehouse layout guide and exact series pages such as AXV-H or AXV-L. Published catalog figures remain preliminary until confirmed for the project.
Send A Ceiling PlanSources & Method
Last reviewed 2 October 2026. Project-specific instructions and locally adopted requirements take priority.
Fire sprinkler reference: NFSA’s “When the Fan Hits the Sprinkler” summarizes testing background and conditions incorporated into the 2013 edition of NFPA 13, including the 24 ft diameter limit, approximate position between four adjacent sprinklers, 36 in vertical clearance and waterflow shutdown.
Read the NFSA articleCategory reference: AMCA notes that the U.S. Department of Energy defines large-diameter ceiling fans as having a blade span greater than 7 ft (2.1 m), while not every large-diameter ceiling fan is necessarily an HVLS fan. Product definition and regulatory treatment can vary by market.
Read the AMCA overviewAirMoveX has not converted these source summaries into a universal installation specification. Final dimensions, attachment, controls, sprinkler coordination and approval must be confirmed for the exact model, building and jurisdiction.
Installation Planning FAQ
Short answers for early coordination; final installation follows the exact model documents and project approvals.
There is no universal ideal height. Match the selected fan’s published installation envelope, diameter and mounting system to the building section, occupied and storage zones, structure, roof services, sprinkler design and local approvals.
No. NFSA’s NFPA 13 summary describes 36 in of vertical clearance together with a maximum diameter, approximate placement between four sprinklers and waterflow shutdown. The applicable rule still depends on the locally adopted edition and actual project conditions.
Set the arrangement from the adopted fire-protection requirements and coordinated design, not a stand-alone internet distance. Under the conditions summarized by NFSA, the fan is approximately centered between four adjacent sprinklers and has 36 in of vertical clearance to the deflectors.
The complete blade swept envelope and any required movement, safety or service zone should remain clear in the coordinated drawing. Include equipment in every operating position, not only its parked position.
Send a dimensioned plan and vertical section showing the exact fan model and diameter, support member, finished floor, blade elevation, sprinklers, lights, ducts, cranes, doors, racks and nearby hazards.
Follow the manufacturer’s current instructions and coordinate with the responsible structural, fire-protection, electrical and controls professionals. Obtain the authority having jurisdiction’s acceptance where the project requires it.
