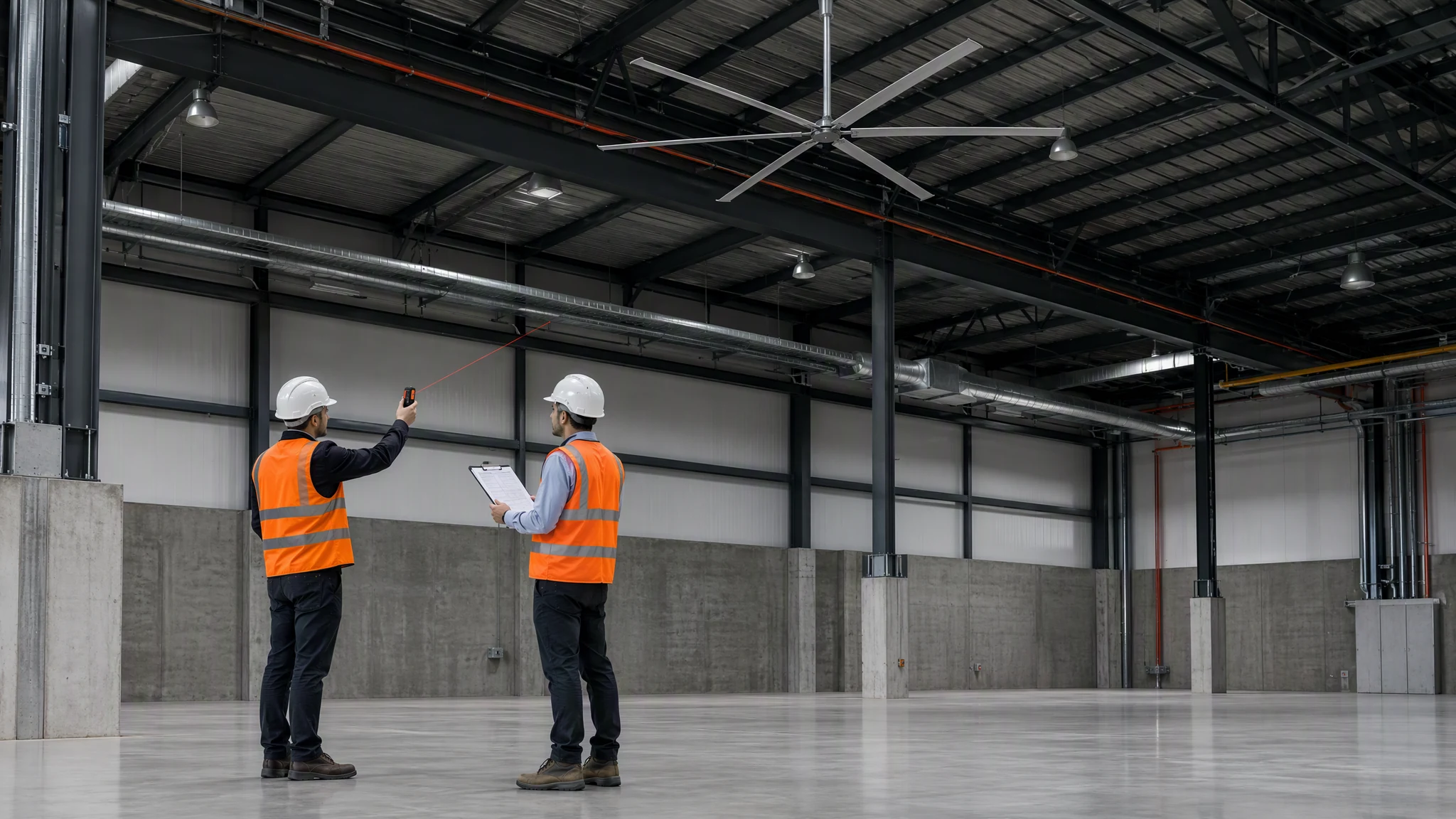

Building dimensions, clear height, structure, obstructions, occupied zones, season, process constraints and electrical supply.
Procurement Specification
HVLS Fan Specification Checklist For Comparable Quotes
A good specification defines the building, useful-air result, evidence, installation and commissioning. It does not simply ask suppliers for their biggest airflow number.
BuildingGeometry + Structure
ResultUseful Air Zone
SupplyFan + Controls
CloseoutInstall + Verify
Direct Answer
What Should An HVLS Fan Specification Include?
Specify the project conditions and required occupied-zone result first. Then require exact-model construction, electrical/control data, installation scope, evidence, commissioning method, documentation, warranty and exclusions.
Marketing fields such as coverage, efficiency or quiet operation are not comparable unless the measurement condition and useful result are defined. State blade height, zones, obstructions, air-speed grid or mixing objective, season and building state. Ask each bidder to show how its exact diameter, quantity, layout and speed meet that same basis.
A specification should also expose gaps. If the structural attachment, lift, wiring, fire-system coordination or commissioning is by others, name it. Hidden scope is one reason a low equipment price becomes an expensive installed project.
Engineering scope and sources reviewed 4 October 2026 · Project conditions still govern final selection
Decision Framework
Build The Specification In Four Layers
Each layer answers a different procurement question and produces evidence that can be checked.
Required Result
Air-speed or mixing objective, measurement height and grid, acceptable variation, operating condition and noise/comfort limits.
Exact Supply
Model, diameter, drive, blades, motor/controller, input, protections, communication, mounting and accessory schedule.
Delivery And Proof
Drawings, calculations, certifications in scope, installation responsibilities, commissioning records, training, warranty and exclusions.
Field Inputs
Minimum Fields For A Bid Comparison Sheet
Require every bidder to answer the same row; blanks are visible commercial and technical risks.
| Specification Section | Required Entry | Comparison Test |
|---|---|---|
| Building and zone | Dimensions, clear height, structure, obstructions, occupied target area | Same drawing revision and target zone for every bidder. |
| Layout | Fan centers, diameter, blade height, quantity and clearance envelope | Overlay each proposal on the same plan/reflected ceiling plan. |
| Useful-air evidence | Metric, height/grid, fan setting, building state and method | Same outcome and measurement basis, not coverage language. |
| Electrical/control | Voltage, phase, frequency, input, controller, network and protection | Same boundary: fan only or complete supplied system. |
| Installation scope | Structure, brackets, lift, power, controls, fire coordination and shutdown | Responsibility assigned for every installed-scope line. |
| Closeout | Commissioning, as-builts, manuals, spare parts, training and warranty | Named deliverable, format, acceptance owner and due point. |
Boundary: Do not require a certification or standard unless its exact scope is relevant and available for the quoted model/result. Schema and marketing copy are not certification evidence.
Practical Sequence
Issue A Specification That Suppliers Can Actually Price
- Freeze the input drawings.Use dated building, structure, ceiling-service and occupied-zone information.
- State one result.Define the required useful-air or mixing outcome and how it will be measured.
- Set product disclosures.Require exact model, size, drive, electrical/control and performance/test data.
- Allocate installation scope.Assign structure, lift, wiring, controls, sprinkler/fire coordination and access.
- Define acceptance.Name the commissioning grid, instruments, building state, records and responsible parties.
- Compare deviations.Ask every bidder to list exceptions and assumptions against the same numbered clauses.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Download The Buyer Brief
Use the fillable PDF to collect project inputs before issuing the final specification.
Select Diameter
Separate diameter fit from fan count and spacing.
Plan Spacing And Quantity
Use the structural and occupied-zone method for candidate centers.
Check Installation Scope
Expose the real cost drivers and exclusions before comparing total price.
Questions Buyers Actually Ask
HVLS Specification Questions
Should a specification name one fan diameter?
Only when geometry and useful-air evidence justify it. Otherwise state the result and constraints, ask bidders to propose diameter/quantity, and require a comparable layout and evidence.
What airflow number should I request?
Ask for the metric, test method and exact operating condition relevant to the occupied-zone result. One family-level airflow number does not define installed performance.
How should coverage be specified?
Define the target zone, blade height, fan setting, measurement height/grid, acceptable air-speed or mixing criterion, obstructions and building operating state.
What belongs in electrical scope?
Voltage, phase, frequency, input/current, disconnect and protection responsibilities, cable route, controller, network/BMS points, emergency or fire-system interface and commissioning.
How do I compare warranties?
Compare duration, covered components, labor/travel, exclusions, maintenance obligations, claim process, parts availability and who supports the installed location.
What should commissioning deliver?
As-installed model/location records, rotation and control checks, measurement grid/results, settings, exceptions, as-builts, manuals, training and acceptance signatures.
