Installation Envelope
The complete blade-tip circle, hub, downrod and support must clear structure, walls, objects, lights, sprinklers, ducts, cranes and adjacent fans under the applicable instructions and code.
Check Height And ClearancesMulti-Fan Planning Guide
HVLS Fan Spacing & Layout: How Many Fans Do You Need?
There is no universal HVLS spacing or fan count. Start with the occupied zones and a stated air-speed objective, then fit tested fan performance inside the building’s safety, structure and obstruction limits.
QuantityScreen, Then Verify
SpacingPerformance + Geometry
CoverageAt One Stated Objective
AcceptanceOccupied-Zone Measurements
Direct Answer
How Do You Calculate HVLS Fan Spacing And Quantity?
Define the zones that need air movement, choose a measurable air-speed or mixing objective, and use tested performance for the exact fan, speed and mounting height to draw a usable one-fan footprint.
A preliminary quantity is the target occupied area divided by that usable footprint, rounded up. It is not the purchase quantity. Candidate centers still have to fit real structure, wall and object clearances, sprinklers, lights, ducts, cranes, racks, mezzanines and the manufacturer’s installation instructions.
After installation, measure the occupied zone on a repeatable grid. If the specified points do not meet the agreed objective—or if some points create an unacceptable draft—the controls, zones or layout need tuning.
Method and source links reviewed 4 October 2026 · No universal coverage area, overlap percentage or global spacing multiplier is claimed
Three Separate Layers
A Safe Fan Position Is Not Automatically An Effective Layout
Keep installation geometry, airflow evidence and the real target area separate until the final overlay.
Effective Airflow Footprint
Use the area that meets the stated objective at the proposed height, speed and operating condition. A maximum throw distance or unlabeled marketing circle is not the same evidence.
Compare HVLS PlatformsTarget Occupied Area
Map where people, animals or processes actually need air movement. Exclude inactive storage only when it truly does not need circulation, and treat barriers as zone boundaries.
Review Building ApplicationsPreliminary Count
Use Area Division As A Screen, Not A Purchase Order
The numerator and denominator must represent the same operating objective.
Round up to the next whole fan only after both areas use the same target air speed, measurement height and operating state.
Any one of these can move a fan center, split a zone or change the final count.
| Illustrative Input | Value | Meaning And Limit |
|---|---|---|
| Target occupied area | 5,400 m² | A hypothetical total of mapped work zones—not the gross building floor area. |
| Usable area per candidate fan | 1,200 m² | A hypothetical footprint that meets the same air-speed objective at the proposed height and speed; it is not an AirMoveX product claim. |
| Arithmetic | 5,400 ÷ 1,200 = 4.5 | The decimal result cannot be installed, so the screening count rounds up. |
| Screening result | 5 fans | A starting count for drawing candidate centers. It can rise or fall after zone geometry, structure, overlap and measured performance are reviewed. |
Do Not Mix Coverage Definitions
A supplier’s “coverage” may refer to a throw radius, any detectable velocity, a comfort threshold or a simulation condition. Ask for the air-speed contour, fan speed, mounting height, test or model method and obstruction assumptions before using it as Ausable.
Inputs Before Centers
What Changes Fan Spacing In A Real Building?
Change one input and the usable footprint or feasible mounting grid can change with it.
| Input | What It Changes | Evidence To Record |
|---|---|---|
| Target air speed or mixing objective | Defines which part of the performance footprint is usable. | Objective, acceptable range, measurement height, season and operating state |
| Fan diameter, speed and tested performance | Changes both the installation envelope and the air-speed contour. | Exact model, diameter, speed point, AMCA or other disclosed test basis and curve/contour |
| Mounting and clear height | Changes how the downwash develops before it reaches the occupied zone. | Building section, fan blade elevation, roof profile and occupied-zone height |
| Structure and ceiling services | Determines where a safe mounting point actually exists. | Roof/truss plan, structural review, lights, sprinklers, ducts, cranes and cable trays |
| Walls and solid obstacles | Interrupts outward flow, increases turbulence and divides apparent coverage. | Full-height walls, partitions, racks, mezzanines, process enclosures and stored-goods height |
| Doors, HVAC and process state | Changes the background air pattern used during field verification. | Door positions, supply/exhaust operation, heat sources, shifts and seasonal modes |
| Control zoning | Allows different areas to run only when occupied or at different speeds. | Zone boundaries, controller grouping, sensors, schedules and fire-system interface |
Building Patterns
The Same Floor Area Can Need A Different Layout
Use the building’s airflow zones—not its property type alone—to choose a pattern.
| Building Pattern | Useful Starting Pattern | Primary Layout Risk | Verification Focus |
|---|---|---|---|
| Open warehouse or logistics floor | Centers coordinated with repeat structural bays and open staging/picking zones. | Dense racks, dock openings and stored-goods height can break a broad footprint. | Picking, packing, forklift routes and perimeter gaps. Use the warehouse-specific layout guide. |
| Factory with process cells | Separate broad circulation zones around heat sources, cranes and cells. | A nominally even grid may put fans over blocked or inactive areas. | Active work positions, process heat and crane/duct clearance in each operating mode. |
| Sports or public activity space | Symmetrical centers where architecture, courts and seating are regular. | Excess draft, acoustic/visual conflict or air-speed differences between players and spectators. | Representative court, seating and circulation points. See sports-facility planning. |
| Agriculture or livestock building | Rows or zones coordinated with pens, feed lanes and open sides. | Seasonal wind, moisture, dust and animal zones change the useful operating condition. | Animal level, pen edges and seasonal open/closed sidewall states. |
| Irregular plan or mezzanine | Several smaller zones, sometimes with staggered centers or another fan type. | One apparent coverage circle crosses levels, partitions or blocked floor that it cannot serve. | Each level and occupied pocket independently; do not average results across disconnected zones. |

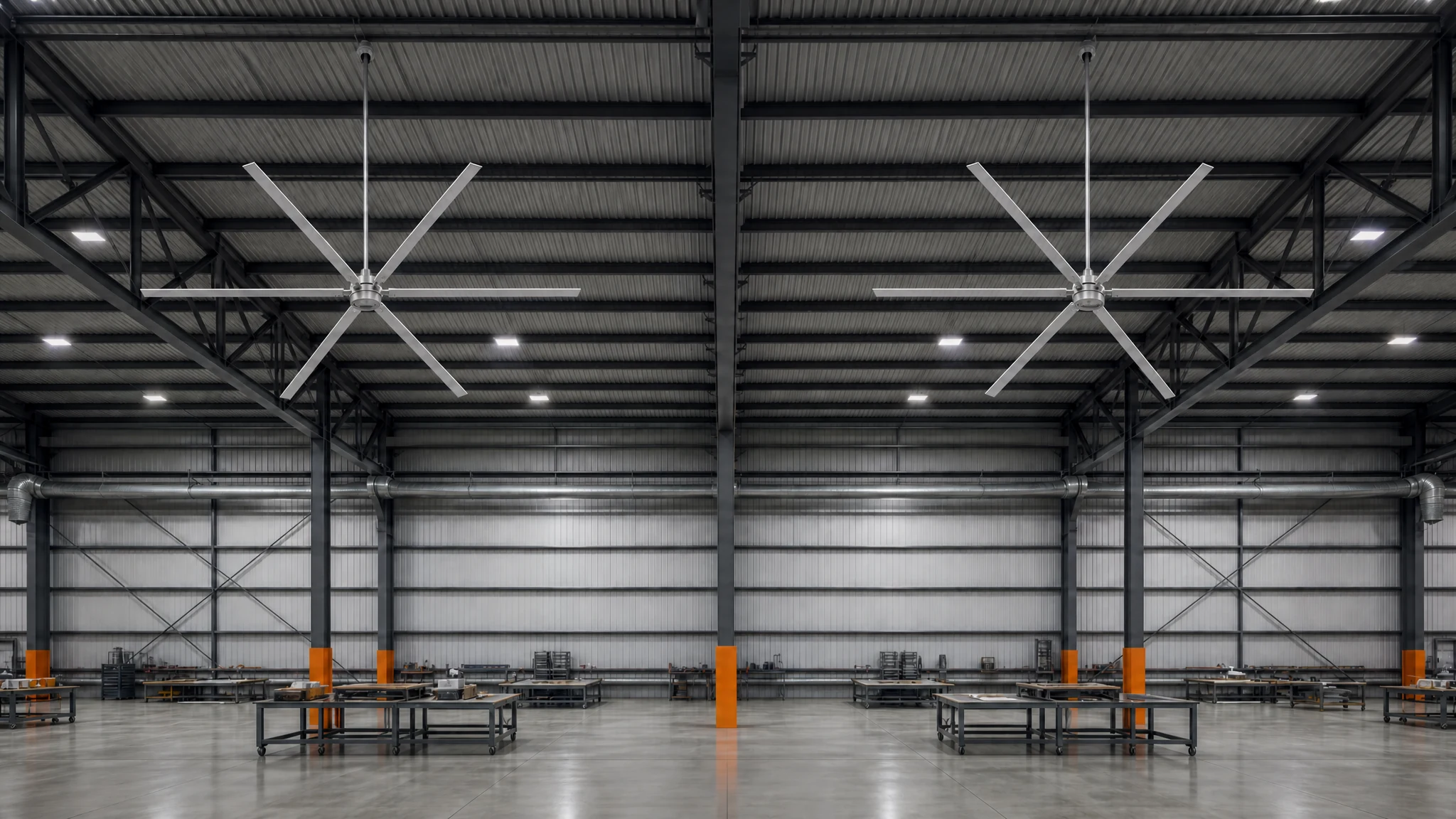

Aligned Or Staggered
Choose The Pattern That Fits Zones And Structure
Neither pattern is inherently superior; both require a complete envelope and performance check.
Use Aligned Centers When
Structural bays repeat, occupied zones form straight bands, ceiling services stay consistent and the tested footprints can meet without leaving aligned gaps.
Test A Staggered Pattern When
Target zones are offset, a regular row leaves diagonal gaps, obstacles alternate between bays or one row needs to serve the edges of another.
Reject Either Pattern When
It forces unsafe clearances, puts a center on unavailable structure, treats an obstacle as transparent or depends on an undisclosed coverage claim.
Overlap Is An Outcome, Not A Fixed Percentage
Draw comparable air-speed contours. A slight geometric overlap may close a low-velocity gap, while too much overlap can concentrate airflow and consume area that another fan should serve. Verify the result at occupied height.
Safety Reference
Keep Example Multipliers In Their Published Scope
These values are screening references from one AMCA educational presentation, not a universal substitute for adopted code or manufacturer instructions.
| AMCA Presentation Example | What It Screens | Scope Limit |
|---|---|---|
| At least 2 ft (610 mm) from objects | A blade-clearance check around nearby objects. | Confirm the exact object, measurement point and stricter project/manufacturer requirement. |
| At least 3 ft (914 mm) below a sprinkler head | Vertical sprinkler relationship in the presentation’s U.S. context. | The applicable sprinkler standard, edition, authority and full conditions govern the real site. |
| Wall distance at least 0.5D | A horizontal wall-clearance screening value, where D is fan diameter. | It is not proof that the target air-speed footprint remains effective at that wall. |
| Center-to-center distance at least 2.5D | A safety/spacing screening value between fan centers. | It does not calculate the optimum performance spacing for every model or building. |
| AMCA 230 test procedure | Large-diameter ceiling-fan airflow and power representation in the cited U.S. regulatory discussion. | Request the exact tested model and data; a standard name alone does not prove the proposed layout. |
Project rule: use the most restrictive applicable combination of adopted code, authority requirements, fire-protection design, structural review and the exact fan manufacturer’s current installation instructions.
Open The AMCA Educational PresentationSix-Step Workflow
From Building Plan To Verifiable Fan Centers
Keep every assumption visible so a reviewer can reproduce the preliminary layout.
Map Target Zones
Trace workstations, packing areas, courts, seating, animal pens or other occupied zones. Mark mezzanines, full-height partitions, dense racks and spaces that are intentionally outside the circulation scope.
Set The Acceptance Objective
Define the air-speed range or mixing outcome, measurement height, season, occupancy and HVAC/door state. Without this, “coverage” has no comparable meaning.
Shortlist Tested Fan Performance
Select a candidate diameter and speed using disclosed performance at the proposed mounting height. Keep circulation separate from outdoor-air ventilation, local exhaust and cooling-load calculations.
Overlay Every Installation Envelope
Draw the blade-tip circle and required clearances around structure, walls, objects, sprinklers, lights, ducts and other fans. Remove centers that cannot be mounted or serviced credibly.
Screen Count And Compare Patterns
Apply the preliminary equation, then test aligned, staggered or zone-specific centers. Review edge loss, overlap, obstructions, controller groups and the practical mounting grid together.
Measure, Tune And Record
Commission the installed system on a fixed occupied-zone grid, correct gaps or excessive drafts and retain the final speeds, control logic and baseline measurements for future checks.

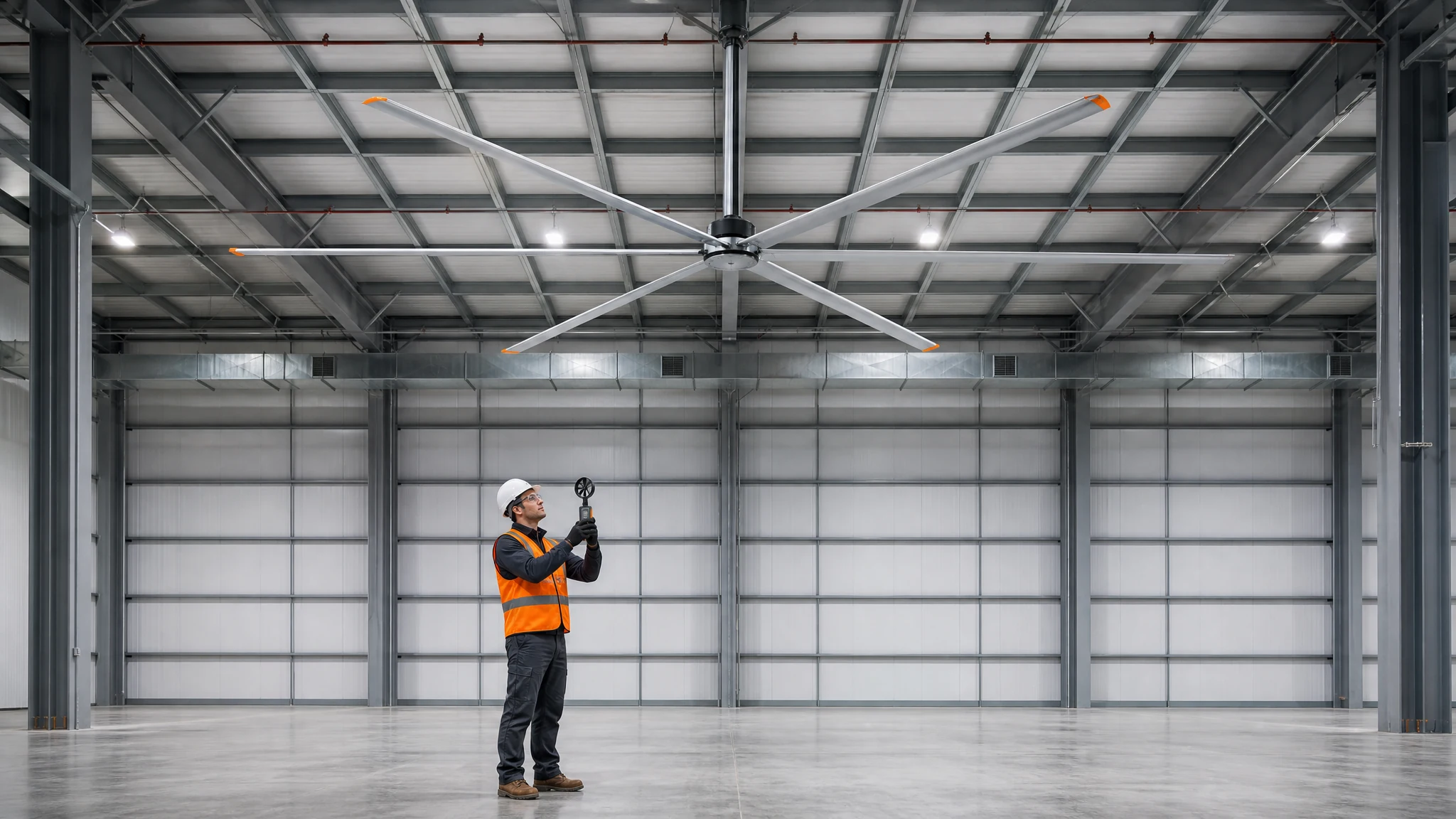

Field Verification
Commission The Layout Where People Actually Experience It
A drawing predicts the result; a documented air-speed grid checks it.
| Grid Record | Why It Matters | Corrective Question |
|---|---|---|
| Point ID and coordinates | Makes every result repeatable and shows center, edge, overlap and obstacle-shadow locations. | Are gaps clustered at boundaries, walls or behind obstructions? |
| Measurement height and instrument | Keeps readings comparable to the stated occupied-zone objective. | Was the anemometer suitable, oriented correctly and within calibration? |
| Fan ID, direction and speed | Links the result to one reproducible controller state. | Can a speed or control-zone change correct the result without creating excessive draft elsewhere? |
| Doors, HVAC and process state | Records background airflow and thermal conditions that may change the reading. | Does the layout pass in every agreed normal operating mode? |
| Measured air speed and observation | Shows whether each point meets the project range and whether the airflow is stable. | Is a physical obstruction, edge effect or fan interaction causing the miss? |
| Final setting and retest | Creates an acceptance baseline for seasonal tuning and maintenance. | Was the corrected point—and adjacent points—measured again before sign-off? |
Sources And Limits
What Each Reference Can And Cannot Establish
Transparent scope prevents a useful starting point from becoming a false universal rule.
AMCA educational presentation: provides U.S.-oriented safety examples and identifies AMCA 230 for large-diameter ceiling-fan airflow/power testing. It does not select the final count for a specific site.
Open The AMCA PresentationUC Berkeley CBE Ceiling Fan Design Guide: the public record describes a design-guide and tool approach that links target air speed, room geometry and layout. Project inputs and a validated model remain necessary.
Open The UC Berkeley RecordManufacturer evidence: current installation instructions and tested model performance establish what can be applied to the quoted fan. Generic rules cannot replace the exact model, mount and control configuration.
Request Project DocumentsNeed Warehouse-Specific Placement?
This page explains the cross-building spacing and quantity method. The warehouse HVLS layout guide goes deeper into racks, docks, roof structure and candidate centers, while the technical resources hub covers installation, maintenance and airflow calculations.
Spacing And Quantity Questions
HVLS Fan Layout FAQ
Short answers for preliminary planning; the complete workflow above shows how to document and verify them.
How far apart should HVLS fans be?
There is no universal center-to-center spacing. Use fan diameter, tested airflow at the proposed height and speed, the target air-speed objective, obstacles, wall and sprinkler conditions, structure and the current manufacturer instructions.
How many HVLS fans do I need?
Divide the mapped target occupied area by a usable one-fan area that meets the same stated objective, round up, then revise the count after structure, obstacles, overlap, edge losses, controls and field-verification points are drawn.
Can I divide total floor area by advertised fan coverage?
Not as a final method. Total floor area may include irrelevant or blocked zones, while advertised coverage may use a different height, speed or air-speed threshold. Ask for comparable tested performance and define a project-specific usable footprint.
Should multiple HVLS fans be aligned or staggered?
Aligned centers fit regular bays and straight target zones. A staggered pattern can serve offset or irregular zones. Select the pattern only after both pass the complete installation-envelope and air-speed-contour review.
Should fan coverage areas overlap?
A controlled overlap may close a low-velocity gap, but there is no universal percentage. Excess overlap can waste usable area or create an uneven result. Compare performance contours and verify the installed grid.
Do racks, mezzanines and partitions change spacing?
Yes. Solid obstacles block or redirect air and can split one apparent floor into multiple airflow zones. Map them before choosing centers rather than treating them as a final adjustment.
How should an HVLS layout be commissioned?
Measure occupied-zone air speed at fixed points and heights with the real fan speed, direction, doors, HVAC and process state recorded. Correct dead zones or excessive drafts, retest adjacent points and retain the final baseline.
