Ceiling Air Movement

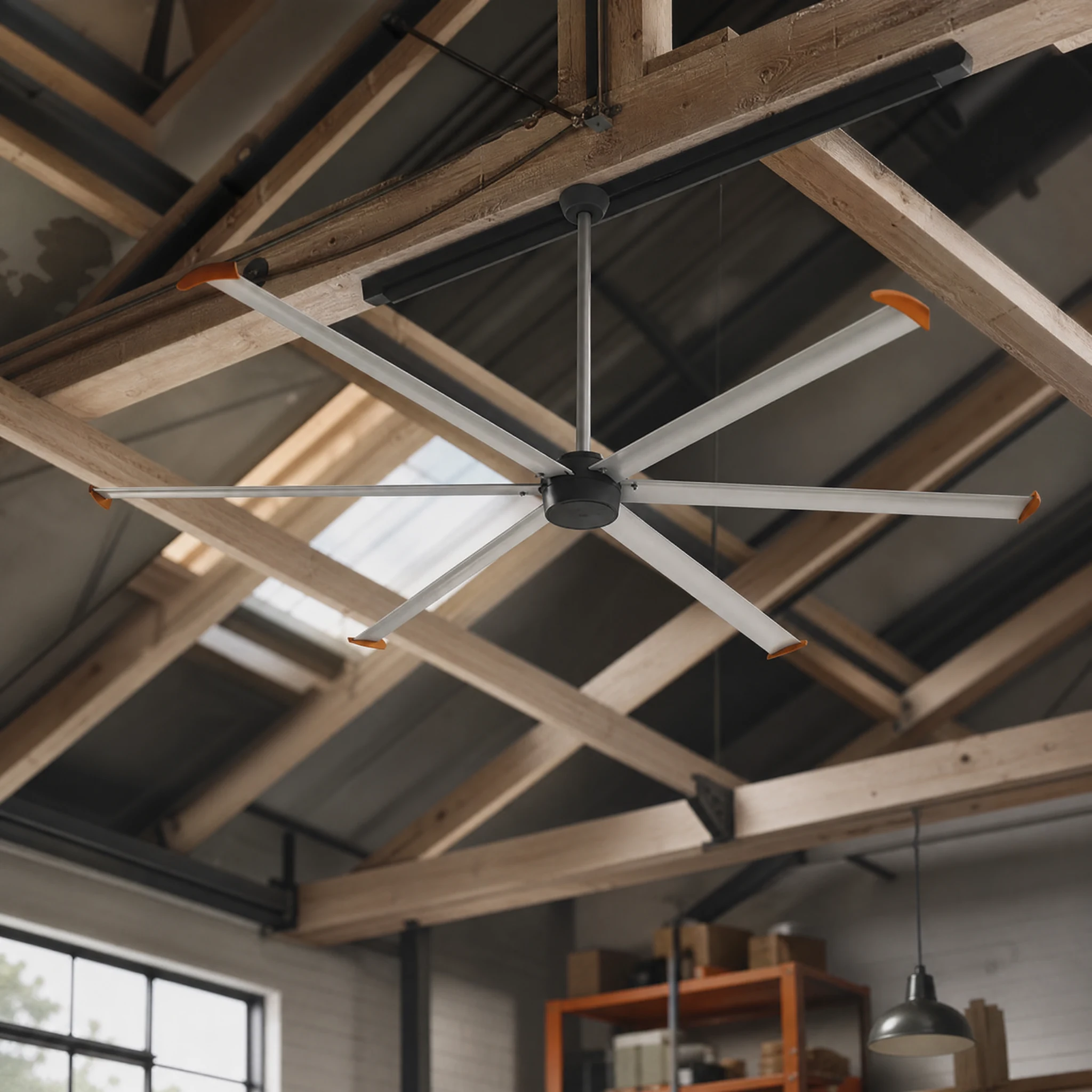

AirMoveX AXV-S6 Series
Compact Six-Blade HVLS Fan
A six-blade, medium-span PMSM platform for projects that need strong circulation below full high-bay scale.
- Six-blade layout
- PMSM direct drive
- AL6063 airfoils
- Low-speed broad airflow
- Size Range
- 8-16 ft
- Drive
- PMSM direct drive
- Max Air Volume
- 8,900 m³/min
- Installation
- Recommended clear height < 7 m
Product Overview
Configured Around The Building, Not Just The Diameter
A six-blade, medium-span PMSM platform for projects that need strong circulation below full high-bay scale.
- Drive
- PMSM direct drive
- Blade
- AL6063 / 6 pcs
- Control
- VFD with protection module
- Install
- Recommended clear height < 7 m
Workshops, medium warehouses, indoor sports facilities, dining halls and agricultural buildings
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Why This Model May Fit
AirMoveX AXV-S6 Series In The AirMoveX System
Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.
Typical applications: Workshops, medium warehouses, indoor sports facilities, dining halls and agricultural buildings.
VFD with protection module. Available variants begin at 4.88 m / 16 ft; review the table below for the series range.
Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.
Carry This Model Into A Quote ↗Available Configurations
AirMoveX AXV-S6 Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXV-S6-16 | 4.88 m / 16 ft | 220 V / 50-60 Hz | 950 W | 4.8 A | 70 rpm | 8,900 m³/min | 770 m² | ≤ 40 dB(A) | 6 | 75 kg | Quote This Model ↗ |
| AXV-S6-14 | 4.28 m / 14 ft | 220 V / 50-60 Hz | 950 W | 4.8 A | 90 rpm | 7,400 m³/min | 640 m² | ≤ 40 dB(A) | 6 | 67.6 kg | Quote This Model ↗ |
| AXV-S6-12 | 3.68 m / 12 ft | 220 V / 50-60 Hz | 850 W | 4.3 A | 95 rpm | 5,900 m³/min | 470 m² | ≤ 40 dB(A) | 6 | 63.8 kg | Quote This Model ↗ |
| AXV-S6-10 | 3.08 m / 10 ft | 220 V / 50-60 Hz | 800 W | 4 A | 120 rpm | 5,200 m³/min | 300 m² | ≤ 40 dB(A) | 6 | 56.8 kg | Quote This Model ↗ |
| AXV-S6-08 | 2.48 m / 8 ft | 220 V / 50-60 Hz | 800 W | 4 A | 150 rpm | 4,200 m³/min | 200 m² | ≤ 40 dB(A) | 6 | 53 kg | Quote This Model ↗ |
Configuration 01
AXV-S6-16
4.88 m / 16 ft- Diameter
- 4.88 m / 16 ft
- Voltage
- 220 V / 50-60 Hz
- Current
- 4.8 A
- Max Speed
- 70 rpm
- Sound
- ≤ 40 dB(A)
- Blades
- 6
- Net Weight
- 75 kg
Configuration 02
AXV-S6-14
4.28 m / 14 ft- Diameter
- 4.28 m / 14 ft
- Voltage
- 220 V / 50-60 Hz
- Current
- 4.8 A
- Max Speed
- 90 rpm
- Sound
- ≤ 40 dB(A)
- Blades
- 6
- Net Weight
- 67.6 kg
Configuration 03
AXV-S6-12
3.68 m / 12 ft- Diameter
- 3.68 m / 12 ft
- Voltage
- 220 V / 50-60 Hz
- Current
- 4.3 A
- Max Speed
- 95 rpm
- Sound
- ≤ 40 dB(A)
- Blades
- 6
- Net Weight
- 63.8 kg
Configuration 04
AXV-S6-10
3.08 m / 10 ft- Diameter
- 3.08 m / 10 ft
- Voltage
- 220 V / 50-60 Hz
- Current
- 4 A
- Max Speed
- 120 rpm
- Sound
- ≤ 40 dB(A)
- Blades
- 6
- Net Weight
- 56.8 kg
Configuration 05
AXV-S6-08
2.48 m / 8 ft- Diameter
- 2.48 m / 8 ft
- Voltage
- 220 V / 50-60 Hz
- Current
- 4 A
- Max Speed
- 150 rpm
- Sound
- ≤ 40 dB(A)
- Blades
- 6
- Net Weight
- 53 kg
The values above are supplied catalog references. Use exact-model input at the intended speed and the site's real operating hours to estimate kWh and cost.
Open The Power-Consumption MethodSelection Guides
Resolve These Questions Before Choosing AirMoveX AXV-S6 Series
Use the guides for the selection method, then confirm the exact configuration against the project documents.
HVLS vs exhaust: circulation or air exchange?
Separate the circulation layout from exhaust duty and replacement air before comparing quotations.
HVLS Fans Near Mezzanines: Include the Upper Walking Level
An HVLS fan near a mezzanine must be assessed from the upper walking surface, stairs and access points—not only from the warehouse floor.
Low-Profile Shunt Fan or HVLS: Start With Available Headroom
Compare a low-profile guarded shunt fan and an open HVLS rotor by complete installed depth, access and the occupied air path—not by the word low-profile.
Private-Label Industrial Fans: Approve the Identity Before the Carton
Before requesting a private-label fan, agree the exact model, legal identities, nameplate data, manual and packaging changes. A logo change is not a complete OEM specification.
PMSM Fan Motors: Buy the Motor and Controller as a Matched System
A PMSM fan motor needs a controller approved for its exact electrical and mechanical configuration. Match the pair before buying a replacement.
Warehouse Fan Control Zones: Follow the Work, Not Just the Roof Grid
Divide warehouse fan controls by occupancy, operating hours and local responsibility, not by a neat grid on a floor plan.
Replacement HVLS Blades: Check the Complete Rotor Identity
Replace HVLS fan blades through the supported service route. Matching length or buying a loose blade does not establish fit, balance or retained performance.
HVLS Maintenance Access: Plan How the Technician Reaches the Fan
Plan HVLS fan maintenance access around the work envelope, floor route, isolation and rotor position before choosing a platform.
