A Gradient Exists
Log temperature near the roof and at occupied height under comparable building conditions. If the difference is small, more mixing may add draft without solving a real problem.
Winter Air-Mixing Guide
HVLS Destratification Without A Cold Draft
Winter destratification is a controlled mixing job: move warmer ceiling air back into the occupied zone slowly enough that people do not feel an unwanted draft.
TriggerMeasured Stratification
ControlLow Stable Speed
ConstraintNo Cold Draft
ProofHigh/Low Trend
Direct Answer
How Should An HVLS Fan Run For Winter Destratification?

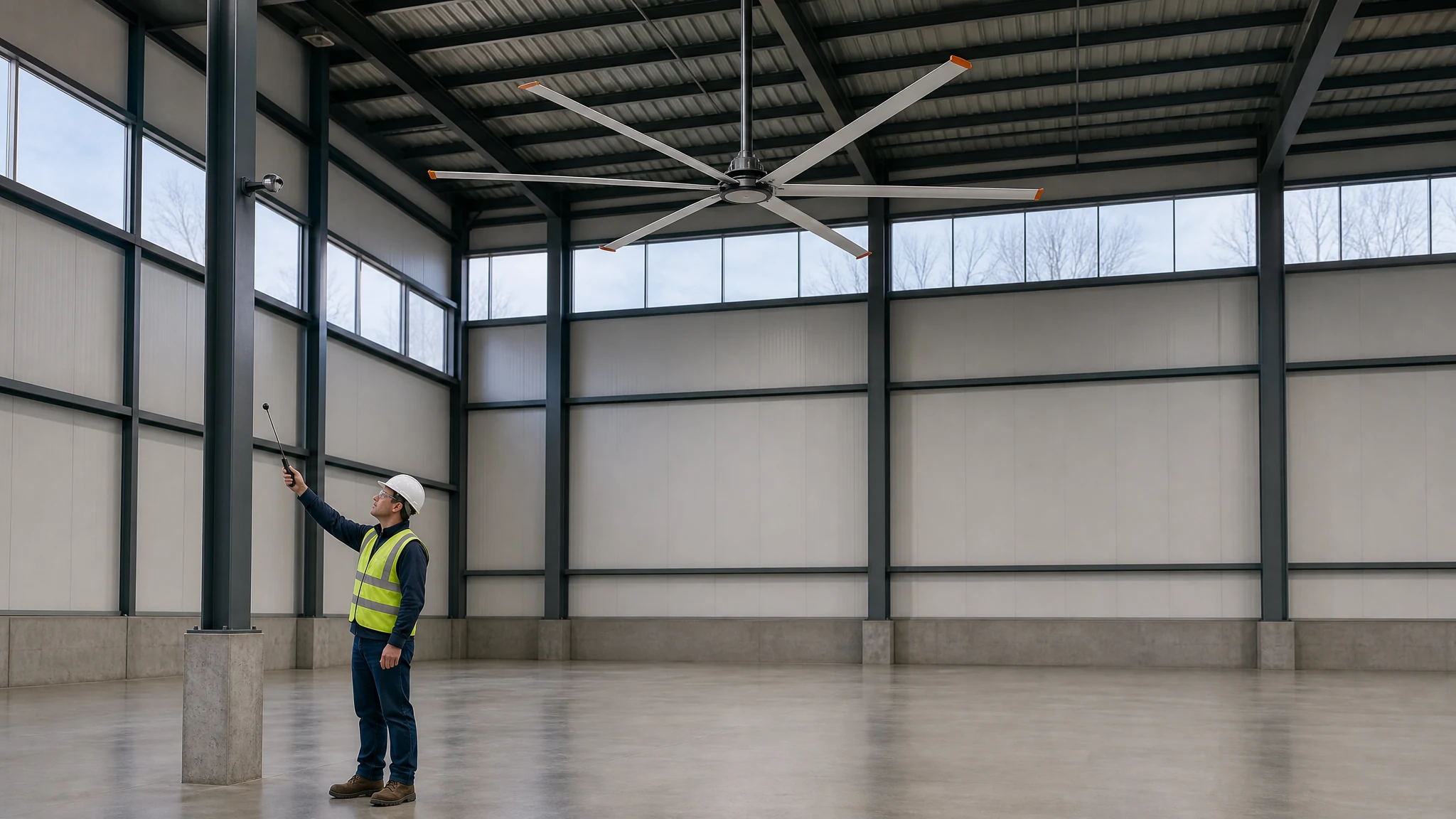

Start only after a repeatable ceiling-to-occupied-zone temperature difference is measured. Run the HVLS fan at the lowest stable speed and direction that reduces that difference without creating objectionable air movement where people work.
Warm air rises, but an HVLS fan does not create heat. It redistributes air already in the room. The useful result is a smaller vertical temperature gradient and a more even occupied zone; the wrong result is a colder-feeling workstation, disturbed process, or increased infiltration through open doors.
One setting rarely fits the whole season. Door activity, heater firing, rack height, solar gain and outdoor temperature change the load. A practical control sequence uses high- and low-level temperature sensing, an occupied-mode speed cap and a manual comfort check.
Engineering scope and sources reviewed 4 October 2026 · Project conditions still govern final selection
Decision Framework
Four Checks Before Calling It Destratification
The winter decision is about temperature distribution and comfort together; neither can be inferred from fan speed alone.
The Heat Source Is Stable
Record heater stages, door openings and shift schedule. A changing heat input can look like a fan effect if the test periods are not comparable.
The Air Path Is Clear
Racks, mezzanines, cranes, ducts and partitions can block the return path. Check the actual zone rather than assuming a circular footprint.
People Accept The Setting
Measure and ask at workstations, docks and seating areas. A lower gradient is not a success if occupants experience a persistent cold draft.
Field Inputs
Record The Same Conditions Before And After A Speed Change
Use paired readings and change one control variable at a time.
| Input | Record | Why It Matters |
|---|---|---|
| Temperature points | High level, occupied height and location IDs | A single thermostat cannot show the vertical gradient. |
| Time and building state | Heater stage, doors, shift, outdoor temperature | These conditions can outweigh a small fan-setting change. |
| Fan condition | Exact fan, direction, speed command and run time | Direction labels and percentage commands are controller-specific. |
| Occupied-zone result | Air speed, temperature and comfort observations | This catches the point where mixing becomes a draft. |
| Process constraints | Dust, papers, curing, livestock, open flames or sensitive work | Mixing can be unacceptable even when temperature distribution improves. |
| Stop condition | Condensation, nuisance draft, unstable control or no measurable benefit | A documented stop rule prevents speed from creeping upward without evidence. |
Boundary: No fixed winter speed, direction or saving percentage applies across controllers and buildings. Confirm the exact product instructions and the site's heating sequence.
Practical Sequence
Commission Winter Mixing In Six Controlled Steps
- Map the zone.Mark heaters, doors, racks, mezzanines, occupied stations and candidate measurement points.
- Capture a baseline.Log high- and low-level temperatures long enough to see a stable pattern with the fan off or at the existing condition.
- Start low.Use the lowest stable winter setting allowed by the exact controller and manufacturer instructions.
- Wait for the room.Allow temperatures to settle; do not judge a tall building from the first few minutes.
- Check the people zone.Measure air movement at representative workstations and ask about cold-draft sensation.
- Save the control rule.Document sensor positions, enable threshold, speed cap, occupied schedule and conditions that suspend operation.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Check Mounting Height And Clearances
Confirm the rotating envelope and roof-service conflicts before discussing a winter setting.
Plan Fan Spacing By Zone
Use geometry and occupied-zone verification when one fan cannot represent the full building.
Calculate Real Fan Energy
Convert measured input and the actual winter schedule into kWh without inventing savings.
Compare HVLS Platforms
Shortlist a product family only after the building and seasonal control inputs are defined.
Questions Buyers Actually Ask
HVLS Destratification Questions
What is destratification?
It is the controlled reduction of vertical temperature layers in a space. In winter, the practical target is to move warmer high-level air toward the occupied zone without creating objectionable local air speed.
Should an HVLS fan run in reverse in winter?
Direction depends on the exact fan and control strategy. Do not rely on a generic reverse rule; follow the product instructions and verify the occupied-zone result with temperature and air-speed readings.
What speed should I use?
Use the lowest stable setting that measurably reduces the vertical temperature difference while staying below the site's comfort or process limit. There is no universal percentage.
Can destratification reduce heating cost?
It can change heat distribution, but a cost reduction needs a defined baseline, comparable weather and occupancy, heater or fuel data, fan energy and the same comfort target.
Where should temperature sensors go?
Use at least a high-level point and a representative occupied-height point, away from direct heater discharge, exterior drafts and other local biases. Large or divided spaces need multiple pairs.
When should the fan stop?
Stop or reduce speed when the gradient is no longer meaningful, occupants report a cold draft, process material is disturbed, doors create excessive infiltration, or the control sequence becomes unstable.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
U.S. Department of Energy
Energy Tips for Commercial Buildings
DOE building guidance supports measurement and control rather than a universal savings percentage.
Open sourceASHRAE
Thermal Comfort Resources
Thermal comfort depends on air speed, temperature, clothing and activity; the occupied zone must be checked.
Open sourceAMCA International
Air Circulating Fans
AMCA resources distinguish air-circulation performance from unsupported whole-building energy claims.
Open sourceProject Review
Send The Winter Gradient, Not A Fan Count
Share high- and low-level readings, sensor positions, clear height, occupied zones, heaters, doors, obstructions and acceptable air movement. AirMoveX can review a controllable fan shortlist without promising a fixed saving.
