HVLS Selection Guide
Direct-Drive Vs Geared HVLS Fans: Choose For The Building

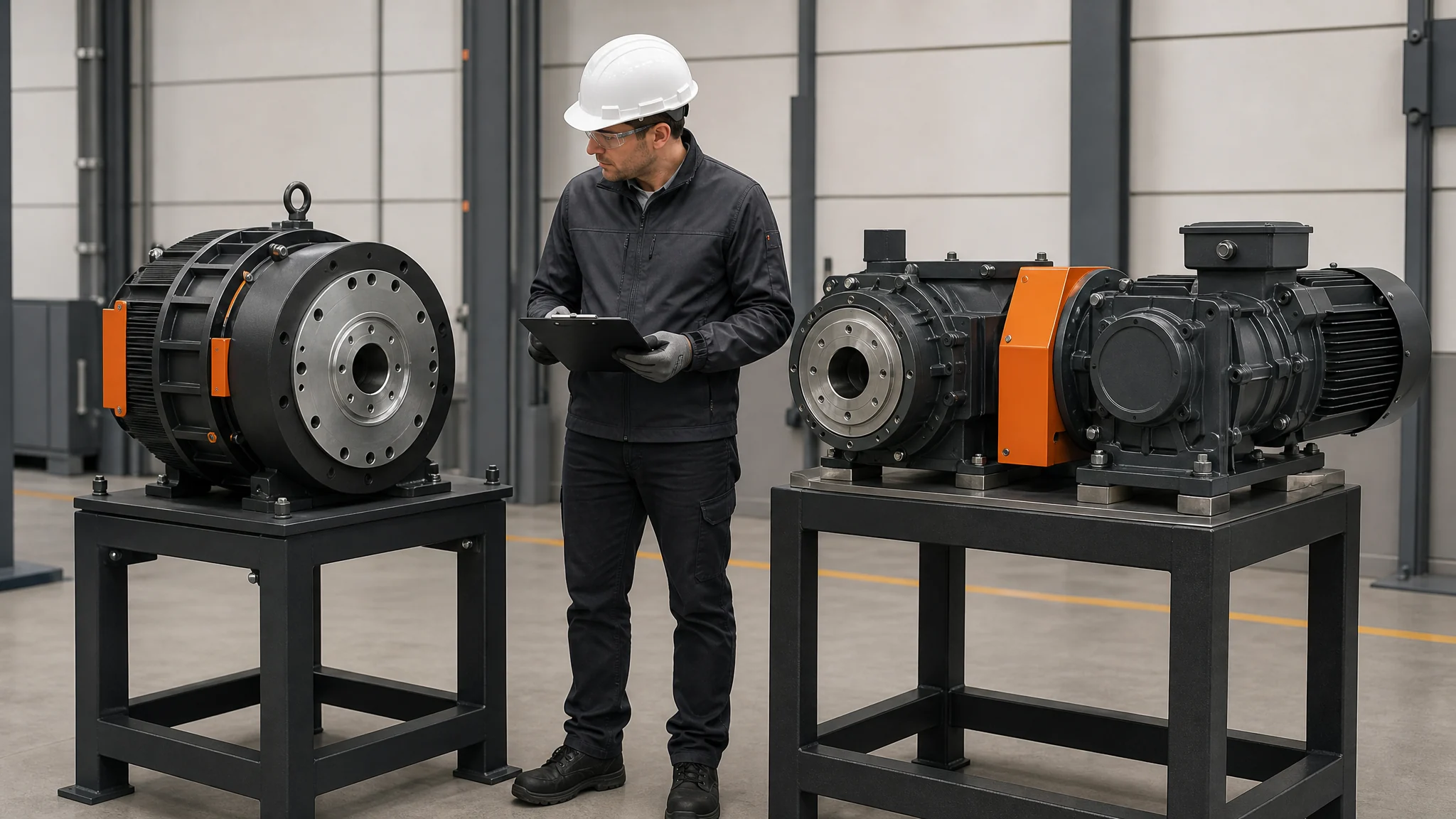

There is no honest winner for every high-bay. Direct drive removes a gearbox from the torque path; a geared design may offer a familiar service arrangement. The better choice is the one that fits the duty, access, controls, noise limit and maintenance plan you can actually support.
Direct DriveFewer Torque Stages
GearedReduction Stage
CompareDuty & Access
ProveLifecycle Fit
Direct Answer
Is Direct Drive Better Than A Geared HVLS Fan?
Neither architecture is automatically better. Direct drive sends motor torque to the fan rotor without a separate reduction gearbox; a geared fan adds a reduction stage that can change speed, torque, service points and sound. Select the arrangement that meets the required air movement with a credible installation, control and maintenance plan.
The first question is not the marketing label. Write down the ceiling height, occupied-zone comfort target, required coverage, operating schedule, ambient temperature, dust or washdown exposure, noise limit, electrical supply and access equipment. A compact direct-drive assembly may simplify the rotating power path, but its motor, electronics and bearings still need inspection and replacement access. A geared assembly may be familiar to a maintenance team, yet the gearbox adds lubrication, seals, backlash and condition-monitoring questions.
Power and speed comparisons must use the same duty. A drive percentage is not airflow, and a nameplate rating is not measured input at the selected operating point. Request the manufacturer’s current performance data, installation limits and service intervals for the exact diameter and motor package. Check whether the control method changes minimum speed, starting behavior, braking, fault response or harmonic requirements.
Lifecycle evidence is more useful than a simple efficiency claim. Ask who can supply the motor, drive, gearbox, bearings, controller and mounting parts in the intended region, how a failed assembly is removed from the roof, and which inspections can be done without putting a technician beneath an unsecured fan. A slightly lower first cost can disappear if the building cannot provide safe access or if a critical spare has a long lead time.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Comparisons That Belong In The Same Decision
Compare the complete fan package at the building, not two isolated drive names.
Service Points
List bearings, seals, gearbox oil or grease, drive electronics, guards, fasteners and access equipment. The fewer parts on paper do not remove the need for a safe inspection plan.
Room Conditions
Check dust, humidity, washdown, heat, corrosive vapors and occupied-zone sound. Enclosure, cooling and material choices can outweigh architecture.
Spare And Failure Plan
Identify regional spares, replacement time, fault isolation, emergency operation and how a suspended assembly is lowered or secured during repair.
Field Inputs
Build A Like-For-Like Drive Comparison
Use one schedule so a direct-drive quotation and a geared quotation answer the same questions.
| Decision Input | Direct-Drive Questions | Geared-Fan Questions |
|---|---|---|
| Required air movement | What tested duty and control range apply to this diameter? | What tested duty applies after reduction ratio, and where is the stable range? |
| Mechanical path | How are rotor, bearings and motor supported and protected? | What gearbox, coupling, seals and lubrication arrangement are included? |
| Controls | How are speed, braking, faults and service isolation handled? | How do drive and gearbox limits affect minimum speed, starts and alarms? |
| Environment | What enclosure, cooling and corrosion limits apply to the motor and electronics? | What temperature, dust and lubricant limits apply to the gearbox and seals? |
| Access | Can the motor and controller be reached with the planned lift and fall-protection method? | Can gearbox service and oil checks be completed without unsafe suspended work? |
| Lifecycle | Which motor, controller and bearing spares are stocked locally? | Which gearbox, coupling, seal and lubricant parts are stocked locally? |
Boundary: AMCA performance methods help define comparable fan results, but they do not select a drive architecture for a particular building. Use current manufacturer data, project safety rules and qualified design review for the exact model.
Practical Sequence
Choose An HVLS Drive Architecture In Six Steps
- Freeze the building duty.Record clear height, floor area, occupied zones, desired air movement, operating hours, ambient conditions and the actual coverage problem before comparing products.
- Define the control case.State the speed range, start and stop sequence, emergency behavior, remote interface, fault reset and any interaction with heating or air-conditioning controls.
- Map the torque path.Draw motor, rotor, coupling, reduction stage, bearings, guards and mounting points. Mark every component that can wear, overheat or require isolation.
- Check access and safety.Verify roof structure, fall protection, lift equipment, service clearance and the method for securing or lowering the assembly before approving the layout.
- Compare lifecycle evidence.Obtain service intervals, spare-part numbers, warranty boundaries, lead times, sound data and environmental limits for the exact package, not a family-level claim.
- Commission the chosen fan.Record rotation, command, measured speed, electrical input, vibration, occupied-zone air speed, sound and fault behavior, then save the baseline for maintenance.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Select The Right HVLS Diameter
Start with clear height, zones and obstructions before choosing a motor package.
Check Mounting Clearance
Confirm the rotating envelope, structure and service path for either drive arrangement.
Plan Preventive Maintenance
Turn the selected service points into a repeatable inspection record.
Review Fan Power
Compare measured input and schedule rather than treating a drive label as an energy result.
Questions Buyers Actually Ask
Direct-Drive And Geared HVLS Questions
Is direct drive always more efficient?
Not automatically. Removing a reduction stage can reduce one source of loss, but total input depends on fan aerodynamics, motor, drive, speed, air path and operating point. Compare measured or properly tested duty data for the exact package.
What is the main maintenance difference?
A geared package adds gearbox, lubricant, seals and coupling checks. A direct-drive package still needs inspections of motor bearings, rotor, controller, fasteners, guards and wiring. Use the exact supplier schedule and make access practical.
Which type is quieter?
There is no universal answer. Aerodynamic loading, structural transmission, switching frequency, rotor balance and installation often dominate. Ask for comparable sound data and verify the occupied zone after installation.
Can I replace a geared fan with direct drive?
Only after checking structure, diameter, speed, controls, electrical supply, clearances, service access and the new fan's tested duty. A different drive architecture is not a drop-in assumption.
Does direct drive eliminate gearbox failures?
It removes gearbox-specific failure modes, but motor bearings, electronics, rotor supports, fasteners and installation conditions still require inspection and can fail.
What should a quotation include?
Request exact model and diameter, performance basis, input power, control range, sound method, environmental limits, mounting loads, clearances, service intervals, spare parts, warranty and lead times.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
ANSI/AMCA 230, Laboratory Methods of Testing Air Circulating Fans
Provides a recognized basis for comparing air-circulating fan performance; the exact edition and scope should be confirmed for the project.
Open sourceAMCA International
Large Diameter Ceiling Fans
Explains the air-circulating fan category and why performance, installation and application context belong together.
Open sourceNational Fire Sprinkler Association
HVLS Fans and Fire Sprinklers
Highlights coordination and clearance issues that must be checked with the adopted fire-protection requirements.
Open sourceProject Review
Send The Duty And The Service Reality
Share clear height, zones, schedule, sound limit, ambient conditions, electrical supply, access equipment, control sequence and local spare-part expectations. AirMoveX can compare drive architectures against the building rather than a slogan.
