Define The Boundary

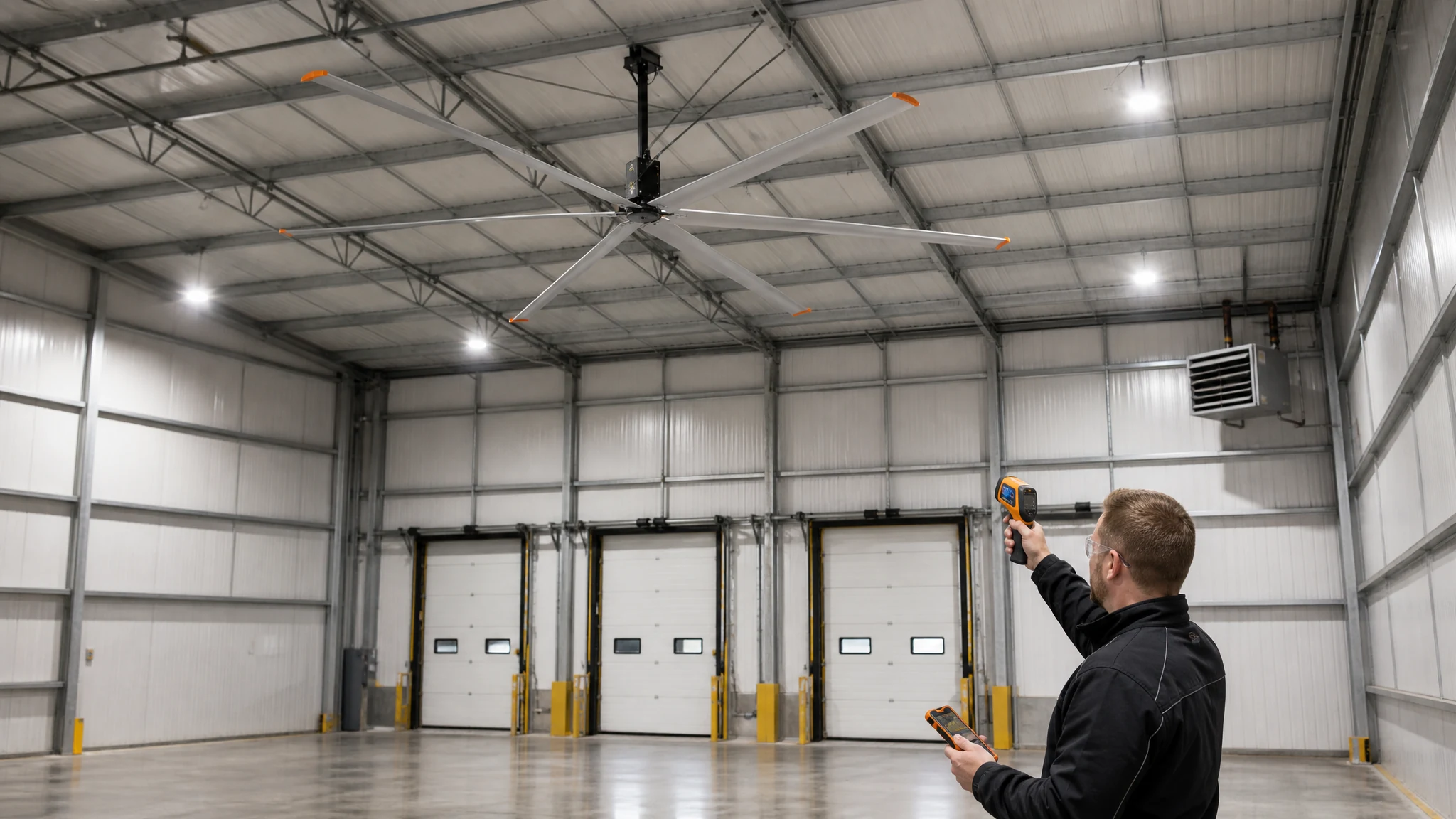

Map heaters, doors, racks, mezzanines and workstations. Trend high and low temperatures, set a low-speed occupied limit and suspend or reduce mixing when doors, process or comfort conditions change.
Mix Warmth Only When The Gradient Is Real
Warehouse Winter Air Mixing
HVLS fans redistribute heat; they do not create it. The sequence should respond to measured high-versus-low temperature and occupied-zone comfort.
DefineReal Duty
CheckComplete Path
SelectExact Model
VerifyInstalled Result
Direct Answer
What Is The Practical Method For Warehouse Winter Air Mixing?
HVLS fans redistribute heat; they do not create it. The sequence should respond to measured high-versus-low temperature and occupied-zone comfort.
Map heaters, doors, racks, mezzanines and workstations. Trend high and low temperatures, set a low-speed occupied limit and suspend or reduce mixing when doors, process or comfort conditions change.
A smaller gradient is not the same as lower fuel use. Heating energy claims require comparable weather, occupancy, heater runtime, fan input and the same comfort target. Warehouse geometry and door leakage can overwhelm a mixing strategy. Keep the control rule visible to operators and verify at representative stations.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Checks For Warehouse Winter Air Mixing
Keep the recommendation tied to a field decision and a measurable boundary.
Check The Whole Assembly
A smaller gradient is not the same as lower fuel use. Heating energy claims require comparable weather, occupancy, heater runtime, fan input and the same comfort target.
Commission The Result
Warehouse geometry and door leakage can overwhelm a mixing strategy. Keep the control rule visible to operators and verify at representative stations.
Keep Evidence
Record the assumptions, test condition, responsible reviewer and stop criteria so a later change does not erase the original decision.
Field Inputs
Inputs To Put In The Review Record
Use one row for every assumption that can change the answer.
| Record | What to capture | Why it matters |
|---|---|---|
| Design input | Document the measured or specified condition | A generic label does not define duty |
| Physical path | Check inlet, fan, outlet, supports and access | Local geometry can dominate the result |
| Control condition | Record speed, schedule, interlocks and alarms | The fan may not run at one fixed point |
| Verification | Measure airflow, pressure or the relevant acceptance signal | Running is not proof of performance |
| Change trigger | Define what requires a new review | Chemistry, layout and duty can change |
Boundary: The values and limits are project-specific. Confirm the exact equipment instructions, standards and responsible engineer before release.
Practical Sequence
Work Through Warehouse Winter Air Mixing In Six Steps
- State the job.Write the room or process objective, required airflow, pressure and the condition that must be controlled.
- Map the path.Mark source, inlet, fan, filters, dampers, duct, discharge, replacement air and service access.
- Check constraints.Review structure, materials, electrical supply, controls, safety classification, noise and maintenance.
- Select with evidence.Compare exact models at the same duty and disclose catalog, test and project assumptions.
- Install to instructions.Use the approved mount, guard, connection, clearance and control method for the equipment.
- Verify and record.Measure the relevant result, document the operating condition and set the next review trigger.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Size The Exhaust Duty
Start with required airflow, pressure and the actual air path before picking a series.
Measure The Installed Airflow
Use a repeatable field measurement when a symptom could be caused by the system rather than the fan.
Check System Effect
Short elbows, transitions, dampers and discharge restrictions can change the operating point.
Review Air-Make-Up
Replacement air and pressure balance belong in the same design conversation as exhaust.
Questions Buyers Actually Ask
Warehouse Winter Air Mixing Questions
What is the most important input for warehouse winter air mixing?
Map heaters, doors, racks, mezzanines and workstations. Trend high and low temperatures, set a low-speed occupied limit and suspend or reduce mixing when doors, process or comfort conditions change. The input should be written down before a model or setting is treated as final.
Can a catalog value prove the installed result?
No. Catalog values are screening evidence. Verify the actual operating condition, measurement method and system configuration before accepting performance.
What should I send for a project review?
Send the duty, air or process condition, layout, pressure assumptions, controls, power, environment, photos and any baseline measurements.
Is there one universal setting or size?
No. The correct value depends on the exact fan, building, air path, controls, environment and acceptance requirement.
When should the design be reviewed again?
Review it after a change in process, contaminant, temperature, layout, filter condition, duty, control sequence or observed performance.
How do I know warehouse winter air mixing is not creating a cold draft?
Trend temperatures at the occupied and high levels while checking door activity and local air movement. Reduce speed or pause the fan when the occupied-zone result worsens, rather than treating destratification as an automatic comfort gain.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
AMCA Publications and Education
AMCA separates fan performance, system effects, sound and application conditions; use the applicable publication and test basis for a project decision.
Open sourceU.S. Department of Energy
Better Buildings and Industrial Systems
DOE guidance supports measured operating data, controls and whole-system comparisons rather than unsupported universal savings claims.
Open sourceOSHA
Safety and Health Regulations
Safe access, guarding, energy control and competent-person requirements remain site-specific and apply before field work.
Open sourceProject Review
Send The Inputs, Not Just The Fan Name
Share the building or process objective, airflow and pressure basis, air condition, layout, controls, power, access and existing measurements. AirMoveX can prepare a shortlist while keeping the assumptions visible.
