Define The Boundary

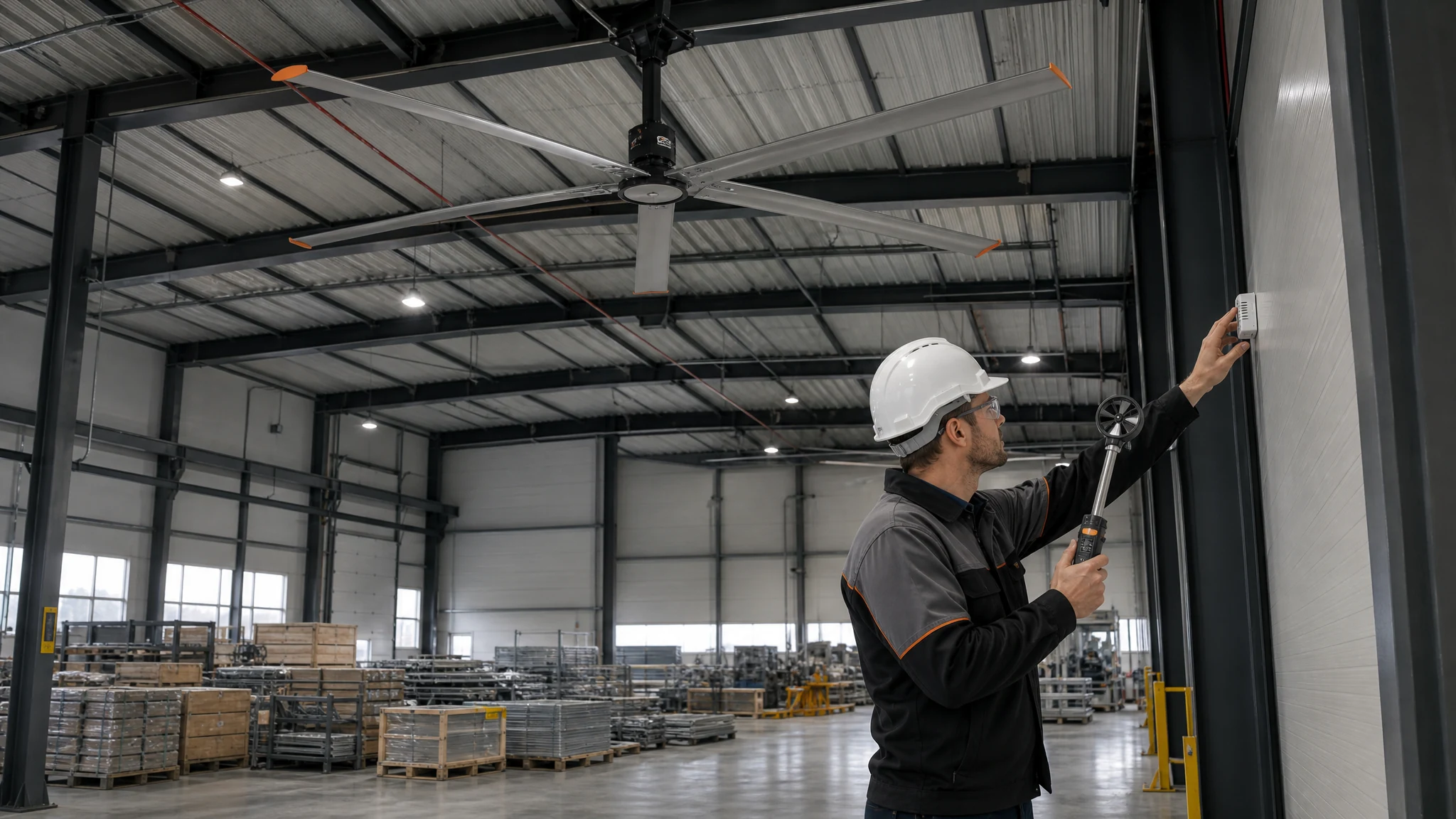

Define the target zone, sensor height, sampling, fan command, speed cap, enable schedule and fault behavior. Keep sensors away from direct heaters, doors, diffusers and the fan's local jet.
Sensors Should Change A Decision
HVLS Fan Controls And Sensors
A sensor is useful only when its location, threshold, control action and stop condition are clear to the people who operate the building.
DefineReal Duty
CheckComplete Path
SelectExact Model
VerifyInstalled Result
Direct Answer
What Is The Practical Method For HVLS Fan Controls And Sensors?
A sensor is useful only when its location, threshold, control action and stop condition are clear to the people who operate the building.
Define the target zone, sensor height, sampling, fan command, speed cap, enable schedule and fault behavior. Keep sensors away from direct heaters, doors, diffusers and the fan's local jet.
A percentage command is not a universal air speed. Controller scaling, fan diameter, mounting height, direction and room obstructions change the result; commission with occupied-zone observations. Do not let a sensor quietly mask a failed fan or an open dock door. Alarm, manual override and trend data should make the control sequence diagnosable.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Checks For HVLS Fan Controls And Sensors
Keep the recommendation tied to a field decision and a measurable boundary.
Check The Whole Assembly
A percentage command is not a universal air speed. Controller scaling, fan diameter, mounting height, direction and room obstructions change the result; commission with occupied-zone observations.
Commission The Result
Do not let a sensor quietly mask a failed fan or an open dock door. Alarm, manual override and trend data should make the control sequence diagnosable.
Keep Evidence
Record the assumptions, test condition, responsible reviewer and stop criteria so a later change does not erase the original decision.
Field Inputs
Inputs To Put In The Review Record
Use one row for every assumption that can change the answer.
| Record | What to capture | Why it matters |
|---|---|---|
| Design input | Document the measured or specified condition | A generic label does not define duty |
| Physical path | Check inlet, fan, outlet, supports and access | Local geometry can dominate the result |
| Control condition | Record speed, schedule, interlocks and alarms | The fan may not run at one fixed point |
| Verification | Measure airflow, pressure or the relevant acceptance signal | Running is not proof of performance |
| Change trigger | Define what requires a new review | Chemistry, layout and duty can change |
Boundary: The values and limits are project-specific. Confirm the exact equipment instructions, standards and responsible engineer before release.
Practical Sequence
Work Through HVLS Fan Controls And Sensors In Six Steps
- State the job.Write the room or process objective, required airflow, pressure and the condition that must be controlled.
- Map the path.Mark source, inlet, fan, filters, dampers, duct, discharge, replacement air and service access.
- Check constraints.Review structure, materials, electrical supply, controls, safety classification, noise and maintenance.
- Select with evidence.Compare exact models at the same duty and disclose catalog, test and project assumptions.
- Install to instructions.Use the approved mount, guard, connection, clearance and control method for the equipment.
- Verify and record.Measure the relevant result, document the operating condition and set the next review trigger.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Size The Exhaust Duty
Start with required airflow, pressure and the actual air path before picking a series.
Measure The Installed Airflow
Use a repeatable field measurement when a symptom could be caused by the system rather than the fan.
Check System Effect
Short elbows, transitions, dampers and discharge restrictions can change the operating point.
Review Air-Make-Up
Replacement air and pressure balance belong in the same design conversation as exhaust.
Questions Buyers Actually Ask
HVLS Fan Controls And Sensors Questions
What is the most important input for HVLS fan controls and sensors?
Define the target zone, sensor height, sampling, fan command, speed cap, enable schedule and fault behavior. Keep sensors away from direct heaters, doors, diffusers and the fan's local jet. The input should be written down before a model or setting is treated as final.
Can a catalog value prove the installed result?
No. Catalog values are screening evidence. Verify the actual operating condition, measurement method and system configuration before accepting performance.
What should I send for a project review?
Send the duty, air or process condition, layout, pressure assumptions, controls, power, environment, photos and any baseline measurements.
Is there one universal setting or size?
No. The correct value depends on the exact fan, building, air path, controls, environment and acceptance requirement.
When should the design be reviewed again?
Review it after a change in process, contaminant, temperature, layout, filter condition, duty, control sequence or observed performance.
How can HVLS fan sensors avoid hunting or rapid speed changes?
Use a sensible sampling location, stable control bands, a minimum run time and a defined speed limit. Tune the response against occupied-zone measurements, and make the fail-safe state explicit before enabling automatic control.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
AMCA Publications and Education
AMCA separates fan performance, system effects, sound and application conditions; use the applicable publication and test basis for a project decision.
Open sourceU.S. Department of Energy
Better Buildings and Industrial Systems
DOE guidance supports measured operating data, controls and whole-system comparisons rather than unsupported universal savings claims.
Open sourceOSHA
Safety and Health Regulations
Safe access, guarding, energy control and competent-person requirements remain site-specific and apply before field work.
Open sourceProject Review
Send The Inputs, Not Just The Fan Name
Share the building or process objective, airflow and pressure basis, air condition, layout, controls, power, access and existing measurements. AirMoveX can prepare a shortlist while keeping the assumptions visible.
