A Real Variable Load
Document when the process needs less airflow and how often that state occurs. If the required duty is constant, a correctly sized fixed-speed fan may be simpler than artificial modulation.
Variable-Speed Control
A variable-frequency drive saves nothing by being mounted on a wall. It becomes useful when fan speed follows a measured load inside a safe operating range and the whole system is commissioned at minimum, design and upset conditions.
Direct Answer
A VFD is appropriate when the required exhaust duty changes and a trustworthy control signal can reduce fan speed without losing capture, minimum ventilation, motor cooling, stable fan operation or required room pressure.
For the same fan and a system dominated by friction, the fan laws explain why speed control can reduce power strongly as airflow falls. Real systems may include static lift, dampers, loaded filters, unstable regions and minimum process requirements, so a cubic savings estimate is not a guaranteed meter result.
Choose the control variable before choosing the drive. Process state, duct pressure, hood position, contaminant demand, room differential pressure or scheduled occupancy may be useful; a convenient temperature sensor may not represent the exhaust objective. Define loss-of-signal, fire mode, manual override and alarm behavior in plain language.

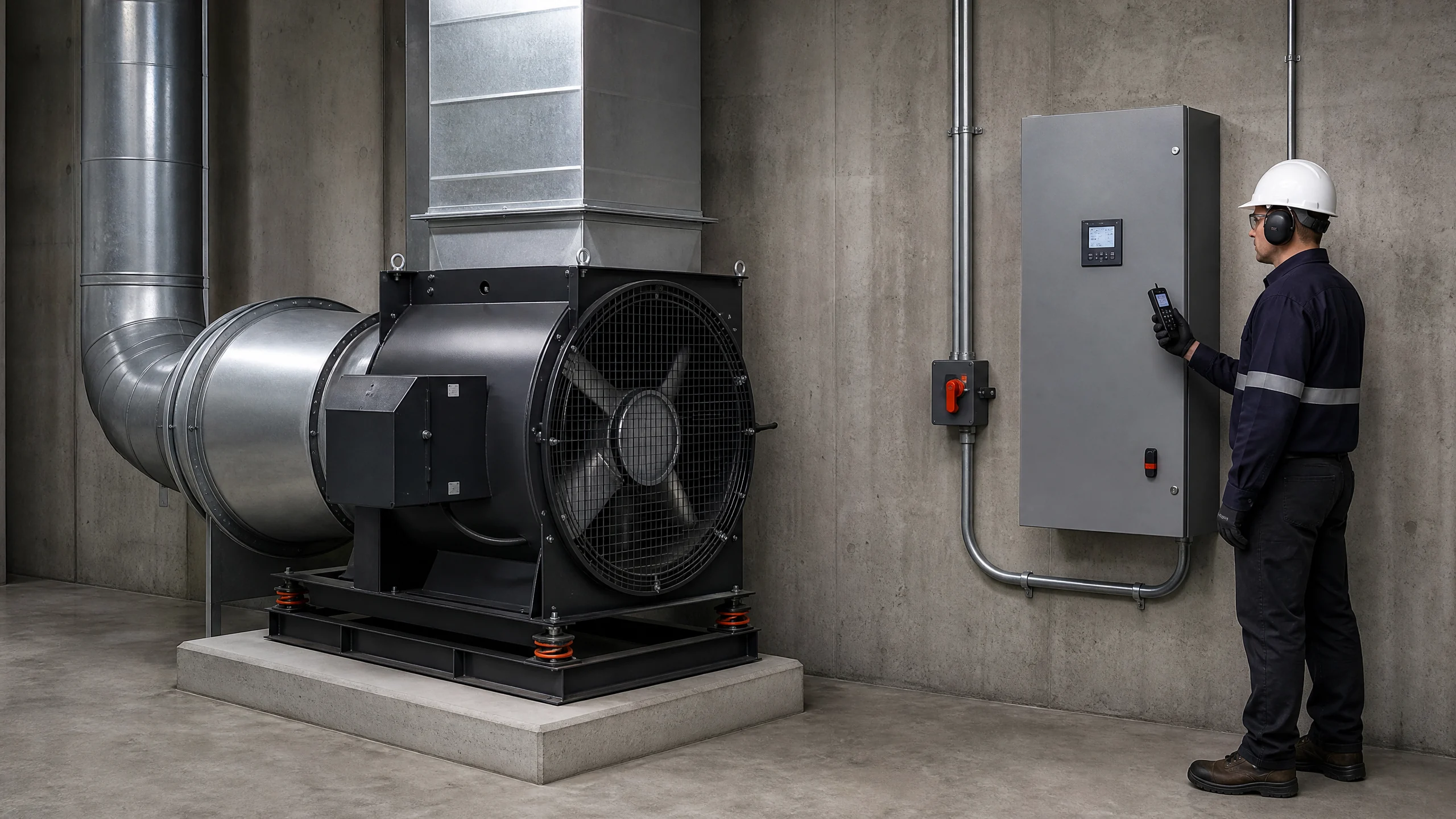

The motor, insulation, bearings, cable length, switching frequency, harmonic environment and local electrical rules also matter. Establish minimum and maximum frequencies with the fan and motor suppliers, then verify vibration, sound, current, airflow and control stability across the range. Closed-panel operating checks do not replace qualified electrical work under the site's safety program.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
A good sequence protects the ventilation function first and then reduces unnecessary input.
Document when the process needs less airflow and how often that state occurs. If the required duty is constant, a correctly sized fixed-speed fan may be simpler than artificial modulation.
Place and range the sensor for the controlled result, not for convenient wiring. Define calibration, filtering, failure detection and the value that sends the system to a safe state.
Set lower and upper limits from minimum capture or ventilation, fan stability, motor cooling, resonance, damper behavior and any connected equipment requirement.
Write enable, ramp, setpoint, staging, alarm, override and shutdown logic. Operators should be able to explain why the fan is at a given speed without opening the cabinet.
Field Inputs
Record control, mechanical and electrical limits together before the panel is ordered.
| Input | What To Define | Acceptance Evidence |
|---|---|---|
| Ventilation duty | Minimum, normal and maximum airflow or pressure cases | Measured system performance at the operating points that protect people and process. |
| Control signal | Sensor type, location, range, setpoint and failure value | Calibration record, stable trend and a deliberate response to disconnection or implausible input. |
| Fan envelope | Minimum and maximum speed, stable curve region and absorbed power | No surge, objectionable vibration, overload or control hunting across the permitted range. |
| Motor and drive | Motor suitability, voltage, current, overload, carrier setting and cable | Supplier compatibility, correct parameters and current within limits at tested conditions. |
| System devices | Dampers, filters, louvers, make-up air and staged fans | Coordinated positions and interlocks without starving or opposing the modulated fan. |
| Abnormal modes | Fire, gas alarm, process trip, local override, power return and sensor loss | Witnessed cause-and-effect test and an operator-facing alarm or indication. |
Boundary: Fan-law estimates are not a project guarantee. Measure electrical input and ventilation performance at comparable system conditions, and keep every life-safety or hazard-control requirement independent of an energy target.
Practical Sequence
Connected Decisions
These links continue the same project workflow rather than sending the reader to loosely related content.
Check the usable speed range against power, stability and the system curve.
Verify that minimum and design speeds deliver the field duty, not only a drive frequency.
Coordinate modulated exhaust with make-up air, doors and pressure sensing.
Trend filters, belts, wheel condition and dampers so the VFD does not hide increasing resistance.
Questions Buyers Actually Ask
No. Confirm the fan's stable speed range, motor suitability, cooling, bearings, drive train, electrical environment and process requirements with the relevant manufacturers and designer.
Savings depend on the load profile, system curve, static pressure, efficiency, control sequence and existing method. Establish a baseline and measure input at comparable operating conditions; do not promise a fixed percentage.
It is the highest of all applicable lower limits: required capture or ventilation, fan stability, motor cooling, drive-train behavior, damper operation and supplier restrictions. There is no universal frequency.
Use the variable that best represents the required process result. Duct pressure may work for variable branches, while room pressure or direct airflow may suit other systems. Sensor placement and failure response are part of the decision.
They are useful for the same fan operating in a valid range, with consistent geometry and known system behavior. Static pressure, changing efficiency and control limits can make actual power differ from a simple cubic estimate.
Record fan and motor identity, parameters, rotation, speed, control signal, airflow or pressure, motor current or power, vibration, dampers, filters, make-up air, alarms and abnormal-mode tests.
Source Boundary
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
U.S. Department of Energy
Provides system-level efficiency resources covering fan selection, controls and load reduction.
Open sourceU.S. Department of Energy
Shows why variable speed must be evaluated against the actual fan load and measured operating behavior.
Open sourceU.S. Occupational Safety and Health Administration
Defines lockout/tagout requirements relevant to servicing fan and drive equipment; site procedures and qualified electrical work still govern.
Open sourceProject Review
Share the fan curve, motor and drive data, airflow or pressure cases, process schedule, sensor location, make-up-air sequence, dampers, abnormal modes, voltage and field measurements. AirMoveX can review whether variable speed fits the actual duty.
