Is The Duty A Pair?
Write required airflow and required fan pressure on the same line, with units and measurement boundary. A volume target without system resistance is not a selection point.
Fan Selection Method
Industrial Fan Curves And Static Pressure, Read From The Duty Point
A fan curve is useful only when the project duty uses the same airflow, pressure definition, density and speed basis as the tested curve. The answer is the operating point, not the largest number on the sheet.
Start WithRequired Airflow
Pair It WithSystem Pressure
MatchDensity & Speed
VerifyPower & Stability

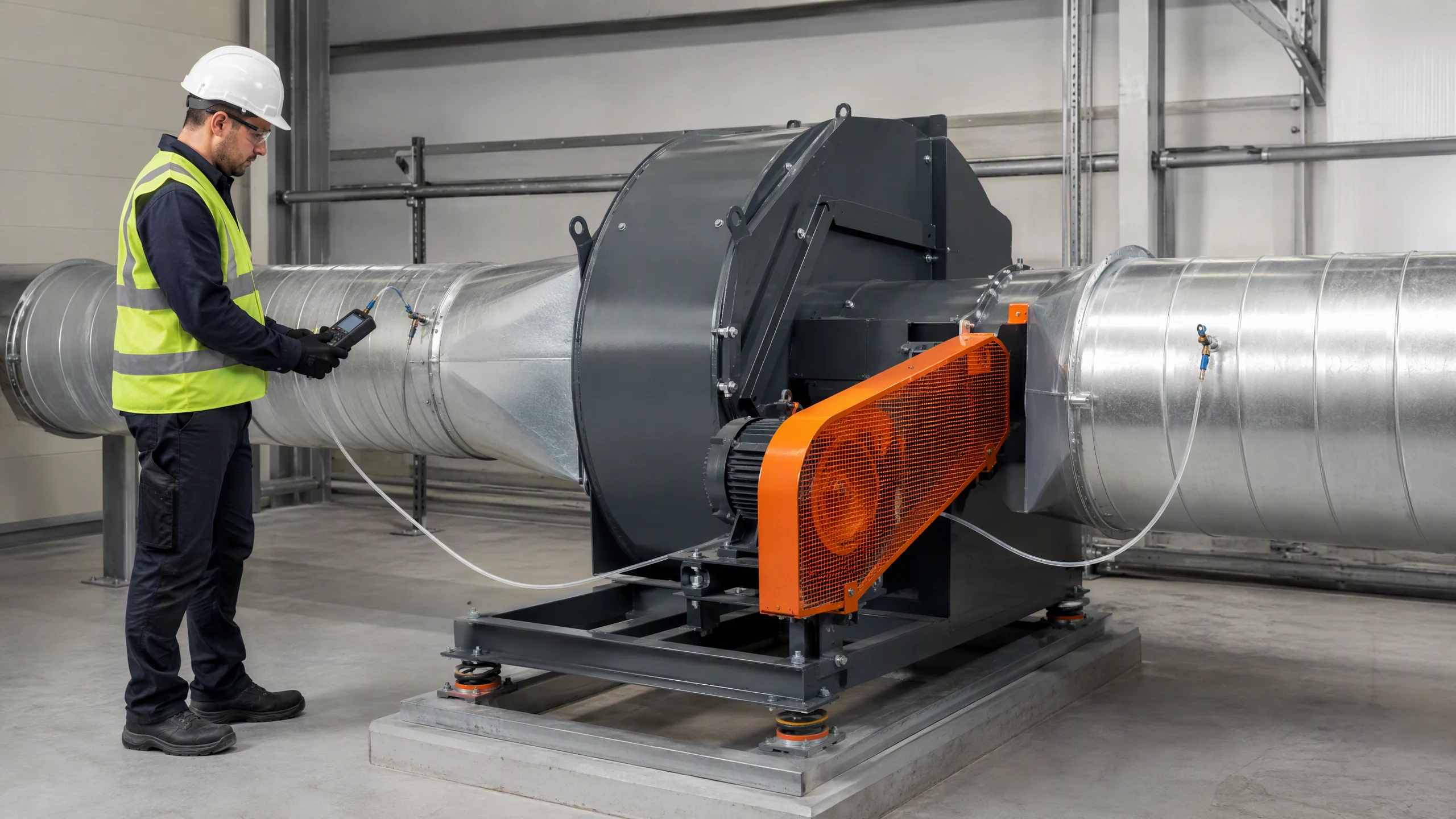

Direct Answer
What Does An Industrial Fan Curve Actually Tell You?
A fan curve shows the tested relationship between airflow and pressure for a stated fan configuration, speed and air density. The expected duty is where that fan curve meets the resistance curve of the complete installed system.
Move along a typical fixed-speed fan curve and pressure falls as airflow rises. The duct system behaves differently: its required pressure generally rises as flow increases. Their intersection is the operating point. Selecting from free-air volume, shutoff pressure or a brochure maximum separates numbers that the installed fan must deliver together.
First settle the pressure language. Static pressure, total pressure and velocity pressure are related, but they are not interchangeable columns. A requirement taken at the fan, across a filter, or between room and outdoors may describe different boundaries. Write those boundaries beside the value before opening selection software.
Density also matters. Temperature, elevation and gas composition can move pressure and power away from standard-air ratings. Ask whether the curve is at standard density or corrected to the actual inlet condition. Then review absorbed power, motor margin, efficiency, sound and any unstable part of the curve rather than choosing by airflow alone.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Questions That Keep A Curve Comparison Honest
Most bad comparisons begin before the curve is read: the two suppliers are often solving different duties or using different definitions.
Which Pressure Is Shown?
Confirm whether the curve reports fan static pressure or fan total pressure and whether inlet velocity effects are included. Do not compare unlike columns because the units happen to match.
What Rating Basis Applies?
Record fan size, arrangement, wheel, speed, air density and test standard. A curve at another speed or density needs a documented correction, not a visual guess.
Is The Point Usable?
Check motor input, efficiency, sound, discharge velocity, control range and distance from a stall or unstable region. A point can be on the curve and still be a poor project choice.
Field Inputs
Put These Inputs Beside Every Candidate Curve
This small schedule makes hidden assumptions visible before a fan model reaches the quotation.
| Input | What To Record | Selection Consequence |
|---|---|---|
| Airflow | Required volume, units, diversity and tolerance | Defines the horizontal coordinate and whether one operating point or a control range is needed. |
| Pressure | Static or total, value, units and exact system boundary | Defines the vertical coordinate and prevents filter-only loss from being mistaken for whole-system loss. |
| Inlet condition | Temperature, elevation, gas, moisture and contamination | Sets actual density and may change material, motor and correction requirements. |
| Fan condition | Size, wheel, arrangement, speed and rotation | Only a curve for the stated configuration can support the plotted point. |
| Power and motor | Absorbed power across the expected range, service basis and drive losses | Protects the motor when resistance or control position moves away from the design point. |
| Installation | Inlet approach, outlet transition, elbows, guards and accessories | Real geometry can add system effect that a clean laboratory connection does not contain. |
Boundary: A plotted point is not a certified project result. Use current manufacturer selection data for the exact build and commission the installed system under representative operating conditions.
Practical Sequence
Build And Check A Fan Duty In Six Steps
- Define the boundary.Sketch where air enters, where it leaves and every component whose resistance the fan must overcome; label the intended pressure definition.
- Quantify the volume.Derive required airflow from the process, capture or ventilation method and state units, operating cases and acceptable tolerance.
- Sum system resistance.Use credible losses for duct, fittings, filters, coils, silencers, louvers, dampers and discharge, including the dirty or worst credible state where relevant.
- Align the rating basis.Correct or select for actual density and confirm fan size, arrangement, speed and test basis before placing the duty point on the curve.
- Review the whole curve.Check power, efficiency, sound, motor loading, control range and stability around the expected point rather than reviewing a single dot.
- Measure the installation.After startup, record speed, airflow, pressure, motor current, damper position and system condition so field performance can be compared with the selection basis.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Size The Exhaust Duty
Develop the airflow requirement before asking a fan curve to answer the project.
Check Fan System Effect
Review inlet and outlet geometry when the installed point does not agree with the selected point.
Measure Installed Airflow
Use a repeatable traverse and a declared measurement plane instead of judging airflow by feel.
Compare Exhaust Platforms
Move from the duty point to material, drive, mounting and service-access decisions.
Questions Buyers Actually Ask
Fan Curve And Static Pressure Questions
What is the operating point on a fan curve?
It is the intersection between the fan performance curve and the resistance curve of the connected system for the stated speed, configuration and air condition. It represents airflow and pressure delivered together.
Is higher static pressure always better?
No. The fan should meet the required pressure at the required airflow with acceptable power, efficiency, sound and stability. Excess capability may require throttling and can waste energy or complicate control.
What is the difference between static and total pressure?
Total pressure is the sum of static and velocity pressure at a stated plane. The exact fan definitions depend on measurement stations and arrangement, so use the same definition in the system calculation and manufacturer data.
Can I select an exhaust fan from CFM alone?
Not for a connected system. A credible selection needs airflow plus the resistance the fan must overcome, as well as density, configuration, power and installation information.
Why does measured airflow differ from the curve?
Possible causes include wrong speed or rotation, density difference, measurement error, filter or damper condition, leakage, system effect, incorrect pressure basis or a system resistance different from the design assumption.
How much margin should be added to static pressure?
There is no universal percentage. Resolve known component losses and uncertainty explicitly, then assess motor loading and control consequences. An arbitrary margin can oversize the fan and hide weak system design.
