Fan System Effect: When Exhaust Layout Changes The Duty
A tested fan can miss its field duty when an elbow, wall, damper or abrupt transition delivers distorted air to the inlet or wastes velocity at the discharge. Fix the connection before blaming the wheel.
InletUniform Approach
OutletRecover Velocity
AvoidAbrupt Geometry
ProveField Duty
Direct Answer
What Is Fan System Effect?
Fan system effect is the performance penalty created when the installed inlet or outlet condition differs from the uniform connections used to establish rated fan performance. It appears as added system resistance or lost fan capability at the required flow.

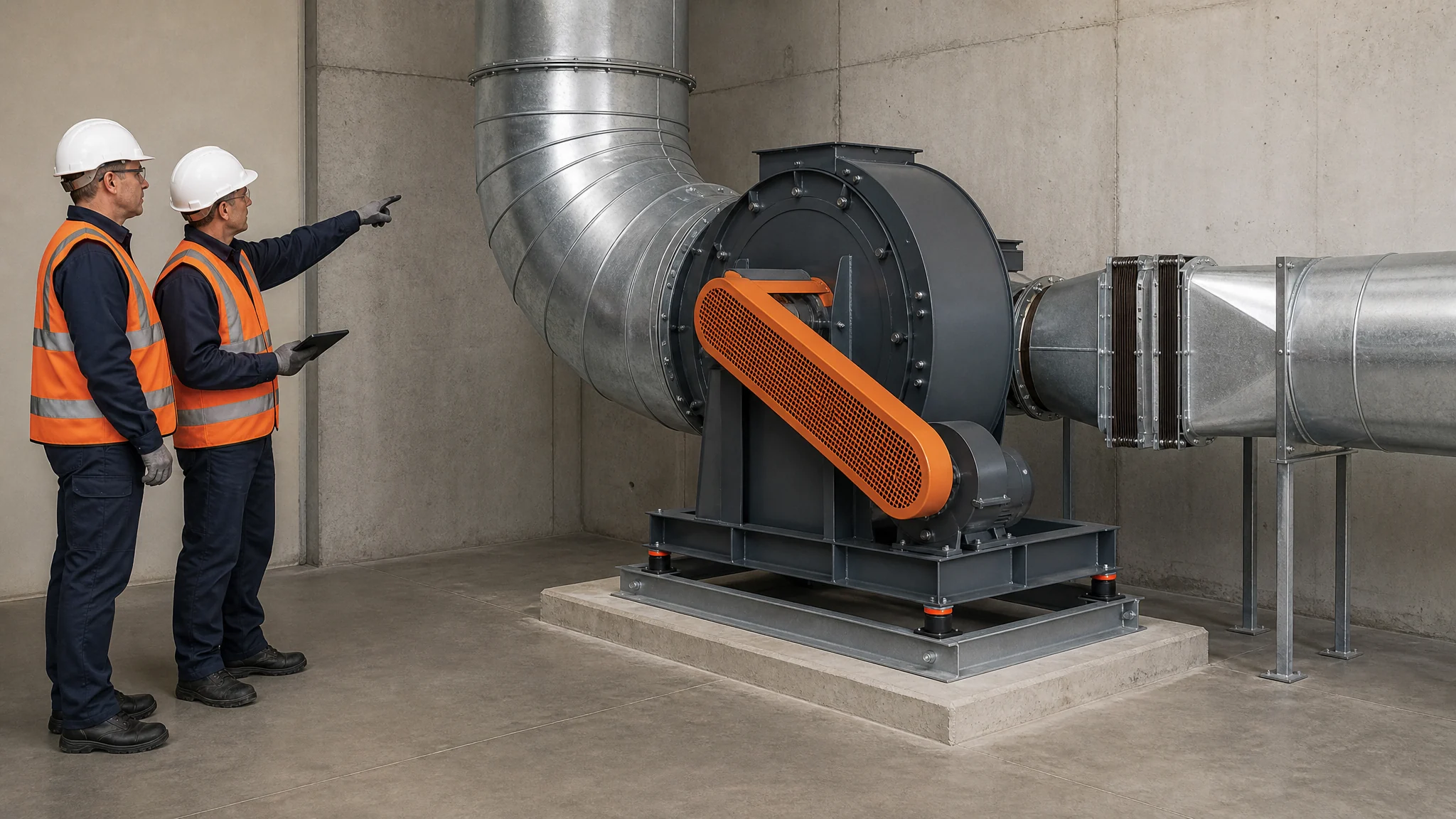

A nearby inlet elbow can feed one side of a centrifugal wheel harder than the other. A wall, guard or undersized plenum can restrict the approach. At the outlet, an abrupt expansion or an elbow turning against the fan's discharge pattern can throw away recoverable velocity pressure. None of these details changes the printed curve; they change how closely the installation can realize it.
The practical correction is geometric, not a guessed pressure allowance. Identify the actual fan arrangement and rotation, then examine the last components before the inlet and the first components after the outlet. Provide straight, supported connections where the design method calls for them; use turning vanes, a better plenum, a larger transition or another fan location when space is tight.
If the building is already operating, record speed, airflow, pressure, damper positions and component condition before moving anything. One changed variable at a time distinguishes a connection problem from wrong rotation, leakage, a dirty filter or a calculation error.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Read The Layout From The Fan Outward
The most consequential fitting is often the one hidden behind a neat equipment symbol on the plan.
Outlet Recovery
Check transition angle, duct area, elbow orientation and the length available before another disturbance. A bare discharge and a connected duct do not impose the same pressure requirement.
Fan Arrangement
Rotation, discharge position, inlet boxes and drive arrangement change which connection details are acceptable. Review the manufacturer's drawing for the exact build, not a generic fan icon.
Service Reality
A technically smooth transition still fails if it blocks guard removal, bearing access, drain paths or filter replacement. Keep measurement ports and maintenance clearance in the layout.
Field Inputs
Document Each Potential Disturbance
A short connection schedule helps the designer and commissioning team discuss the same physical geometry.
| Location | Record | Question To Resolve |
|---|---|---|
| Fan inlet | Clear diameter or area, straight length and nearby obstruction | Can air reach the entire inlet without a wall jet, swirl or partial blockage? |
| Inlet elbow | Radius, turning vanes, orientation and distance from fan | Does the elbow create nonuniform flow in the same plane as the wheel entry? |
| Inlet damper or screen | Type, open area, position and cleanliness | Is the pressure loss rated, and is the flow field acceptable at the fan? |
| Fan outlet | Discharge size, effective area, velocity and flexible connection | Can the connection contain and recover the discharge pattern without an abrupt step? |
| Outlet elbow or transition | Direction, angle, length, supports and distance | Does it turn or expand the flow before it has a chance to develop? |
| Field test points | Straight duct locations, traverse ports and access | Can airflow and pressure be measured repeatably after installation? |
Boundary: Required straight length and correction depend on fan type, arrangement, velocity and fitting geometry. Apply current AMCA guidance and the exact manufacturer's installation data rather than a universal duct-diameter rule.
Practical Sequence
Audit Fan System Effect In Six Moves
- Freeze the duty.Write the required airflow, pressure definition, density, fan configuration and expected speed so layout changes are judged against one target.
- Mark the test geometry.Obtain the inlet and outlet conditions associated with the rating or selection and place them beside the proposed installation.
- Trace the inlet.Inspect the final plenum, elbow, damper, screen, wall clearance and transition for swirl, blockage and uneven approach.
- Trace the discharge.Review the first transition, diffuser, elbow and termination for abrupt area change, poor turn direction or lost velocity recovery.
- Choose a physical correction.Relocate the fan or fitting, add suitable straight length, improve the transition or redesign the plenum before simply adding pressure margin.
- Commission the result.Measure fan speed, airflow, relevant pressures, motor current and damper state at repeatable points and compare them with the documented duty.
