A Suitable Plane

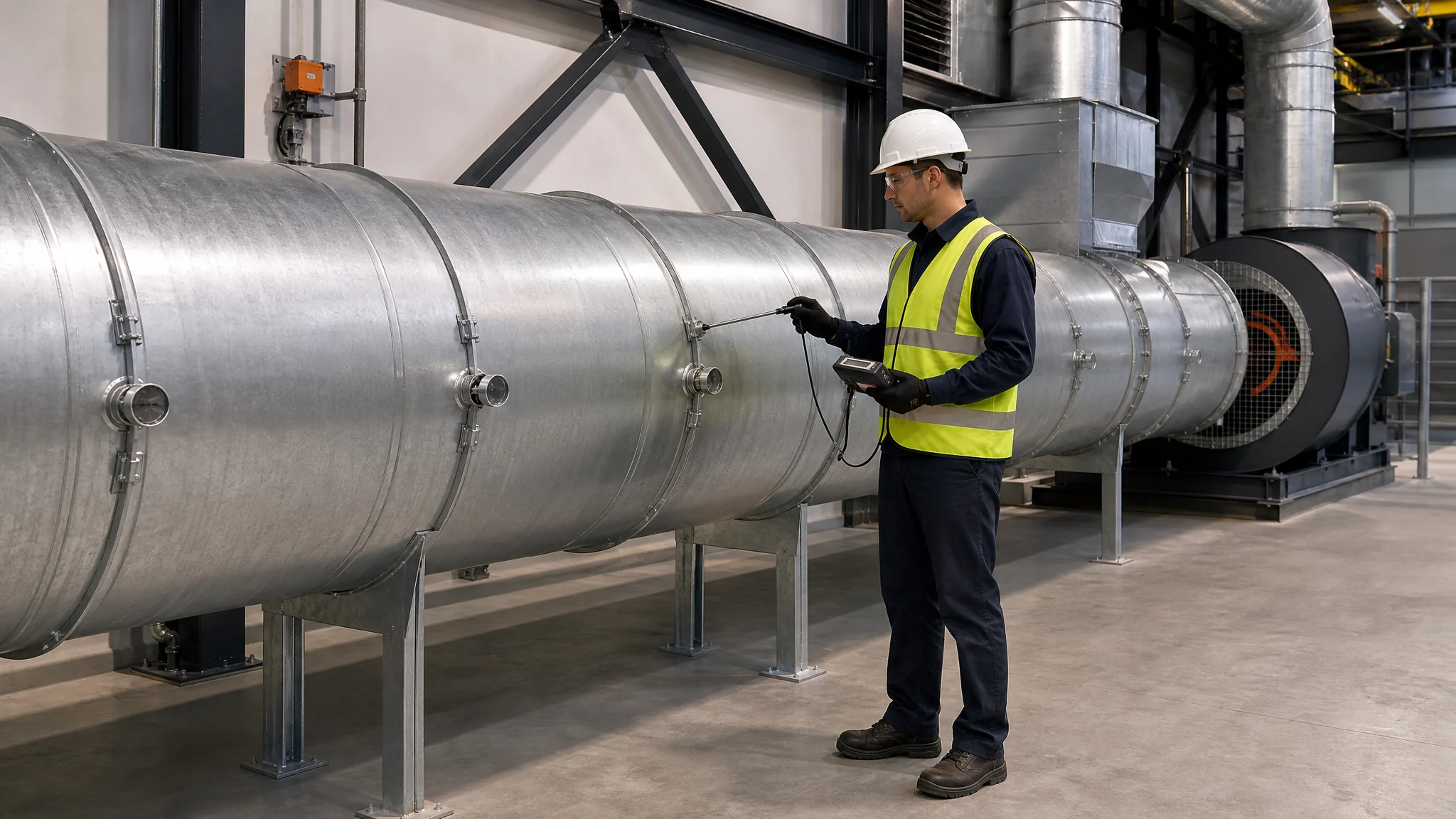

Choose a straight, fully developed section where the probe can reach all required positions and where upstream and downstream disturbances are documented. Add sealed ports without weakening the duct.
Field Measurement Method
How To Measure Industrial Exhaust Fan Airflow In The Field
A credible airflow result has a measurement plane, a grid of points, an area calculation and a record of fan and system condition. Holding one meter at one opening is a spot check, not a fan test.
PlaneStraight & Accessible
MethodMulti-Point Traverse
CalculationAverage × Area
RecordSystem State
Direct Answer
What Is The Reliable Way To Measure Exhaust Fan Airflow?
Use a recognized field method at a suitable duct plane, take velocity or velocity-pressure readings at multiple defined points, calculate the area-weighted average, and multiply by the measured internal duct area. Record fan speed, density and system condition with the result.
Velocity is rarely uniform across a duct. Elbows, dampers, transitions and fan discharge swirl create fast and slow regions. One centerline reading can be high or low by accident. A traverse distributes points across equal areas so the calculated mean describes the entire plane more defensibly.
Instrument choice follows the air and the test plane. A Pitot-static tube with a differential-pressure instrument is common in clean ductwork at sufficient velocity; a thermal probe may suit lower velocities or smaller openings when its range and contamination limits are respected. The method, probe orientation, units, calibration status and density correction belong in the report.
Airflow is a system result. A number without damper position, filter condition, door state, VFD frequency and fan speed cannot be reproduced. When there is no acceptable straight test section, state the limitation and consider a different station or a method designed for the available geometry rather than presenting false precision.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Parts Of A Defensible Airflow Result
The calculation is short. The quality comes from the plane, point layout and operating record around it.
A Defined Grid
Lay out points using the applicable round- or rectangular-duct method. Edge and center regions must be represented; convenient spacing by eye is not an equal-area traverse.
A Fit Instrument
Confirm measurement range, resolution, calibration, probe dimensions, temperature limits and compatibility with dust, moisture or corrosive contaminants before opening a port.
A Reproducible State
Record fan, speed, rotation, damper and filter state, open doors, running process hoods and weather or room-pressure conditions that could change the volume.
Field Inputs
Field Record For Each Airflow Test
Capture raw readings as well as the final number so another technician can audit the result.
| Record | Minimum Detail | Why It Matters |
|---|---|---|
| Test plane | Duct ID, dimensions, internal area and distances to disturbances | Shows whether the location is usable and fixes the area in the airflow calculation. |
| Traverse layout | Method, point coordinates, port locations and omitted points | Proves that fast and slow portions of the velocity profile were sampled intentionally. |
| Instrument | Make/model, range, calibration status, zero check and probe type | Prevents a low-resolution or out-of-range instrument from creating a precise-looking result. |
| Raw observations | Reading at every point, sign, units, temperature and barometric or density basis | Supports averaging, density correction and later review without reverse-engineering the worksheet. |
| System condition | Fan speed, VFD command, dampers, filters, doors and active capture points | Allows the same operating case to be repeated after adjustment or maintenance. |
| Result and uncertainty | Average velocity, area, volume, variation and stated limitations | Separates the reported duty from unexplained digits or a rough indication. |
Boundary: Hazardous, hot, corrosive, combustible or contaminated airstreams need a task-specific method, compatible equipment and site safety controls. Do not open a duct or insert a probe without an approved procedure.
Practical Sequence
Run A Six-Step Duct Traverse
- Choose the operating case.Define which fans, hoods, doors, dampers, filters and control setpoints represent the condition that needs to be proved.
- Select the plane.Measure the duct, document nearby elbows and transitions, and choose the straightest accessible location allowed by the applicable method.
- Lay out the points.Calculate the prescribed coordinates for the duct shape and mark sealed ports that let the probe reach each point at the correct orientation.
- Check the instrument.Verify calibration status, inspect tubing and probe, perform the required zero check and confirm that expected readings fall within range.
- Take and calculate readings.Move through the points consistently, record every raw value, apply the stated density method and calculate average velocity multiplied by internal area.
- Repeat and reconcile.Repeat enough of the traverse to test stability, compare with fan speed and pressure, and investigate a result that conflicts with the physical system.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Compare With The Fan Curve
Place the measured volume beside the correct pressure and speed basis rather than comparing with free-air capacity.
Investigate System Effect
Use connection geometry as one hypothesis when the field duty misses the selected point.
Maintain The Exhaust System
Record wheel, filter, belt, damper and guard condition so a maintenance issue is not mistaken for a selection error.
Define The Original Duty
Check whether the target airflow came from air changes, source capture or another project-specific requirement.
Questions Buyers Actually Ask
Industrial Airflow Measurement Questions
Can airflow be measured at the exhaust grille?
A grille or louver face test can be useful for balancing when a suitable method and correction are available, but uneven face velocity, leakage and free-area uncertainty often make it weaker than a duct traverse for total fan airflow.
How many traverse points are required?
The count and positions depend on duct shape, size, method and proximity to disturbances. Use the applicable standard or field procedure; do not invent a universal grid or reduce points simply because access is difficult.
Is CFM equal to velocity times duct area?
Yes when consistent units are used and velocity is the representative average across the measured internal area. A single local velocity is not automatically that average.
Where should airflow be measured relative to an elbow?
Use the straight-length criteria in the chosen method and document the actual geometry. When adequate length is unavailable, relocate the plane or use an approved alternative and report the additional uncertainty.
Does air density affect a Pitot traverse?
Yes. Converting velocity pressure to velocity depends on air density. Record temperature, pressure and other relevant gas conditions and apply the density basis required by the method.
What should be checked when airflow is low?
Confirm instrument setup, fan rotation and speed, drive condition, dampers, filters, leakage, room make-up air, adjacent duct geometry and the target pressure basis before changing the fan.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
Publication 203: Field Performance Measurement of Fan Systems
Provides guidance for measuring and reporting installed fan-system performance.
Open sourceAMCA International
ANSI/AMCA Standard 210
Defines laboratory methods and terminology that help distinguish rated fan performance from an improvised field reading.
Open sourceU.S. Occupational Safety and Health Administration
29 CFR 1910.94 Ventilation
Establishes ventilation requirements for covered industrial operations and reinforces that control performance must suit the actual hazard and process.
Open sourceProject Review
Send The Raw Traverse, Not Only The Final CFM
Share the duct sketch, dimensions, distances to fittings, point grid, raw readings, instrument, density basis, fan speed, pressure readings and system state. AirMoveX can compare the field evidence with the intended duty without pretending a weak test is exact.
