Factory Negative Pressure Without Starving The Exhaust System

Negative pressure is a measured relationship across a defined boundary. The goal is controlled inward flow where containment is needed, with enough conditioned replacement air for doors, combustion and exhaust fans to work safely.

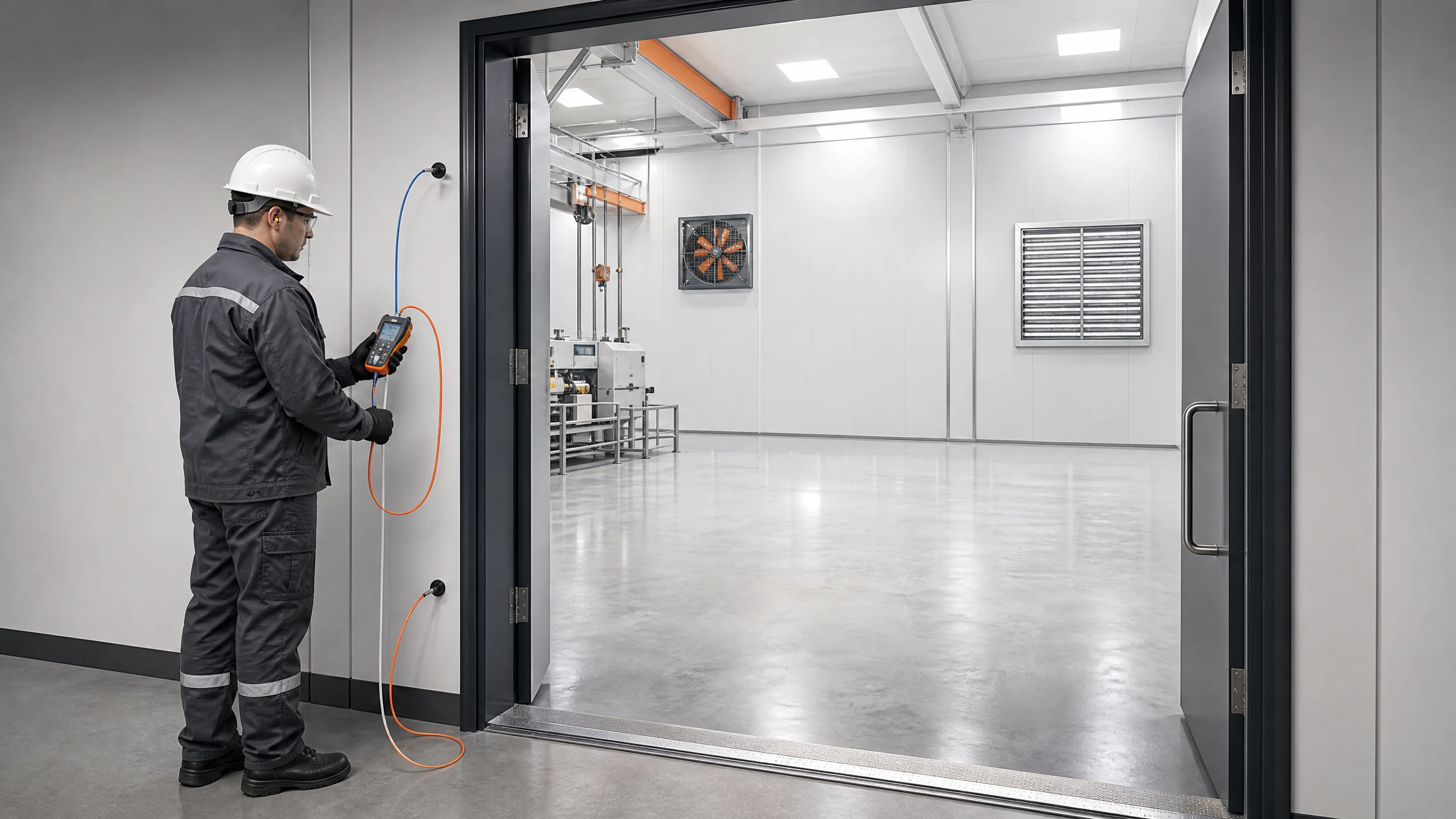

Ventilation technician measuring the pressure relationship across a factory doorway with exhaust and make-up air separated
Control A Boundary, Not An Entire Building By GuessThe useful reading is tied to a room, an adjacent space and a known operating condition.
DefineContainment Zone
BalanceExhaust & Supply
ProtectDoors & Combustion
VerifyPressure Trend

Direct Answer

How Does Negative-Pressure Ventilation Work In A Factory?

A zone is negative when its measured pressure is lower than the chosen adjacent reference, causing air to move inward through intended transfer paths. Exhaust must exceed supplied air for that zone, but the difference should be only what the containment objective and governing design require.

More exhaust is not automatically better. Excessive depressurization can make doors hard to operate, pull dust or outdoor humidity through cracks, disrupt process capture, increase heating or cooling load and backdraft combustion appliances. A fan cannot create usable airflow when the building offers no adequate replacement-air path.

Start by drawing the boundary. Separate the process room, warehouse, office, corridor and outdoors; mark doors, leakage paths, transfer grilles, supply terminals and every exhaust device. Then decide which direction air should cross each boundary. The pressure target, where one is required, belongs to that exact relationship rather than to a vague statement that the factory is negative.

Control should follow the process. A stable system may track exhaust and make-up-air volume, modulate from a room-pressure sensor, or stage fans with production. Whatever the sequence, commission it with normal doors, clean and loaded filters, credible weather and every relevant exhaust operating case.

Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection

Decision Framework

Four Decisions Before Selecting Another Exhaust Fan

Pressure behavior depends as much on where air enters as on how much a fan can remove.

01

Containment Boundary

Name the room or process that must remain negative and the spaces that serve as references. A pressure value has no meaning until the two sensing locations and door state are known.

02

Replacement-Air Route

Provide filtered or conditioned air through intentional openings far enough from exhaust discharge to avoid short-circuiting. Check face velocity, louver loss, weather entry and winter comfort.

03

Competing Exhaust Loads

List dust collectors, hoods, ovens, toilets, roof fans and intermittent processes. Their simultaneous operation can change pressure more than the base ventilation fan.

04

Safety Interlocks

Review combustion, smoke control, fire mode, door egress, process shutdown and alarm behavior with the responsible specialists. Normal containment logic does not override life-safety sequences.

Field Inputs

Create A Zone Air-Balance Schedule

Use measured or design flows and one named pressure boundary for each operating case.

InputRecordDesign Use
Zone and referenceRoom ID, adjacent space, outdoor or corridor referenceDefines what the differential-pressure reading actually compares.
ExhaustDevice, measured volume, schedule and dirty-filter caseShows how much air leaves the zone and which loads are simultaneous.
Mechanical supplyTerminal volumes, make-up-air unit state and conditioningSeparates intentional replacement air from uncontrolled infiltration.
Transfer and leakageDoor undercuts, grilles, openings, seals and usual door positionIdentifies where inward air can cross and whether velocity or noise becomes excessive.
Sensitive equipmentCombustion appliances, flues, process hoods and clean roomsFlags equipment that may lose draft, capture or cleanliness when pressure changes.
Control casesOccupied, startup, partial production, full exhaust, fire and power lossPrevents one balanced state from being treated as every state.

Boundary: No universal negative-pressure setpoint fits every factory. Hazard control, adopted codes, doors, envelope, combustion and process criteria determine the required relationship and allowable range.

Practical Sequence

Commission Factory Pressure In Six Steps

  1. Draw the zones.Mark pressure boundaries, reference spaces, doors, envelope openings, supply paths, exhaust devices and process capture points on one plan.
  2. Define operating cases.List which exhaust and supply systems run together during startup, normal production, cleaning, reduced shift and abnormal conditions.
  3. Measure the air balance.Verify major supply and exhaust volumes using suitable methods instead of inferring room pressure from fan nameplate capacity.
  4. Provide replacement air.Size and locate intentional intake or transfer paths, account for component pressure loss and prevent intake contamination or discharge recirculation.
  5. Tune the controls.Set tracking, staging or differential-pressure control gradually while monitoring doors, hoods, combustion and occupied areas.
  6. Trend and challenge it.Record pressure across representative weather and filter conditions, then test door events and the credible combinations of intermittent exhaust.
