How Much Free Area?
Use the rated free area of the full assembly, not width multiplied by height. Screens and guards may have their own loss and can collect dust, lint, insects or ice.
Air-Opening Guide

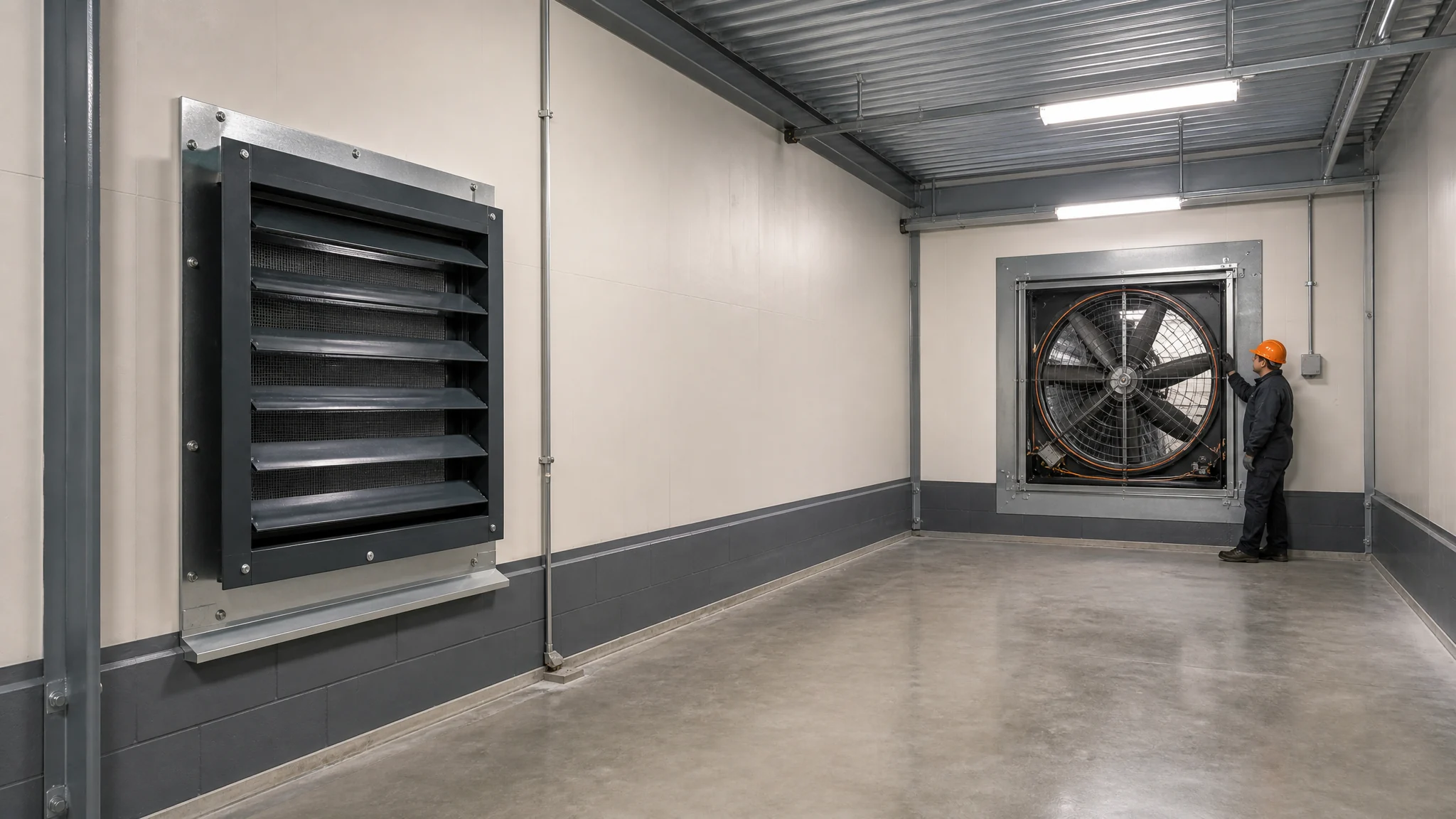

Industrial Exhaust Louvers And Shutters: Size The Opening, Not The Frame
A wall opening has to pass design airflow in rain, wind and dirt without recirculating exhaust or overloading the fan. Nominal width and height are only the start.
Size ByRated Free Area
IncludePressure Drop
SeparateIntake & Exhaust
MaintainBlades & Screens
Direct Answer
How Do Louvers And Backdraft Shutters Affect Exhaust Fans?
A louver or shutter adds resistance and reduces effective flow area. Select it at the project airflow using manufacturer performance data for the exact assembly, then include its pressure drop, water behavior and opening characteristics in the fan-system calculation.
The rough opening is not the aerodynamic opening. Frames, blades, linkages, guards and insect or bird screens reduce free area. As face velocity rises, pressure drop and water entrainment risk can rise sharply. A device that matches the fan's nominal diameter can still be too restrictive.
Use the terms carefully. A weather louver is designed to admit or discharge air while limiting water entry under rated test conditions. A gravity backdraft shutter opens from airflow and closes when the fan stops. A motorized damper provides commanded isolation. One product may combine functions, but a light shutter is not automatically a weather-rated louver or a smoke-control damper.
Location completes the decision. Keep outdoor air intakes away from contaminated exhaust, vehicle areas and other sources as required by the adopted design rules. Detail flashing, sill drainage, sleeve seals, guards and service access. If blades cannot be cleaned or linkages cannot be reached, the opening will not retain its selected performance.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Performance Questions For Every Wall Opening
Frame dimensions alone cannot answer airflow, rain or isolation requirements.
What Is The Pressure Loss?
Read pressure drop at the actual design airflow and air density. Add the selected louver, shutter or damper loss to the system curve rather than assuming it is free.
What Weather Duty?
Specify rain-resistance, wind, corrosion, temperature and drainage requirements appropriate to the facade. A laboratory rating has defined test conditions, not a promise of zero water everywhere.
How Does It Close?
Check minimum opening pressure, blade orientation, counterbalance or actuator, fail position and leakage. Weak airflow may leave a gravity shutter partly open and unstable.
Field Inputs
Louver And Shutter Selection Schedule
Put airflow and envelope requirements on the same schedule so architecture and mechanical design do not select separate openings.
| Input | Required Detail | Why It Changes Selection |
|---|---|---|
| Airflow | Normal, minimum and maximum volume through each opening | Sets face velocity, pressure drop and whether a gravity blade can open reliably. |
| Assembly | Louver, shutter, damper, screen, guard and wall sleeve | Every layer changes free area, resistance, service access and closing behavior. |
| Weather exposure | Rain, prevailing wind, snow, salt, sun and facade pressure | Determines blade type, test class, material, finish, drainage and placement. |
| Air quality | Clean intake or exhaust contaminant, temperature and corrosiveness | Changes material, cleanability, discharge location and whether recirculation is acceptable. |
| Building detail | Wall build-up, flashing, sill pan, sealant, structure and exterior access | Prevents water bypass, weak mounting and inaccessible fasteners around a good component. |
| Control and fire | Backdraft, motorized isolation, interlock and listed life-safety function | Stops unlike devices from being substituted because both appear as blades in a frame. |
Boundary: Use certified data for the exact louver or damper size and configuration. Water, leakage, wind and life-safety requirements must be confirmed against the adopted project standards and authority requirements.
Practical Sequence
Select A Wall Air Opening In Six Steps
- Name the function.State whether the opening admits replacement air, discharges exhaust, prevents reverse flow, provides isolation or performs a listed fire or smoke function.
- Set the airflow cases.Record normal and maximum volume, expected density and any low-flow state that must still open or close the blades correctly.
- Shortlist rated assemblies.Compare free area, pressure drop, water performance, leakage, material and orientation for exact sizes rather than nominal series claims.
- Check separation.Plot exhaust discharge, outdoor-air intakes, doors, windows, roofs and property constraints so contaminated air does not short-circuit back indoors.
- Detail the wall.Coordinate sleeve, structure, flashing, drainage, perimeter seal, guards, actuators, wiring and the access needed to remove screens or blades.
- Commission and maintain.Verify blade travel and fan airflow, inspect for vibration or water entry, and set cleaning intervals from actual fouling rather than appearance alone.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Provide Make-Up Air
Turn the intake opening into a complete path with filters, conditioning and pressure-loss allowance.
Control Factory Pressure
Use louver and transfer resistance in the room-to-room pressure calculation.
Size The Exhaust Fan
Add the selected opening loss to filters, duct, fittings and discharge before choosing the duty point.
Plan Roof Exhaust
Compare facade and roof discharge paths while keeping intake separation and service access explicit.
Questions Buyers Actually Ask
Industrial Louver And Shutter Questions
What is louver free area?
It is the minimum area through which air can pass, calculated according to the manufacturer's or rating method's geometry. It is smaller than the rough or frame opening and should come from data for the exact size.
Can a shutter be the same size as the fan?
Nominal matching dimensions do not prove adequate flow. Compare rated pressure drop and opening behavior at the actual airflow, then include guards, screens and transitions in the system.
What is the difference between a louver and a damper?
A louver commonly manages an exterior air opening and weather exposure. A damper regulates or isolates airflow. Products and combinations vary, so specify the required tested functions rather than relying on the label.
Why will a gravity shutter not open fully?
Possible causes include insufficient pressure, wrong orientation, dirty pivots, bent blades, wind, a restrictive guard or an uneven fan discharge. Verify the assembly and airflow rather than adding weights at random.
Should an insect screen be installed on an industrial intake?
Use one when the site and application require it, but select its mesh, material, access and pressure loss deliberately. Fine mesh can load quickly and materially reduce replacement airflow.
How far apart should exhaust and intake louvers be?
There is no one distance for every contaminant and facade. Apply adopted mechanical-code and design requirements, discharge direction, wind, elevation difference, airflow and contaminant risk to the actual site.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
ANSI/AMCA Standard 500-L
Defines laboratory methods for rating louvers, including pressure drop and water-related performance under stated test conditions.
Open sourceAMCA International
AMCA Certified Ratings Program
Explains the role of certified performance data when comparing air-control products and exact configurations.
Open sourceU.S. Occupational Safety and Health Administration
29 CFR 1910.94 Ventilation
Provides industrial-ventilation requirements for covered operations, keeping the air opening tied to the actual control objective.
Open sourceProject Review
Send The Opening Assembly And The Facade Around It
Share airflow cases, wall opening, product data, screens and guards, weather exposure, contaminant, intake and discharge locations, pressure target, actuator or backdraft function, and service access. AirMoveX can include the real opening loss in the fan review.
