Cooling Load
The air-conditioning plant must meet envelope, people, lighting, process, ventilation and humidity loads. An HVLS fan does not lower that load by itself.
Conditioned High-Bay Guide
HVLS Fans With Air Conditioning: Mix Air Without Pretending To Make Cooling
An HVLS fan can change air speed and temperature uniformity; it does not create refrigeration capacity. Good coordination protects diffuser throw, return-air paths, comfort, controls and the actual cooling load.
HVLS DoesMix & Move Air
HVAC DoesAdd Or Remove Heat
CoordinateSupply & Return
VerifyOccupied Comfort
Direct Answer
Can HVLS Fans Replace Air Conditioning?
No. An HVLS fan moves and mixes room air; an air-conditioning system removes sensible and latent heat through its refrigeration or chilled-water equipment. The fan can improve perceived comfort and temperature distribution, but it cannot replace the cooling capacity required by the building load.
The useful design question is how the two systems interact. Supply diffusers need a clear path to the occupied zone, return grilles need a workable path back to the air handler, and the HVLS air pattern must not short-circuit supply air directly to a return. Beam depth, lights, ducts, sprinklers, racks and partitions can split the room into zones that look open on a plan but behave differently in operation.
Air speed changes thermal sensation. A person may feel more comfortable at the same dry-bulb temperature when a controlled air movement removes heat from the skin, but excessive speed can cause complaints, papers moving, dust transport or process problems. Use the comfort criteria adopted for the project and measure at representative workstations rather than promising a fixed thermostat reset or energy saving.
Controls should protect both systems. The HVAC sequence must still maintain required temperature, humidity and outside-air conditions. The fan sequence can use occupancy, zone temperature or a verified operating schedule, but it should have clear limits for doors, smoke-control modes, maintenance, sprinkler coordination and abnormal HVAC operation. Commission changes one at a time so a fan setting is not credited for a chiller or weather change.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Keep These Four Responsibilities Separate
Clear responsibility prevents a comfort improvement from being reported as invented cooling capacity.
Air Distribution
Check diffuser throw, return location, ceiling obstructions and fan placement so supply air reaches the occupied zone instead of short-circuiting.
Comfort
Measure temperature, air speed, humidity and occupant response at real work locations. More air movement is not automatically better.
Control Logic
Define enable, speed limits, occupancy schedule, HVAC interlocks, smoke or fire modes, maintenance isolation and alarm ownership before handover.
Field Inputs
Record The HVAC And HVLS Conditions Together
A paired log makes it possible to tell air-mixing effects from weather, load and control changes.
| Condition | HVLS Record | Air-Conditioning Record |
|---|---|---|
| Air pattern | Fan identity, direction, speed command, measured speed and zone | Supply diffuser type, discharge condition, return location and outside-air state |
| Thermal state | Occupied-zone air speed and temperature at fixed points | Zone temperature, humidity, coil state and setpoint |
| Load | Occupancy, process heat, doors and equipment nearby | Cooling stage, compressor or valve state, airflow and outside conditions |
| Comfort | Workstation readings and occupant comments | Humidity, setpoint stability and complaints by zone |
| Safety | Clearance, guards, sprinkler and maintenance status | Fire/smoke mode, condensate, electrical isolation and access |
| Energy | Measured fan input and schedule | Measured HVAC input or thermal output with comparable weather and load |
Boundary: ASHRAE comfort guidance is not a substitute for the adopted project criteria, and a fan-air pattern does not establish a cooling-energy saving. Keep baseline conditions and measurement boundaries explicit.
Practical Sequence
Coordinate HVLS Fans And Air Conditioning In Six Steps
- Map the conditioned zones.Mark supply diffusers, returns, outside-air paths, doors, heat sources, racks, partitions and occupied workstations before placing the fan pattern.
- Confirm the cooling duty.Write the actual temperature, humidity and outside-air requirements. Do not reduce equipment capacity because a fan may improve perceived comfort.
- Check the ceiling plane.Resolve beam, light, sprinkler, duct, roof and maintenance clearances and keep the rotating envelope clear of the HVAC distribution equipment.
- Set a low-risk control case.Start with an occupied schedule and conservative speed limit. Define HVAC, fire-mode, door and maintenance interlocks before raising speed.

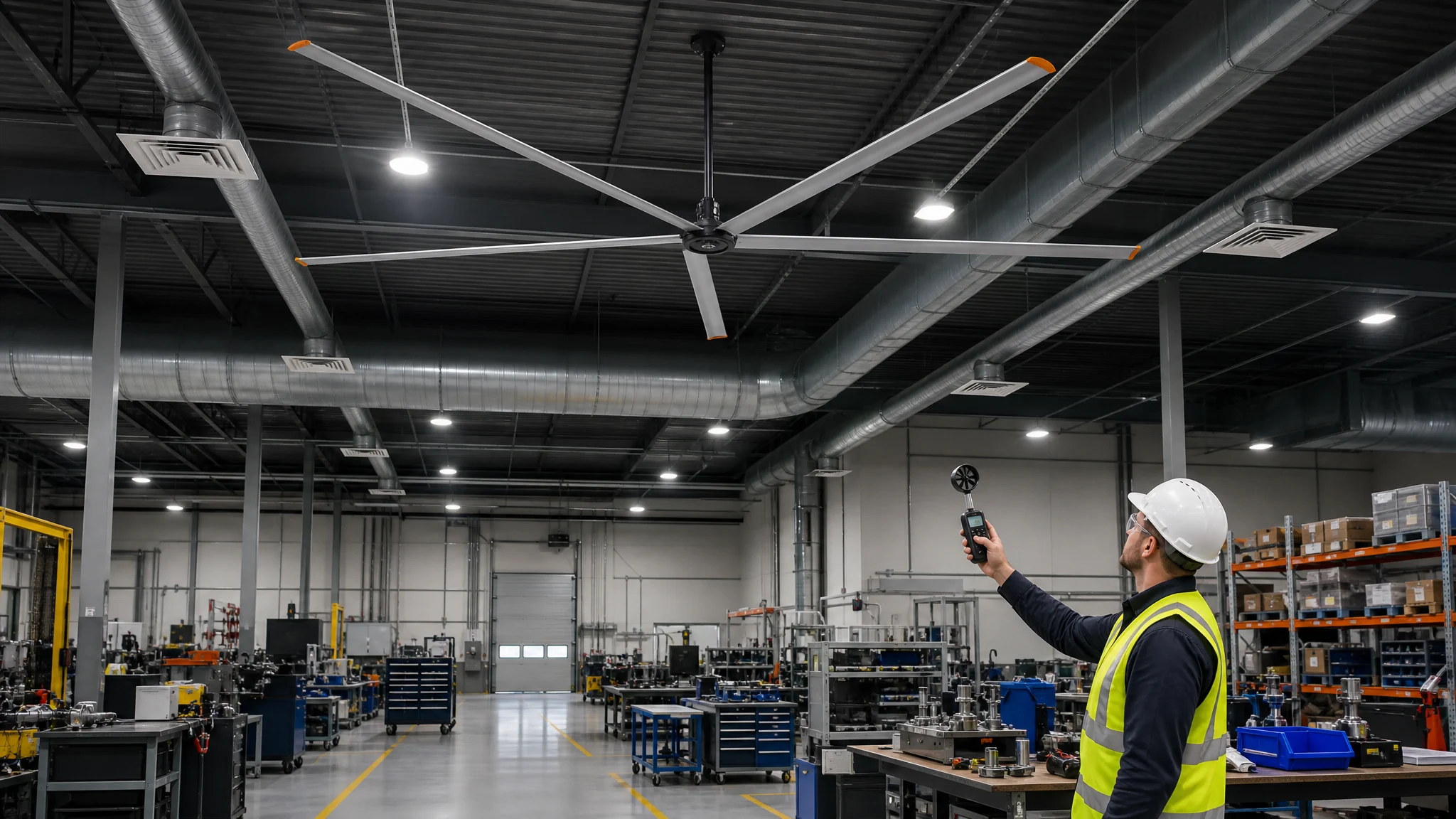

- Measure representative points.Compare supply, return and occupied-zone temperature, humidity and air speed at fixed locations while recording fan and HVAC states.
- Save the operating rule.Document enable conditions, speed caps, comfort limits, sensor locations, exceptions, alarm response and the evidence used to approve the final sequence.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Select HVLS Diameter
Use clear height, zones and obstruction mapping before choosing the fan envelope.
Plan Fan Spacing
Test the actual conditioned zones rather than assuming one circular coverage number.
Check Installation Clearance
Coordinate the fan with lights, ducts, sprinklers and structure.
Review Winter Mixing
Use a separate measured sequence when the goal is destratification rather than summer comfort.
Questions Buyers Actually Ask
HVLS And Air-Conditioning Questions
Can an HVLS fan lower the room temperature?
It can redistribute air and change perceived comfort, but it does not remove heat. Room temperature may become more uniform, while the cooling plant still handles the building load.
Should the fan blow air toward or away from an HVAC diffuser?
There is no universal direction. Review the diffuser throw, return path, ceiling geometry and occupied-zone result for the exact layout, then verify with measurements.
Can HVLS fans reduce air-conditioning energy?
Possibly in a documented operating strategy, but the claim needs comparable weather, occupancy, setpoints, humidity, HVAC output, fan input and comfort results. Air speed alone is not an energy measurement.
Do HVLS fans need to run when the HVAC is off?
Only when a defined ventilation, destratification or comfort objective remains and the resulting air movement is acceptable. Use schedules and interlocks rather than leaving a generic rule active.
How far should a fan be from a diffuser?
The required relationship depends on diffuser type, discharge pattern, ceiling height, fan diameter and obstacles. Use the HVAC and fan manufacturers' current layout guidance and verify the occupied zone.
What should be measured during commissioning?
Record fan speed and input, zone temperature, humidity, air speed, supply and return conditions, HVAC state, outside weather, occupancy, door state and occupant feedback at repeatable points.
