Home/Product Models/HVLS Fans/AirMoveX AXV-BQ Series

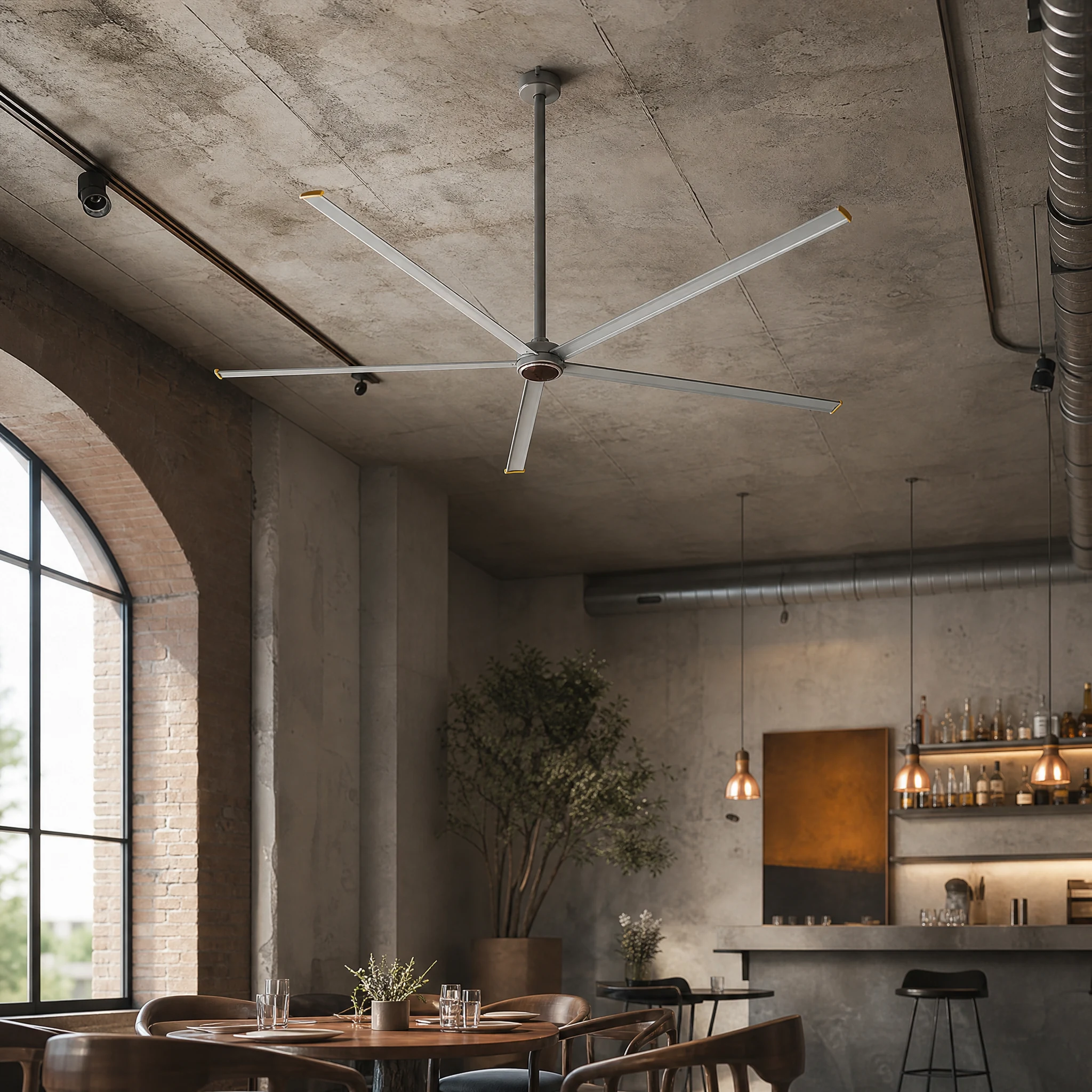

AirMoveX boutique five-blade ceiling fan shown in a purpose-matched installation scene
Ceiling Fan Systems8-16 ft

Ceiling Air Movement

AirMoveX AXV-BQ Series

Boutique Five-Blade Ceiling Fan

A visually lighter fan with sloped tapered blades for projects where the ceiling product must feel considered, not purely industrial.

  • Tapered boutique profile
  • Five aluminum blades
  • PMSM/VFD drive
  • Reduced visual weight
Size Range
8-16 ft
Drive
PMSM direct drive
Max Air Volume
4,600 m³/min
Installation
Recommended clear height < 7 m

Product Overview

Configured Around The Building, Not Just The Diameter

A visually lighter fan with sloped tapered blades for projects where the ceiling product must feel considered, not purely industrial.

Drive
PMSM direct drive
Blade
AL6063 / 5 pcs
Control
VFD with protection module
Install
Recommended clear height < 7 m
Typical Applications

Boutique commercial spaces, dining halls, gyms, workshops and medium-height public interiors

Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.

Why This Model May Fit

AirMoveX AXV-BQ Series In The AirMoveX System

Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.

Product familyCeiling Fan Systems

A visually lighter fan with sloped tapered blades for projects where the ceiling product must feel considered, not purely industrial.

Compare This Family ↗
Installation roleRecommended clear height < 7 m

Typical applications: Boutique commercial spaces, dining halls, gyms, workshops and medium-height public interiors.

Drive and controlPMSM direct drive

VFD with protection module. Available variants begin at 4.88 m / 16 ft; review the table below for the series range.

Confirm before orderingProject-specific quotation

Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.

Carry This Model Into A Quote ↗

Available Configurations

AirMoveX AXV-BQ Series Model Specifications

Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.

AirMoveX ModelDiameterVoltagePowerCurrentMax SpeedMax Air VolumeCoverage / CapacitySoundBladesNet WeightInquiry
AXV-BQ16-54.88 m / 16 ft220 V / 50-60 Hz650 W3.3 A80 rpm4,600 m³/min770 m²≤ 40 dB(A)547 kg Quote This Model ↗
AXV-BQ14-54.28 m / 14 ft220 V / 50-60 Hz650 W3.3 A100 rpm4,000 m³/min640 m²≤ 40 dB(A)544 kg Quote This Model ↗
AXV-BQ12-53.68 m / 12 ft220 V / 50-60 Hz600 W3 A120 rpm3,500 m³/min470 m²≤ 40 dB(A)539 kg Quote This Model ↗
AXV-BQ10-53.08 m / 10 ft220 V / 50-60 Hz500 W2.5 A140 rpm2,900 m³/min400 m²≤ 40 dB(A)535 kg Quote This Model ↗
AXV-BQ08-52.48 m / 8 ft220 V / 50-60 Hz500 W2.5 A185 rpm2,700 m³/min300 m²≤ 40 dB(A)533 kg Quote This Model ↗

Configuration 01

AXV-BQ16-5

4.88 m / 16 ft
Max Air Volume4,600 m³/min
Power650 W
Coverage770 m²
Diameter
4.88 m / 16 ft
Voltage
220 V / 50-60 Hz
Current
3.3 A
Max Speed
80 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
47 kg
Request This Configuration

Configuration 02

AXV-BQ14-5

4.28 m / 14 ft
Max Air Volume4,000 m³/min
Power650 W
Coverage640 m²
Diameter
4.28 m / 14 ft
Voltage
220 V / 50-60 Hz
Current
3.3 A
Max Speed
100 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
44 kg
Request This Configuration

Configuration 03

AXV-BQ12-5

3.68 m / 12 ft
Max Air Volume3,500 m³/min
Power600 W
Coverage470 m²
Diameter
3.68 m / 12 ft
Voltage
220 V / 50-60 Hz
Current
3 A
Max Speed
120 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
39 kg
Request This Configuration

Configuration 04

AXV-BQ10-5

3.08 m / 10 ft
Max Air Volume2,900 m³/min
Power500 W
Coverage400 m²
Diameter
3.08 m / 10 ft
Voltage
220 V / 50-60 Hz
Current
2.5 A
Max Speed
140 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
35 kg
Request This Configuration

Configuration 05

AXV-BQ08-5

2.48 m / 8 ft
Max Air Volume2,700 m³/min
Power500 W
Coverage300 m²
Diameter
2.48 m / 8 ft
Voltage
220 V / 50-60 Hz
Current
2.5 A
Max Speed
185 rpm
Sound
≤ 40 dB(A)
Blades
5
Net Weight
33 kg
Request This Configuration
Power Is Not Annual Energy

The values above are supplied catalog references. Use exact-model input at the intended speed and the site's real operating hours to estimate kWh and cost.

Open The Power-Consumption Method

Real installations · same factory

Ceiling Fan Systems running on site

See all project photos
Metal fabrication workshop — 6-blade HVLS fan
Metal fabrication workshop6-blade HVLS fan
Steel-truss production hall — 6-blade HVLS fan
Steel-truss production hall6-blade HVLS fan
Live concert hall — HVLS fan above the crowd
Live concert hallHVLS fan above the crowd

Project Documents

Request The Documents That Match The Final Configuration

Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.

01

Technical Datasheet

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
02

Installation And Dimension Drawing

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
03

Certificate And Packing Scope

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
Planning The Service Record?

Use the HVLS preventive maintenance checklist to organize isolation, mounting and retention, drive, hub, airfoils, controls and return-to-service evidence. Exact intervals and limits still come from the current AirMoveX AXV-BQ Series documentation.

Open The Maintenance Checklist
HVLS Destratification

Winter destratification is a controlled mixing job: move warmer ceiling air back into the occupied zone slowly enough that people do not feel an unwanted draft.

Open The Field Guide
HVLS Specification Checklist

A good specification defines the building, useful-air result, evidence, installation and commissioning. It does not simply ask suppliers for their biggest airflow number.

Open The Field Guide
HVLS Installation Cost

Equipment price is only one line. Structure, mounting, lift access, electrical work, controls, fire coordination, shutdown, commissioning, freight and site constraints shape installed cost.

Open The Field Guide

Project Inquiry

Confirm AirMoveX AXV-BQ Series For Your Site

Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.

Start This Product Inquiry
