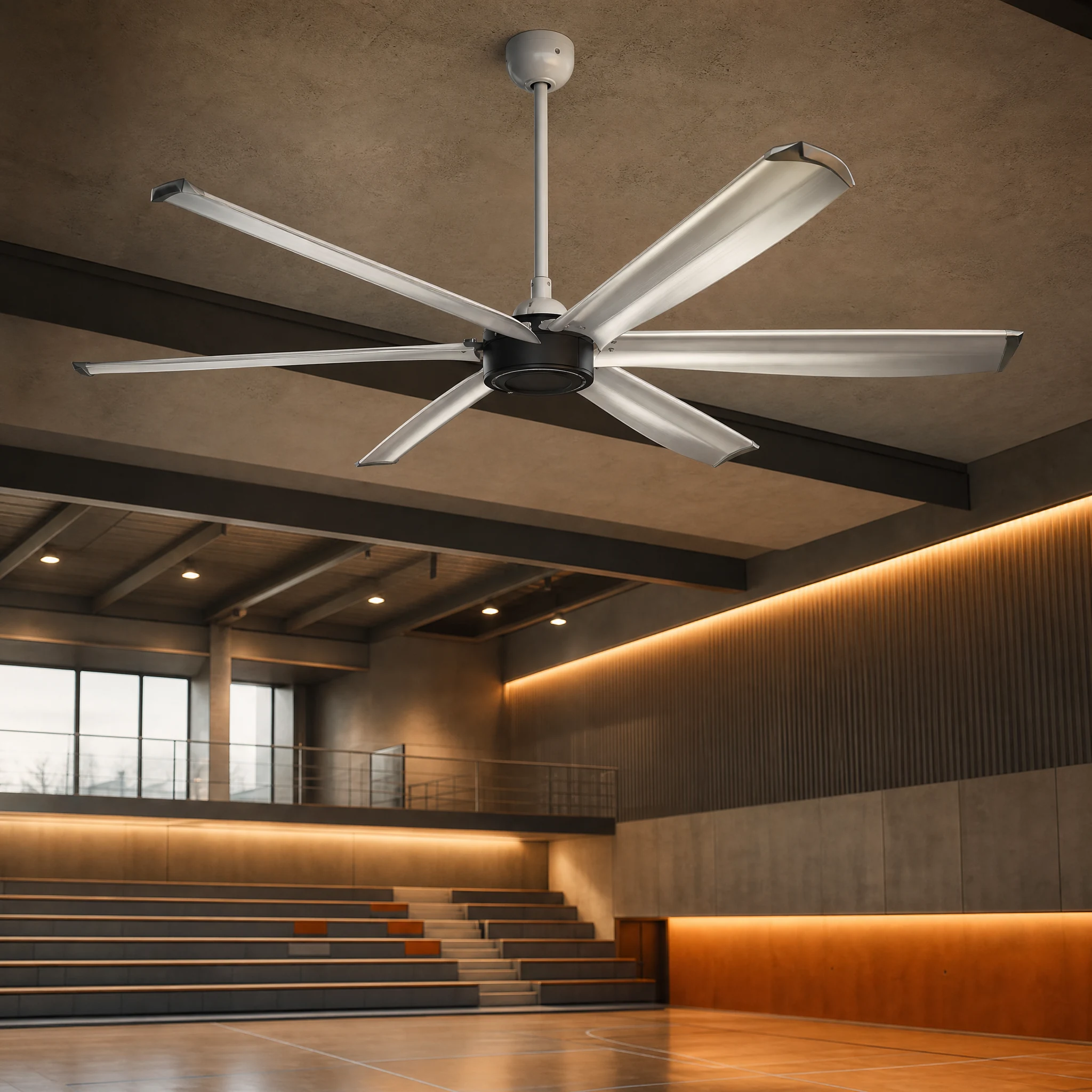

AirMoveX commercial wave-blade hvls fan shown in a purpose-matched installation scene
Ceiling Fan Systems8-16 ft

Ceiling Air Movement

AirMoveX AXV-C6 Series

Commercial Wave-Blade HVLS Fan

A six-blade commercial platform whose wider wave-profile airfoils produce a softer, fuller airflow pattern.

  • Wide wave-profile blades
  • Six-blade layout
  • Commercial-space finish
  • PMSM/VFD platform
Size Range
8-16 ft
Drive
PMSM direct drive
Max Air Volume
9,000 m³/min
Installation
Recommended clear height < 7 m

Product Overview

Configured Around The Building, Not Just The Diameter

A six-blade commercial platform whose wider wave-profile airfoils produce a softer, fuller airflow pattern.

Drive
PMSM direct drive
Blade
AL6063 / 6 pcs
Control
VFD with protection module
Install
Recommended clear height < 7 m
Typical Applications

Restaurants, event halls, indoor gyms, large retail spaces, clubs and public buildings

Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.

Why This Model May Fit

AirMoveX AXV-C6 Series In The AirMoveX System

Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.

Product familyCeiling Fan Systems

A six-blade commercial platform whose wider wave-profile airfoils produce a softer, fuller airflow pattern.

Compare This Family ↗
Installation roleRecommended clear height < 7 m

Typical applications: Restaurants, event halls, indoor gyms, large retail spaces, clubs and public buildings.

Drive and controlPMSM direct drive

VFD with protection module. Available variants begin at 4.88 m / 16 ft; review the table below for the series range.

Confirm before orderingProject-specific quotation

Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.

Carry This Model Into A Quote ↗

Available Configurations

AirMoveX AXV-C6 Series Model Specifications

Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.

AirMoveX ModelDiameterVoltagePowerCurrentMax SpeedMax Air VolumeCoverage / CapacitySoundBladesNet WeightInquiry
AXV-C6-164.88 m / 16 ft220 V / 50-60 Hz1,000 W5.1 A70 rpm9,000 m³/min770 m²≤ 40 dB(A)671 kg Quote This Model ↗
AXV-C6-144.28 m / 14 ft220 V / 50-60 Hz940 W4.7 A85 rpm7,500 m³/min640 m²≤ 40 dB(A)662 kg Quote This Model ↗
AXV-C6-123.68 m / 12 ft220 V / 50-60 Hz850 W4.3 A95 rpm6,000 m³/min470 m²≤ 40 dB(A)659 kg Quote This Model ↗
AXV-C6-103.08 m / 10 ft220 V / 50-60 Hz850 W4.3 A120 rpm5,300 m³/min400 m²≤ 40 dB(A)653 kg Quote This Model ↗
AXV-C6-082.48 m / 8 ft220 V / 50-60 Hz800 W4 A150 rpm4,300 m³/min300 m²≤ 40 dB(A)651.4 kg Quote This Model ↗

Configuration 01

AXV-C6-16

4.88 m / 16 ft
Max Air Volume9,000 m³/min
Power1,000 W
Coverage770 m²
Diameter
4.88 m / 16 ft
Voltage
220 V / 50-60 Hz
Current
5.1 A
Max Speed
70 rpm
Sound
≤ 40 dB(A)
Blades
6
Net Weight
71 kg
Request This Configuration

Configuration 02

AXV-C6-14

4.28 m / 14 ft
Max Air Volume7,500 m³/min
Power940 W
Coverage640 m²
Diameter
4.28 m / 14 ft
Voltage
220 V / 50-60 Hz
Current
4.7 A
Max Speed
85 rpm
Sound
≤ 40 dB(A)
Blades
6
Net Weight
62 kg
Request This Configuration

Configuration 03

AXV-C6-12

3.68 m / 12 ft
Max Air Volume6,000 m³/min
Power850 W
Coverage470 m²
Diameter
3.68 m / 12 ft
Voltage
220 V / 50-60 Hz
Current
4.3 A
Max Speed
95 rpm
Sound
≤ 40 dB(A)
Blades
6
Net Weight
59 kg
Request This Configuration

Configuration 04

AXV-C6-10

3.08 m / 10 ft
Max Air Volume5,300 m³/min
Power850 W
Coverage400 m²
Diameter
3.08 m / 10 ft
Voltage
220 V / 50-60 Hz
Current
4.3 A
Max Speed
120 rpm
Sound
≤ 40 dB(A)
Blades
6
Net Weight
53 kg
Request This Configuration

Configuration 05

AXV-C6-08

2.48 m / 8 ft
Max Air Volume4,300 m³/min
Power800 W
Coverage300 m²
Diameter
2.48 m / 8 ft
Voltage
220 V / 50-60 Hz
Current
4 A
Max Speed
150 rpm
Sound
≤ 40 dB(A)
Blades
6
Net Weight
51.4 kg
Request This Configuration
Power Is Not Annual Energy

The values above are supplied catalog references. Use exact-model input at the intended speed and the site's real operating hours to estimate kWh and cost.
