Broad Occupied Area
Screen an HVLS platform when the job is wide-area circulation and air mixing across a large occupied floor.
- Need
- Broad coverage
- Check
- Clear height, cranes and services
- Output
- Candidate ceiling-fan zones
Factory Airflow Role Guide
How To Combine HVLS, Portable And Exhaust Fans In A Factory
Assign each zone an airflow job first. Broad circulation, focused worker airflow and exhaust are related—but they are not interchangeable.
HVLSBroad Circulation And Mixing
PortableFocused, Moveable Airflow
ExhaustAir Removal Through An Opening
Critical PairExhaust + Replacement Air
Direct Answer
Why One Fan Type Rarely Solves Every Factory Zone
A factory can contain three different problems at the same time: stagnant occupied areas, localized hot work and air that must leave the building.
An HVLS platform addresses broad circulation. A mobile or drum fan places a more focused stream near an active work zone. An exhaust system removes indoor air and needs a defined replacement-air route.
General circulation must not be treated as source capture or contaminant control. Processes involving hazardous fumes, dusts or vapors require application-specific ventilation engineering and applicable project controls.
Compare The Three Airflow RolesWorked Role Example

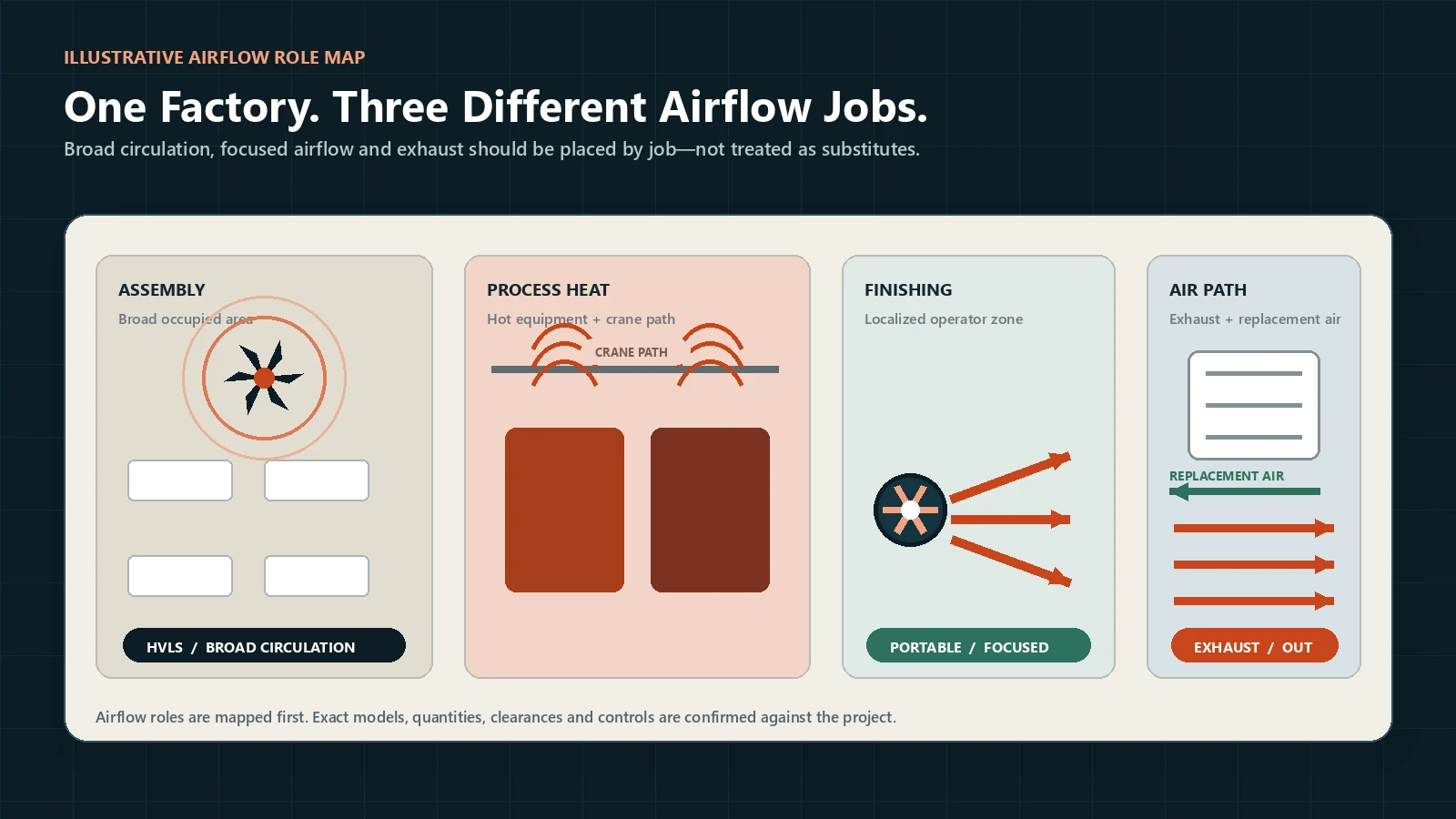

Map The Operating Problem Zone By Zone
This illustration explains the decision method. It is not a measured ventilation design or a customer case study.
Source And Crane Conflict
Mark hot equipment and overhead movement before placing any ceiling fan. Determine whether the actual need is comfort circulation, source exhaust or both.
- Need
- Problem definition first
- Check
- Heat source and crane path
- Output
- Separated airflow roles
Focused Operator Zone
Screen a portable fan when the target moves or needs a directional stream. Confirm that moving air is compatible with the process.
- Need
- Directional airflow
- Check
- Process sensitivity and mobility
- Output
- Local fan position
Exhaust And Replacement Air
Air cannot be exhausted continuously without entering from somewhere else. Map both the discharge point and the replacement-air route.
- Need
- Air removal
- Check
- Opening and pressure path
- Output
- Coordinated inlet and outlet
Role Comparison
Keep The Three Specifications Separate
A quote becomes easier to compare when every fan is tied to one stated operating job.
| Role | Primary Question | Minimum Inputs | Common Scope Error |
|---|---|---|---|
| Broad Circulation | Which occupied volume needs mixing and air movement? | Dimensions, clear height, structure, obstacles and people | Using floor area alone to promise quantity or coverage |
| Focused Airflow | Where must a directional stream reach, and will the target move? | Distance, work-zone size, process sensitivity, mobility and power | Expecting one portable fan to solve whole-building circulation |
| Exhaust | What air must leave, through which opening and under what conditions? | Objective, opening, pressure path, environment, replacement air and power | Selecting by opening size without defining the air path |
Process-Ventilation Boundary
If the problem includes hazardous fumes, combustible dust, vapors or regulated exposures, use qualified ventilation and safety engineering. General circulation is not a substitute for source capture or compliance controls.
Platform Starting Points
Match A Product Family To Each Confirmed Role
These links begin the comparison. Exact model, quantity, controls and installation scope remain project-specific.
HVLS Ceiling Platforms
Compare broad-circulation series by diameter, drive, electrical input, clear-height guidance and mounting conditions.
Compare HVLS FansMobile And Drum Platforms
Compare focused-airflow products by size, airflow reference, mobility, power and the working distance.
Compare Portable FansIndustrial Exhaust Platforms
Compare FRP and galvanized exhaust series after the opening, environment, discharge and replacement-air path are defined.
Compare Exhaust FansHave A Floor Plan Or Existing Quote?
Mark the heat sources, occupied zones, overhead conflicts, exhaust openings and replacement-air route. AirMoveX will organize the missing inputs into one comparable scope.
Start A Factory Airflow ReviewFactory Buyer Questions
Factory Airflow Planning FAQ
Separate the jobs first, then compare the equipment and quote scope.
What is the difference between HVLS, portable and exhaust fans?
An HVLS fan supports broad circulation, a portable fan directs focused airflow toward a work zone, and an exhaust fan removes air through an opening. Exhaust also needs a workable replacement-air path.
Can an HVLS fan replace process exhaust?
No. General circulation does not replace source capture, process exhaust or code-required ventilation. Hazardous contaminants require application-specific engineering and should not simply be recirculated.
Can one fan type solve every factory zone?
Usually not. Broad occupied areas, hot equipment, moving work cells and air-exchange requirements can need different airflow roles and controls.
What determines exhaust fan selection?
Start with the air-exchange or source-control objective, contaminant or heat characteristics, opening size, pressure path, replacement-air path, environment, electrical supply and applicable project requirements.
What should a combined quotation show?
It should identify each fan's role, exact model, electrical input, mounting or mobility, controller, quantity, accessories, document scope, exclusions, packing, delivery basis and installation responsibility.
