Targeted Ventilation
AirMoveX AXS-HM Series

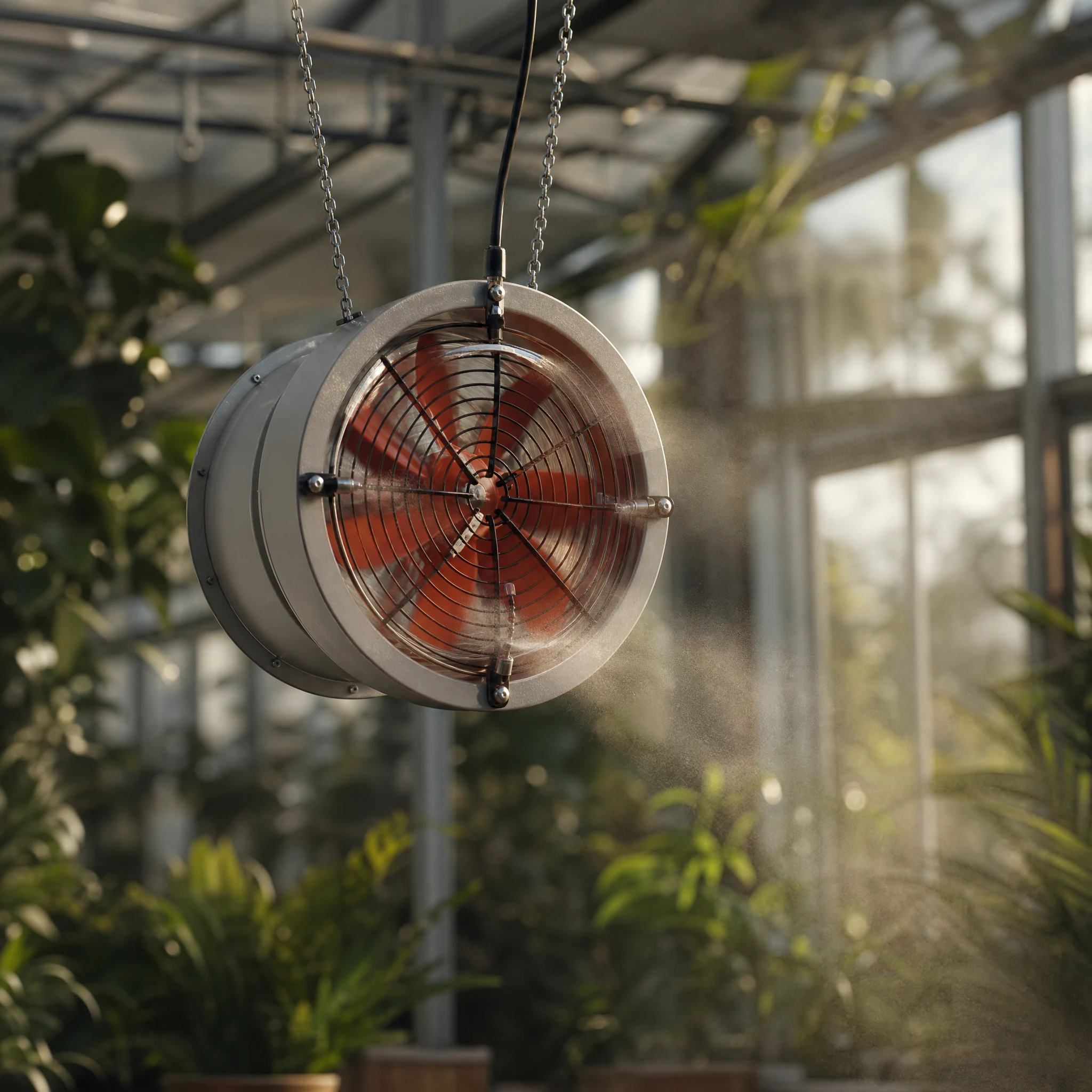

Hanging Mist Fan
A compact suspended misting platform for overhead cooling and humidification where floor space is limited.
- Suspended format
- Spray-tube connection
- Six metal blades
- Three compact sizes
- Size Range
- 15-20 in
- Drive
- AC motor
- Max Air Volume
- 96 m³/min
- Installation
- Suspended / spray connection
Product Overview
Configured Around The Building, Not Just The Diameter
A compact suspended misting platform for overhead cooling and humidification where floor space is limited.
- Drive
- AC motor
- Blade
- Thickened steel / 6 pcs
- Control
- Single-speed platform
- Install
- Suspended / spray connection
Typical Applications
Farms, planting facilities, logistics centers, food production, indoor gyms and event halls
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Available Configurations
AirMoveX AXS-HM Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXS-HM20 | 0.52 m / 20 in | 220 V / 50-60 Hz | 420 W | — | 1,350 rpm | 96 m³/min | — | ≤ 65 dB(A) | 6 | 16 kg | Quote This Model ↗ |
| AXS-HM19 | 0.48 m / 19 in | 220 V / 50-60 Hz | 210 W | — | 1,450 rpm | 72 m³/min | — | ≤ 65 dB(A) | 6 | 14 kg | Quote This Model ↗ |
| AXS-HM15 | 0.38 m / 15 in | 220 V / 50-60 Hz | 140 W | — | 1,450 rpm | 41 m³/min | — | ≤ 65 dB(A) | 6 | 10 kg | Quote This Model ↗ |
