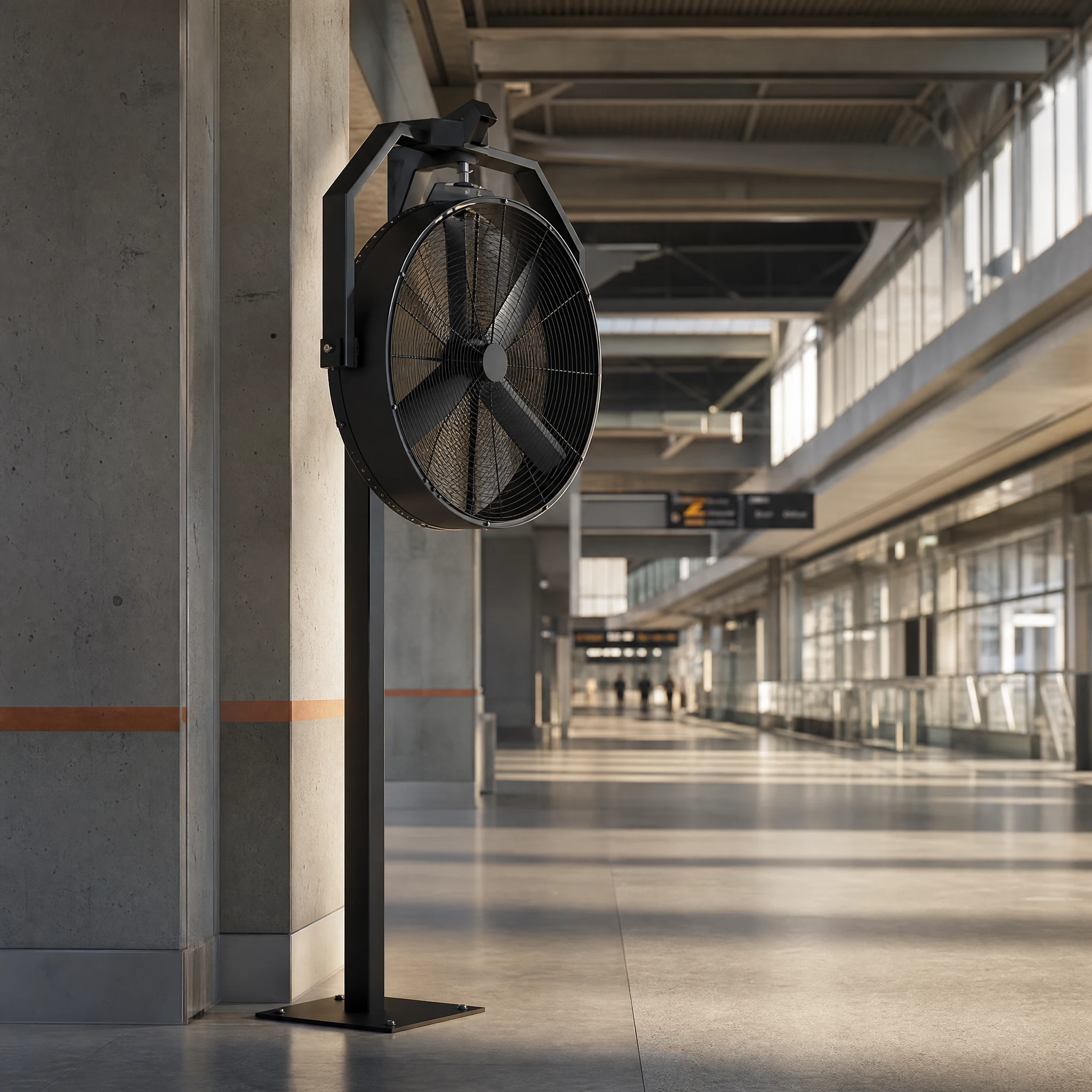

AirMoveX large vertical column fan shown in a purpose-matched installation scene
Specialty And Exhaust Fans37-43 in

Targeted Ventilation

AirMoveX AXS-V Series

Large Vertical Column Fan

A customizable column-mounted circulation fan for sites that need elevated localized airflow without ceiling suspension.

  • Tall steel column
  • Variable mounting height
  • Three GFRP blades
  • Optional accessories
Size Range
37-43 in
Drive
PMSM brushless motor
Max Air Volume
410 m³/min
Installation
Floor plate / custom column

Product Overview

Configured Around The Building, Not Just The Diameter

A customizable column-mounted circulation fan for sites that need elevated localized airflow without ceiling suspension.

Drive
PMSM brushless motor
Blade
GFRP / 3 pcs
Control
VFD with protection module
Install
Floor plate / custom column
Typical Applications

Shopping malls, pedestrian streets, logistics facilities, stations, airports and public spaces

Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.

Why This Model May Fit

AirMoveX AXS-V Series In The AirMoveX System

Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.

Product familySpecialty And Exhaust Fans

A customizable column-mounted circulation fan for sites that need elevated localized airflow without ceiling suspension.

Compare This Family ↗
Installation roleFloor plate / custom column

Typical applications: Shopping malls, pedestrian streets, logistics facilities, stations, airports and public spaces.

Drive and controlPMSM brushless motor

VFD with protection module. Available variants begin at 1.10 m / 43 in; review the table below for the series range.

Confirm before orderingProject-specific quotation

Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.

Carry This Model Into A Quote ↗

Available Configurations

AirMoveX AXS-V Series Model Specifications

Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.

AirMoveX ModelDiameterVoltagePowerCurrentMax SpeedMax Air VolumeCoverage / CapacitySoundBladesNet WeightInquiry
AXS-V431.10 m / 43 in220 V / 50-60 Hz560 W2.8 A600 rpm410 m³/min—≤ 65 dB(A)375 kg Quote This Model ↗
AXS-V370.95 m / 37 in220 V / 50-60 Hz530 W2.6 A680 rpm300 m³/min—≤ 65 dB(A)370 kg Quote This Model ↗

Configuration 01

AXS-V43

1.10 m / 43 in
Max Air Volume410 m³/min
Power560 W
Coverage—
Diameter
1.10 m / 43 in
Voltage
220 V / 50-60 Hz
Current
2.8 A
Max Speed
600 rpm
Sound
≤ 65 dB(A)
Blades
3
Net Weight
75 kg
Request This Configuration

Configuration 02

AXS-V37

0.95 m / 37 in
Max Air Volume300 m³/min
Power530 W
Coverage—
Diameter
0.95 m / 37 in
Voltage
220 V / 50-60 Hz
Current
2.6 A
Max Speed
680 rpm
Sound
≤ 65 dB(A)
Blades
3
Net Weight
70 kg
Request This Configuration

Project Documents

Request The Documents That Match The Final Configuration

Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.

01

Technical Datasheet

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
02

Installation And Dimension Drawing

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗
03

Certificate And Packing Scope

Prepared or verified against the selected model, electrical configuration and project scope.

Request This Document ↗

Project Inquiry

Confirm AirMoveX AXS-V Series For Your Site

Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.
