Targeted Ventilation
AirMoveX AXS-SH Series

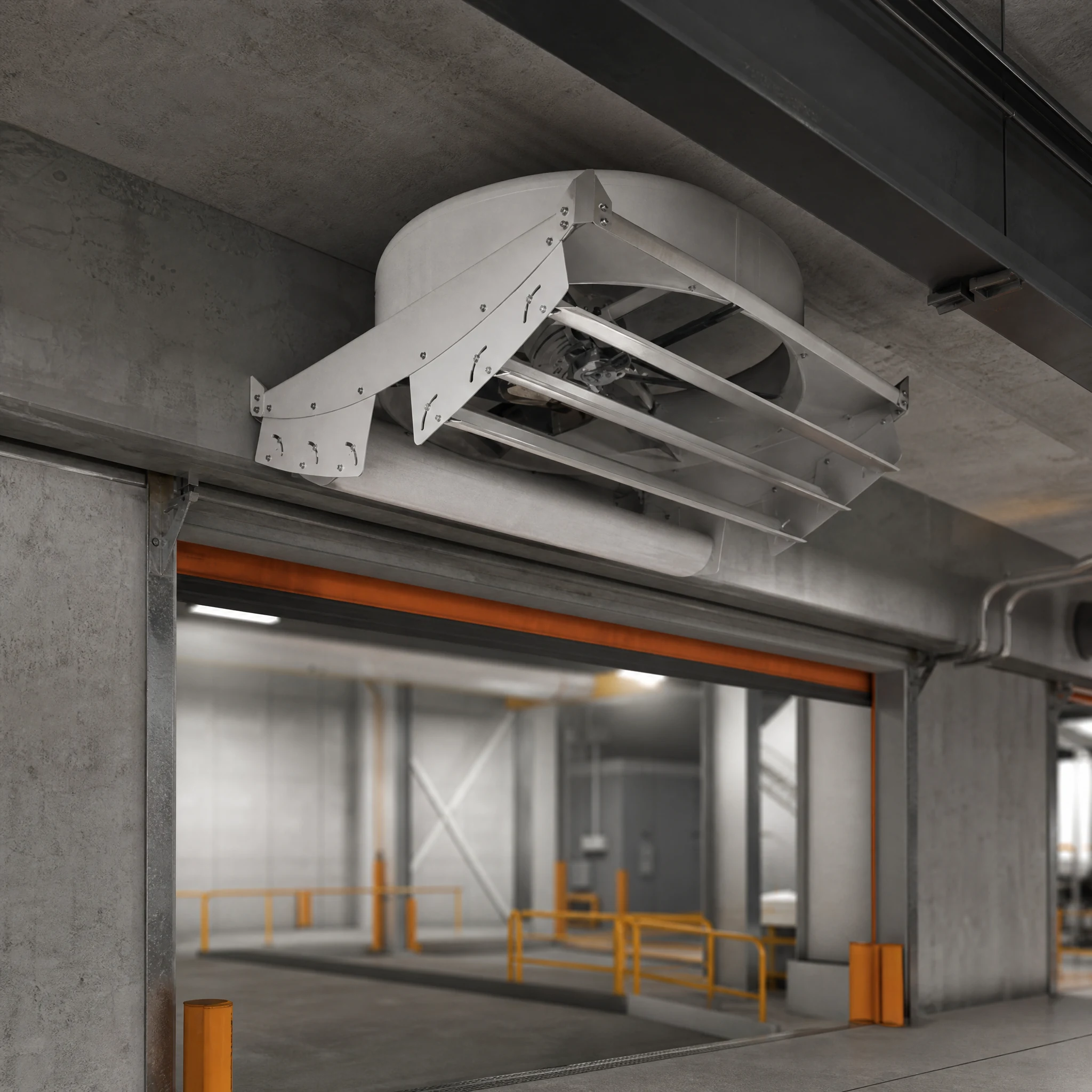

Low-Profile Shunt Fan
A low-profile enclosed fan for targeted ventilation where overhead equipment depth must remain controlled.
- Low-profile housing
- Six stainless blades
- PMSM/VFD platform
- Long-life beltless drive
- Size Range
- 40-54 in
- Drive
- PMSM brushless motor
- Max Air Volume
- 770 m³/min
- Installation
- Enclosed overhead assembly
Product Overview
Configured Around The Building, Not Just The Diameter
A low-profile enclosed fan for targeted ventilation where overhead equipment depth must remain controlled.
- Drive
- PMSM brushless motor
- Blade
- Stainless steel / 6 pcs
- Control
- VFD with protection module
- Install
- Enclosed overhead assembly
Factories, farms, exhibition halls, milk and food-production centers and large worship spaces
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Why This Model May Fit
AirMoveX AXS-SH Series In The AirMoveX System
Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.
Typical applications: Factories, farms, exhibition halls, milk and food-production centers and large worship spaces.
VFD with protection module. Available variants begin at 1.38 m / 54 in; review the table below for the series range.
Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.
Carry This Model Into A Quote ↗Available Configurations
AirMoveX AXS-SH Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXS-SH54 | 1.38 m / 54 in | 220 V / 50-60 Hz | 1,000 W | 5 A | 450 rpm | 770 m³/min | — | ≤ 65 dB(A) | 6 | 120 kg | Quote This Model ↗ |
| AXS-SH48 | 1.22 m / 48 in | 220 V / 50-60 Hz | 900 W | 4.5 A | 500 rpm | 430 m³/min | — | ≤ 65 dB(A) | 6 | 90 kg | Quote This Model ↗ |
| AXS-SH40 | 1.00 m / 40 in | 220 V / 50-60 Hz | 730 W | 3.7 A | 550 rpm | 250 m³/min | — | ≤ 65 dB(A) | 6 | 70 kg | Quote This Model ↗ |
Configuration 01
AXS-SH54
1.38 m / 54 in- Diameter
- 1.38 m / 54 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 5 A
- Max Speed
- 450 rpm
- Sound
- ≤ 65 dB(A)
- Blades
- 6
- Net Weight
- 120 kg
Configuration 02
AXS-SH48
1.22 m / 48 in- Diameter
- 1.22 m / 48 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 4.5 A
- Max Speed
- 500 rpm
- Sound
- ≤ 65 dB(A)
- Blades
- 6
- Net Weight
- 90 kg
Configuration 03
AXS-SH40
1.00 m / 40 in- Diameter
- 1.00 m / 40 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 3.7 A
- Max Speed
- 550 rpm
- Sound
- ≤ 65 dB(A)
- Blades
- 6
- Net Weight
- 70 kg
Selection Guides
Resolve These Questions Before Choosing AirMoveX AXS-SH Series
Use the guides for the selection method, then confirm the exact configuration against the project documents.
HVLS Fans Near Mezzanines: Include the Upper Walking Level
An HVLS fan near a mezzanine must be assessed from the upper walking surface, stairs and access points—not only from the warehouse floor.
Low-Profile Shunt Fan or HVLS: Start With Available Headroom
Compare a low-profile guarded shunt fan and an open HVLS rotor by complete installed depth, access and the occupied air path—not by the word low-profile.
