A height-adjustable wheeled fan for ventilation and heat dissipation at changing work elevations.
Compare This Family ↗
Targeted Ventilation
AirMoveX AXS-LL Series

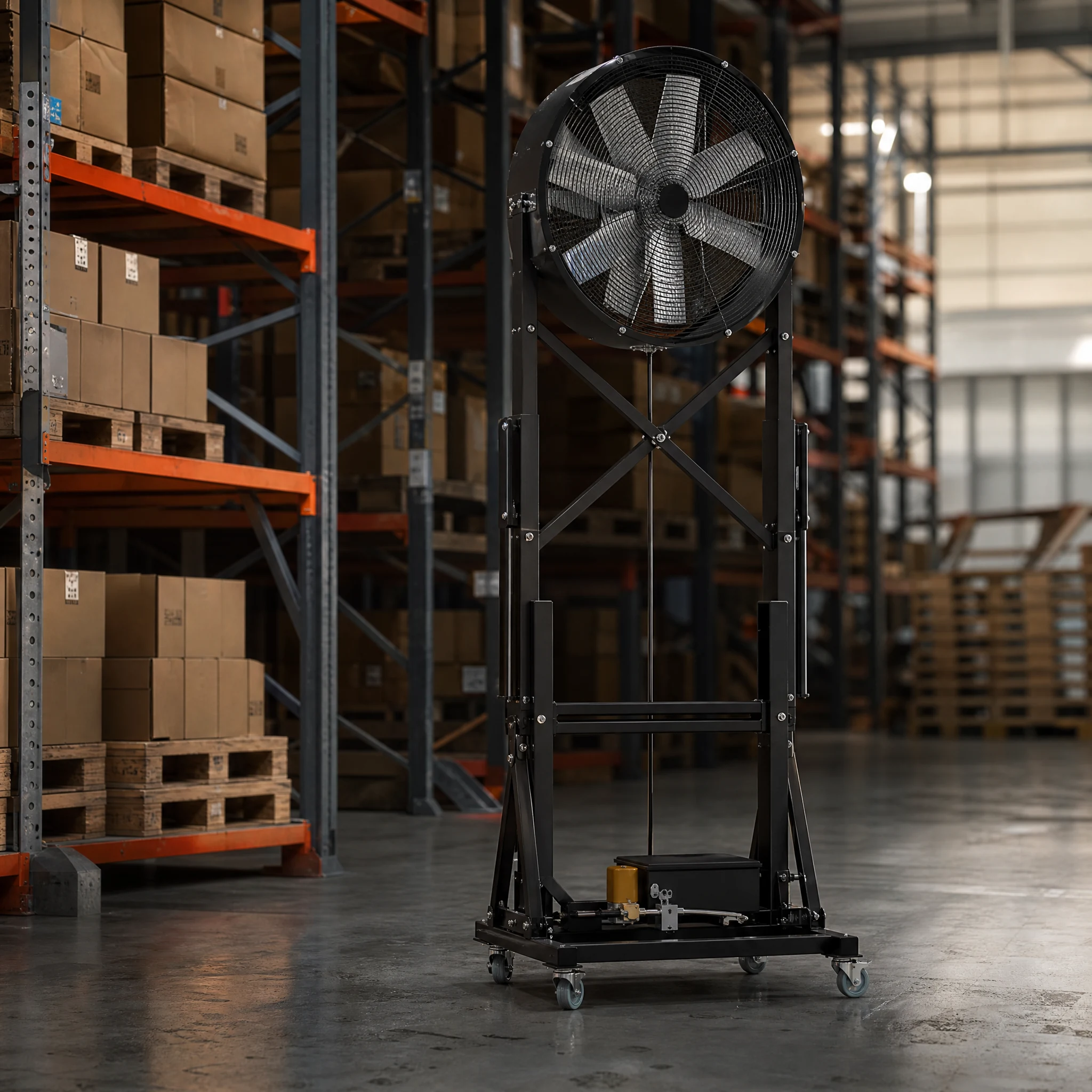

Logistics Lift Fan
A height-adjustable wheeled fan for ventilation and heat dissipation at changing work elevations.
- 2.55-3.88 m height range
- Mobile wheeled base
- Six stainless blades
- Adjustable working height
- Size Range
- 44 in
- Drive
- PMSM brushless motor
- Max Air Volume
- 500 m³/min
- Installation
- Adjustable mobile lift frame
Product Overview
Configured Around The Building, Not Just The Diameter
A height-adjustable wheeled fan for ventilation and heat dissipation at changing work elevations.
- Drive
- PMSM brushless motor
- Blade
- Stainless steel / 6 pcs
- Control
- VFD with protection module
- Install
- Adjustable mobile lift frame
Logistics warehouses, public buildings and high-altitude maintenance or work zones
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Why This Model May Fit
AirMoveX AXS-LL Series In The AirMoveX System
Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.
Typical applications: Logistics warehouses, public buildings and high-altitude maintenance or work zones.
VFD with protection module. Available variants begin at 1.13 m / 44 in; review the table below for the series range.
Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.
Carry This Model Into A Quote ↗Available Configurations
AirMoveX AXS-LL Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXS-LL44 | 1.13 m / 44 in | 220 V / 50-60 Hz | 900 W | 4.5 A | 450 rpm | 500 m³/min | 2.55-3.88 m height | ≤ 75 dB(A) | 6 | 220 kg | Quote This Model ↗ |
Configuration 01
AXS-LL44
1.13 m / 44 in- Diameter
- 1.13 m / 44 in
- Voltage
- 220 V / 50-60 Hz
- Current
- 4.5 A
- Max Speed
- 450 rpm
- Sound
- ≤ 75 dB(A)
- Blades
- 6
- Net Weight
- 220 kg
Selection Guides
Resolve These Questions Before Choosing AirMoveX AXS-LL Series
Use the guides for the selection method, then confirm the exact configuration against the project documents.
When may the lift fan be adjusted or moved?
Obtain separate AXS-LL operating, adjustment and transport instructions; its height range alone does not establish permission to travel while raised.
Industrial Fan Throw Distance: Ask ‘At What Airspeed?’
A fan throw-distance claim needs a terminal airspeed, measurement layout and operating setting. Ask what the quoted metres actually mean.
A Fan at a Container Door: Do Not Block the Only Exit
At a container loading mouth, preserve the loading envelope before discussing local air circulation. A portable fan is not proof of safe container ventilation.
Project Documents
Request The Documents That Match The Final Configuration
Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.
Technical Datasheet
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Installation And Dimension Drawing
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Certificate And Packing Scope
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Project Inquiry
Confirm AirMoveX AXS-LL Series For Your Site
Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.
