Ceiling Air Movement

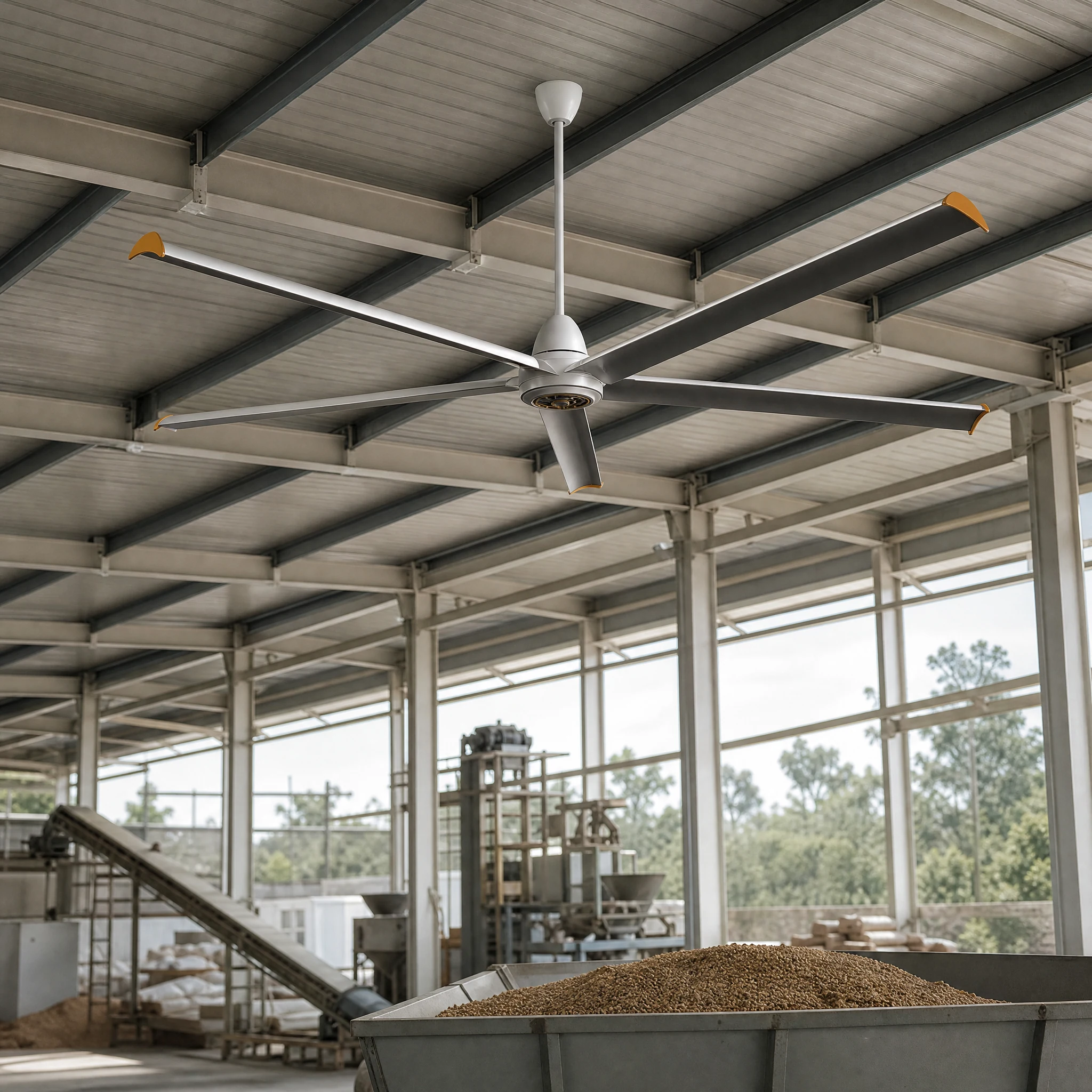

AirMoveX AXV-P5 Series
Straight-Airfoil Five-Blade Fan
A straight-airfoil five-blade range extending down to six feet for tighter commercial and agricultural layouts.
- Six size options
- Five AL6063 blades
- PMSM direct drive
- Compact lower-span models
- Size Range
- 6-16 ft
- Drive
- PMSM direct drive
- Max Air Volume
- 4,500 m³/min
- Installation
- Recommended clear height < 7 m
Product Overview
Configured Around The Building, Not Just The Diameter
A straight-airfoil five-blade range extending down to six feet for tighter commercial and agricultural layouts.
- Drive
- PMSM direct drive
- Blade
- AL6063 / 5 pcs
- Control
- VFD with protection module
- Install
- Recommended clear height < 7 m
Typical Applications
Workshops, farms, fitness clubs, stadium support areas, dining halls and supermarkets
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Available Configurations
AirMoveX AXV-P5 Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXV-P5-16 | 4.88 m / 16 ft | 220 V / 50-60 Hz | 750 W | 3.7 A | 70 rpm | 4,500 m³/min | 770 m² | ≤ 40 dB(A) | 5 | 52 kg | Quote This Model ↗ |
| AXV-P5-14 | 4.28 m / 14 ft | 220 V / 50-60 Hz | 640 W | 3.2 A | 90 rpm | 3,900 m³/min | 640 m² | ≤ 40 dB(A) | 5 | 48 kg | Quote This Model ↗ |
| AXV-P5-12 | 3.68 m / 12 ft | 220 V / 50-60 Hz | 500 W | 2.5 A | 95 rpm | 3,400 m³/min | 470 m² | ≤ 40 dB(A) | 5 | 42 kg | Quote This Model ↗ |
| AXV-P5-10 | 3.08 m / 10 ft | 220 V / 50-60 Hz | 500 W | 2.5 A | 120 rpm | 2,800 m³/min | 400 m² | ≤ 40 dB(A) | 5 | 37 kg | Quote This Model ↗ |
| AXV-P5-08 | 2.48 m / 8 ft | 220 V / 50-60 Hz | 500 W | 2.5 A | 160 rpm | 2,600 m³/min | 300 m² | ≤ 40 dB(A) | 5 | 35 kg | Quote This Model ↗ |
| AXV-P5-06 | 1.88 m / 6 ft | 220 V / 50-60 Hz | 400 W | 2 A | 210 rpm | 2,000 m³/min | 200 m² | ≤ 40 dB(A) | 5 | 28 kg | Quote This Model ↗ |
