Define The Objective
Write one sentence that says what must improve: required outdoor air, heat removal, humidity, odor, vehicle emissions or capture of a named source.
Warehouse Ventilation Design Guide
Warehouse Air Changes Per Hour: How To Set And Verify ACH
There is no universal warehouse ACH. Start with the ventilation objective, effective volume, occupancy, process loads and source-control needs—then calculate and verify the resulting airflow.
Universal Warehouse ACHNone
Metric Formulam³/h = Volume × ACH
Imperial FormulaCFM = ft³ × ACH ÷ 60
Final CheckMeasure Installed Flow
Direct Answer
What Is A Good Air-Change Rate For A Warehouse?
A warehouse should not be assigned one “typical” ACH solely because it is called a warehouse. The correct design input depends on what the ventilation must control.
Outdoor air for occupied-space ventilation, heat removal, moisture control, vehicle emissions and process contaminants are different design problems. They can produce different airflow requirements for the same building volume. A warehouse with low occupancy and sealed goods is not equivalent to a busy cross-dock, battery-charging area or space with an emitting process.
ACH remains useful as a common way to express and compare total airflow. It does not, by itself, prove acceptable indoor air quality, contaminant capture, thermal comfort or fan performance at the installed pressure.
Method and source links reviewed 3 October 2026 · Numerical scenarios below demonstrate arithmetic, not a warehouse recommendation
Choose The Basis First
Six Questions That Come Before ACH
Use the controlling requirement—not a copied internet range—to establish airflow.
| Design Question | Evidence To Collect | Why ACH Alone Is Insufficient |
|---|---|---|
| How is the space occupied? | People, shifts, floor area and occupied zones | Outdoor-air methods can depend on both people and area rather than one room ACH. |
| What heat enters the building? | Roof and solar gain, equipment, lighting, people and seasonal weather | A heat-balance flow may govern even when a generic air-change figure looks adequate. |
| Is moisture a design load? | Wet goods, washdown, infiltration and indoor/outdoor humidity | Moisture control needs a mass balance and climate strategy, not volume exchange alone. |
| Are vehicles used indoors? | Fuel type, operating time, route and applicable exposure limits | Emissions vary with equipment and use; controls may include source reduction and monitoring. |
| Is there a specific emitting source? | Material, rate, location, task and safety data | Local exhaust can be required to capture a contaminant before it mixes through the warehouse. |
| Where can replacement air enter? | Dedicated louvers, net free area, doors, pressure and weather exposure | Exhaust flow falls when the inlet path is undersized, obstructed or poorly located. |
Transparent Arithmetic
What Different ACH Inputs Mean For The Same Warehouse
The table holds volume constant at 3,600 m³. It shows sensitivity to the chosen input; it does not label any row as recommended.
| Illustrative Input | Calculation | Hourly Airflow | Approximate CFM |
|---|---|---|---|
| 2 ACH | 3,600 × 2 | 7,200 m³/h | 4,238 CFM |
| 4 ACH | 3,600 × 4 | 14,400 m³/h | 8,476 CFM |
| 6 ACH | 3,600 × 6 | 21,600 m³/h | 12,713 CFM |
| 8 ACH | 3,600 × 8 | 28,800 m³/h | 16,951 CFM |
| 10 ACH | 3,600 × 10 | 36,000 m³/h | 21,189 CFM |
These Are Scenarios, Not Design Values
First establish why air is being moved and which requirement controls. Then use the industrial exhaust airflow calculator for the actual dimensions and documented ACH input.
A Buildable Workflow
From Warehouse Conditions To A Verifiable Air Path
Keep supply, exhaust, circulation and local capture as distinct functions until the complete system proves how they interact.
Map Effective Volumes And Zones
Record length, width and effective height, then separate mezzanines, offices, enclosed rooms, dock zones and spaces with different schedules.
Establish The Governing Requirement
Check the applicable standard, code, process data, owner criteria and qualified design review. Record the source and edition instead of writing “typical ACH.”
Calculate And Compare Scenarios
Convert the governing airflow to ACH, or convert a documented ACH to m³/h or CFM. Use zones when one gross volume hides the real air path.
Lay Out Intake, Exhaust And Pressure
Size net free area, include guards, louvers, dampers and ducts, and prevent incoming air from traveling directly back out without serving the intended zone.
Verify The Installed Result
Measure airflow and pressure under normal operation, review conditions in occupied zones and document the final fan, control and opening positions.
General Versus Local Ventilation
Do Not Dilute A Source That Should Be Captured
Whole-building ACH and local exhaust solve different parts of an industrial ventilation problem.
Outdoor Air
Addresses occupied-space ventilation according to the applicable design basis. It should not be confused with recirculated air.

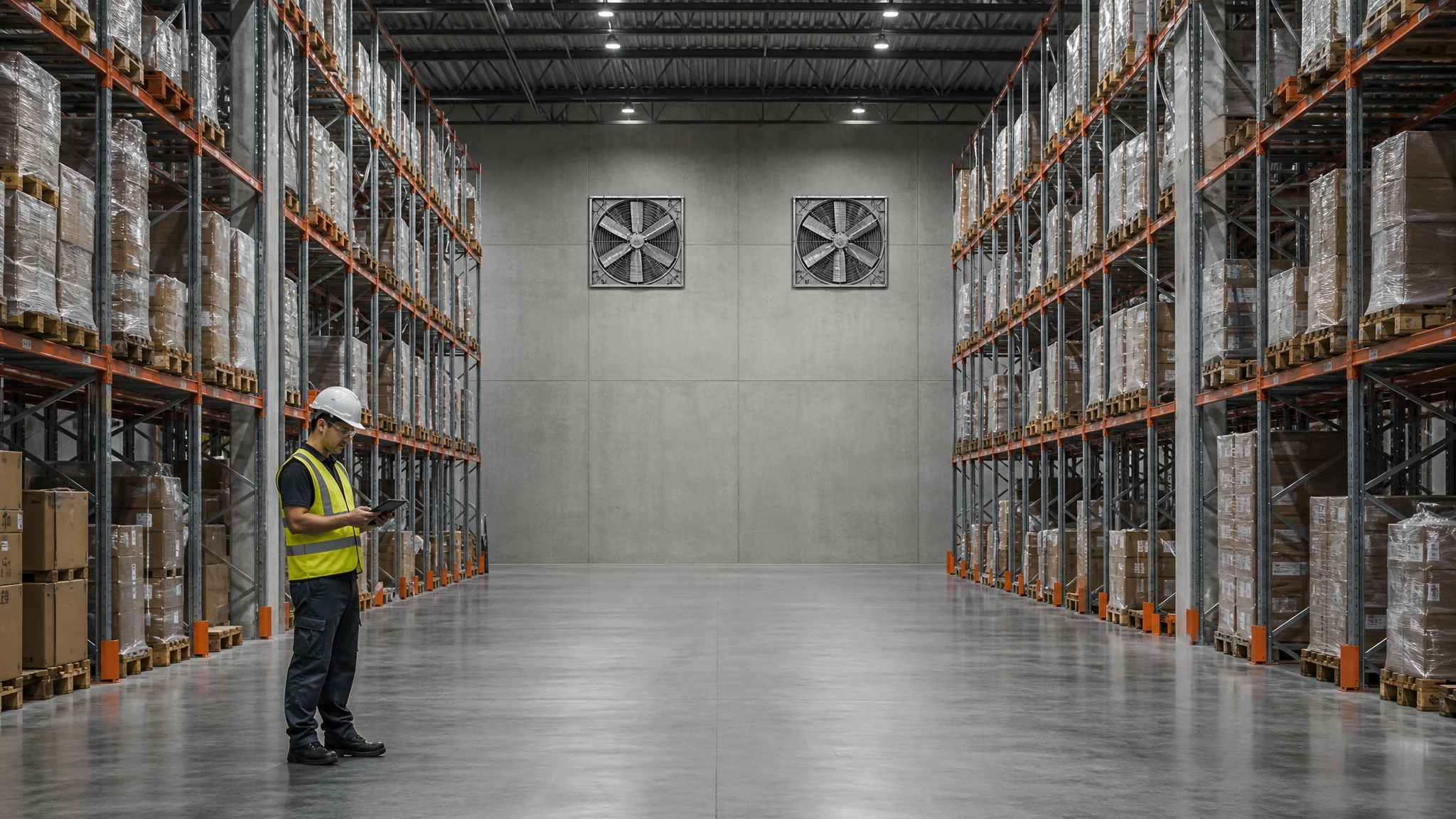

General Exhaust
Removes mixed room air for a defined heat, moisture, odor or dilution objective, with a planned replacement-air path.
Local Exhaust
Captures dust, fume, vapor or another contaminant near its source before it spreads through the warehouse.
Air Circulation
Redistributes air inside the space. It can support comfort or temperature uniformity but does not create outdoor-air exchange.
Hazardous And Combustible Materials Need Application-Specific Design
Room ACH is not a substitute for source capture, transport velocity, air cleaning, safe discharge, explosion protection or other controls required by the material and process.
Verification
How To Check Actual Warehouse ACH
A design value becomes evidence only when the installed system is measured in its real operating state.
| Check | Record | Decision |
|---|---|---|
| Effective served volume | Dimensions, partitions, active zones and door state | Does the denominator match the air the system actually serves? |
| Installed airflow | Measured supply or exhaust volume under normal operation | Actual ACH = measured hourly flow ÷ effective volume. |
| Pressure balance | Indoor/outdoor pressure and door-opening behavior | Is negative or positive pressure intentional and within the design basis? |
| Air path | Intake and discharge locations, obstructions and net free area | Does air sweep the intended zones without short-circuiting? |
| Occupied-zone result | Temperature, humidity or contaminant measurements tied to the objective | Does measured performance solve the original problem? |
| Operating state | Fan stages, controls, filters, dampers, doors and weather | Can the result be reproduced after commissioning? |
Primary References
Standards And Ventilation Guidance
Use the current edition and the rules adopted for the project location; the links below define the method boundary rather than a universal ACH.
ASHRAE Standards 62.1 and 62.2: the official standards page for ventilation and acceptable indoor air quality. Commercial-space outdoor-air methods can use occupancy and floor area rather than one blanket ACH.
Open The ASHRAE Standards PageOSHA Technical Manual, Section III, Chapter 3: distinguishes general and local exhaust ventilation and explains the roles of hoods, ducts, air cleaners and fans.
Open The OSHA Ventilation ChapterHSE ventilation guidance: introduces workplace ventilation and links the design decision to a risk assessment of the actual space and activity.
Open The HSE Ventilation GuidanceWarehouse Ventilation Questions
Warehouse ACH FAQ
Short answers for planning; the tables and workflow above show how to document the decision.
How many air changes per hour does a warehouse need?
There is no universal value. Establish the airflow from occupancy, outdoor-air requirements, heat and moisture loads, vehicles, stored materials, process emissions, local exhaust and the applicable standard or code.
How is warehouse ACH calculated?
ACH = hourly airflow ÷ effective building volume. For a proposed input, m³/h = m³ × ACH. In imperial units, CFM = ft³ × ACH ÷ 60.
Is ACH the same as outdoor-air ventilation?
No. ACH describes a flow relative to volume. Outdoor-air ventilation may be based on people and floor area, and recirculated air does not provide the same dilution as outdoor air.
Can higher ACH replace local exhaust?
No. Concentrated dust, fume, vapor and similar sources may need capture at or near the source. More whole-room air can still spread a contaminant before it leaves.

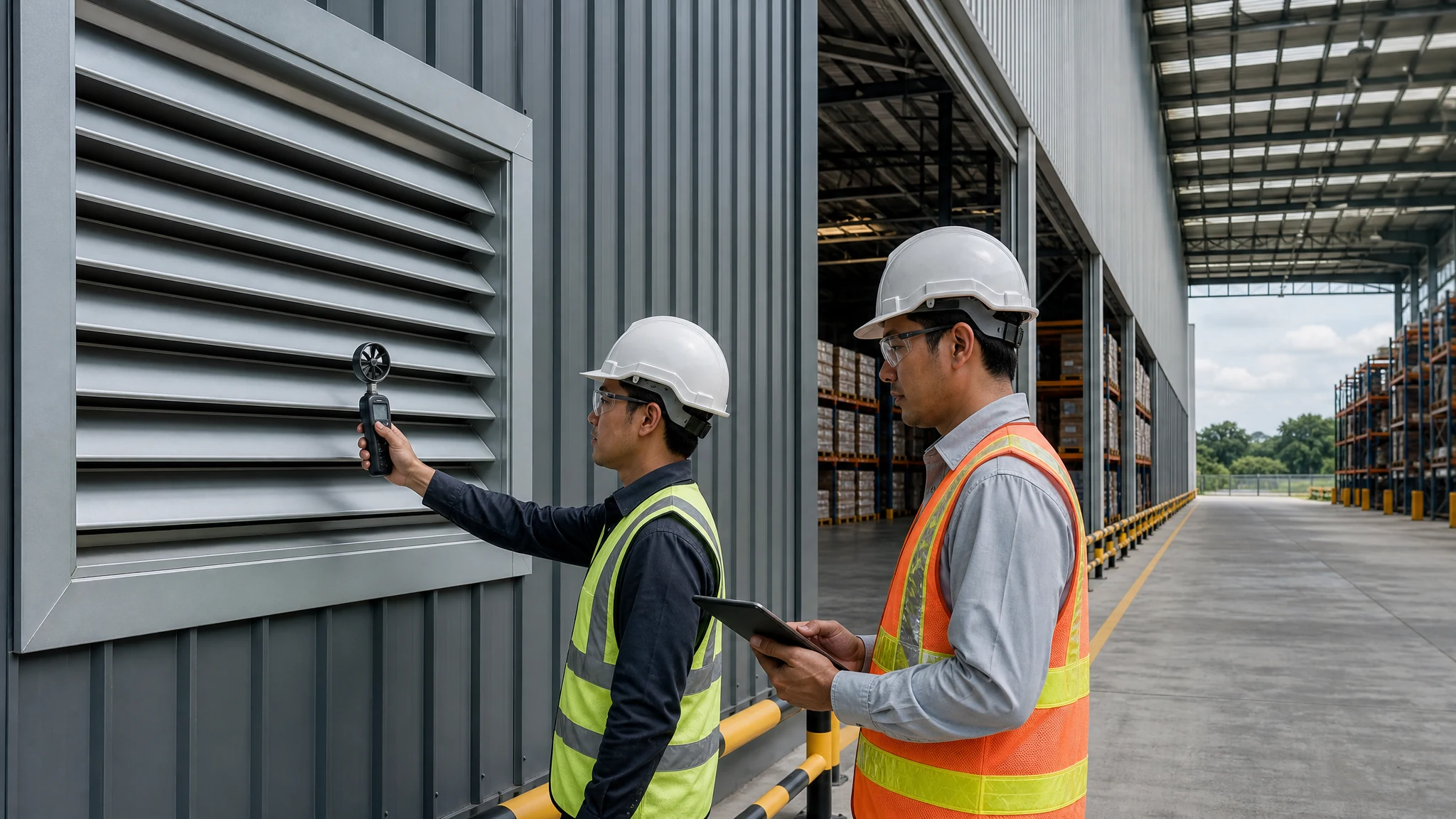

How do I verify actual ACH?
Measure installed hourly airflow under the documented operating state and divide it by the effective served volume. Also verify pressure, inlet paths and the result in occupied zones.
Can dock doors be used as replacement air?
Only when the strategy accounts for their net free area, operating schedule, weather and control state. An uncontrolled open door is not a reliable year-round design.
Turn The Design Basis Into A Fan Brief
Send the warehouse dimensions and zones, ventilation objective, source of the airflow requirement, pressure path, intake and discharge plan, environment, electrical supply and required documents.
