General circulation
Ask whether the occupied zone needs more even air movement or temperature distribution.
One Factory Can Need Three Fan Roles
Factory Ventilation Fan Selection By Airflow Job

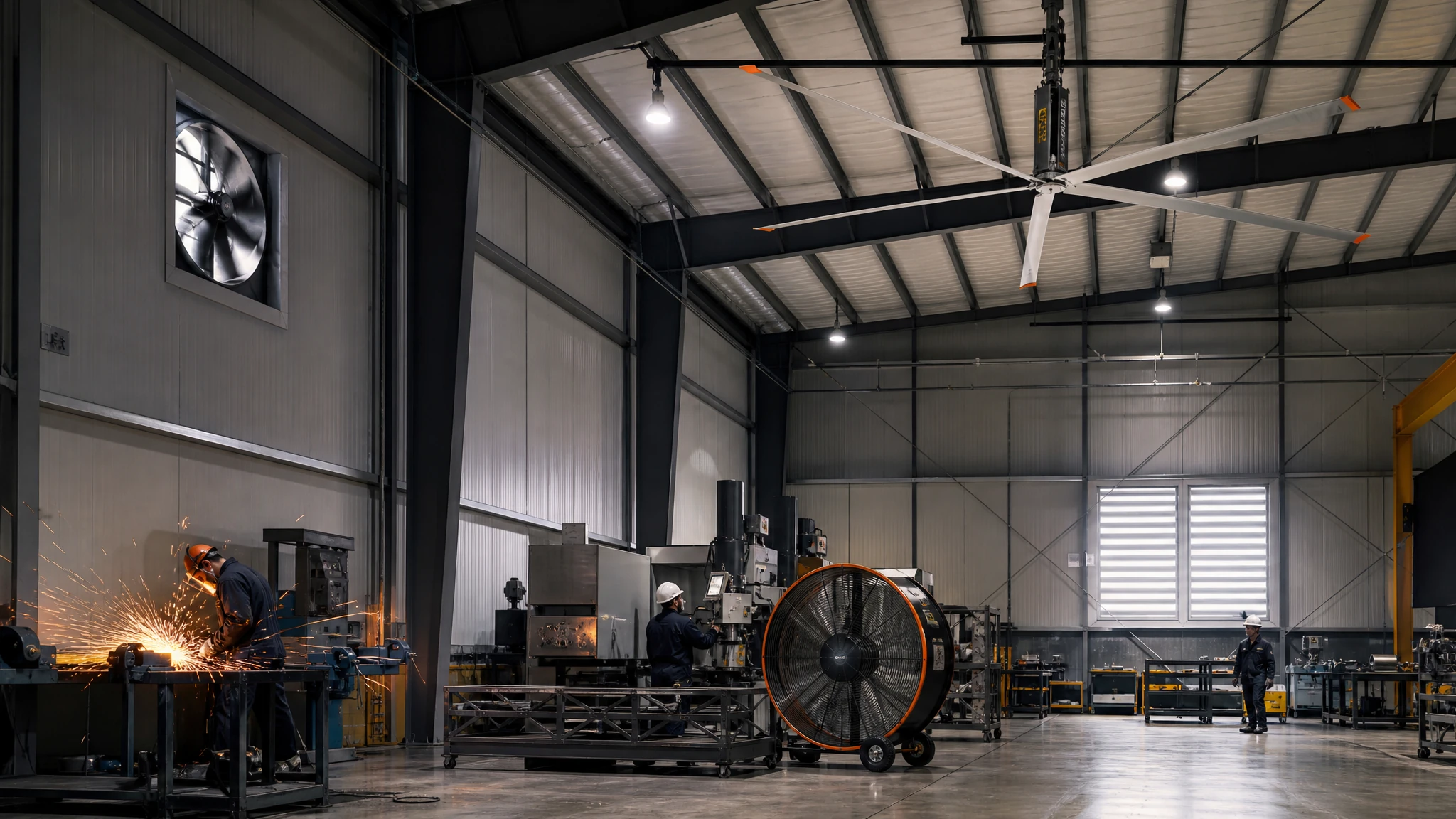

A ceiling circulation fan, a mobile drum fan and a wall exhaust fan are not interchangeable. Start with the condition each one must change.
CirculateWhole Zone
SpotLocal Heat
ExhaustRemove Air
ReplaceBalance Inlet
Direct Answer
How Do You Choose A Ventilation Fan For A Factory?
Classify the job first: broad circulation for temperature uniformity, focused airflow for a workstation, or exhaust for removing air. Only then compare fan families.
HVLS can move air through a zone but does not capture a welding plume. A mobile fan can help one hot bench but may disturb dust. An exhaust fan needs a credible replacement-air path and discharge arrangement.
Many factories need more than one role. Keep the roles separate in the plan so a circulation fan is not presented as a substitute for process capture or code-required exhaust.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Three Fan Roles, Three Different Questions
A short role map prevents the wrong equipment from carrying the whole brief.
Focused spot airflow
Ask which workstation or person needs local relief and what dust or process constraints exist.
Exhaust
Ask what air must leave, where replacement air enters and where the discharge can go.
Controls and proof
Define speed, interlock, schedule and measurement for each role rather than one shared promise.
Field Inputs
Factory Fan Role Matrix
Use the controlled condition as the first column in a project brief.
| Controlled condition | Likely role | Do not assume |
|---|---|---|
| Uneven occupied-zone temperature | HVLS circulation | It captures a local contaminant |
| One hot workstation | Mobile or local airflow | It can replace process exhaust |
| Heat, vapor or general stale air | Exhaust plus replacement air | Exhaust alone fixes pressure |
| Dust or welding plume | Source capture / engineered exhaust | A distant circulation fan is capture |
| Changing production | Separate control zones | One fixed speed fits every shift |
Boundary: Role labels are a planning aid. Final fan selection, hazardous classification, capture design and code review remain project-specific.
Practical Sequence
Build A Factory Fan Plan In Six Steps
- List conditions.Write heat, dust, vapor, comfort, pressure and process constraints by zone.
- Assign a role.Mark circulation, spot airflow, capture and exhaust separately on the plan.
- Trace air paths.Show source, fan, intake, discharge and occupied areas for every role.
- Check conflicts.Review dust movement, doors, cranes, lights, vehicles, noise and service space.
- Choose controls.Set schedules, interlocks, speed limits and stop conditions for each role.
- Verify the zone.Measure the condition that motivated the fan rather than only checking that it runs.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Plan Factory Airflow
Use a zone-by-zone source-to-discharge map when the roles overlap.
Compare HVLS Fans
Review the ceiling-family options only for the circulation part of the brief.
Review Make-Up Air
Balance exhaust with a deliberate replacement-air path.
Questions Buyers Actually Ask
Factory Fan Selection Questions
Can an HVLS fan replace an exhaust fan?
No. HVLS circulation redistributes room air; it does not establish a controlled capture and discharge path for process contaminants.
Should every factory have a mobile drum fan?
No. It depends on the local heat, people, process, dust and whether moving air creates another problem.
Why separate fan roles on the plan?
Separate roles make controls, measurement and safety review clear and prevent one fan from being credited with a result it cannot deliver.
What should I send for a factory review?
Send a zone plan, clear heights, process sources, doors, existing fans, power, shift schedule and the desired condition to verify.
How do I choose between circulation and exhaust?
Choose circulation for room-air distribution and comfort work; choose exhaust or capture when a defined source must be removed through a controlled path.
Can one fan serve several factory jobs?
Only if the air path, duty, control sequence, exposure and acceptance measurement support every job. Otherwise separate roles keep the result verifiable.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
AMCA Publications and Education
AMCA separates fan performance, system effects, sound and application conditions; use the applicable publication and test basis for a project decision.
Open sourceOSHA
Safety and Health Regulations
Guarding, energy control, safe access and competent-person requirements remain site-specific before inspection or installation work.
Open sourceU.S. Department of Energy
Industrial Technologies
DOE industrial guidance supports measured operating data and whole-system comparisons rather than unsupported universal savings claims.
