How Much Pressure?
Estimate or measure the complete system resistance, including dirty-filter or seasonal conditions where relevant.
Selection Comparison

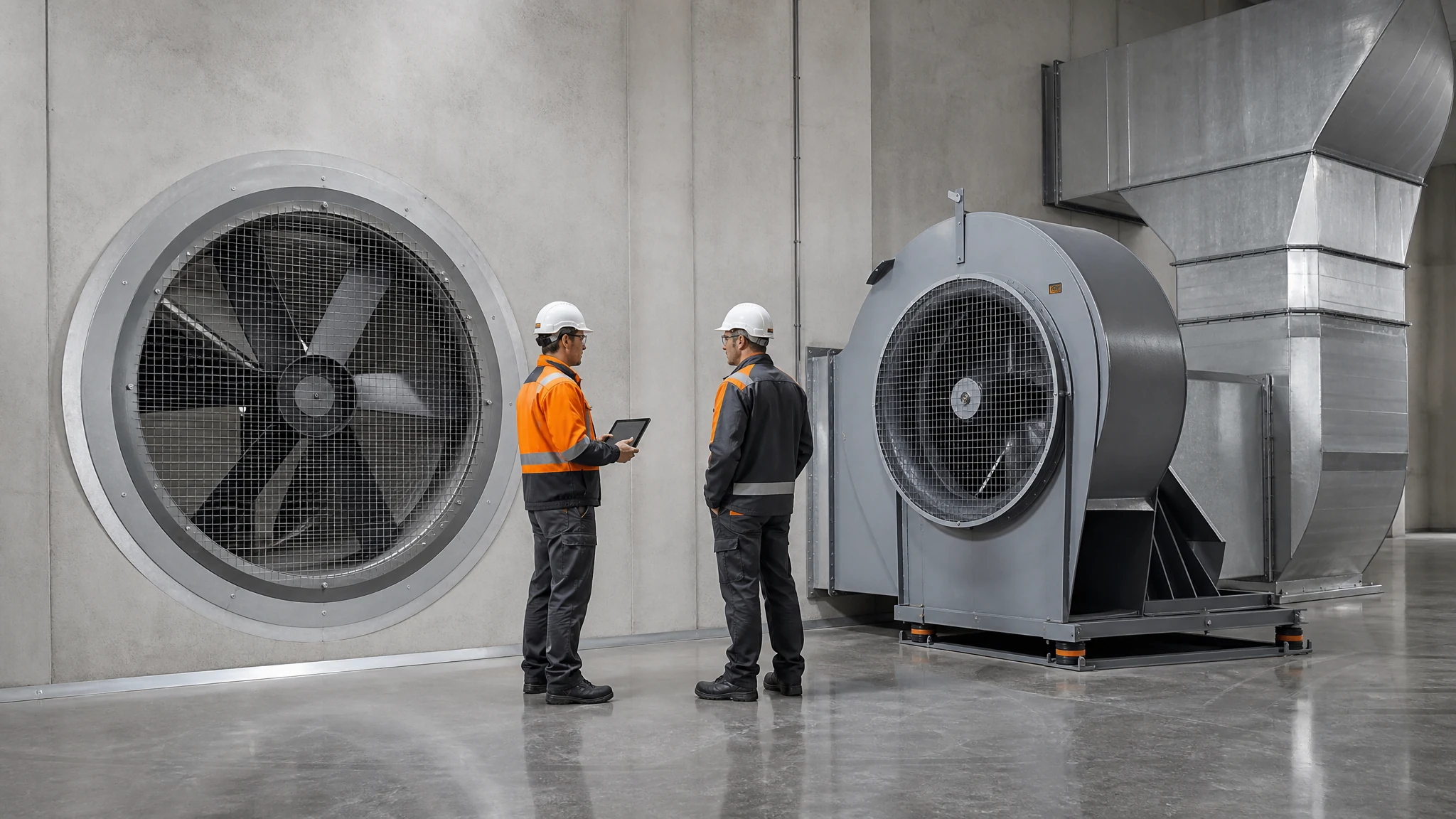

Axial Vs Centrifugal Exhaust Fans: The Air Path Decides
The right question is not which fan is stronger. It is whether the required flow and pressure fit the air path, duty, material and service envelope.
AxialHigh Flow / Lower Path
CentrifugalPressure + Direction
DecideDuty Point
VerifyInstalled Airflow
Direct Answer
Which Is Better: An Axial Or Centrifugal Exhaust Fan?
Choose by the required airflow at the installed static pressure, then check contaminant handling, discharge direction, footprint, noise, controls and maintenance.
Axial fans often suit high-volume, relatively direct paths with low-to-moderate pressure. Centrifugal fans can suit higher resistance, directional ducting and some process arrangements, but the actual wheel, housing, material and curve still matter.
A catalog free-air airflow is not a selection point. List filters, coils, dampers, elbows, stacks, hoods, weather fittings and make-up-air effects, then compare the fan curves at the same duty and test basis.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Four Selection Questions
The comparison becomes useful when each answer is tied to a measurable project input.
What Is The Air?
Temperature, moisture, dust, corrosive vapor and combustible classification can change material and construction requirements.
Where Does It Discharge?
Wall, roof, vertical, horizontal and remote discharge arrangements create different transitions, weather and service needs.
How Will It Be Controlled?
Speed control, damper control, interlocks and minimum-flow limits must fit the motor, fan curve and process.
Field Inputs
Axial And Centrifugal At A Glance
These are screening tendencies, not a substitute for a fan curve and system calculation.
| Question | Axial tendency | Centrifugal tendency |
|---|---|---|
| Air path | Straight-through wall or roof path | Ducted inlet/outlet with direction change |
| Pressure sensitivity | Can be sensitive to added resistance | Often selected when pressure is a larger part of the duty |
| Footprint | Compact through-wall arrangement is common | Base, housing and duct transitions need space |
| Contaminant handling | Depends on blade and guard construction | Wheel and housing choice depend on particle and moisture |
| Selection proof | Curve at actual pressure and guard/system condition | Curve, wheel type and pressure at actual system condition |
Boundary: Do not infer efficiency, sound, life or suitability from fan type alone; exact model, speed, curve, material and installed system govern.
Practical Sequence
Choose The Fan Type In Six Steps
- Define the source.Describe the room, process, contaminant, temperature, occupancy and required containment.
- Set the airflow duty.Use a code, process or measured requirement and state whether it is supply, general exhaust or local capture.
- Build the resistance list.Include hood, filter, duct, fittings, damper, louver, stack and discharge effects.
- Screen both families.Compare axial and centrifugal candidates at the same airflow, pressure, speed and material basis.
- Check practical constraints.Review footprint, weather, access, controls, noise, electrical supply and replacement parts.
- Verify after installation.Measure airflow and pressure, confirm rotation and record the final operating point.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Size The Exhaust Duty
Start with required airflow, pressure and the actual air path before picking a series.
Measure The Installed Airflow
Use a repeatable field measurement when a symptom could be caused by the system rather than the fan.
Check System Effect
Short elbows, transitions, dampers and discharge restrictions can change the operating point.
Review Air-Make-Up
Replacement air and pressure balance belong in the same design conversation as exhaust.
Questions Buyers Actually Ask
Axial Vs Centrifugal Questions
Are axial fans better for high airflow?
They are often considered for high-volume, direct paths, but the installed pressure and fan curve decide whether the duty is met.
When is a centrifugal exhaust fan useful?
It can suit a higher-resistance or directional duct system, subject to wheel type, material, curve and contaminant requirements.
Can an axial fan handle a filter?
It may, if the exact fan curve and control range cover the clean and dirty filter pressure. Do not use free-air flow as proof.
Which type uses less energy?
Energy depends on useful airflow, pressure, efficiency, speed, control and operating hours. Compare equal installed duty, not family labels.
Do I need a fan curve?
Yes. A curve or verified performance table at the required pressure is the minimum evidence for a defensible selection.
What pressure basis should be used when comparing axial and centrifugal exhaust fans?
Use the same required system pressure, air density and operating condition for both candidates. A free-air rating or a pressure value from a different test point cannot support a like-for-like comparison.
