The Geometry Near The Fan Changes Its Work

Industrial Fan Inlet And Outlet Design

A fan can be correctly selected on paper and still underperform when nearby geometry distorts the inlet flow or constrains the outlet.

Give The Fan A Fair Approach

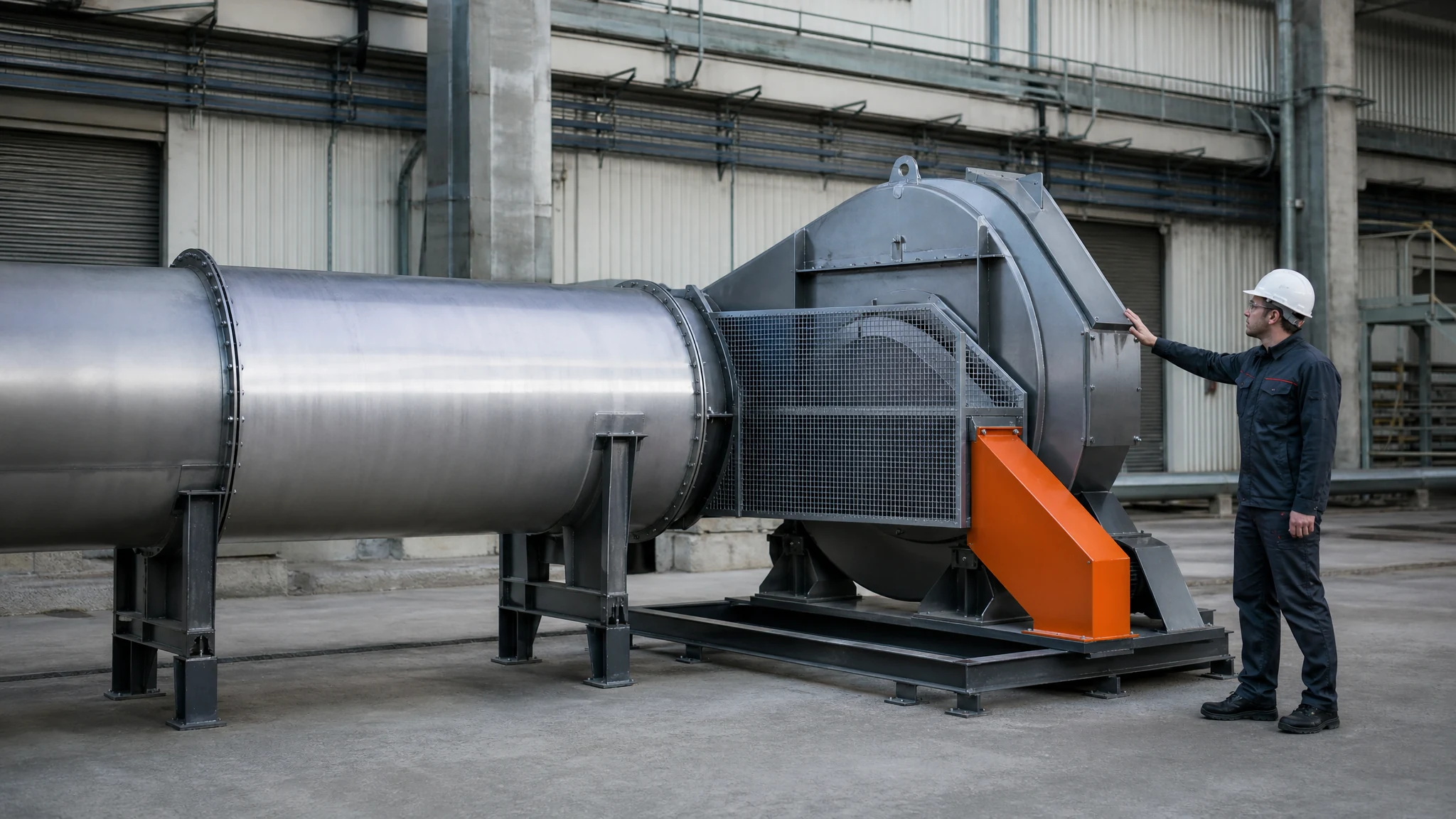

Give The Fan A Fair ApproachStraight, supported geometry is a performance control, not decoration.
DefineReal Duty
CheckComplete Path
SelectExact Model
VerifyInstalled Result

Direct Answer

What Is The Practical Method For Industrial Fan Inlet And Outlet Design?

A fan can be correctly selected on paper and still underperform when nearby geometry distorts the inlet flow or constrains the outlet.

Review the inlet approach, elbows, screens, dampers and transitions as a single geometry. At the outlet, confirm expansion, discharge velocity, weather protection, support and the effect of any nearby wall or roof obstruction.

Do not treat a flexible connector as permission to let duct weight hang on the fan. Keep the service path clear and provide measurement locations where commissioning data can be captured. Use the fan manufacturer's installation guidance and the applicable system-effect method. The exact clearance depends on fan type, speed, fittings and the surrounding structure.

Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection

Decision Framework

Four Checks For Industrial Fan Inlet And Outlet Design

Keep the recommendation tied to a field decision and a measurable boundary.

01

Define The Boundary

Review the inlet approach, elbows, screens, dampers and transitions as a single geometry. At the outlet, confirm expansion, discharge velocity, weather protection, support and the effect of any nearby wall or roof obstruction.

02

Check The Whole Assembly

Do not treat a flexible connector as permission to let duct weight hang on the fan. Keep the service path clear and provide measurement locations where commissioning data can be captured.

03

Commission The Result

Use the fan manufacturer's installation guidance and the applicable system-effect method. The exact clearance depends on fan type, speed, fittings and the surrounding structure.

04

Keep Evidence

Record the assumptions, test condition, responsible reviewer and stop criteria so a later change does not erase the original decision.

Field Inputs

Inputs To Put In The Review Record

Use one row for every assumption that can change the answer.

RecordWhat to captureWhy it matters
Design inputDocument the measured or specified conditionA generic label does not define duty
Physical pathCheck inlet, fan, outlet, supports and accessLocal geometry can dominate the result
Control conditionRecord speed, schedule, interlocks and alarmsThe fan may not run at one fixed point
VerificationMeasure airflow, pressure or the relevant acceptance signalRunning is not proof of performance
Change triggerDefine what requires a new reviewChemistry, layout and duty can change

Boundary: The values and limits are project-specific. Confirm the exact equipment instructions, standards and responsible engineer before release.

Practical Sequence

Work Through Industrial Fan Inlet And Outlet Design In Six Steps

  1. State the job.Write the room or process objective, required airflow, pressure and the condition that must be controlled.
  2. Map the path.Mark source, inlet, fan, filters, dampers, duct, discharge, replacement air and service access.
  3. Check constraints.Review structure, materials, electrical supply, controls, safety classification, noise and maintenance.
  4. Select with evidence.Compare exact models at the same duty and disclose catalog, test and project assumptions.
  5. Install to instructions.Use the approved mount, guard, connection, clearance and control method for the equipment.
  6. Verify and record.Measure the relevant result, document the operating condition and set the next review trigger.

Connected Decisions

Use The Next Page Only When It Answers The Next Question

These links continue the same project workflow rather than sending the reader to loosely related content.

01

Size The Exhaust Duty

Start with required airflow, pressure and the actual air path before picking a series.

03

Check System Effect

Short elbows, transitions, dampers and discharge restrictions can change the operating point.

04

Review Air-Make-Up

Replacement air and pressure balance belong in the same design conversation as exhaust.

Questions Buyers Actually Ask

Industrial Fan Inlet And Outlet Design Questions

What is the most important input for industrial fan inlet outlet design?

Review the inlet approach, elbows, screens, dampers and transitions as a single geometry. At the outlet, confirm expansion, discharge velocity, weather protection, support and the effect of any nearby wall or roof obstruction. The input should be written down before a model or setting is treated as final.

Can a catalog value prove the installed result?

No. Catalog values are screening evidence. Verify the actual operating condition, measurement method and system configuration before accepting performance.

What should I send for a project review?

Send the duty, air or process condition, layout, pressure assumptions, controls, power, environment, photos and any baseline measurements.

Is there one universal setting or size?

No. The correct value depends on the exact fan, building, air path, controls, environment and acceptance requirement.

When should the design be reviewed again?

Review it after a change in process, contaminant, temperature, layout, filter condition, duty, control sequence or observed performance.

Why do inlet and outlet clearances matter on an industrial fan?

Nearby elbows, walls, screens and transitions can make the flow uneven, add system effect and increase noise or vibration. Keep the approach and discharge geometry consistent with the fan instructions and verify the installed path.
