Rotating Imbalance
Uneven dust, corrosion or a damaged blade can create a speed-related pattern that changes after cleaning or impeller repair.
Condition Diagnosis
Industrial Fan Vibration Troubleshooting Without Guesswork
Vibration is a symptom, not a diagnosis. Compare the change with speed, operating point, mounting, rotating condition and duct forces before ordering a replacement.
FirstConfirm Safe State
MeasureRepeatable Points
CompareSpeed + Duty
EscalateTrend Change
Direct Answer
What Is The First Step In Industrial Fan Vibration Troubleshooting?
Start with safe isolation and a repeatable baseline, then compare vibration at the same bearing, structure and operating condition.
Common causes include uneven buildup, a damaged impeller, loose fasteners, shaft or coupling misalignment, bearing deterioration, soft foot, structural resonance and a changed duct pressure. A single high reading cannot identify which one is present.
Record speed, airflow or pressure, temperature, recent maintenance and whether the symptom follows the fan, motor or system. The practical decision is whether to clean, tighten, align, repair, rebalance, change the support or investigate the air path.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
Decision Framework
Separate The Five Main Vibration Paths
Use the pattern and operating condition to narrow the inspection, not a generic severity number.
Mechanical Looseness
Loose base bolts, guards, bearings, pulleys or supports often show harmonics and may be visible during a safe inspection.
Alignment Or Soft Foot
Couplings, belts, shaft alignment and uneven support can load bearings even when the impeller looks clean.
System Or Resonance
Duct forces, a flexible connection, a nearby elbow or a structural natural frequency can amplify motion without a failed fan part.
Field Inputs
Record The Condition With Every Reading
One changed variable at a time makes the trend useful.
| Record | Example | Why It Matters |
|---|---|---|
| Measurement point | Drive-end bearing, non-drive-end bearing, base | A different point can produce a different trend. |
| Machine state | Fan speed, damper, airflow and pressure | Vibration can move with the duty point. |
| Recent change | Cleaning, belt work, duct alteration, storm event | The timing often narrows the cause. |
| Physical condition | Buildup, rub mark, loose fastener, corrosion | Inspection evidence must accompany the number. |
| Action threshold | Site/OEM rule and competent-person review | Do not invent a universal pass/fail limit. |
Boundary: Vibration limits depend on machine type, sensor direction, mounting, speed, frequency band and the governing OEM or site standard.
Practical Sequence
Troubleshoot A Vibration Complaint In Six Steps
- Make the area safe.Apply the site's energy-control and access procedure before opening guards or touching rotating equipment.
- Describe the symptom.Note when vibration occurs, what changed, and whether it is tied to speed, temperature or a damper position.

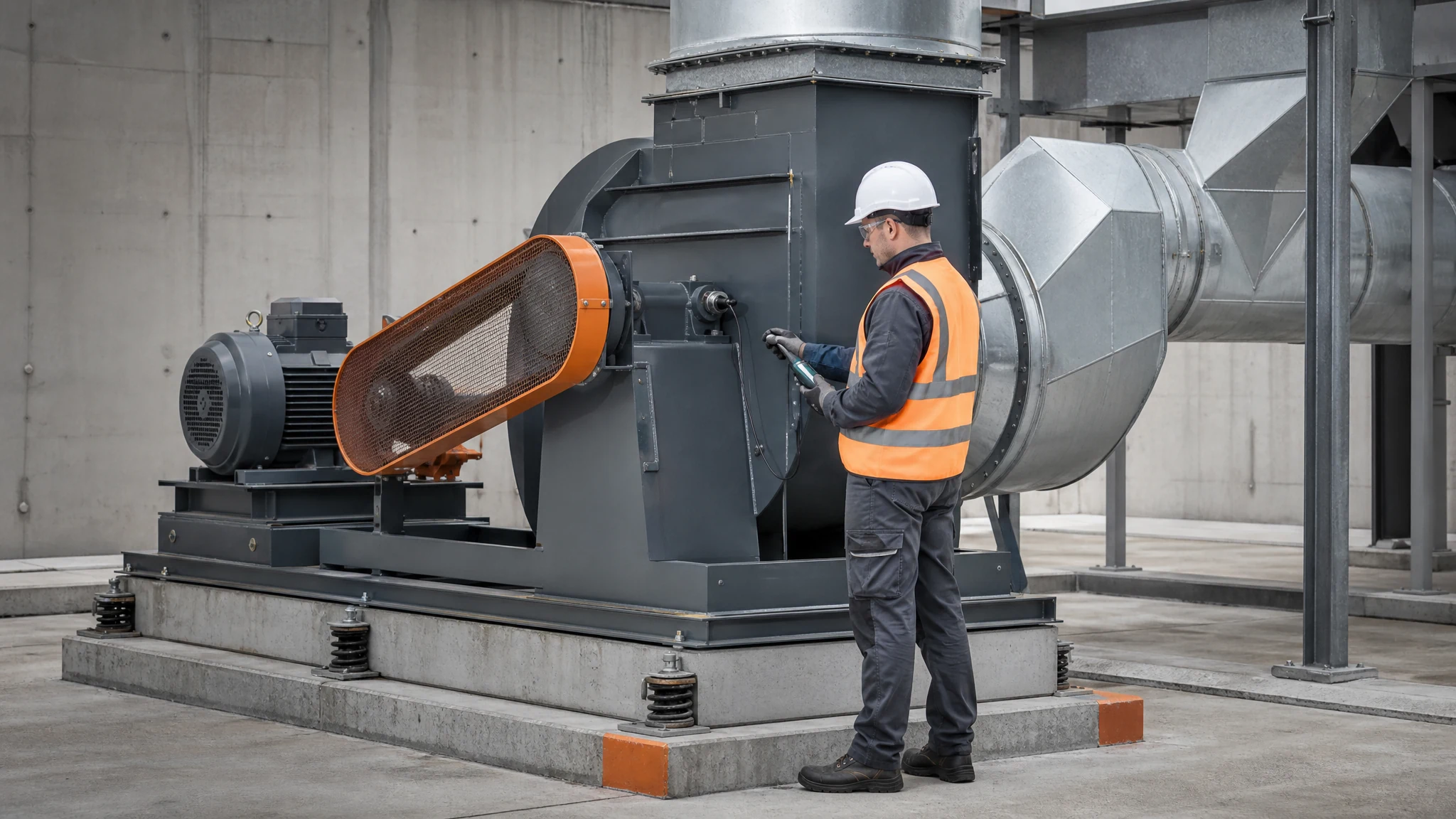

- Capture the baseline.Measure the same points and directions at the normal operating condition using a calibrated method.
- Inspect non-running parts.Check buildup, rubs, fasteners, supports, belts, coupling, bearings, flexible connections and duct strain.
- Change one variable.Clean, align, tighten or correct the suspected cause under a controlled work order rather than changing several parts together.
- Recommission and trend.Repeat the measurement with airflow and pressure evidence, then set an escalation or follow-up interval.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Size The Exhaust Duty
Start with required airflow, pressure and the actual air path before picking a series.
Measure The Installed Airflow
Use a repeatable field measurement when a symptom could be caused by the system rather than the fan.
Check System Effect
Short elbows, transitions, dampers and discharge restrictions can change the operating point.
Review Air-Make-Up
Replacement air and pressure balance belong in the same design conversation as exhaust.
Questions Buyers Actually Ask
Industrial Fan Vibration Questions
Why does an industrial exhaust fan vibrate after cleaning?
Cleaning can reveal a pre-existing imbalance, disturb a guard or flexible connection, change a belt setting, or leave uneven residue. Recheck the assembly, alignment, fasteners and operating condition before blaming the cleaning itself.
Can a duct elbow cause fan vibration?
Yes. Uneven inlet flow, duct strain, turbulence and resonance can transmit forces or amplify motion. Inspect the system geometry and supports as well as the fan.
Should I replace the fan when vibration rises?
Not from vibration alone. First identify whether the cause is contamination, looseness, alignment, bearing condition, support or system effect; replacement is a decision after the duty and cause are understood.
How often should vibration be measured?
Use the OEM and site program, then shorten the interval when the duty is continuous, dirty, corrosive, safety-critical or trending away from baseline.
Is motor current enough to diagnose vibration?
No. Current can add context about load, but it cannot replace vibration, visual, speed, pressure and airflow evidence.
What measurements help separate an industrial fan vibration source?
Record vibration at the fan and motor bearings, running speed, current, airflow or pressure, temperature and the machine condition. Comparing the same points before and after one change makes the fault path easier to isolate.
