Draw the work envelope
Include raised vehicles, lift arms, doors and service routes.
HVLS Application Review
HVLS Fans For Garages
A garage changes height and clearance every time a vehicle is lifted. The fan layout must be checked against the working envelope, not only the parked vehicle.
CheckClear Height
ProtectObstructions
ControlOccupied Zone
VerifyAir Movement
Direct Answer
Where Can An HVLS Fan Go In A Vehicle Garage?

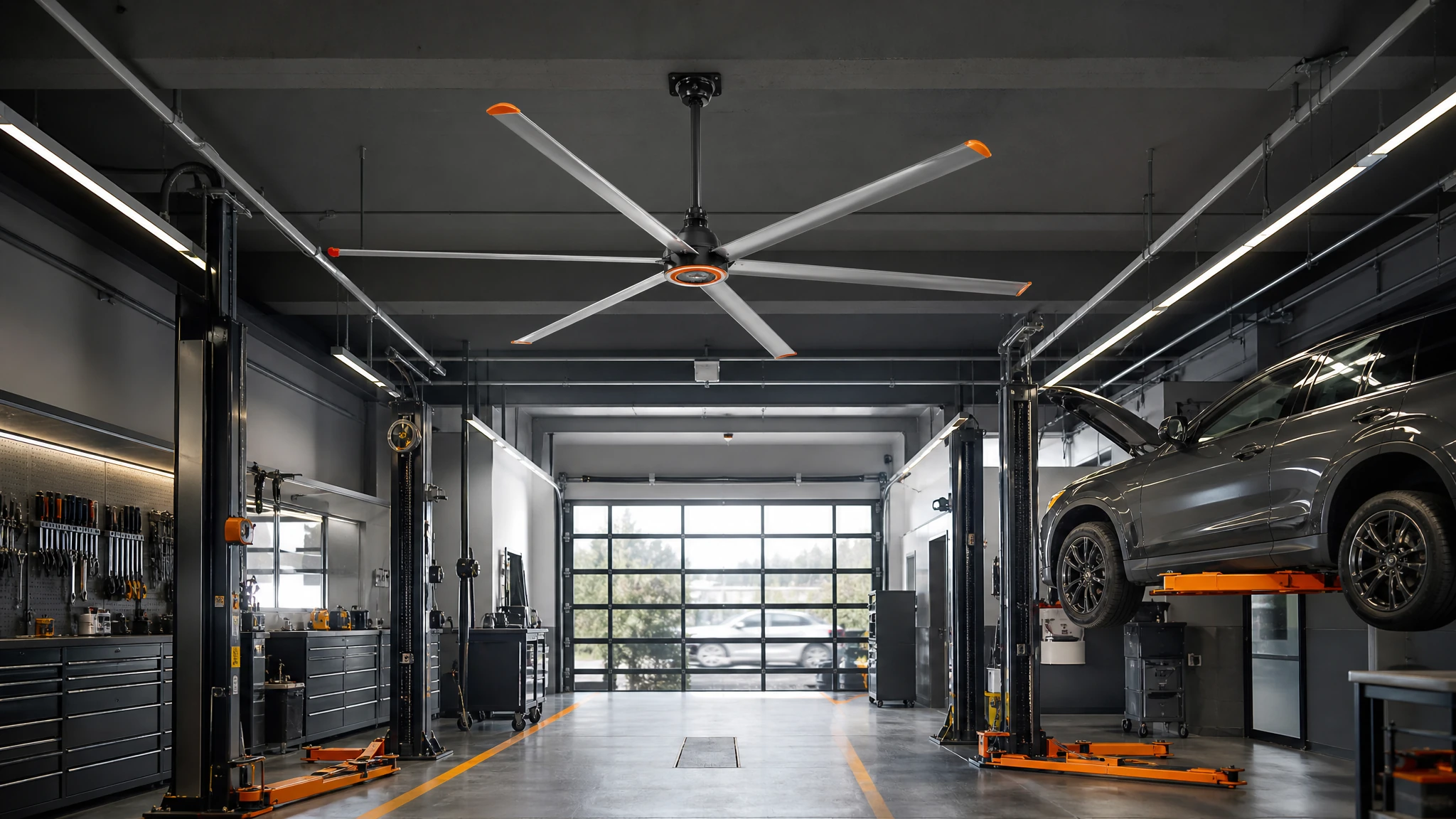

Place it only where the complete swept circle stays clear of lifts, vehicle envelopes, doors, lights, exhaust equipment and maintenance access through every normal work position.
The garage is not static. A lift arm, raised vehicle, open door or overhead crane can become the controlling boundary even when the fan looks clear in a photograph.
HVLS circulation may help general air movement, but vehicle exhaust or welding fumes need a separate engineered capture or exhaust path.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Four Checks Before Installing An HVLS Fan
A ceiling fan belongs in a real reflected-ceiling and occupied-zone review.
Separate exhaust duties
Keep vehicle exhaust and welding capture out of the circulation-fan promise.
Check the ceiling
Review structure, lights, doors, cranes, ducts and fire equipment.
Plan occupancy
Observe technicians at the work height and during the busiest movement.
Field Inputs
HVLS Application Inputs
These are the inputs that make a ceiling-fan conversation comparable.
| Input | Capture | Why it matters |
|---|---|---|
| Vehicle state | Parked, raised and moved vehicles | The fan must clear the complete working envelope |
| Overhead services | Lights, doors, cranes, ducts and sprinklers | A clear empty bay can become obstructed |
| Structure | Attachment, vibration and service access | The building, not the fan photo, controls the mount |
| Air duty | Circulation versus exhaust or capture | Vehicle fumes need the correct system role |
| Control | Speed, schedule and work-state override | Garage activity is variable |
Boundary: The image and method do not establish a safe clearance, structural capacity, speed, noise level or comfort result for a particular site. Confirm exact model instructions and responsible design review.
Practical Sequence
Review The HVLS Application In Six Steps
- Map every vehicle state.Show raised and open positions, not only parking.
- Mark circulation zones.Separate general air movement from exhaust and capture.
- Check the mount.Coordinate structure, lights, ducts and service.
- Review controls.Set a speed and stop logic for work conditions.
- Walk the bay.Check technicians, vehicle movement and doors.
- Record the accepted state.Keep the measurement and observations with the drawing.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Plan Factory Airflow Roles
Keep circulation, spot airflow and exhaust separate.
Review HVLS Mounting
Coordinate the fan attachment with the garage structure.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Questions Buyers Actually Ask
HVLS Application Questions
Can an HVLS fan remove car exhaust?
No. General circulation is not a substitute for a designed vehicle-exhaust capture or exhaust system.
Can it be above a lift?
Only if all lift and vehicle positions remain clear for the exact fan and mount.
What height is needed?
Use the exact model clearance and the garage working envelope; no universal height is safe for every bay.
What do you need for a review?
Send bay dimensions, lift type, raised height, lights, doors, ducts, power and photos.
Does an HVLS fan solve garage ventilation?
No. It circulates room air and cannot replace a designed vehicle-exhaust, carbon-monoxide or process-exhaust system.
What changes when a vehicle is raised?
The complete lift travel, vehicle envelope, lights, doors, ducts, sprinklers and maintenance access must remain clear at every operating position.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
AMCA Publications and Education
AMCA separates fan performance, system effects, sound and application conditions; use the applicable publication and test basis for a project decision.
Open sourceOSHA
Safety and Health Regulations
Guarding, energy control, safe access and competent-person requirements remain site-specific before inspection or installation work.
Open sourceU.S. Department of Energy
Industrial Technologies
DOE industrial guidance supports measured operating data and whole-system comparisons rather than unsupported universal savings claims.
Open sourceProject Review
Need An HVLS Ceiling Review?
Send the reflected ceiling, clear height, obstructions, occupied zones and the condition you want to improve. We will keep the application assumptions visible.
