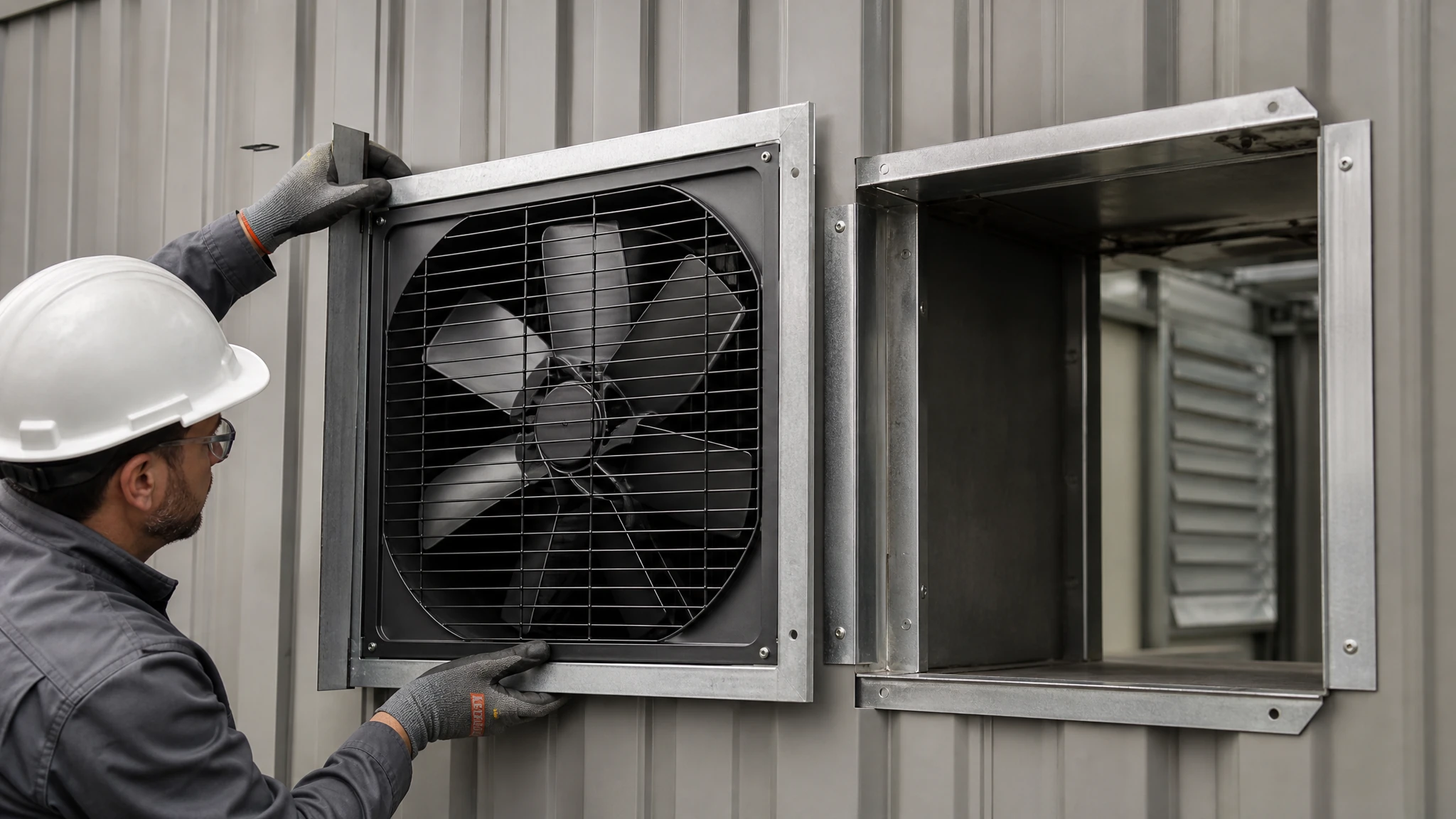

Measure the rough opening
Take several width and height readings and record the out-of-square condition.
The Opening Is A Structure, Not A Number
Industrial Exhaust Fan Opening Size
A nominal fan diameter cannot tell you whether the wall, sleeve, guard, flashing and service route will fit. Measure the complete boundary.
DefineActual Job
CheckPhysical Path
ControlSafe State
VerifyMeasured Result
Direct Answer
What Should Be Measured For An Industrial Exhaust Fan Opening?
Record the rough opening, wall thickness, sleeve, lintel, structure, guard projection, flashing, discharge and service access before choosing the exact fan frame.
A drawing that lists only width and height can miss the wall build-up, fasteners, weather hood, backdraft shutter and the space needed to remove a guard or motor.
Use the actual opening and duty together. If the opening is already built, it is a constraint—not proof that one catalog diameter is correct.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Four Opening Measurements That Prevent Rework
Use the page as a working brief, not as a substitute for the site review.
Record the wall build-up
Note thickness, sleeve, insulation, lintel and flashing layers.
Reserve the projection
Include guard, shutter, hood, motor, cable and service clearance.
Tie it to the duty
Check that the installed frame and air path can meet the required result.
Field Inputs
Opening Measurement Sheet
Record the field inputs that can change the recommendation.
| Input | Capture | Why it matters |
|---|---|---|
| Opening | Width, height, diagonals and tolerance | A nominal size may not fit an out-of-square opening |
| Wall | Thickness, sleeve, framing and flashing | Fasteners and weather detail depend on the build-up |
| Fan boundary | Frame, guard, motor, shutter and hood | The complete assembly projects beyond the opening |
| Structure | Lintel, anchors, curb or support | The wall must carry the installation |
| Service | Guard removal, isolation and access | A fan that fits but cannot be serviced is not complete |
Boundary: This guide does not certify a product, installation, performance, price, code or customer result. Replace screening assumptions with current documents and site evidence.
Practical Sequence
Measure A Fan Opening In Six Steps
- Photograph the wallShow inside, outside, structure and nearby openings.
- Measure in three dimensionsRecord rough opening, wall thickness and external projection.
- Find the load pathIdentify lintel, framing, anchors or curb.
- Mark the air pathInclude shutter, hood, duct and replacement air.
- Check service spaceReserve guard, motor, isolation and access clearance.
- Issue a controlled drawingTie measurements to the exact model and revision.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Read System Effect
Elbows, transitions, dampers and discharge restrictions can move the operating point away from the catalog reference.
Measure The Installed Result
A running motor is not proof of delivered airflow; use a repeatable field method when the result matters.
Questions Buyers Actually Ask
Industrial Exhaust Fan Opening Size: Measure Before Ordering Questions
Is the opening the fan size?
Not necessarily. Rough opening, frame, sleeve, guard, shutter and weather detail all need to be matched to the exact unit.
Can I enlarge an existing opening?
Only after the wall, lintel, structure, weather and responsible trades are reviewed.
Should the shutter be included?
If it is part of the intended system, include its fit and pressure effect in the review.
What should I send?
Send inside and outside dimensions, wall photos, structure, duty, nearby openings and service constraints.
What dimensions should be measured at an existing opening?
Record width, height, diagonals, wall thickness, sleeve or frame, support, exterior weather detail, clearances and the condition of the surrounding structure.
Can a larger fan use a smaller opening with an adapter?
Only after the adapter, pressure loss, support, guard, weather seal and structural detail are designed and checked for the exact unit.
