Define the process
Record coating, solvent, temperature, overspray, batch and cleaning conditions.

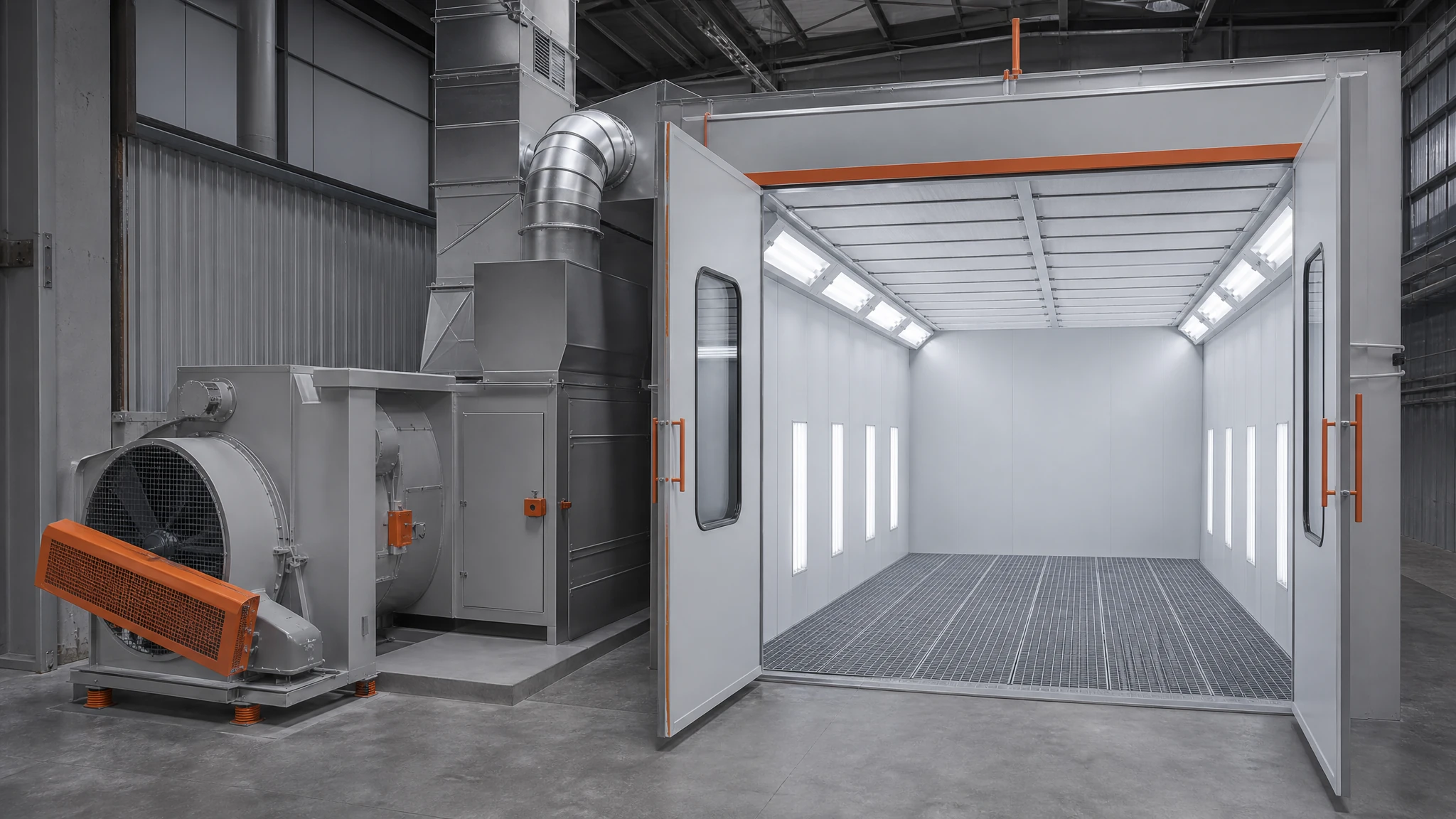

A Paint Booth Is A Controlled Air Path
Industrial Fans For Paint Booths
The fan is one part of a booth system. The booth, filter, inlet, exhaust path and process classification must agree.
DefineActual Job
CheckPhysical Path
ControlSafe State
VerifyMeasured Result
Direct Answer
How Should An Exhaust Fan Be Selected For A Paint Booth?
Select the exhaust path only after the booth airflow direction, filter resistance, make-up air, process classification, motor boundary and discharge are defined.
Paint and coating processes can introduce flammable vapors, overspray, filter loading and cleaning requirements. A generic industrial fan is not an approval for a classified booth.
Ask for the exact booth and fan documents, the authority requirements and the inspection method before turning a product shortlist into a purchase.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Four Paint-Booth Checks
Use the page as a working brief, not as a substitute for the site review.
Keep the path one-way
Show clean make-up air through the booth and controlled exhaust through filter and discharge.
Check the classification
Separate hazardous-area and electrical requirements from ordinary fan selection.
Plan filter service
Filter loading changes resistance, airflow and the maintenance boundary.
Field Inputs
Paint-Booth Fan Inputs
Record the field inputs that can change the recommendation.
| Input | Capture | Why it matters |
|---|---|---|
| Process | Coating, solvent, temperature and work cycle | Classification and material exposure can change |
| Booth | Dimensions, airflow direction and openings | The booth defines the capture boundary |
| Filter | Type, clean/drop pressure and service state | Resistance changes over time |
| Exhaust | Fan, duct, discharge and replacement air | The installed duty is a system duty |
| Compliance | Authority, electrical and fire requirements | A generic catalog cannot certify the booth |
Boundary: This guide does not certify a product, installation, performance, price, code or customer result. Replace screening assumptions with current documents and site evidence.
Practical Sequence
Review A Paint-Booth Exhaust Path In Six Steps
- State the processWrite the coating and solvent boundary.
- Map the boothShow clean side, work zone, filter and exhaust.
- Define make-up airCheck the inlet and its effect on booth flow.
- Confirm classificationCoordinate electrical, fire and authority requirements.
- Set the dirty-filter caseInclude service and filter-loading conditions.
- Verify with the responsible teamUse the adopted method and documents for final acceptance.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Read System Effect
Elbows, transitions, dampers and discharge restrictions can move the operating point away from the catalog reference.
Measure The Installed Result
A running motor is not proof of delivered airflow; use a repeatable field method when the result matters.
Questions Buyers Actually Ask
Industrial Fans For Paint Booths Questions
Can any exhaust fan be used in a paint booth?
No. Process classification, motor and electrical requirements, materials, filter and discharge must be checked together.
Why does the filter matter to fan sizing?
Filter resistance changes with condition, so the system duty is not one fixed free-air value.
Can a mobile fan be placed inside the booth?
Do not assume it is acceptable; the process and classification must be reviewed by the responsible designer.
What should I send?
Send the booth data, process, filter, duct, make-up air, classification and authority requirements.
Why must the booth, filter and fan be reviewed together?
The booth sets the capture boundary, the filter changes resistance as it loads and the fan must meet the required duty within the process and classification limits.
What information is needed before a paint-booth fan quote?
Provide process and coating details, booth dimensions, airflow direction, filter arrangement, duct and discharge, make-up air, classification and authority requirements.
