HVLS Fans In Aircraft Hangars: Treat Clearance As A Moving Boundary
A hangar fan is never just a roof point. Aircraft, doors, cranes, lighting, fire protection, maintenance stands and service vehicles change the usable envelope. Place and commission the fan around the operation that must remain safe.
MapAircraft & Equipment
ProtectDynamic Clearances
CoordinateFire & Structure
VerifyOperational Modes
Direct Answer
What Must Be Checked Before Putting An HVLS Fan In A Hangar?
Start with the hangar's largest credible operational envelope, not the empty floor. The review must include aircraft wings and tails, open and closed door positions, door tracks, cranes, hoists, lighting, ducts, sprinklers, roof structure, maintenance stands, fueling or service zones and the route used to move equipment.

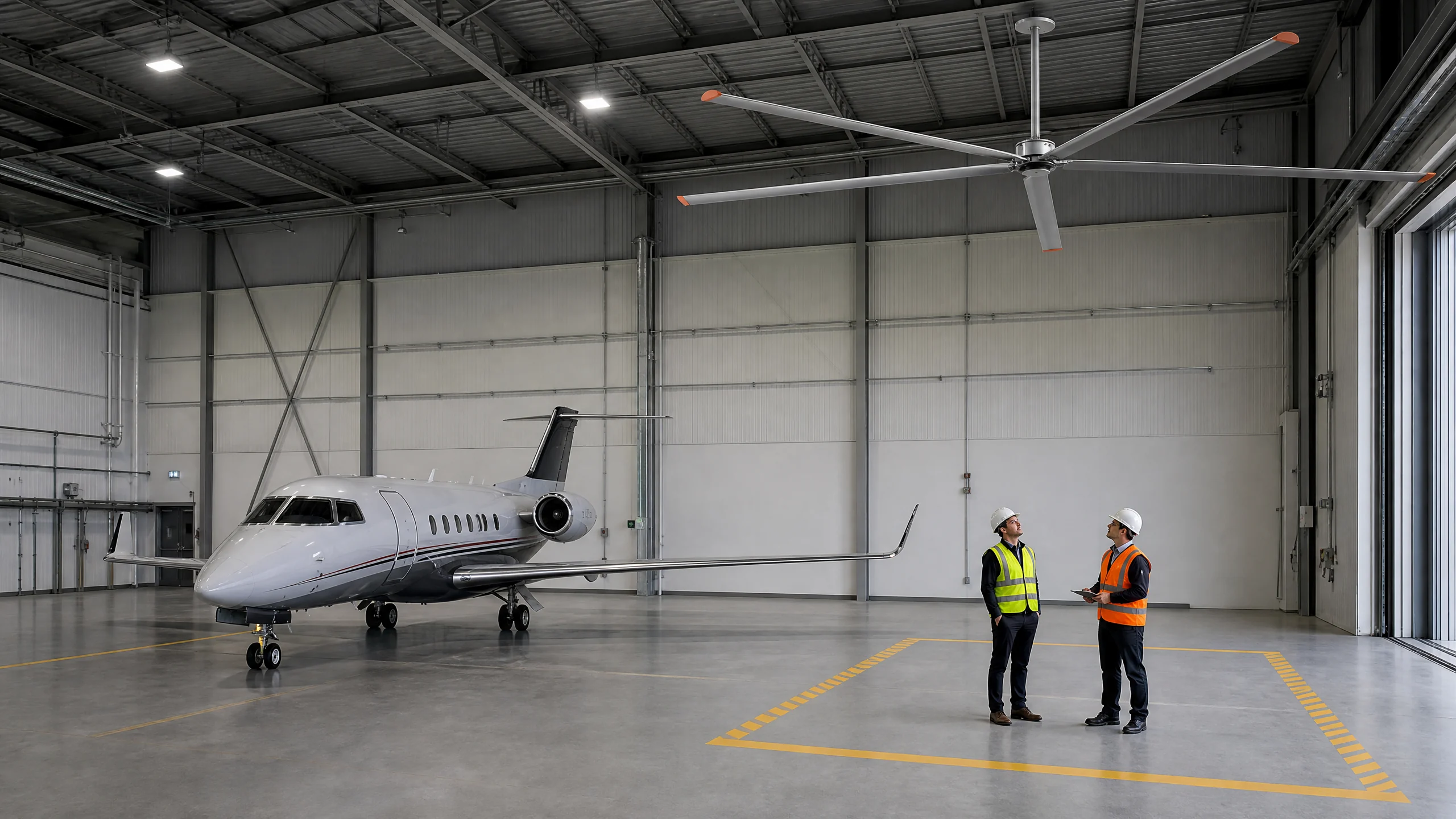

A parked aircraft is not a fixed object. Different models, tail heights, wing spans, engine positions and maintenance configurations can change the clearance below a fan. A door can be open during towing even when it is closed during normal occupancy. A crane hook, access platform or temporary scaffold can enter the roof zone during a task that the architectural plan does not show. Record those modes and draw the fan's rotating envelope and service envelope separately.
The fan must also fit the fire-protection and structural strategy. Confirm the adopted requirements for large-diameter air-circulating fans and sprinklers with the fire-protection designer and authority having jurisdiction. Verify support loads, vibration isolation, seismic or wind criteria where applicable, electrical isolation and fall-protection access with the responsible qualified professionals. A clear blade envelope is not enough if the downrod, guard, bracket or service path conflicts with a sprinkler, beam or door mechanism.
Hangar air movement has a practical objective: reduce heat layering, improve comfort or support a defined ventilation strategy without moving fumes, dust or overspray into an unsafe area. An HVLS fan does not provide explosion protection, capture hazardous vapors or replace required mechanical exhaust. If fueling, painting, welding or other hazardous operations occur, the fan sequence and equipment selection must follow the project's hazardous-area and process requirements, with clear stop and isolation rules.
Engineering scope and sources reviewed 6 October 2026 · Project conditions still govern final selection
