Find the source
Confirm the heat, moisture or stale-air layer reaches the roof path rather than remaining behind racks or partitions.
Roof Exhaust Starts At The Roof

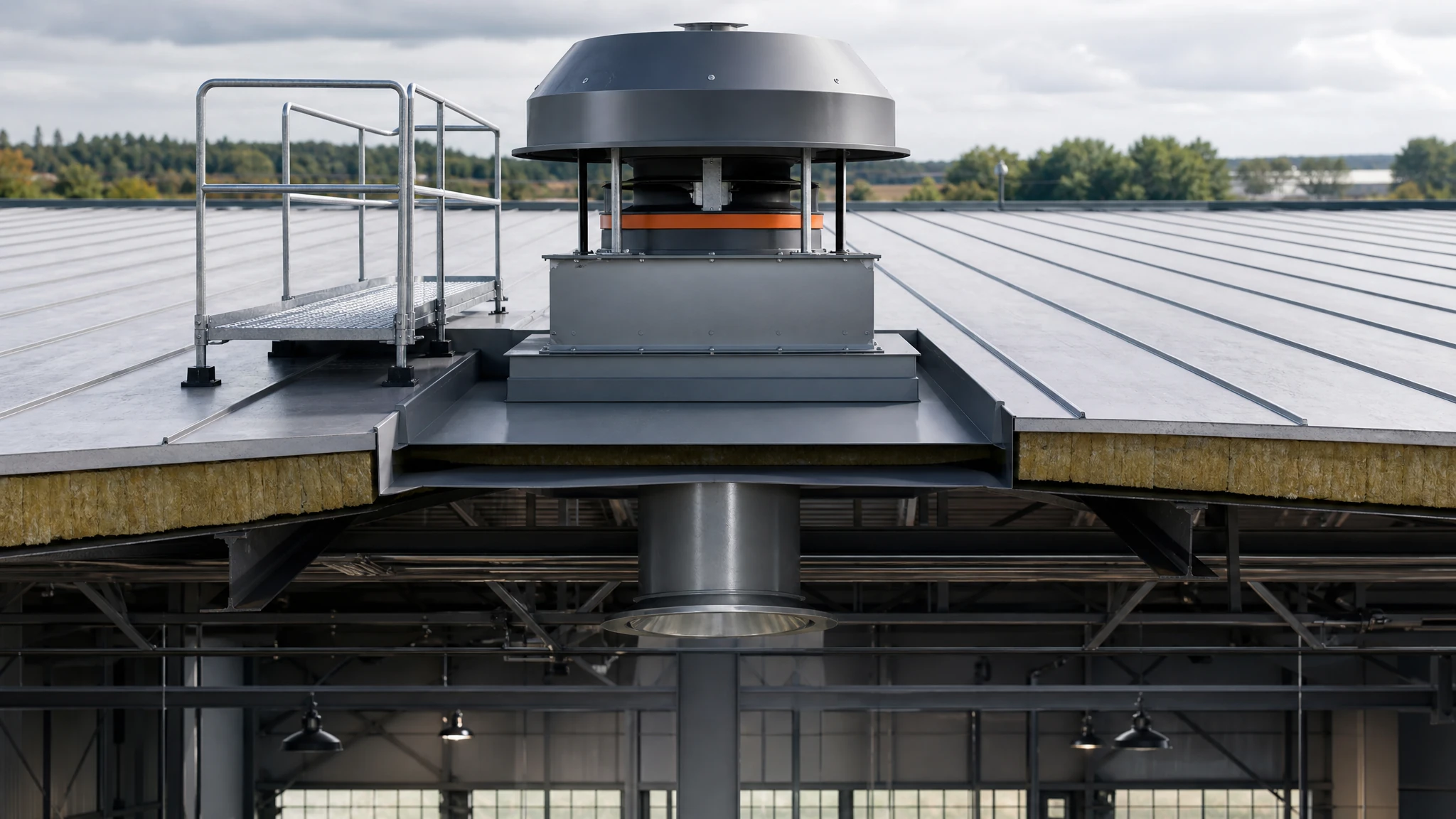

Factory Roof Ventilation Fans
A roof fan is an opening, a support, a weather detail and a discharge path at the same time. Review all four before selecting the unit.
LocateHeat + Moisture
SupportCurb + Structure
ProtectWeather
AccessSafe Service
Direct Answer
When Does A Factory Roof Exhaust Fan Make Sense?
A roof exhaust fan is a good candidate when the controlled air can rise or be ducted to a roof discharge and the roof can support a weather-tight, serviceable installation.
Roof location does not remove the need for replacement air. It also adds curb, flashing, wind, rain, roof traffic and fall-protection questions that a wall installation may handle differently.
Review the source, the roof build-up and the discharge environment together. Final curb and fastener details must come from the roof and structural design, not a generic fan photo.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Roof Fan Decisions That Are Easy To Miss
The roof is part of the air path and part of the maintenance plan.
Check the curb
Record roof type, curb dimensions, insulation, flashing and the load path into the structure.
Protect the discharge
Review rain hood, wind exposure, adjacent intakes and where the exhaust plume can travel.
Plan safe access
Keep isolation, service platform, guardrails and fall protection in the roof review.
Field Inputs
Factory Roof Exhaust Survey
Collect these before a roof fan is treated as a quote-ready item.
| Item | Capture | Why it matters |
|---|---|---|
| Roof build-up | Deck, insulation, membrane, slope and existing curb | The weather and support detail must fit the roof |
| Air path | Source, duct, transition, fan and discharge | Resistance and short-circuit risk change with layout |
| Adjacent equipment | Intakes, skylights, HVAC, vents and access routes | Exhaust can contaminate or interfere with nearby openings |
| Structure | Curb, framing, wind and service load | A roof opening is a structural change |
| Maintenance | Isolation, platform and fall protection | The fan must be safely serviceable |
Boundary: No roof fan size, curb dimension or wind rating is inferred from this guide. Coordinate with the roof, structural, fire and electrical reviewers.
Practical Sequence
Plan A Factory Roof Fan In Six Steps
- Map the hot layer.Identify the condition and elevation the roof path must control.
- Inspect the roof.Record deck, membrane, slope, curb and safe access constraints.
- Draw the discharge.Check wind, rain, adjacent intakes and plume direction.
- Set the duty.Include duct, transition, hood and pressure losses.
- Coordinate structure.Confirm curb, supports, flashing and isolation with the responsible trades.
- Commission safely.Measure the target condition and record the operating state without bypassing site controls.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Read System Effect
Elbows, transitions, dampers and discharge restrictions can move the operating point away from the catalog reference.
Measure The Installed Result
A running motor is not proof of delivered airflow; use a repeatable field method when the result matters.
Plan Warehouse Roof Exhaust
Use the roof-versus-wall decision when the building is a warehouse.
Questions Buyers Actually Ask
Roof Exhaust Questions
Is a roof fan better than a wall fan?
Neither is universally better. Choose from the source, air path, structure, weather, discharge and service boundary.
Do I still need intake louvers?
Usually the replacement-air path must be planned; the exact arrangement depends on the building and the condition being controlled.
Can an existing curb be reused?
Only after the exact fan, dimensions, load, flashing and weather detail are checked.
What documents support a roof quote?
Provide a roof plan, section, curb details, source condition, duty, nearby intakes, access method and power information.
What roof details affect fan selection?
Roof slope, deck, insulation, membrane, curb, flashing, wind exposure, discharge, nearby intakes and access all affect the practical selection.
How should a roof ventilation fan be commissioned?
Verify the installed orientation, weather detail, controls, replacement-air path and the project measurement points under the intended operating condition.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
AMCA Publications and Education
AMCA separates fan performance, system effects, sound and application conditions; use the applicable publication and test basis for a project decision.
Open sourceOSHA
Safety and Health Regulations
Guarding, energy control, safe access and competent-person requirements remain site-specific before inspection or installation work.
Open sourceU.S. Department of Energy
Industrial Technologies
DOE industrial guidance supports measured operating data and whole-system comparisons rather than unsupported universal savings claims.
Open sourceProject Review
