Roof Case
High-level heat or diluted load, clean replacement air below, suitable roof bays and a discharge that stays clear of intakes and openings.
Roof Versus Wall Decision
Warehouse Roof Exhaust Fans Need A Roof Plan First
Choose roof exhaust only when the air path, discharge, roof opening, weather protection, structure and maintenance access make it better than a wall arrangement.
Air PathHigh-Level Heat/Exhaust
OpeningCurb + Structure
WeatherRain + Wind
ServiceSafe Roof Access
Direct Answer
When Does Roof Exhaust Make Sense For A Warehouse?
Roof exhaust is a credible option when the load collects high, a roof discharge avoids re-entry, replacement air can cross the occupied volume, and the roof can support a weatherproof curb plus safe maintenance access.
Wall exhaust may be simpler where the load and intake path are horizontal, wall penetrations are easier, roof warranty or structure is constrained, or routine service from the roof is undesirable. Neither location fixes inadequate make-up air or a poorly distributed inlet.
The current AirMoveX dataset does not identify a dedicated roof exhaust fan. This page is a planning and sourcing guide. Do not interpret AXE-E or AXE-SQ as roof-rated without written confirmation of model, curb, weather, structure and installation scope.
Engineering scope and sources reviewed 4 October 2026 · Project conditions still govern final selection
Decision Framework
Choose The Discharge Location, Not A Marketing Label
The opening and air path are permanent building decisions; treat them with more care than the replaceable fan.
Wall Case
A horizontal path, accessible wall opening, shorter service route or roof constraints may make wall exhaust more practical.
Hybrid Case
Large or divided warehouses may need zoned wall/roof exhaust and distributed inlets, but simultaneous operation must be balanced.
No General Exhaust Fix
Concentrated hazardous sources usually need local capture; moving the general exhaust to the roof does not replace it.
Field Inputs
Roof Exhaust Inputs That Belong In The Quote
If these fields are unknown, the roof opening should remain a concept—not a purchase order.
| Input | Define | Risk If Omitted |
|---|---|---|
| Air duty | Required flow, static pressure, temperature, contaminants and controls | A free-air fan may miss the installed operating point. |
| Roof assembly | Deck, insulation, membrane, slope, drainage, warranty and curb detail | Leaks, thermal bridging or warranty conflict can follow a generic cutout. |
| Structure | Bay, loads, vibration isolation and attachment path | The deck alone may not support the installed assembly. |
| Weather/discharge | Rain, wind, snow where applicable, hood, backdraft and re-entry clearances | Water entry, backflow or recirculation can defeat the design. |
| Make-up air | Opening area, location, distribution, filtration and conditioning | Restricted or short-circuited replacement air reduces useful ventilation. |
| Maintenance | Permanent access, fall protection, isolation, lifting and component-removal path | Routine service can become unsafe or impractical. |
Boundary: A roof fan requires project-specific structural, roofing, weather, electrical, fire and code coordination. Current AirMoveX product pages do not establish a dedicated roof-fan offer.
Practical Sequence
Decide Roof Or Wall Before Requesting A Model
- Map the load.Confirm where heat or residual contaminant accumulates and whether source capture is required.
- Draw both air paths.Compare roof and wall discharge with the proposed clean-air inlet under doors-open and doors-closed conditions.
- Survey the envelope.Record roof and wall construction, structural bays, services, drainage and warranty constraints.
- Check discharge and weather.Separate exhaust from intakes/openings and define rain, wind and backdraft protection.

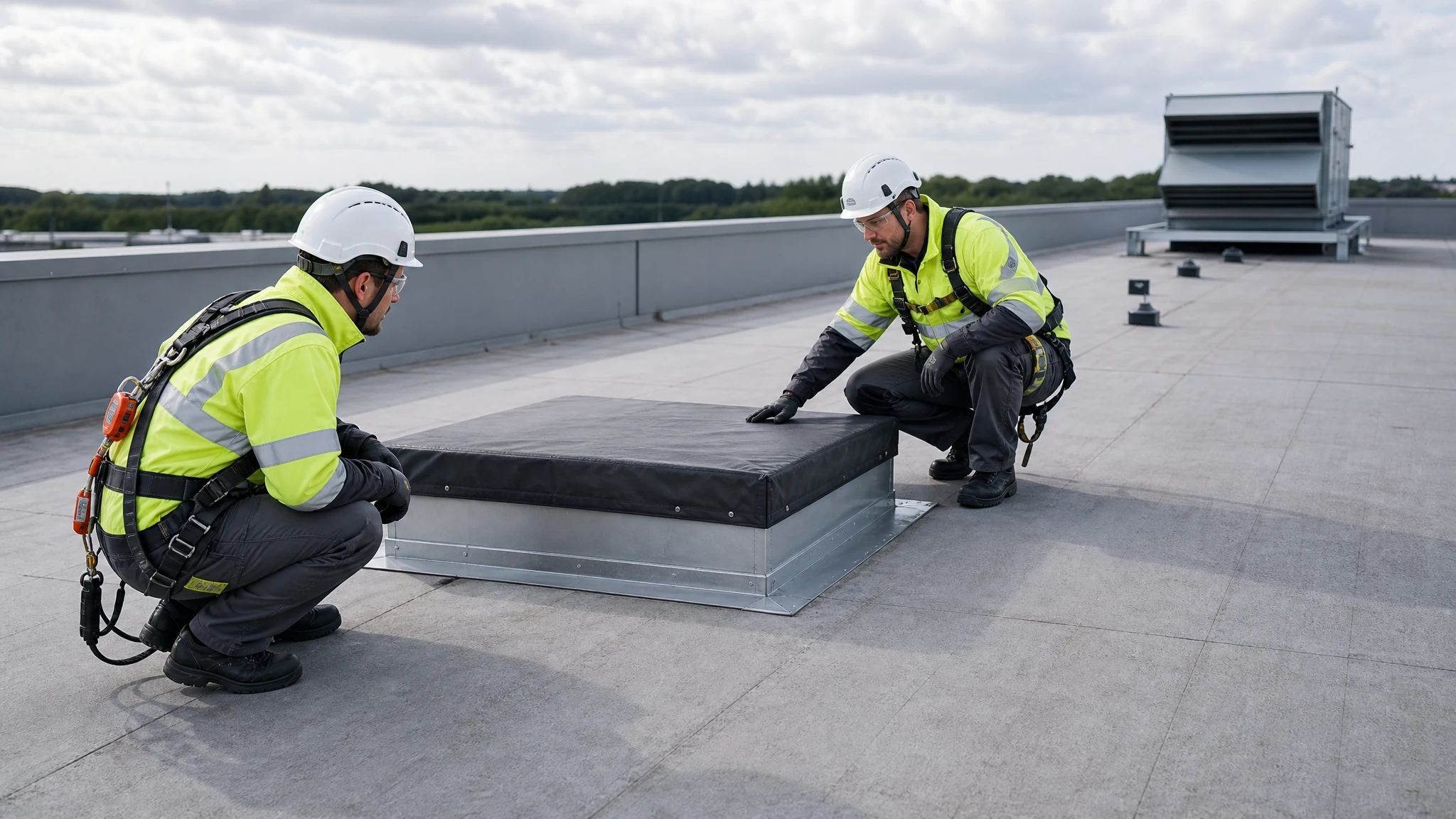

- Plan lifetime access.Include isolation, fall protection, lifting, cleaning and component-removal routes.
- Source the exact assembly.Request fan, curb, hood, damper, flashing interface, controls and exclusions as one coordinated schedule.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Calculate The Exhaust Duty
Establish flow, pressure and system-effect inputs before comparing locations.
Plan Make-Up Air
A roof outlet still needs a distributed clean-air inlet and verified pressure objective.
Review Warehouse ACH Limits
Understand why one universal air-change number cannot select the system.
See Current Exhaust Products
Use category pages as platform references, not proof of roof suitability.
Questions Buyers Actually Ask
Warehouse Roof Exhaust Questions
Is a roof exhaust fan better than a wall exhaust fan?
Not universally. Roof exhaust can suit high-level loads and vertical discharge; wall exhaust can simplify structure, weathering and service. Compare complete air paths and lifetime access.
Does AirMoveX sell a dedicated roof exhaust fan?
The current supplied catalog does not identify a dedicated roof model. AirMoveX can review the project and sourcing need, but roof suitability must be confirmed in writing for the exact assembly.
Can AXE-E be mounted on a roof?
Do not assume so from its FRP construction. A roof installation needs exact-model confirmation for orientation, curb, weather, UV, drainage, structure, service and performance.
Where should warehouse make-up air enter?
From a clean source and distributed so it sweeps the intended occupied volume without short-circuiting directly to the roof outlet or creating door and comfort problems.
What roof information does a supplier need?
Provide deck and structure, curb/opening, membrane and warranty constraints, slope/drainage, wind/weather, access/fall protection, discharge clearances and the full air duty.
Can roof fans solve a concentrated fume source?
General roof exhaust is not a substitute for local capture when the source requires containment. Define the hazard and exposure-control method first.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
WBDG
Roofing Systems
Whole Building Design Guide material supports coordinating roof penetrations, drainage, flashing and maintainability.
Open sourceAMCA International
Fan System Effect
Explains why inlet, outlet and nearby geometry can reduce installed performance.
Open sourceOSHA
Walking-Working Surfaces
Provides the workplace safety framework relevant to roof access and fall protection.
Open sourceProject Review
Send The Roof Survey, Not Just The Opening Size
Share air duty, roof and structural drawings, curb concept, weather, inlet route, discharge clearances, electrical supply and lifetime access. AirMoveX will state whether current products fit or separate sourcing is required.
