A six-blade, beltless exhaust platform with stainless-steel blades and a galvanized casing and guard for wall-mounted building air exchange.
Compare This Family ↗
Targeted Ventilation
AirMoveX AXE-SQ Series
Square Galvanized Exhaust Fan
A six-blade, beltless exhaust platform with stainless-steel blades and a galvanized casing and guard for wall-mounted building air exchange.

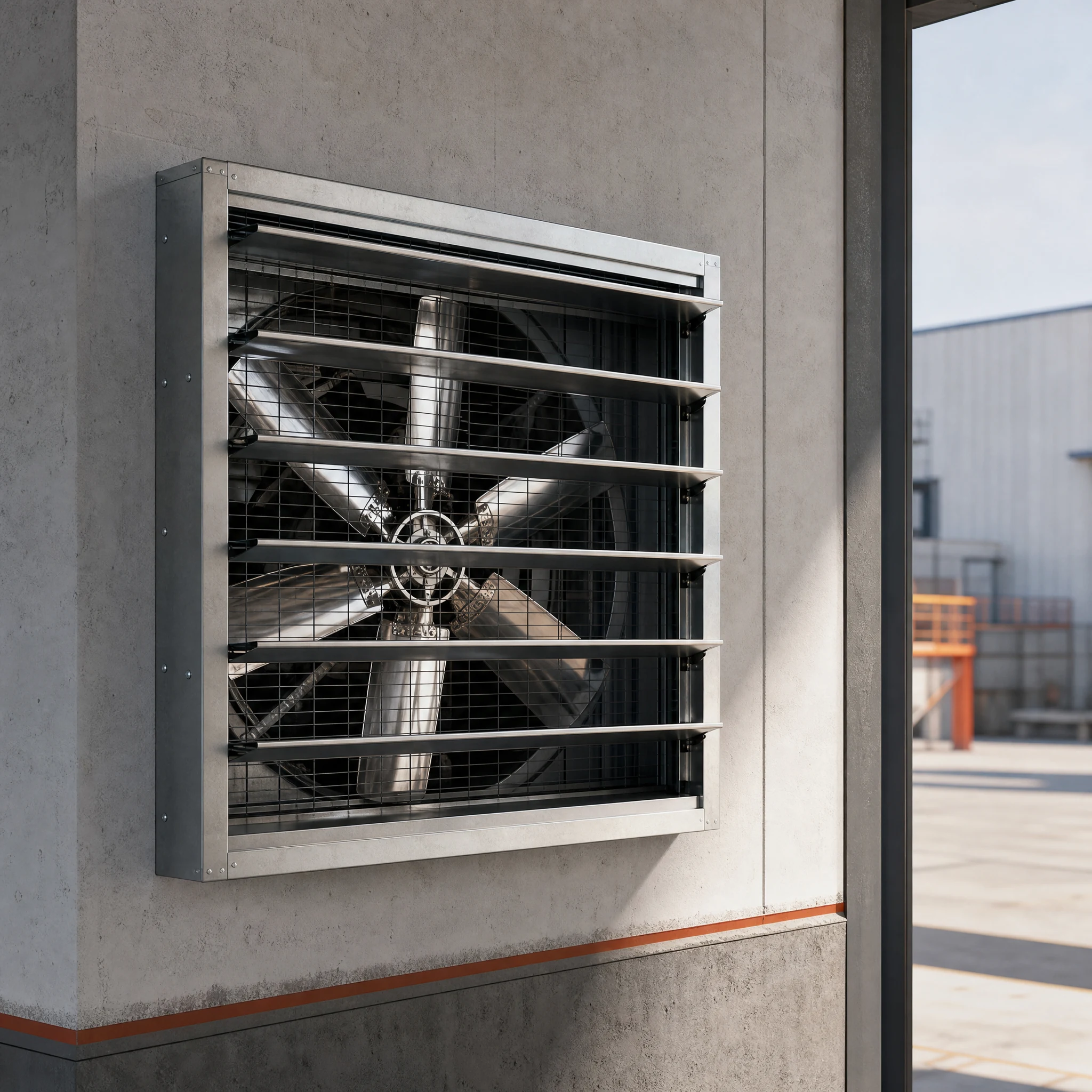

AI-generated product illustration, not a product or installation photograph. Confirm the final configuration against the selected-model documents.
- Six stainless blades
- Galvanized guard and casing
- PMSM beltless drive
- Five size options
- Size Range
- 30-56 in
- Drive
- PMSM brushless motor
- Max Air Volume
- 1,037 m³/min
- Installation
- Square wall opening
Product Overview
Configured Around The Building, Not Just The Diameter
A six-blade, beltless exhaust platform with stainless-steel blades and a galvanized casing and guard for wall-mounted building air exchange.
- Drive
- PMSM brushless motor
- Blade
- Stainless steel / 6 pcs
- Control
- VFD with protection module
- Install
- Square wall opening
Workshops and livestock buildings, subject to airflow, material compatibility and installation checks
Reference values support preliminary selection. Final voltage, size, control, installation accessories, certification scope and packing are confirmed in the quotation.
Why This Model May Fit
AirMoveX AXE-SQ Series In The AirMoveX System
Use this card as a preliminary fit check. It explains the role of the series from the catalog; the final model, voltage, accessories and installation scope still belong in the quotation.
Typical applications: Workshops and livestock buildings, subject to airflow, material compatibility and installation checks.
VFD with protection module. Available variants begin at 1.43 m / 56 in; review the table below for the series range.
Confirm voltage, selected size, accessories, certification scope, packing, delivery terms and the site installation method against the final configuration.
Carry This Model Into A Quote ↗Available Configurations
AirMoveX AXE-SQ Series Model Specifications
Select a preliminary configuration below. The inquiry button carries the exact series and model into the project form.
| AirMoveX Model | Diameter | Voltage | Power | Current | Max Speed | Max Air Volume | Coverage / Capacity | Sound | Blades | Net Weight | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AXE-SQ56 | 1.43 m / 56 in | 220 V / 50-60 Hz | 1,200 W | — | 370 rpm | 1,037 m³/min | — | ≤ 70 dB(A) | 6 | 70 kg | Quote This Model ↗ |
| AXE-SQ50 | 1.27 m / 50 in | 220 V / 50-60 Hz | 1,000 W | — | 450 rpm | 1,005 m³/min | — | ≤ 68 dB(A) | 6 | 62 kg | Quote This Model ↗ |
| AXE-SQ44 | 1.11 m / 44 in | 220 V / 50-60 Hz | 900 W | — | 500 rpm | 774 m³/min | — | ≤ 65 dB(A) | 6 | 54 kg | Quote This Model ↗ |
| AXE-SQ37 | 0.95 m / 37 in | 220 V / 50-60 Hz | 730 W | — | 550 rpm | 667 m³/min | — | ≤ 63 dB(A) | 6 | 37 kg | Quote This Model ↗ |
| AXE-SQ30 | 0.78 m / 30 in | 220 V / 50-60 Hz | 530 W | — | 600 rpm | 435 m³/min | — | ≤ 60 dB(A) | 6 | 33 kg | Quote This Model ↗ |
Configuration 01
AXE-SQ56
1.43 m / 56 in- Diameter
- 1.43 m / 56 in
- Voltage
- 220 V / 50-60 Hz
- Current
- —
- Max Speed
- 370 rpm
- Sound
- ≤ 70 dB(A)
- Blades
- 6
- Net Weight
- 70 kg
Configuration 02
AXE-SQ50
1.27 m / 50 in- Diameter
- 1.27 m / 50 in
- Voltage
- 220 V / 50-60 Hz
- Current
- —
- Max Speed
- 450 rpm
- Sound
- ≤ 68 dB(A)
- Blades
- 6
- Net Weight
- 62 kg
Configuration 03
AXE-SQ44
1.11 m / 44 in- Diameter
- 1.11 m / 44 in
- Voltage
- 220 V / 50-60 Hz
- Current
- —
- Max Speed
- 500 rpm
- Sound
- ≤ 65 dB(A)
- Blades
- 6
- Net Weight
- 54 kg
Configuration 04
AXE-SQ37
0.95 m / 37 in- Diameter
- 0.95 m / 37 in
- Voltage
- 220 V / 50-60 Hz
- Current
- —
- Max Speed
- 550 rpm
- Sound
- ≤ 63 dB(A)
- Blades
- 6
- Net Weight
- 37 kg
Configuration 05
AXE-SQ30
0.78 m / 30 in- Diameter
- 0.78 m / 30 in
- Voltage
- 220 V / 50-60 Hz
- Current
- —
- Max Speed
- 600 rpm
- Sound
- ≤ 60 dB(A)
- Blades
- 6
- Net Weight
- 33 kg
Before Selecting AirMoveX AXE-SQ Series
Stainless blades do not mean an all-stainless fan. AXE-SQ combines stainless-steel blades with a galvanized casing and guard. Review every exposed component for the actual environment; do not specify the assembly as all-stainless.
Do not infer special-duty approval. The material list does not establish chemical, high-temperature, explosion-proof or smoke-control suitability. Obtain selected-model evidence for the intended duty before using it in a special environment.
Check the installed airflow and supply. Confirm the duty point at the required static pressure, the make-up air path, airflow direction and wall installation. Match the actual supply to the selected motor/controller configuration, not just a diameter or nominal frequency.
Selection Guides
Resolve These Questions Before Choosing AirMoveX AXE-SQ Series
Use the guides for the selection method, then confirm the exact configuration against the project documents.
Check galvanized and stainless components separately
Specify the exposure and inspect the complete assembly before assuming corrosion suitability from the blade material.
Specify rotation from a named viewing side
Record airflow direction and the viewing side together. Do not diagnose rotation from a photograph or an ambiguous clockwise label.
Verify the complete 50/60 Hz electrical package
Check supply, controller and motor documentation together before accepting a frequency change.
HVLS vs exhaust: circulation or air exchange?
Separate the circulation layout from exhaust duty and replacement air before comparing quotations.
Industrial Fan Warranty: Who Pays for the Service Visit?
A warranty period is not a service plan. Set out parts, labour, access equipment, travel and freight responsibilities before ordering an industrial fan.
Fan Motor Insulation Class and Temperature Rise Are Not the Same
Insulation class describes a motor insulation system; temperature rise describes heating under stated conditions. Ask for both on the same operating basis.
Several Fans on One Circuit: Running Amps Do Not Describe the Start
For several industrial fans, collect running and starting-current evidence for the complete offered package before agreeing simultaneous or staged starting.
Fan FAT and SAT: Agree Which Question Each Test Must Answer
Separate factory acceptance from site acceptance: agree the configuration, test conditions, pass criteria and records for each stage before ordering.
Stopped Exhaust Fans Can Windmill: A Stop Command Is Not Restraint
An exhaust fan can be driven by external airflow after its motor stops. Treat windmilling as an installation and service question, not a fault diagnosis from a photograph.
Fan Pressure Units: Convert Pa, in. w.g. and mm w.g. on One Basis
Convert fan pressure units consistently: 1 conventional in.w.g. is about 249.089 Pa and 1 conventional mm.w.g. is 9.80665 Pa. Keep the pressure definition unchanged.
Fans in Series or Parallel: Combine the Curves, Not the Catalog Numbers
For ideal identical fans, series curves add pressure at equal flow and parallel curves add flow at equal pressure. The installed operating point still comes from the system curve.
Project Documents
Request The Documents That Match The Final Configuration
Document scope is tied to the quoted model and destination market. This avoids presenting a generic certificate or drawing as if it covered every configuration.
Technical Datasheet
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Installation And Dimension Drawing
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Certificate And Packing Scope
Prepared or verified against the selected model, electrical configuration and project scope.
Request This Document ↗Use the industrial exhaust fan sizing calculator to document building volume and the project ACH input. Then confirm AirMoveX AXE-SQ Series performance at the required static pressure before selecting a configuration.
Open The CFM And ACH GuideA useful maintenance plan starts with isolation and condition evidence. It does not invent one service interval for every fan, contaminant and duty cycle.
Open The Field GuideProject Inquiry
Confirm AirMoveX AXE-SQ Series For Your Site
Share dimensions, clear height, available power, quantity and destination. The exact series will already be attached to the inquiry.
