Map the bay
Show work cells, lifts, cranes, lights, doors and walkways.
HVLS Application Review
HVLS Fans For Shops
A shop fan has to clear lights, cranes, lifts, doors and work cells while still moving air where people work. The bay drawing matters more than a generic room label.
CheckClear Height
ProtectObstructions
ControlOccupied Zone
VerifyAir Movement
Direct Answer
Where Should An HVLS Fan Go In A Workshop?
Place the fan over the zone that needs broad air movement, then prove the swept circle, structural attachment, lights, cranes, doors and occupied-zone air movement all fit.
A shop can change shape during a shift. Lifts, racks, welding screens and overhead services may create a different obstruction map from the empty floor plan.

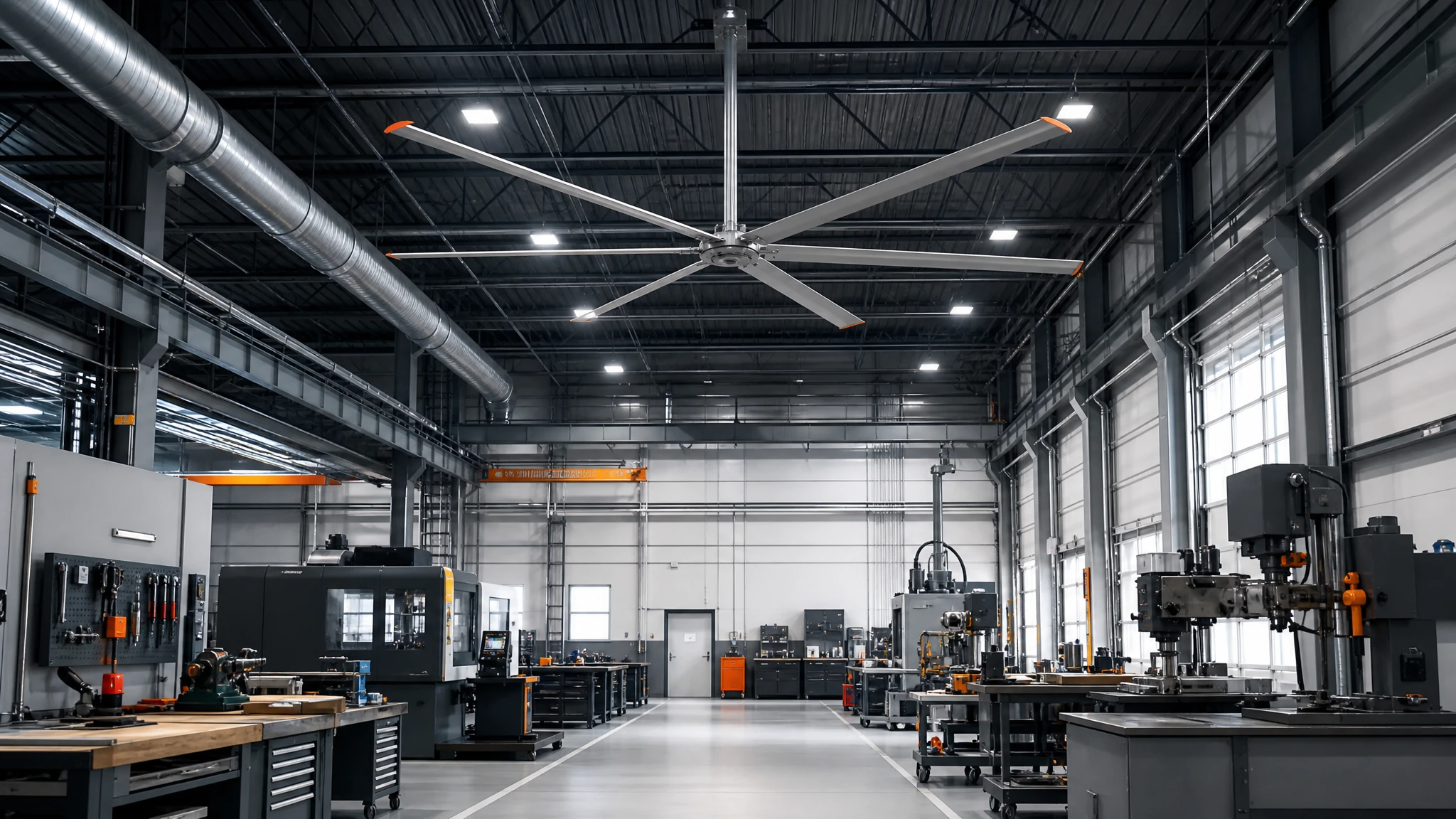

Treat the supplied fan image as a visual role, not a clearance or performance certificate. The exact model and mounting arrangement still need the building review.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Four Checks Before Installing An HVLS Fan
A ceiling fan belongs in a real reflected-ceiling and occupied-zone review.
Confirm height
Record roof, underside, obstructions and the occupied-zone measurement height.
Protect the structure
Identify the approved attachment and any load or vibration constraints.
Plan the control
Set speed limits and stop conditions around dust, papers, welding or comfort.
Field Inputs
HVLS Application Inputs
These are the inputs that make a ceiling-fan conversation comparable.
| Input | Capture | Why it matters |
|---|---|---|
| Clear height | Roof, underside and lowest obstruction | Determines candidate mounting and swept-circle boundary |
| Bay layout | Benches, lifts, cranes, lights and doors | Obstructions can move or change the useful zone |
| Structure | Beam, purlin, attachment and access | A fan load must reach the approved structure |
| Occupied zone | People, workstations and air-speed check | Air movement must be judged where work happens |
| Controls | Speed, schedule, interlock and stop condition | Shop conditions change during a shift |
Boundary: The image and method do not establish a safe clearance, structural capacity, speed, noise level or comfort result for a particular site. Confirm exact model instructions and responsible design review.
Practical Sequence
Review The HVLS Application In Six Steps
- Map the bay.Mark fixed and moving obstructions.
- Choose the target zone.State what uneven temperature or stagnant air must improve.
- Check the structure.Confirm the attachment and access route.
- Set a conservative start.Use the exact controller and supplier instructions.
- Walk the occupied zone.Check people, work, dust and papers at the chosen setting.
- Record the result.Keep the layout, setting and observations together.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Review HVLS Sizes
Use diameter as part of the bay and air-movement decision, not as a standalone promise.
Check Mounting Structure
Keep structural attachment and service access visible.
Questions Buyers Actually Ask
HVLS Application Questions
Can an HVLS fan cool a shop?
It can change perceived air movement and temperature distribution, but it does not create refrigeration; the useful result depends on the shop condition and setting.
Can it go above a vehicle lift?
Only after the swept circle, lift travel, structure, lights and service access are checked for the exact installation.
How high should a shop HVLS fan be?
There is no universal height. Use the exact model instructions, clearances, building geometry and occupied-zone requirement.
What should I send?
Send a plan or photos, clear height, obstructions, structure, work schedule and the condition to improve.
Does an HVLS fan replace shop ventilation?
No. It can redistribute room air, while process exhaust, vehicle exhaust, dust capture and make-up air require their own designed paths.
What shop obstructions need to be mapped?
Map lifts, cranes, lights, doors, beams, sprinklers, storage and service routes through the complete swept circle and operating envelope.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
