Start at the source
Mark heat, dust, moisture, charging stations and occupied aisles before drawing the discharge.
Warehouse Exhaust Is A Path Problem
Industrial Exhaust Fans For Warehouses
A warehouse exhaust fan only helps when air can enter, cross the occupied zone and leave without short-circuiting around racks or doors.
SeparateExhaust / Intake
MapRacks + Doors
CheckPressure
VerifyZone Result
Direct Answer
Where Should An Exhaust Fan Go In A Warehouse?
Place the exhaust discharge and replacement-air inlets so the intended air path crosses the zone that needs control; do not size or place the fan from floor area alone.

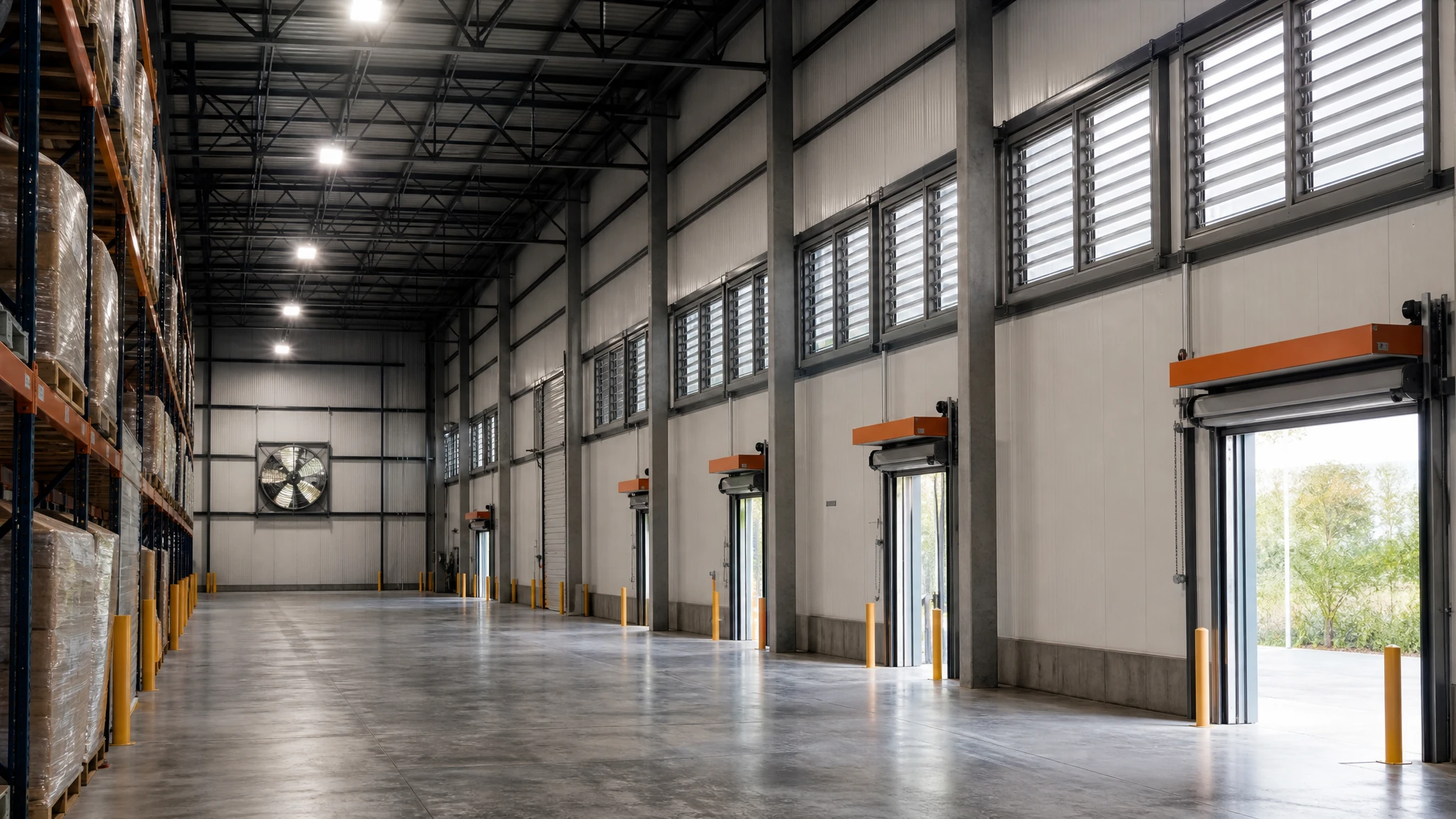

Racking, mezzanines, loading doors and process heat can create dead zones. A fan at the end wall may remove air efficiently while doing little at a picking aisle if the inlet path bypasses it.
Start with the contaminant or heat source, then check door states, outside-air quality, weather exposure and pressure. The final fan and louver arrangement needs a measured commissioning plan.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Warehouse Checks That Change The Fan Location
A simple plan view often exposes a more important issue than nominal CFM.
Trace replacement air
Show where clean air enters when doors are closed, open or cycling; avoid relying on an unplanned gap.
Respect the racks
High racks and mezzanines split the air volume and can hide a bypass route.
Protect service work
Keep guards, motors, roof hoods and isolation points reachable without blocking traffic.
Field Inputs
Warehouse Survey Inputs
Capture the building state that will exist during the complaint, not only an empty plan.
| Record | Capture | Why it matters |
|---|---|---|
| Building geometry | Length, width, clear height, mezzanine and rack height | A floor-area shortcut hides vertical and blocked paths |
| Openings | Doors, louvers, windows and their operating schedule | Replacement air changes with door state |
| Source condition | Heat, moisture, dust, fumes and process schedule | General exhaust may not replace source capture |
| Fan boundary | Airflow, pressure, temperature, motor and guard | A free-air rating is not the installed duty |
| Acceptance check | Temperature, contaminant, pressure or airflow points | The result needs a defined measurement |
Boundary: No universal warehouse ACH or fan count is asserted here. Project conditions, local code and the actual contaminant determine the design.
Practical Sequence
Plan A Warehouse Exhaust Path In Six Steps
- Walk the building.Mark people, racks, doors, heat sources and clean-air boundaries.
- Choose the controlled zone.Write which aisle, process or pressure condition must improve.
- Draw intake and discharge.Keep the intended path visible in both closed-door and operating-door states.
- Check resistance.Include louver, shutter, hood, duct, elbow and discharge effects.
- Review access.Place guard, isolation and service space outside traffic conflicts.
- Commission by zone.Measure the controlled zone under the operating condition that matters.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Read System Effect
Elbows, transitions, dampers and discharge restrictions can move the operating point away from the catalog reference.
Measure The Installed Result
A running motor is not proof of delivered airflow; use a repeatable field method when the result matters.
Compare Warehouse HVLS Layout
Broad circulation and exhaust solve different parts of a warehouse brief.
Questions Buyers Actually Ask
Warehouse Exhaust Questions
Should warehouse exhaust fans be on the roof or wall?
Either can work; choose from the air path, weather exposure, structure, discharge location, access and replacement-air arrangement.
Can one large fan replace several smaller fans?
Not as a rule. Distribution, pressure, structure, controls and service access must be compared at the same duty.
Do racks change fan sizing?
They can change the resistance and the zones reached by the air path, so rack height and arrangement belong in the review.
What information supports a warehouse quote?
Provide a plan or dimensions, clear height, rack layout, doors, source condition, desired result, power and photos.
How do I compare warehouse fan layouts?
Compare each layout at the same required duty, then check air path, rack interference, replacement air, structure, controls, access and the measurement plan.
Are roof fans suitable for every warehouse?
No. Roof discharge, weather exposure, roof build-up, nearby intakes and maintenance access can make a wall or mixed arrangement more suitable.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
