Approach the inlet
Avoid a cramped, disturbed entry where the fan cannot receive the assumed flow pattern.
Duct Layout Changes The Duty

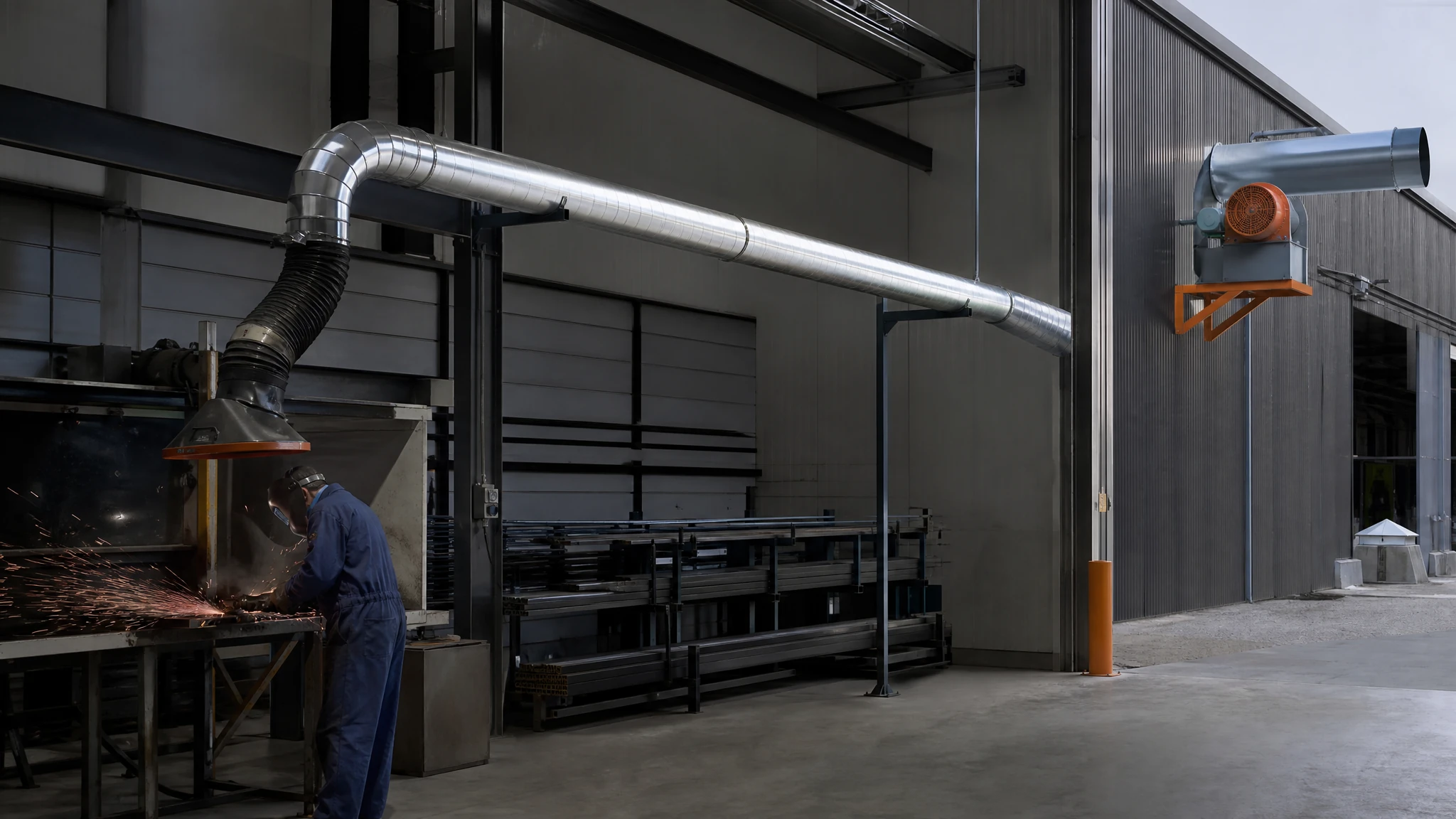

Factory Ventilation Duct Layout
A fan does not see the room name; it sees the resistance and flow quality created by the duct layout attached to it.
StartSource
ShapeSmooth Transition
SupportEvery Load
VerifyPressure + Flow
Direct Answer
What Makes A Factory Exhaust Duct Layout Defensible?
A defensible duct layout shows the source, a sensible approach to the fan, supported fittings, the discharge and the pressure boundary used for selection.
Short elbows, abrupt transitions, unsupported weight and a discharge too close to an intake can turn a nominal fan choice into a noisy or underperforming installation.
The layout is not finished when the line reaches the fan. Leave room for guards, isolation, cleaning, inspection and the measurements needed at commissioning.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Four Duct Decisions That Protect The Fan Selection
Use the drawing to make hidden resistance visible.
Transition deliberately
Record shape, length, area change and supports rather than sketching a symbolic reducer.
Support the load
Duct, elbow, flexible connector and access door loads must not hang from the fan casing.
Finish the discharge
Check hood, outlet, weather, plume, nearby openings and service access at the end of the path.
Field Inputs
Duct Layout Review Table
A quote-ready drawing answers these questions without relying on a generic line.
| Zone | Record | Failure if missing |
|---|---|---|
| Source | Capture point, hood, branch and contaminant | The fan may move room air instead of the source |
| Inlet | Straight approach, elbow, transition and flexible connector | The actual pressure and flow pattern differ |
| Support | Hangers, anchors, vibration isolation and access | Loads or vibration reach the fan |
| Discharge | Outlet, hood, weather and nearby openings | Backpressure or recirculation appears |
| Commissioning | Pressure taps, airflow plane and operating state | No repeatable proof of the result |
Boundary: Duct proportions and support details are project-specific. Have the responsible designer check code, fire, structural, electrical and hazardous-process requirements.
Practical Sequence
Review A Factory Duct Layout In Six Steps
- Name the source.Mark what must be captured and where the air enters the system.
- Trace every fitting.Draw real elbows, transitions, dampers, filters, branches and discharge details.
- Set the boundary.Write the pressure assumptions and operating state used for the fan comparison.
- Check support.Coordinate hangers, flexible connections, vibration and access with the structure.
- Reserve measurements.Identify where pressure and airflow can be measured after installation.
- Recheck the change.Any field reroute or fitting substitution requires a duty review, not only a redline.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Read System Effect
Elbows, transitions, dampers and discharge restrictions can move the operating point away from the catalog reference.
Measure The Installed Result
A running motor is not proof of delivered airflow; use a repeatable field method when the result matters.
Check System Effect
Use the system-effect page when an elbow or discharge is close to the fan.
Questions Buyers Actually Ask
Duct Layout Questions
How much straight duct does a fan need?
There is no universal answer for every fan and fitting. Use the exact fan guidance, fitting geometry and the required pressure or flow evidence.
Can I change an elbow after selection?
Treat a material reroute as a duty change and recheck pressure, flow, support and access.
Should flexible connectors carry duct weight?
They are not a substitute for a coordinated support design; loads and vibration isolation must be reviewed.
What should be on a duct quote drawing?
Show source, fittings, dimensions, support, dampers, discharge, replacement air, access and the commissioning measurement points.
Why does duct layout change the fan choice?
Every elbow, transition, branch, damper, filter and discharge adds resistance or changes the flow pattern, moving the operating point from a free-air reference.
When should a duct route be rechecked?
Recheck it after changing fitting type, length, diameter, branch balance, filter or discharge. A route change is a system-duty change.
