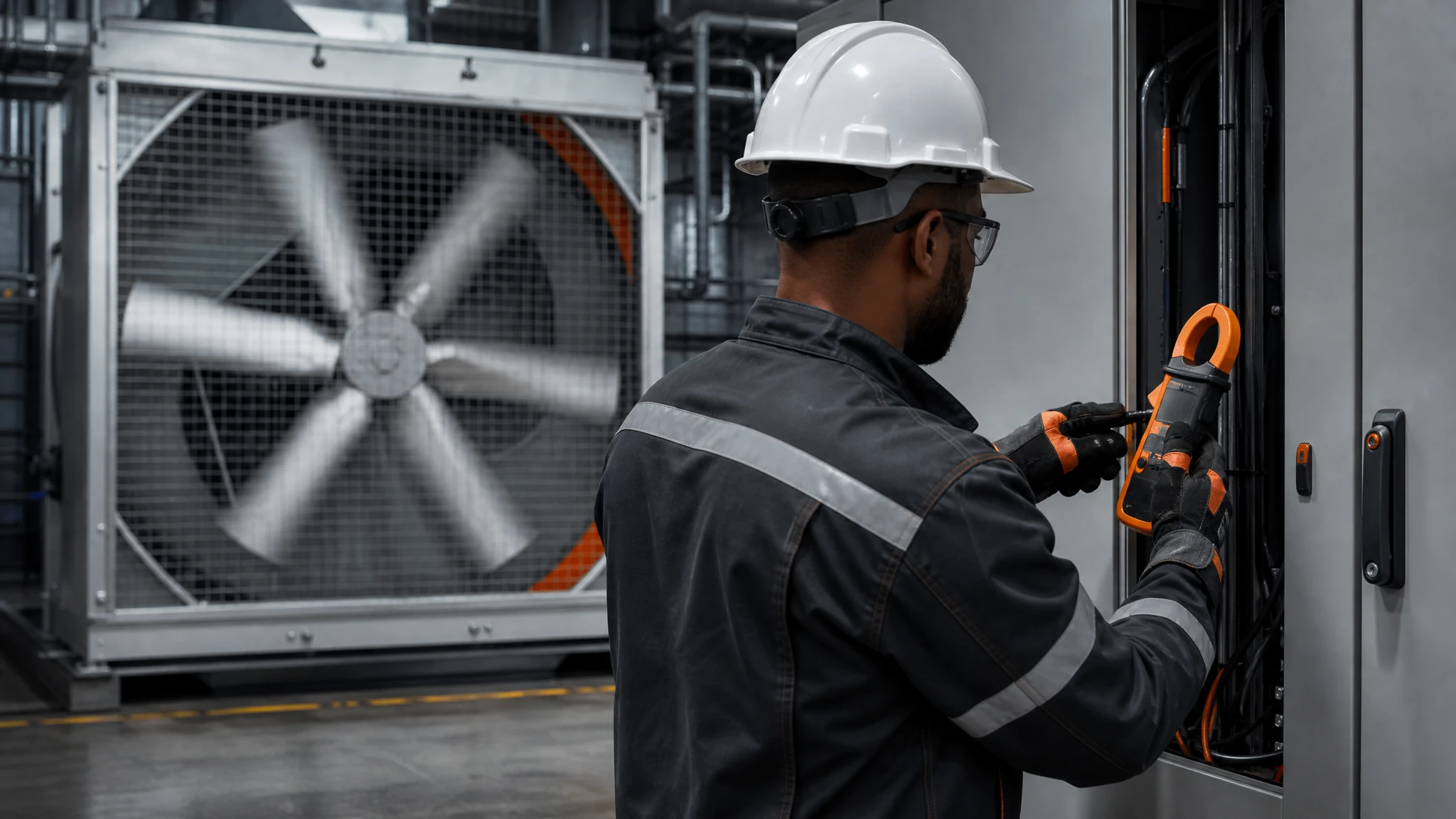

Measure input safely
Use the approved electrical method and a closed, controlled boundary.
Energy Starts With A Measurement Boundary
Industrial Fan Energy Monitoring
A watt number without runtime, control state and useful air movement cannot support an operating-cost or efficiency conclusion.
DefineActual Job
CheckPhysical Path
ControlSafe State
VerifyMeasured Result
Direct Answer
How Should Industrial Fan Energy Be Measured?
Log measured electrical input together with speed or control state, runtime, system condition and the airflow or pressure result that the fan is meant to deliver.
Motor nameplate power, controller display, maximum input and measured input are different values. Compare candidates only when they meet the same useful-air objective and electrical boundary.
A short reading is not annual energy. Record enough operating blocks to represent the real schedule, and state what was not measured.
Engineering scope and sources reviewed 7 October 2026 · Project conditions still govern final selection
Decision Framework
Four Parts Of A Defensible Fan Energy Log
Use the page as a working brief, not as a substitute for the site review.
Record the state
Capture speed command, pressure, airflow, filter condition and controls.
Convert to runtime
Multiply measured kW by the actual hours for each operating block.
Compare equal work
Do not call a fan efficient unless the useful airflow or pressure result is comparable.
Field Inputs
Industrial Fan Energy Log
Record the field inputs that can change the recommendation.
| Input | Capture | Why it matters |
|---|---|---|
| Electrical input | Measured kW, phases, voltage and method | Nameplate or display values may not be measured input |
| Operating state | Speed, control, damper, filter and duty | The fan does not run at one universal point |
| Runtime | Hours by shift, season or control block | Annual energy depends on actual hours |
| Useful result | Airflow, pressure, temperature or capture evidence | Energy alone is not the service result |
| Boundary | Fan, controller, auxiliary and system included | Different boundaries produce different comparisons |
Boundary: This guide does not certify a product, installation, performance, price, code or customer result. Replace screening assumptions with current documents and site evidence.
Practical Sequence
Build An Energy Log In Six Steps
- Define the serviceWrite the airflow, pressure or process condition the fan must deliver.
- Choose the safe methodUse qualified measurement and site electrical procedures.
- Log operating blocksRecord input and control state at each normal block.
- Measure the system resultPair input with airflow, pressure or the accepted condition.
- Calculate by blockConvert each measured kW and runtime block to kWh.
- Review the baselineCompare only like-for-like useful service and disclosed boundaries.
Connected Decisions
Use The Next Page Only When It Answers The Next Question
These links continue the same project workflow rather than sending the reader to loosely related content.
Start With The Duty
Put airflow, pressure, air path and operating condition on the same review sheet before choosing a series.
Read System Effect
Elbows, transitions, dampers and discharge restrictions can move the operating point away from the catalog reference.
Measure The Installed Result
A running motor is not proof of delivered airflow; use a repeatable field method when the result matters.
Questions Buyers Actually Ask
Industrial Fan Energy Monitoring: Measure Input Before Comparing Questions
Is motor nameplate power annual energy?
No. Annual energy depends on measured input, runtime, controls and the boundary included.
Can I compare two fans by watts alone?
Not defensibly unless they deliver the same useful airflow or pressure under comparable conditions.
Do VFDs always save energy?
A control can change input, but the result depends on the system, schedule, setpoint and measured service.
What should I send?
Send the duty, operating schedule, measured input method, speed states, airflow or pressure and baseline.
What is the minimum useful energy log?
Log measured electrical input, operating state, runtime, controls, duty and the measurement method, with enough context to compare the same useful service.
Why keep airflow or pressure in an energy comparison?
A lower watt reading is not a useful improvement if the fan also delivers less service. Compare input with the airflow or pressure outcome that matters.
Source Boundary
References Used For This Guide
Sources define methods and safety boundaries. They do not certify a proposed AirMoveX model or replace the adopted code, OEM instructions or a qualified project designer.
AMCA International
AMCA Publications and Education
AMCA separates fan performance, system effects, sound and application conditions; use the applicable publication and test basis for a project decision.
Open sourceOSHA
Safety and Health Regulations
Guarding, energy control, safe access and competent-person requirements remain site-specific before inspection or installation work.
Open sourceU.S. Department of Energy
Industrial Technologies
DOE industrial guidance supports measured operating data and whole-system comparisons rather than unsupported universal savings claims.
Open sourceProject Review
Need A Industrial Fan Energy Monitoring: Measure Input Before Comparing Review?
Send the duty, layout, operating condition, photos and the result you need to verify. A useful review keeps its assumptions visible.
